Panasonic FV-10VSL1 Service Manual

Whisper value-lite (north america market)

Advertisement

Service Manual
Voltage
Air
Model
direction
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1.Parts Identification
2.Wiring Diagram
3.Parts List
4.Replacement Guide
FV-10VSL1
Duct
Frequency
diameter
(V)
(Hz)
(sones)
(inches)
IMPORTANT SAFETY NOTICE
Power consumption (W)
Noise
Lighting unit
Fan body
Fluorescent lamp
WARNING
PEG1311047CE
Version:1402
Ventilating Fan
Whisper Value-Lite
(North America Market)
Speed
Air deliver at 0.1"WG
(rpm)
(cfm)
Night lamp
Weight
lb.(kg)
PAGE
1~3
4
5~7
8~9

Advertisement

loading

Summary of Contents for Panasonic FV-10VSL1

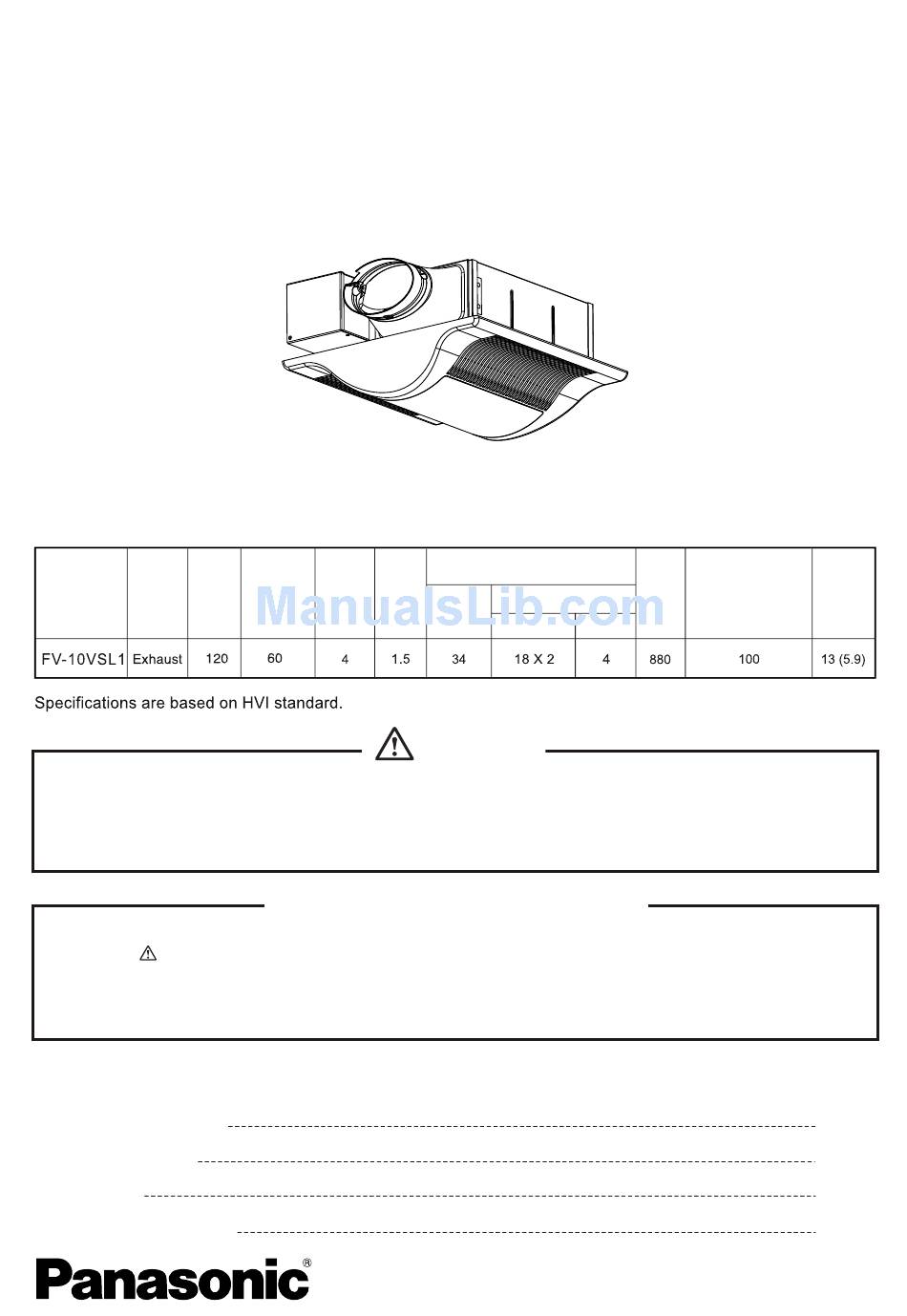

  • Page 1 PEG1311047CE Version:1402 Service Manual Ventilating Fan Whisper Value-Lite (North America Market) FV-10VSL1 Power consumption (W) Weight Speed Duct Air deliver at 0.1"WG Voltage Frequency Noise Model diameter Lighting unit (Hz) (sones) direction (rpm) (cfm) lb.(kg) (inches) Fan body Fluorescent lamp...
  • Page 2: Parts Identification

    1.Parts Identification FV-10VSL1 Main Body (4pcs) LISTEN 8B68 A375682G8 When you need to replace the Motor Assembly Please order the Fan Assembly replacement. Ventilating Fan Ventilaterur Ventilating Fan Ventilaterur FV-10VSL1 FV-10VSL1 AC120V 60Hz 0.29A (Fan) 0.33A (Light) AC120V 60Hz 0.29A (Fan) 0.33A (Light) Ser.
  • Page 3 1.Parts Identification FV-10VSL1 Main Packing Fan Body...
  • Page 4 1.Parts Identification FV-10VSL1 Lighting Unit Assembly Replacement Method If the ballast assembly was damaged,please order the new grille unit section(FFV3420059S) to replace defective ballast assembly&original grille unit.Please refer to P8-P9 for replacement guide. Remark:The minimum quantity of an order for this new grille unit is 10 sets.
  • Page 5 2.Wiring diagram FV-10VSL1...
  • Page 6: Parts List

    3.Parts List FV-10VSL1 Main Body No. Part No. Part Name Q'ty Remark FFV0420024S Bracket Cover FFV1600067S Frame Assembly FFV5720015S Scale Tape Stuck On Frame Assembly FFV0000102S Adapter Assembly FFV0900020S Connector Plate For Fixing Lead Wire FFV0900045S Connector Assembly FFV0900044S Connector Assembly...
  • Page 7 3.Parts List FV-10VSL1 Main Body Part No. Part Name Q'ty Remark 35 FFV0730021S Cord FFV7000018S Truss Tap Screw For Fixing Bracket Cover To Frame Assembly FFV7000091S Pan Tap Screw For Fixing Connector Plate And Junction Box Cover FFV7000168S Screw Assembly...
  • Page 8 3.Parts List FV-10VSL1 Lighting Unit Assembly Replacement Method Part No. Part Name Q'ty Remark 47 FFV2540164S Installation Instruction 48 FFV0730034S Cord Assembly B 49 FFV3420066S Light Kit Cover Assembly 50 FFV3420071S Lamp Holder Section 51 FFV3420067S Fluorescent Lamp 52 FFV5560028S Spring Set Plate...
  • Page 9 4.Replacement Guide INSTALLATION Slot CAUTION Disconnect power source before working on unit. Mounting spring CAUTION Glove Fig.1 Grille Ceiling 1. Remove the primary light kit grille.Remove grille by pulling down one mounting spring. Then pull down the other mounting spring. Receptacle (Squeeze mounting spring and pull down  ...
  • Page 10 4.Replacement Guide INSTALLATION Ceiling 7. Insert the grille mounting spring on the wiring side into the slot, and insert the plug Plug connector connector into the housing of lighting lighting unit unit.(Fig.7) Gloves 8. Insert the other mounting spring into the slot as shown and mount grille to fan body.
