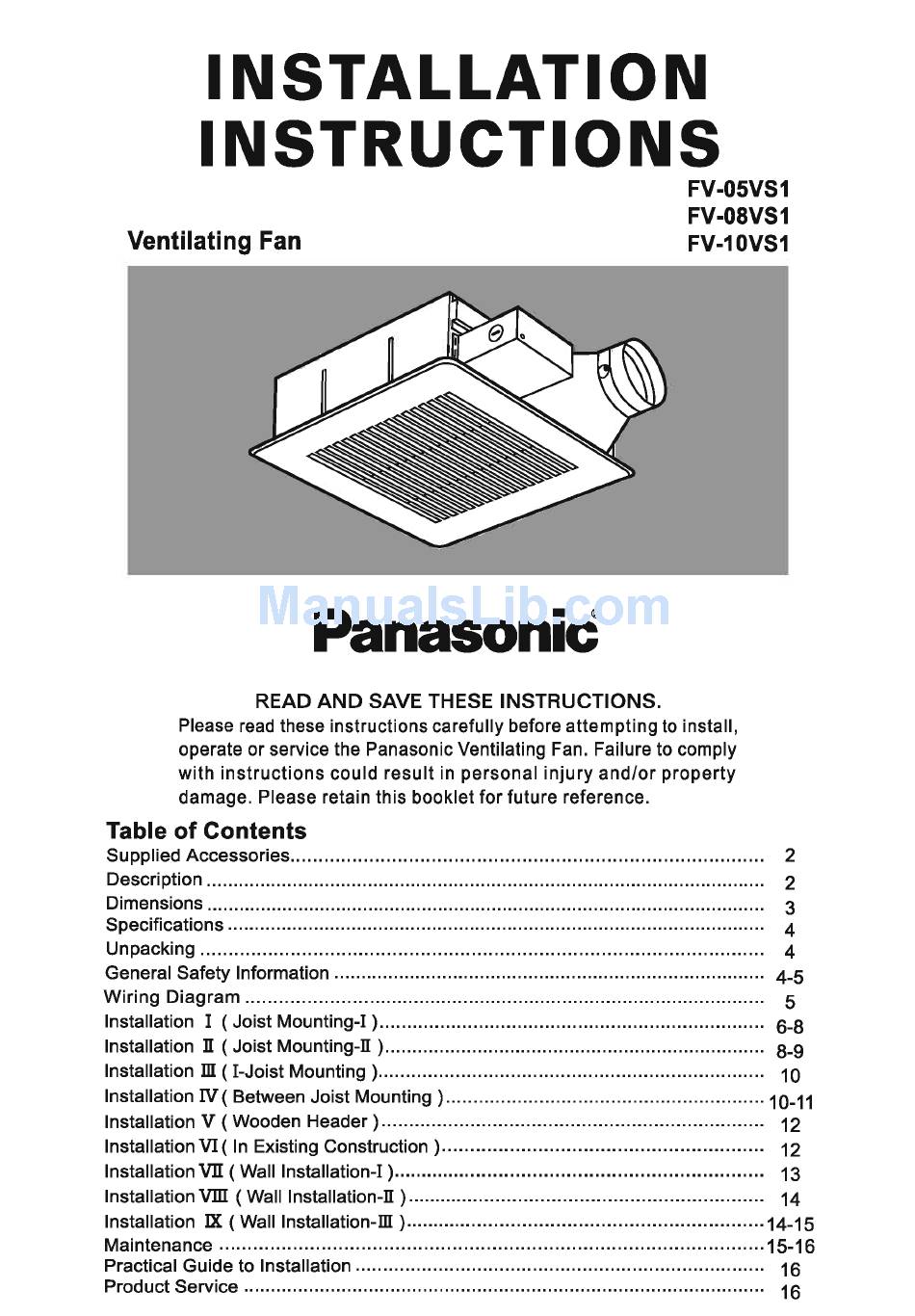

Do you have a question about the FV-05VS1 and is the answer not in the manual?
Questions and answers
Debbie
March 10, 2025

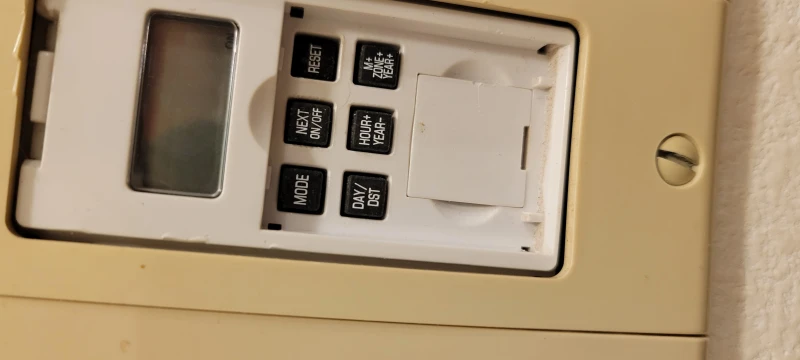

Need instructions for wall panel for FV05VS1 Ventilating ****
1 comments:
Mr. Anderson
May 14, 2025
For wall installation of the Panasonic FV-05VS1 ventilating fan, follow these instructions:
1. Secure the fan body to the adaptor using the thumbscrew. 2. Insert the suspension bracket into the bracket cover on the adaptor side and the back of the fan body. 3. Insert the fan body between wall studs, ensuring it is level and perpendicular. Maintain a distance of 3/16 inch (5 mm) from the stud. 4. Secure the suspension bracket to the studs using long screws (ST4.2X20). 5. Secure the suspension bracket to the fan body using Screw II (ST4.2X10). 6. Refer to the specified figures (12-3, 12-4, and 7) for motor/grille assembly installation.
For Wall Installation-III (for 12-inch and 24-inch joists): 1. Secure the fan body to the adaptor using the thumbscrew. 2. Remove backing paper from the spacer and attach it to the flange of the fan body, aligning holes. 3. Insert and secure the correct suspension bracket depending on joist size: - For 24-inch joists: use the bracket cover on the adaptor. - For 12-inch joists: use the bracket cover at the back of the fan body.
Need help?
Do you have a question about the FV-05VS1 and is the answer not in the manual?
Questions and answers
Need instructions for wall panel for FV05VS1 Ventilating ****
For wall installation of the Panasonic FV-05VS1 ventilating fan, follow these instructions:
1. Secure the fan body to the adaptor using the thumbscrew.
2. Insert the suspension bracket into the bracket cover on the adaptor side and the back of the fan body.
3. Insert the fan body between wall studs, ensuring it is level and perpendicular. Maintain a distance of 3/16 inch (5 mm) from the stud.
4. Secure the suspension bracket to the studs using long screws (ST4.2X20).
5. Secure the suspension bracket to the fan body using Screw II (ST4.2X10).
6. Refer to the specified figures (12-3, 12-4, and 7) for motor/grille assembly installation.
For Wall Installation-III (for 12-inch and 24-inch joists):
1. Secure the fan body to the adaptor using the thumbscrew.
2. Remove backing paper from the spacer and attach it to the flange of the fan body, aligning holes.
3. Insert and secure the correct suspension bracket depending on joist size:
- For 24-inch joists: use the bracket cover on the adaptor.
- For 12-inch joists: use the bracket cover at the back of the fan body.
This answer is automatically generated
