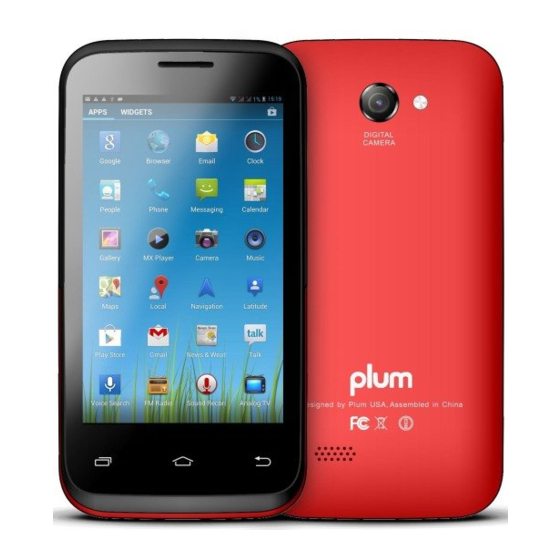

Plum Z402 User Manual

Dual sim cards smart phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Dual SIM Cards Smart Phone
User Guide
Brand：plum
FCC ID:Y7WPLUMAXE








Z402


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Plum Z402

Summary of Contents for Plum Z402

  • Page 1   Z402  Dual SIM Cards Smart Phone    User Guide  Brand：plum  FCC ID:Y7WPLUMAXE                   ...
  • Page 2   Dear Customer, Thank you for choosing smart phone. AXE II 3G This is a smart phone. In addition to common call functions, it also provides you with a variety of practical functions including Bluetooth, English input, Contacts, ringing or image alert for incoming calls, camera, MP3 player, Video player, memory card (T-Flash card), recorder, calculator,...
  • Page 3 message fee. Please note, thanks! The right of final interpretation of above content is reserved.                                  ...

  • Page 4: Table Of Contents

      Contents 1Appearance..........1 2Insertion and Removal of SIM card..1 3Insertion and Remove of the Memory Card..............2 4Installation Removal Battery…………………………………………...2 5Battery Charging........4 6Dialing............5 7Guide to Menu Operations......8 8Safety Precautions.........17 9Cleaning and Maintenance....19 10Technical Information......20 11Trouble shooting........24      ...
  • Page 5 12Warning..........31      ...

  • Page 6: 1Appearance

    Appearance Insertion and Removal of SIM card Turn off the phone; remove the battery unplug other external power sources. Insert the SIM card into the SIM slot. When you need to remove the SIM card, please first turn off the phone, remove the battery, then remove the SIM card.

  • Page 7: 3Insertion And Remove Of The Memory

    Insertion and Remove of the Memory Card Place the Memory Card into the Memory Card Slot. When you need to insert or remove the memory card, it is suggest that first turn off the phone. When you turn on the phone, insert the memory card can lead to memory card don’t recognize.
  • Page 8 ② Cover with the battery cover. Warning: You must turn off your mobile phone before removing the battery. Do not place the battery in fire; follow local laws and ordinances in disposing used battery. Check the model number of the charger before using it to charge the mobile.

  • Page 9: 5Battery Charging

    Battery Charging Plug the charger into the electrical outlet. Plug the charger connector into the charge interface of the phone. The mobile phone and charger will become warm during charging and this is normal. When charging is complete, unplug the charge connector from the electrical outlet and the mobile phone.

  • Page 10: 6Dialing

    Dialing Making Domestic Calls Use the number keys to input numberand then press the dial key to dial the call via SIM card 1/2. You can input domestic calls in this order: Area code phone number dial key Making International calls For making international calls you should long press the 0 key, until the international phone prefix “+”...
  • Page 11 Emergency Calls If you are located within a network area (you can find this out by referring to the network strength indicator located upper left-hand corner of your mobile phone screen), even if you do not have a SIM card, you will be able to transmit emergency calls.
  • Page 12 can display different menus. Back key: in function interface, press the key to return to the menu.           ‐ 7 ‐  ...

  • Page 13: 7Guide To Menu Operations

    Guide to Menu Operations All function options about the mobile phone listed below with brief descriptions. Application software The mobile phone provides you with a lot of application software, While at the same time, customer can installed unlimited application software. Note: need to insert the memory card, and keep the memory card has enough space.
  • Page 14 You can compose new messages. Press Menu key, choose Compose,Search,andSettings. Settings, you can set it as follows: Delete old messages, Text message limit, Multimedia message limit, Delivery reports, Manage SIM card messages, Edit quick text, SMS Service Center, SMS storage location, Delivery reports, Read reports, Auto-retrieve, Roaming auto-retrieve, Creation Mode, Size Limit, Priority, Notifications, Select ringtone,...
  • Page 15 Received calls, Missed calls, to respectively show the list of call logs. It displays the contacts. Long Contacts press one contact, it displays the options in follows: View contact, Edit contact, Delete contact, Add to speed dial, Share contact. Favourit save favourites contacts.
  • Page 16 Email You can create an account and access your email. Video Wallpaper You can playvideo wallpaper form the menu of Default, SD Card, Camera. If you like the video wallpaper, you can click the button of “Set Wallpaper” to set as Wallpaper File Manager You can use File Manager to organize...
  • Page 17 follows: Airplane mode, & WLAN, WLAN settings, networks Bluetooth, Bluetooth settings, Tethering & Portable hotspot, VPNsettings, Mobile networks, GPRStransfer prefer. Call To perform the call settings settings includingVoice Call, Video Call, IP Call settings, Other settings. Audio To activate and customize the profiles desired profile as General, Silent,Meeting, Outdoor.
  • Page 18 includingUse wireless networks, satellites, assistance, EPO settings, A-GPS, A-GPS settings. Security perform security settings includingSet screen lock, Set up SIM card lock, Visible passwords, Select device administrators, Use secure credentials, Install from SD card, Set password, Clear storage. Applicati perform settings includingUnknown sources,...

  • Page 19: Power Button Ends Call

    perform settings Accounts includingBackground data, & sync Auto-sync. Privacy perform settings includingBack up my data, Automatic restore, Factory data reset. Storage You can view the information form the SD card or phone storage. Enter the menu; you can set Language function Select &...
  • Page 20 press Power key will end the call instead of turning off screen. Date & This menu to change the time time and date displayedon your phone. You can edit four times to turn Schedule on/off the mobile-phone. power on/off About It displays the information of phone your phone.
  • Page 21 according to calendar. Calculator To provide a calculator with 4 basic functions to facilitate simple calculations. Clock Enter the menu, you can view the date and time set weather location. Click the button of Alarm, Gallery or Music, you can enter corresponding function.
  • Page 22 function for SIM1/2. FM Radio Please plug in the compatible earphone to the device and then turn on the radio. The earphone cable can be used as FM Antenna. Please adjust appropriate volume when listening to the radio. Continue to use higher volume is harmful for your ear.
  • Page 23 Note: If the phone finds a network that you connected to previously, it connects to it. Touch a network to connect to it. If the network is open, you are prompted to confirm that you want to connect to that network by touching Connect.
  • Page 24 device before you can connect to it. Once you pair your phone with a device, they stay paired unless you unpair them. Your phone scans for and displays the IDs of all available Bluetooth devices in range. If the device you want to pair with isn’t in the list, make it discoverable.

  • Page 25: 8Safety Precautions

    Safety Precautions Before using the phone, please read the safety precautions carefully and let your children know these, so that you can use your phone correctly and safely. Do not switch on your phone when phone use is prohibited or when phone use may cause interference or danger.
  • Page 26 Do not place your phone or its accessories in containers with strong electromagnetic field.   Do not place magnetic storage media near your phone. Radiation from the phone may delete the information stored on them. Do not put your phone in a high-temperature place or use it in a place with flammable gas such as a gas station.

  • Page 27: 9Cleaning And Maintenance

    Cleaning and Maintenance The mobile phone, battery and charger are not water resistant. Please do not use them in the bathroom or other excessively moist areas and likewise avoid allowing them to get wet in the rain. Use a soft, dry cloth to clean the mobile phone, battery and charger.

  • Page 28: 10Technical Information

    Technical Information Phone Model Z402 Lithium Battery Model PMB37 Nominal voltage 3.7v Nominal 4.2v Capacity rating 1450mAh Continuous standby time 400-500hrs Continuous calling time 4-5hrs Depending on the network Operation Temperature -10~+50 °C         ‐ 23 ‐  ...

  • Page 29: Trouble Shooting

    Trouble shooting If anything unusual occurs while using your mobile phone, please refer to the following table. Frequently Cause How to Occurring Problems Poor Using reception mobile phone in avoid. area with poor reception such as near tall buildings or in a basement where radio...
  • Page 30 Related to the You can distance from request the base station that the built network network. service provider provide service area plan. Echo Caused by poor Hang up noise network relay, a regional redial, if problem. the relay Some calling regions have changed...
  • Page 31 Shortening Standby time is Please related to the temporar standby network turn time system. your mobile phone, located area with poor receptio Batteries need Replace to be replaced batterie     ‐ 26 ‐  ...
  • Page 32 When Please cannot move to signal, an area phone will with continue strong transmit signal or order to find a tempora base station, rily turn thereby off your expending mobile large amounts phone. of electricity will cause standby time to decrease.
  • Page 33 SIM card is not Confirm properly inserted. card properly inserted There foreign clean substance cloth to metal wipe off surface of the SIM card. metal contact point of the SIM card. Unable to Expired Contact connect card your with network network provider Outside...
  • Page 34 Poor signal. Please move to a place with better signal and try again. Unable to Using the call Cancel make bar function the call call function. Using the fixed Cancel dialling the fixed function. call setting. Incorrect Consecutively Contact enter the wrong your number password three...
  • Page 35 Poor contact Check if the plug properly connect Unable to storage Delete a space portion phone phone book is book full phone entries number entries Unable to Your network Contact set certain provider does your functions not support this network function or you provider have...
  • Page 36 Warning FCC RF EXPOSURE INFORMATION: WARNING!! Read this information before using your phone In August 1986 the Federal Communications Commission (FCC) of the United States with its action in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.
  • Page 37 comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. BODY-WORN OPERATION: This device was tested for typical body-worn operations with the back of the phone kept 1.5cm from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 1.5cm must be maintained between the user's body and the back of the phone,...
  • Page 38 For more information about RF exposure, please visit the FCC website at www.fcc.gov Your wireless handheld portable telephone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless phones.
  • Page 39 universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). Nevertheless, we recommend that you use a hands-free kit with your phone (such as an earpiece or headset) to avoid potential exposure to RF energy. The design of your phone complies with the FCC guidelines (and those standards).
  • Page 40 For your phone to operate most efficiently: • Extend your antenna fully. • Do not touch the antenna unnecessarily when the phone is in use. Contact with the antenna affects call quality and may cause the phone to operate at a higher power level than otherwise needed.
  • Page 41 conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
  • Page 42 used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
  • Page 43 Do not use the device with the environment which below minimum -10℃ or over maximum 50℃, the device may not work. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
