1
INCLUDED ACCESSORIES
+ +
A Carefully place your TV face-down on a cushioned, clean surface.
B Slide the TV stand over the stand legs. Make sure that the long parts of the TV stand and stand
C Secure the TV stand to the stand legs using two of the provided 8 mm screws (the short screws) per stand leg.
Remote control and
D Secure the stand legs to the back of your TV using two of the 12 mm screws (the long screws) per stand leg.
two AAA batteries
A
Stand legs
LEFT
RIGHT
TV stand
FEATURES
C
M4 screws
Front
M
(8 mm length)
Y
(4 pcs.)
CM
MY
M4 screws
CY
(12 mm length)
CMY
(4 pcs.)
K
FIND YOUR USER GUIDE ONLINE!
Left side
US: go to: support.toshiba.com. Type L310U,
click GO, then click Manuals & Specs.
Canada: visit support.toshiba.ca/support
For detailed product specifications, select TV, LED,
then select 40L310U.
Back
WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
"hazardous voltage" within the product's enclosure, which may be of
sufficient magnitude to induce a risk of electric shock to persons.
The exclamation mark inside an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the product.
IMPORTANT: See online User Guide before installing the
TV on a wall.
URL: USA - http://support.toshiba.com
Canada- http://support.toshiba.ca/support/ceg/
START HERE
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and a Phillips screwdriver.
legs point in the same direction.
B
2
Remote sensor
Best video quality
Power On/Standby LED
M4 type (12 mm) screws
X2
M4 type (8 mm) screws
D
C
M4 type (8 mm) screws
MAKING CONNECTIONS
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player or game console?
HDMI 1 port can be
COMPONENT
HDMI (BEST)
used for either HDMI
OR DVI.When used for (BETTER)
DVI, only Video is
supported and
not Audio.
AUDIO/VIDEO OUT
Quick Setup Guide

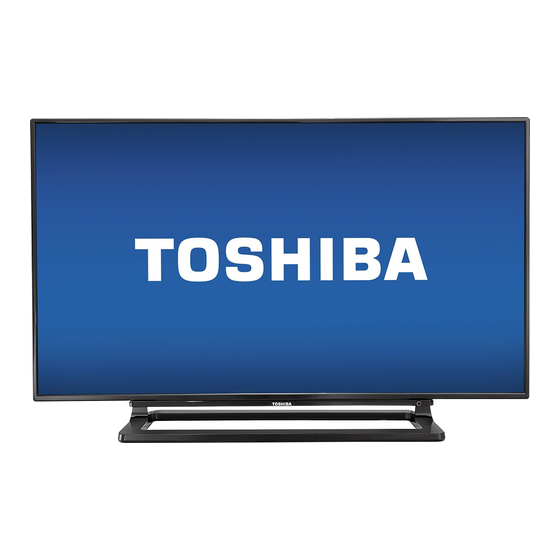

40" 1080p, 60Hz, LED TV
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You'll need: Soft surface
Before you mount your TV, make sure:
• You remove the stand.
• The wall-mount bracket is listed by an independent laboratory(such as UL, CSA, or ETL).
• The bracket supports the weight of your TV.
A Carefully place your TV face-down on a cushioned, clean surface.
OR
B See the instructions that came with your wall mount for
more information about how to correctly mount your TV.
A
Note: The component and
AV (GOOD)
OR
AV jacks are shared. This means
you can connect only one
component or AV device at a
time. We suggest upgrading to
HDMI (BEST) if your device
supports it.
Note: Connect the yellow
video cable to the green
Video/Y jack.
AUDIO/VIDEO OUT
V2
FINAL
FOR PRINT
| 40L310U QSG
VESA Mounting Pattern
VESA mount (mm): 200x200 - M6 Type screws
Your TV has four VESA mounting holes on
the back. If you attach a wall-mount
B
bracket to the back of your TV, the bracket
must be securely attached, using all four
holes. If you do not use all four mounting
holes, your TV may fall and cause property
damage or personal injury. See the
documentation that came with your wall
mount for complete mounting
instructions.
Coaxial
(GOOD)
