Marantz SC7S1/F1N Service Manual

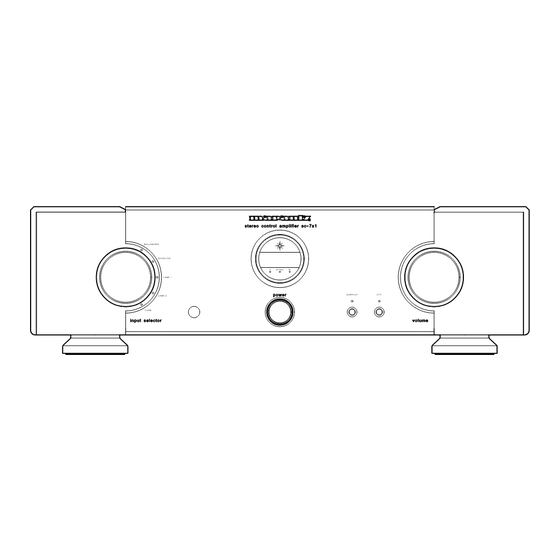

Stereo control amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Service
Manual
SECTION
1. TECHNICAL SPECIFICATIONS ........................................................................... 1
2. BLOCK DIAGRAM ................................................................................................ 3
3. SCHEMATIC DIAGRAM ....................................................................................... 5
4. PARTS LOCATION ............................................................................................. 13
5. IC DATA .............................................................................................................. 19
6. EXPLODED VIEW AND PARTS LIST ................................................................ 23
7. SERVICE MODE ................................................................................................ 26
8. BUS SPECIFICATIONS ...................................................................................... 30
9. ELECTRICAL PARTS LIST ................................................................................ 38
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.
stereo control
stereo
control amplifier
amplifier sc
sc - 7s1
7s1
BALANCED
SACD / CD
A
SYNC
B
LINE 1
power
power
LINE 2
TAPE
input
input selector
selector

TABLE OF CONTENTS

SC-7S1
SC7S1 /
Stereo Control Amplifier
DISPLAY
ATT
volume
volume
PAGE
F1N/N1G/U1G
Part no 340J855020
First Issue 2003.09
ecm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC7S1/F1N and is the answer not in the manual?

Questions and answers

Related Manuals for Marantz SC7S1/F1N

Summary of Contents for Marantz SC7S1/F1N

  • Page 1: Table Of Contents

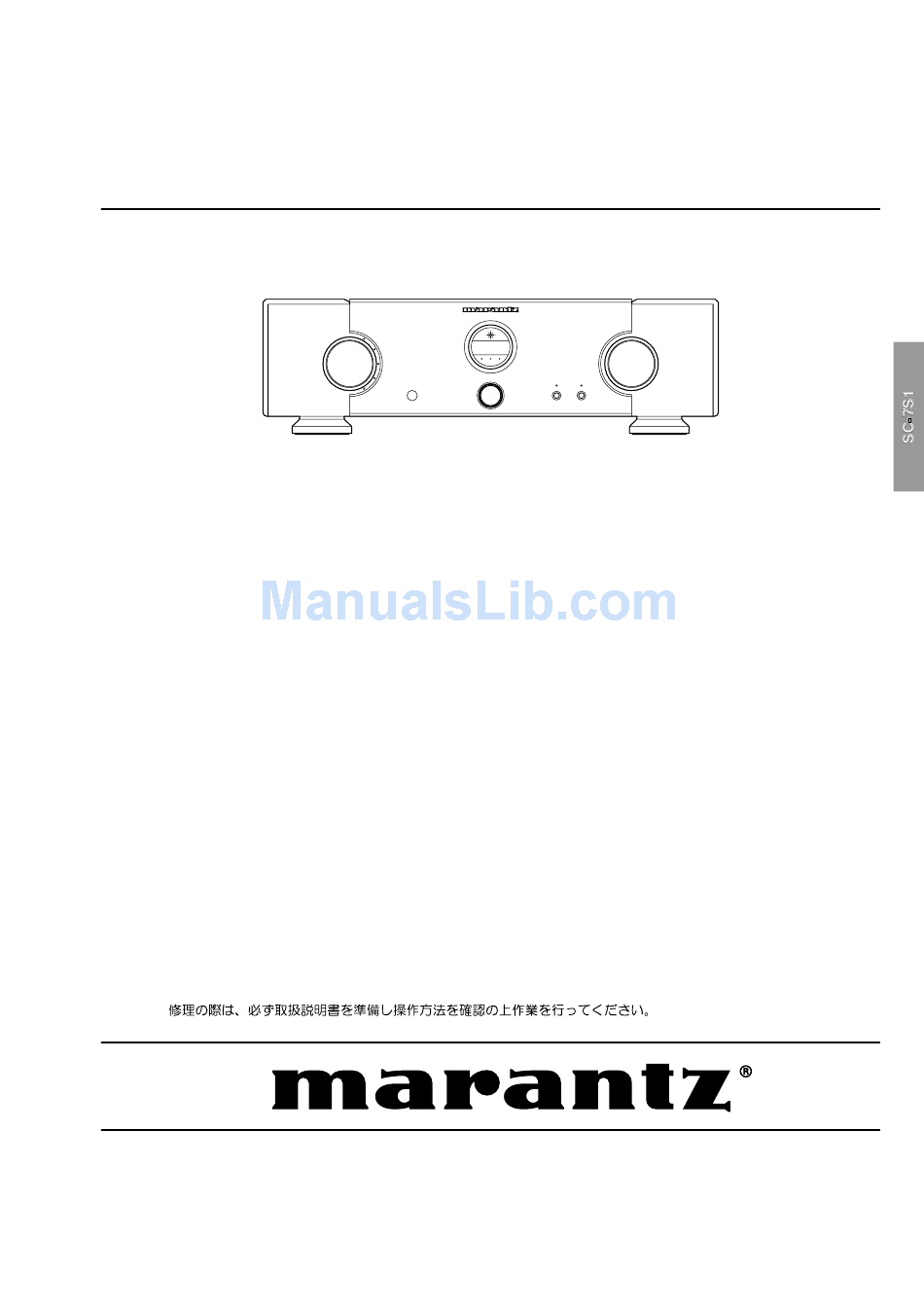

    Service SC7S1 / F1N/N1G/U1G Manual Stereo Control Amplifier stereo stereo control control amplifier amplifier sc sc - 7s1 BALANCED SACD / CD SYNC LINE 1 power power DISPLAY LINE 2 TAPE input input selector selector volume volume TABLE OF CONTENTS SECTION PAGE 1.
  • Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.

  • Page 3: Technical Specifications

    1. TECHNICAL SPECIFICATIONS Audio Characteristics Rated Output (20Hz - 20kHz) ........................1.7V (Balanced) ............................ 1.7V (Unbalanced) Maximum Output (20Hz - 20kHz) ......................... 13.5V (Balanced) ..........................13.5V (Unbalanced) Total Harmonic Distortion (20Hz - 20kHz) ....................0.0015% (Balanced) ..........................0.003% (Unbalanced) Frequency Response (+0/-3dB) ...................... 3 Hz - 150 kHz(Balanced) ........................
  • Page 4 Caution The layout of this amplifier is well concerned for sound quality. 1. When screws and washers are removed, those parts must be set to the same places. 2. When wires are removed, the wires must be installed in the same roots, same places. 3.

  • Page 5: Block Diagram

    2. BLOCK DIAGRAM BALANCED Ach INPUT BALANCED SACD/CD LINE-1 Ach PRE OUT UNBALANCED-1 LINE-2 UNBALANCED-2 TAPE REC OUT MUTE DRIVER INPUT SELECTOR RELAY DRIVER VOLUME ATT SW. ±22V DISPLAY DISPLAY SW. µP DRIVER LED DISPLAY ±12V RELAY VOL. ID SW. µP MODE SW.

  • Page 6: Schematic Diagram

    3. SCHEMATIC DIAGRAM P101 1/2 RC36 B_+22 +22V B_+22 R440 CD_B_IN R436 2.26K R438 R448 OPA2604AP RC34 C420 2.26K (JUMPER) B_-22 RC38 OPA2604AP -22V -22V Q418 22/25V Q412 2SC2240 Q404 2SA970 Q418 RC35 A_+22 +22V C418 -12S T 22/25V R446 C464 C412 BAL_BIN_-...
  • Page 7 P101 2/2 Q512 2SA1349 Q520 2SA970 Q504 Q508 Q528 D512 C550 R508 R532 22/25V HSS81 HDAM-SA HDAM-SA HDAM-SA 22/25V J016 C512 D516 HSS81 Q544 2SC2240 R576 W015 J506 Q524 15.4K 2SC2240 BALANCED C538 Q536 R528 2SA970 100k Q532 R584 22.6 Q516 R572 2SC3381...
  • Page 8 L002 TO J501 W005 J802 J805 R828 1 1/4w P801 Q801 2SD1415 R807 D801 D802 D803 D804 +32.0 21DQ10 21DQ10 21DQ10 21DQ10 Q803 2SK246 +23.0 W801 R827 -32.8 +32.8 +25.4 1/4w J804 +24.0 W004 +30V C803 D809 D805 D806 D807 D808 470/25v +30V...
  • Page 9 PU01 P301 TO JC03 Q209 Q211 Q213 Q215 Q217 J201 2SA1048 2SA1048 2SA1048 2SA1048 2SA1048 L301 L302 L303 BALANCE LINE1 LINE2 TAPE L304 L305 TAPE W023 L306 J301 J304 D301 MUTE Q210 Q212 Q214 Q216 Q218 DTC114ES DTC114ES DTC114ES DTC114ES DTC114ES L307 Q208...

  • Page 10: Parts Location

    4. PARTS LOCATION P101 Q418 Q417 Q420 Q419 Q422 Q421 Q424 Q423 Q408 Q402 Q407 Q401 Q404 Q406 Q403 Q405 Q416 Q410 Q415 Q409 Q412 Q414 Q411 Q413 DC16 DC01 DC17 DC03 DC18 DC05 DC19 DC07 DC20 DC09 DC02 DC04 DC06 DC08 DC10...
  • Page 11 PU01 Q222-Q224 Q206-Q218 D311 D310 Q221 Q203 D305 Q301 D312 Q205 Q201 Q202 D307 D309 D308 Q220 Q219 D313 D314 P801 D810 D809 D839 D829 D831-D838 Q804 Q803 D840 D841 Q812 Q810 D820 Q808 Q807 D819 D811-D818 Q802 Q801 Q811 Q809 Q806 Q805...
  • Page 12 PS71 P271 PU51 P891 P261 D271-D273 D315 Q274-Q277 Q279 D275 Q272 Q278 Q273 D274 PU61 D316 PF01 PS01 P851 P301 D805 D806 D807 D808 D301- D304 D801 D802 D803 D804 PU71 P251 Q204...

  • Page 13: Ic Data

    5. IC DATA Q301:NJU3716 Block Diagram Pin Assignment Q302:NJU3719 Pin Description Q526/Q529:WN8816 Pin Description...

  • Page 14: Pin Assignment

    LED Port Assignment NJU3716 NJU3719 DATA DATA LED1 LED2 LED3 LED4 Pin No. Data output pin NJU3716 Pin No. Data output pin NJU3719 LED3b TAPE LED LED3c LINE-2 LED LED3-DP LINE-1 LED LED3d SACD/CD LED LED3e BALANCED LED LED3g POWER LED LED3f ATT LED LED3a...
  • Page 15 Pin Description Pin PORT Name Function Description Pin PORT Name Function Description N.C . N.C . N.C . N.C . (AVcc) AVcc I Analog power (NMI) ICE4 Pull Up (X2) O Sub clock P80(FTCI) N.C. (X1) I Sub clock Connect to GND P81(FTIOA) RC5 I Capture input port IR capture...

  • Page 16: Exploded View And Parts List

    6. EXPLODED VIEW AND PARTS LIST 5 1 2 8 W 0 0 1 3 X 8 ( M) J 0 0 1 5 1 1 0 3 X 6 ( U) SYMBOL ST YL E PART S NAME MARK MAT ERI AL / FINISH 5 1 2 9 9 0 7 Gx 4 0 0 9 D...
  • Page 17 001S PACKING CASE 340J801010 003S CUSHION F 339J809010 004S CUSHION R 339J809020 010S PACKING CASE 340J805010 MASTER CARTON W091 CONNECTIVE CORD TCP8580 ZD01000910 REMOTE CABLE NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

  • Page 18: Service Mode

    7. SERVICE MODE 1. To enter the Service Mode, press the POWER switch with pressing the DISPLAY and ATT buttons on the main unit to switch power ON, or when the remote code '166363' is received while power is ON. 2.
  • Page 19 7Seg Front Display Front BALANCE SACD/CD LINE-1 LINE-2 TAPE Volume UP Volume Down Trim EXIT A-Trim Up A-Trim Down B-Trim Up B-Trim Down...
  • Page 20 11. This completes all the tests. Press the DISPLAY and ATT buttons to return to Step1., or press the POWER switch to turn power OFF. Note that the Service Mode is terminated if power is turned OFF at any point during steps 1. to 10. When the Service Mode is terminated the memory is cleared and the system is initialized.
  • Page 21 REMOTE COMMANDS TABLE Key name RC code BALANCED [BALANCE] 16 00 20 BALANCED SACD/CD [CD] 20 63 SACD/CD LINE-1 [AUX 1] 16 00 06 LINE-1 LINE-2 [AUX 2] 16 00 07 LINE-2 TAPE [TAPE] 18 63 TAPE Master Volume UP VOLUME UP [VOL+] 16 16...

  • Page 22: Bus Specifications

    8. BUS SPECIFICATIONS < Features > This unit employs a bus system incorporating the 'e-Bus' (bi-directional packet communications) concept, and is used for control of independent and system operation. The Master unit controls all the bus sysytem. The bus system provides for mutual recognition, with control commands and status information being sent and received between units, thus allowing linked operation of multiple units.
  • Page 24 Remote Bus Connection ID Numbers Each unit is identified by a set ID number. Each ID number is set by the user. The unit with ID=1 is as the Master. ID=1 is also used for stand-alone (single-unit) operation. If there are multiple units with the same ID number, connection error occurs and the error code is displayed, The Master must be at the top in the bus connection.
  • Page 25 ID=1 ID=2 Master Slave Return ID=1 ID=2 ID=3 ID=4 ID=5 ID=6 Master Slave Slave Slave Slave Slave Return...
  • Page 26 Circuit Description The P271 board is the bus connection interface board. The 8-pin Mini DIN cable is used for the reomote bus connection between the units. IN (J272) Number Terminal Terminal description IN-H Remote IN Hot IN-C Remote IN Cold Return-H Return Hot from End Slave Return-C...
  • Page 27 IN-H Remote in Hot IN-C Remote in Cold Return-H END Slave Return Hot Return-C END Slave Return Cold M-GND Master M-GND Master +12V Master +12V -12V Master -12V OUT-H Remote OUT Hot OUT-C Remote OUT Cold Return-H END Slave Return Hot Return-C END Slave Return Cold...
  • Page 28 Error Messages Switch power OFF if any of the following error messages are displayed while multiple units are in use and connected to the bus via the remote terminal. Error Meaning asures required Code Multiple units set for ID No.2. Change the ID number on the ID number Multiple units set for ID No.3.
  • Page 29 Bus Connection System Data Flow Master ON Master ON Relay Relay -12V Q274 L274 +12V -12V - 12V -12V S274(ID SW) +12V Q201 L275 L273 M-GND Power ON Q276 Q275 M-GND Relay x 2 -12V Master_H END Relay Return-c Return-H IN-C IN-H BUS IN...

  • Page 30: Electrical Parts List

    9. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : ASSIGNMENT OF COMMON PARTS CODES. RESISTORS The suppliers and their type numbers of fusible resistors : 1) GD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows; : 2) GD05 ×...
  • Page 31 CER.50V DC 0.1µF +80%-20% DD38104010 R440 C533 OF15103540 FILM APSV 103J, OF15103540 R441 0.01µF(TP) 100V PP RES.100kΩ ±1% 1/4W GM11410030 R444 R449 RES.22.6kΩ ±1% 1/4W GM11422620 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 32 Q508 (PH01 - PCB ASSY) RES.100Ω ±1% 1/4W GM11410000 Q509 R572 HT113492A0 TRS.2SA1349 GR BL DUAL TR. HT113492A0 R573 Q512 RES.15.4kΩ ±1% 1/4W GM11415420 R580 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 33 CER.CERMIC 0.1µF Z 50V DA17104110 P271 - XLR IN/OUT C339 CER.10000pF DA17103110 CIRCUIT BOARD C340 CER.10000pF DA17103110 P271 - CAPACITORS C271 ELECT.10µF ±20% 25V RA-2 OA10602520 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 34 HD30621000 D831 CIRCUIT BOARD DIODE 21DQ10 HD20059100 PH01- RESISTORS(COMMON) CARBON FILM FIXED RES. D838 ±5% 1/6W : R287-R290 R292 D839 HD30751000 ZENER 7.5V EQUIVALENT HD30751000 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 35 ELECT.10µF ±20% 25V RA-2 OA10602520 FC90090010 FERRITE CORE ZBF503D-00TA FC90090010 C359 L308 S201 SP01013370 PUSH SW.EVQ11L05R H/ SP01013370 PU01 - RESISTOR 5MM,160GF R212 RES.22Ω ±5% 1/6W GG05220160 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 36 ±5% 1/6W : RH03 PU61 - SEMICONDUCTORS D316 HI10040080 L.E.D.SELU1E10CXM-S BLUE HI10040080 PU71 - IR SENSOR CIRCUIT BOARD PU71 - SEMICONDUCTOR Q204 HW10004210 PHOTO UNIT RPM6936-V4 HW10004210 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
