Saramonic SmartMixer User Manual

1 PRODUCT INTRODUCTION
1.1 General Introductions
The Saramonic SmartMixer is a compact and lightweight audio mixer with phantom power and amplifier, ideal for iOS and Android
mobile devices video production.
The mixer features one mini XLR input for balanced microphones and two microphone/line inputs for the included condenser
microphones or other user-supplied microphones. A volume control knob and level meter allow easy adjustment of the input level. A
headphone monitor output allows you to monitor the input and playback signal.
It comes with an aluminum handgrip for recording on the move, or it can be mounted on a tripod for stationary use. The included
device holder allows the SmartMixer to be used in either landscape or portrait orientations.
The audio quality and versatile operation of the SmartMixer make it ideal for both professional and in-home applications.
1.2 Highlights
• Improves audio quality of smart phone
• Two 1/8"(3.5 mm) stereo line/mic inputs
• One mini XLR microphone input
( a mini-XLR to standard-XLR cable included)
• +48V phantom power
• One 1/8"(3.5 mm) stereo line output to phone
• One 1/8"(3.5 mm) headphone monitor output
1.3 Specifications
Frequency Response
Noise
Distortion
INPUT 1 GAIN
INPUT 2 GAIN & MINI XLR Jack
INPUT 1 & INPUT 2 Power
MINI Jack Phantom Power
Level Meter
Power Requirements
Dimensions
Weight

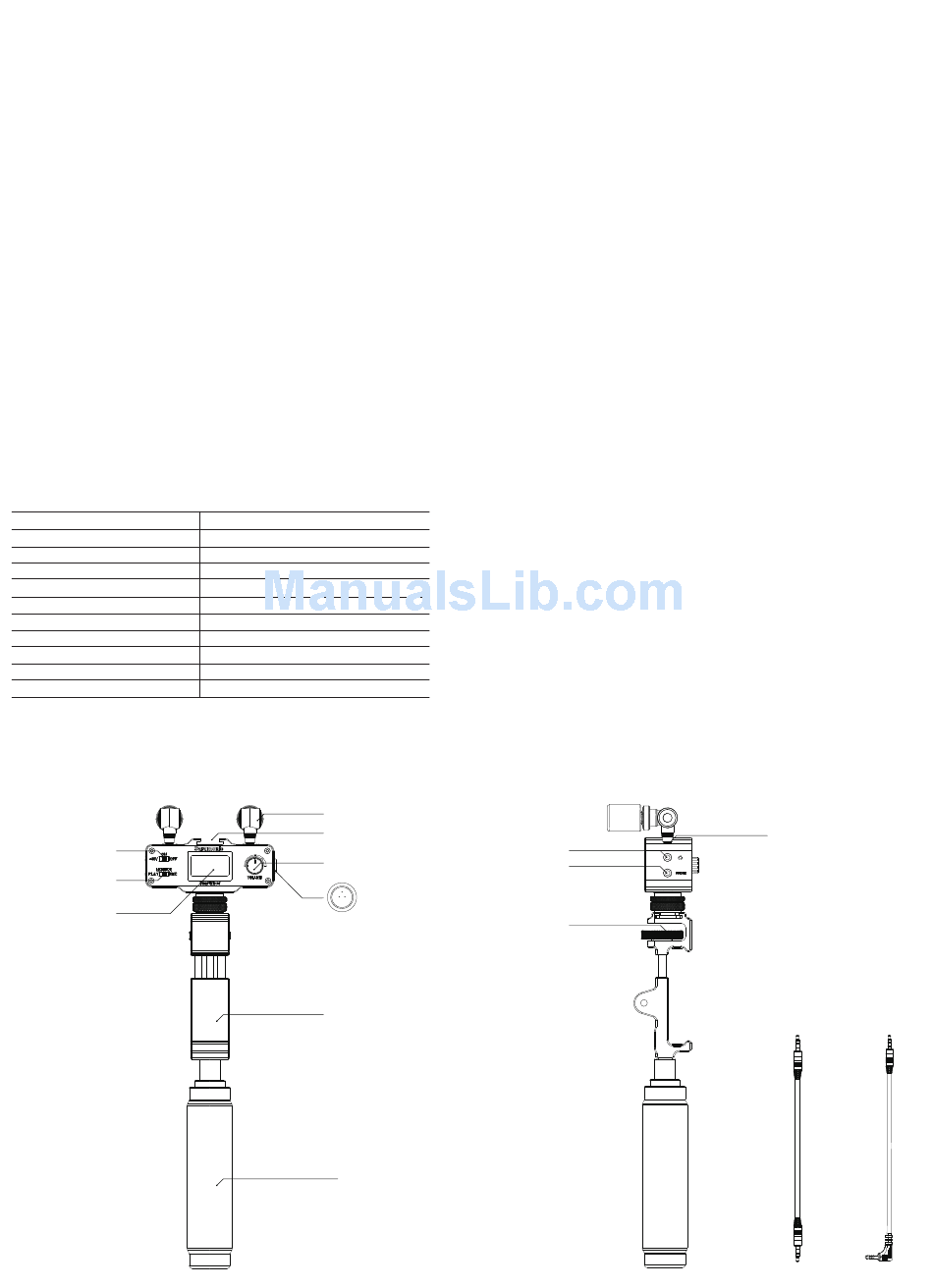

1.4 Product Structure
48V Phantom Power
/ Power On / Power Off
PLAY / REC
Monitor Switch
Level Meter
20 Hz to 20 Khz (+/-0.5 dB)
82 dB @ 1 kHz, -30 dBu input
less than 0.03% @ 1 kHz, -30 dBu input
15 dB
15 dB
5V power supplies
48V power supplies
-18 dB to +3 dB in 3 dB increments
9V alkaline or lithium battery
L 95 x W 35 x H 298 mm
0.74 kg (26.1 oz.)
Condenser Microphones
Cold Shoe
Volume Control Knob
Mini XLR Microphone Input
Device Holder
Hand Grip
• PLAY/REC monitor switch
• Independent L/R level meters
• Volume control knob
• Includes two plug-in power condenser microphones
• Includes a device holder and aluminum hand grip
• Power provided by 9V battery
Headphone Jack
Output
Thumb Screw
Microphone Input
Output Cable Output Cable
for iOS for Android
