Honeywell HDZP30XD4 Quick Start Manual

Performance Series Cameras

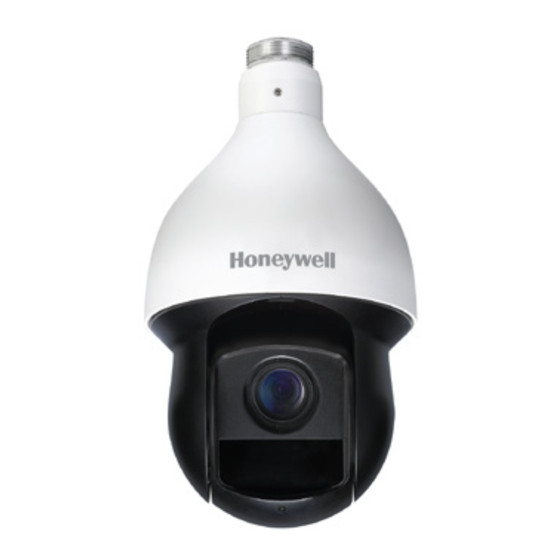

Performance Series HQA HDZP30XD4
30x Zoom IR PTZ Dome Camera

Quick Start Guide

Cautions and Warnings
CAUTION Installation and servicing should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain your warranty
CAUTION To ensure compliance with electrical safety standards, NRTL-approved
Class 2 power adaptors are required.
CAUTION To comply with EN 50130-4 requirements, a UPS should be employed when
powering the camera from 24 V AC.
CAUTION IR emitted from this product. Do not view directly with optical instruments
(magnifiers). Do not stare directly into the lamp at a distance of less than 3.3 ft (1 m).
CAUTION Risk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries in accordance with local laws.
FCC Statement of Compliance
Information to the User: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his
own expense.
Note: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada.
Manufacturer's Declaration of Conformance
North America The equipment supplied with this guide conforms to UL 60950-1 and CSA C22.2
No. 60950-1.
Europe The manufacturer declares that the equipment supplied with this guide is compliant with
the European Parliament and Council Directive on the Restrictions of the use of certain Hazardous
Substances in electrical and electronic equipment (2011/65/EU), General Product Safety Directive
(2001/95/EC) and the essential requirements of the EMC Directive (2014/30/EU), conforming to
the requirements of standards EN 55032 for emissions, EN 50130-4 for immunity, and EN 60950-
1 for electrical equipment safety.
This is a Class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
Waste Electrical and Electronic Equipment (WEEE)
Correct Disposal of this Product (applicable in the European Union and other European
countries with separate collection systems).
This product should be disposed of, at the end of its useful life, as per applicable local
laws, regulations, and procedures.

Safety Instructions

Before installing or operating the unit, read and follow all instructions. After installation, retain
the safety and operating instructions for future reference.
1. HEED WARNINGS - Adhere to all warnings on the unit and in the operating instructions.
2. INSTALLATION
•
Install in accordance with the manufacturer's instructions.
• Installation and servicing should be performed only by qualified and experienced
technicians to conform to all local codes and to maintain your warranty.
•
Any wall or ceiling mounting of the product should follow the manufacturer's
instructions and use a mounting kit approved or recommended by the manufacturer.
POWER SOURCES - This product should be operated only from the type of power
3.
source indicated on the marking label.
4. HEAT - Situate away from items that produce heat or are heat sources such as radiators,
heat registers, stoves, or other products (including amplifiers).
5. MOUNTING SYSTEM - Use only with a mounting system recommended by the
manufacturer, or sold with the product.
6. ATTACHMENTS - Do not use attachments not recommended by the product
manufacturer as they may result in the risk of fire, electric shock, or injury to persons.
7. ACCESSORIES - Only use accessories specified by the manufacturer.
CLEANING - Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
8.
cleaning.
9. SERVICING - Do not attempt to service this unit yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
10. REPLACEMENT PARTS - When replacement parts are required, be sure the service
technician has used replacement parts specified by the manufacturer or have the same
characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock or other hazards. Using replacement parts or accessories other than the
original manufacturers may invalidate the warranty.

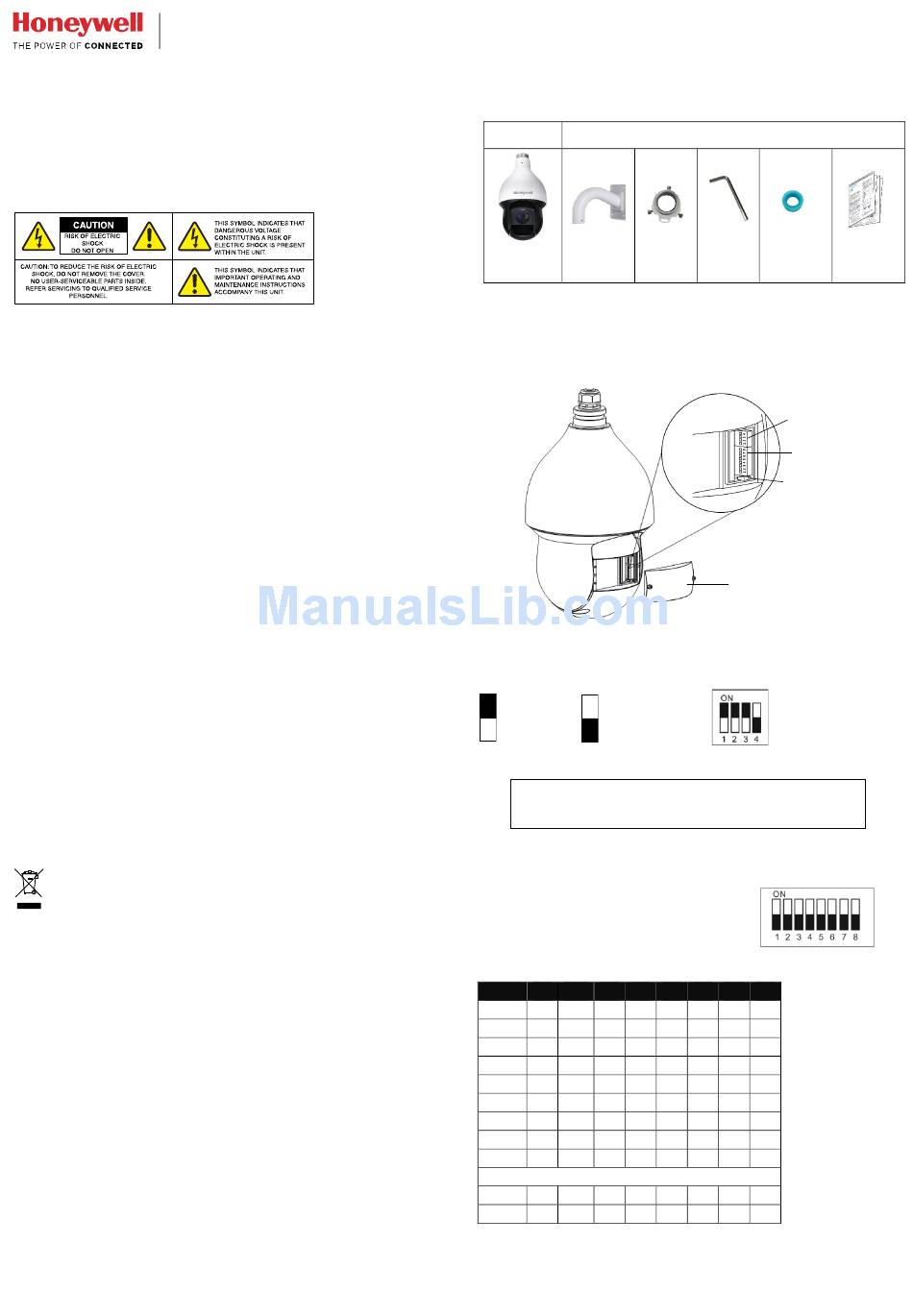

Before You Begin

Check that you have received all of the items listed below:
Module
HDZP30XD4 Wall Mount Pendant
Adaptor
Note: Remove the protective cover bag and tape from the camera body before installation.
Configuring the DIP Switches
Remove the panel at the rear of the camera and familiarize yourself with the camera's
DIP switches.
Use the following ON/OFF positions as a reference when setting the camera address,
baud rate, or video format:
ON
ON
Switch is
Switch is
set to ON
set to OFF
Note: This unit supports HQA, Pelco-D, and Pelco-P protocols only.
The protocol is recognized automatically so it does not need to be set
at the camera. However, the protocol does need to be set at the DVR.
Setting the Camera Address (RS485 Only)
If you are installing more than one PTZ camera in an
RS485 wiring system, you will need to assign each
camera a unique address.
The camera address is set using the 8-position DIP
switch. Use the following table as a reference:
Address 1 2 3 4
0 OFF OFF OFF OFF
1
ON OFF OFF OFF
2 OFF ON OFF OFF
3 ON ON OFF OFF
4 OFF OFF ON OFF
5 ON OFF ON OFF
6 OFF ON ON OFF
7
ON ON ON OFF
8 OFF OFF OFF ON
254 OFF ON ON ON
255 ON ON ON ON
For example, if you want to set the camera address to 6, set switches 2 and 3 to ON, and
set switches 1, 4, 5, 6, 7, and 8 to OFF.
Accessories
Wrench Waterproof
Tape
Baud rate/
Video format
Address
120-ohm termination
resistor
Camera back cover
Switches 1, 2, and 3 are
set to ON, and switch 4
is set to OFF.
5 6 7 8
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
ON ON ON ON
ON ON ON ON
