Hardware Overview; Rear Panel; Front Panel - D-Link DCS-2103/UPA Quick Install Manual

Ethernet
RJ-45 connector for Ethernet
which can also be used to
power the camera using
Power over Ethernet (PoE)
Reset
Press and hold this button
for 10 seconds to reset
the camera
Status LED
Indicates the camera's
current status
Infrared LED
Used to illuminate the camera's
field of view at night
PIR
Passive Infrared
sensor for
motion detect
D-Link DCS-2103/UPA Quick Install Guide

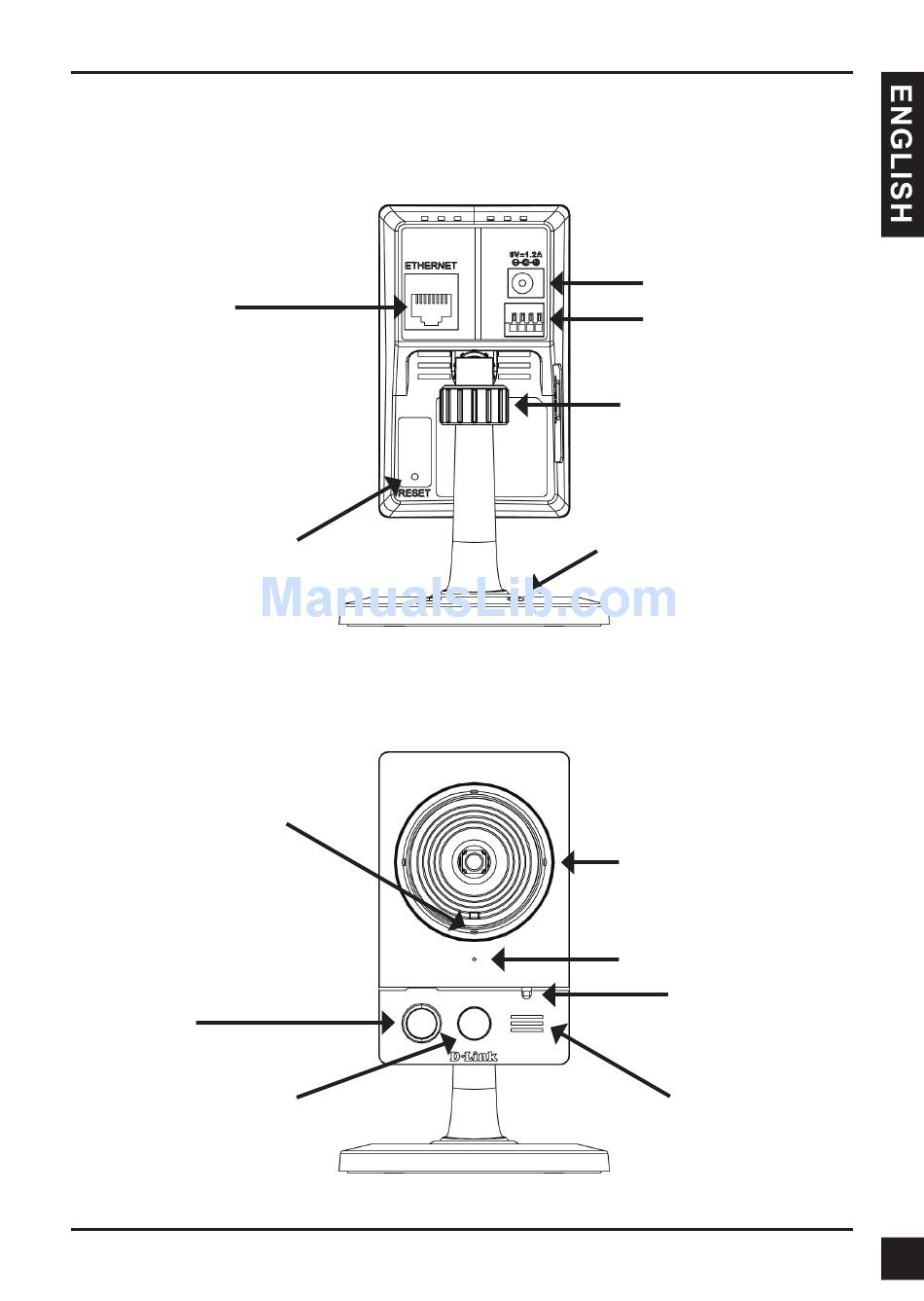

2. Hardware Overview

Rear Panel

Front Panel

Power Connector
Connects to DC 5 V
power adapter (not
included in package)
I/O Connector
I/O connectors for
external devices
Adjustment Ring
Tighten or loosen the
adjustment ring to adjust
the camera's position
Base Holes
Can be used with cable ties to
attach camera to a surface
Camera Lens
Records video of the
surrounding area
Microphone
Records audio from the
surrounding area
ICR Sensor
The IR-Cut Removable
sensor judges lighting
conditions and switches from
color to infrared accordingly
Speaker
Audio output
3
