FOLD UNIT FO
OPERATOR MANUAL
1. FUNCTION
The fold unit FO is used to fold documents received from a
transport unit TR or from a feed unit FE. It delivers the folded
material to the inserter or to the transport unit.
The document(s) can be folded once or twice. If required
documents can pass without being folded.

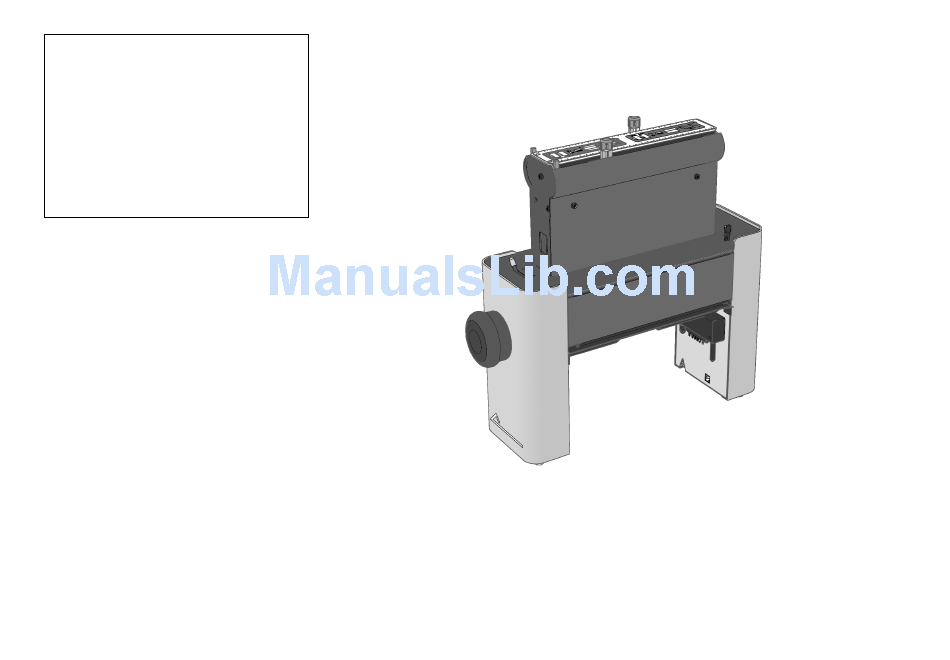

FO
Fig. 1
1/9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Neopost FO-1
Summary of Contents for Neopost FO-1
- Page 1 FOLD UNIT FO OPERATOR MANUAL 1. FUNCTION The fold unit FO is used to fold documents received from a transport unit TR or from a feed unit FE. It delivers the folded material to the inserter or to the transport unit. The document(s) can be folded once or twice.
-
Page 2: General
Before using this machine thoroughly read the operating instructions. In the European Union an operator manual printed national language(s), as well as an original operator manual are supplied with the machine. If it is not, contact your authorized distributor. SAFETY PRECAUTIONS This machine is only to be operated by fully trained personnel. -
Page 3: Table Of Contents
How to make the electrical connection depends on the type of fold unit used. For the FO-1 a special connection cable is fitted to the folder. The connector with pins must be connected to the connection cord of the inserter. The other connector must be connected to the feed unit (FE) placed against the fold unit.For the FO-2A the... -
Page 4: Adjustments
Fig.6 Fig. 7 4. ADJUSTMENTS 4.3 Folding once Fine adjustment of the address position 4.1 Preparations Fold a document by hand, so it fits the envelope and the To make one fold only, normally the fold To change the address position behind the plate “a”... -
Page 5: Folding Twice
Fig.8 Fig.9 4.4 Folding twice • Unfold the document and place the bottom side against Fine adjustment of the address position the blue coloured stop of fold plate “b” (fig. 9). To change the address position behind the • Put the blue coloured fold length indicator against the first Standard letter fold envelope window up or down, move the fold fold measured from the bottom (fig. - Page 6 Fig.11 Fig.10 Accordion fold • Unfold the document and place the bottom side against Fine adjustment of the address position To make a standard letter fold, fold plate “a” the blue coloured stop of fold plate “b” (fig. 11). To change the address position behind the and “b”...
-
Page 7: No Fold
Fig.12 Fig.13 • Unfold the document and place the bottom side against 4.5 No Fold Double parallel fold the blue coloured stop of fold plate “b” (fig. 13). Documents can pass through the fold unit To make a double parallel fold, fold plate “a”... -
Page 8: Fault Finding
Fig. 14 5. FAULT FINDING 6. MAINTENANCE 5.2 Operator trouble shooting 5.1 Clearing stoppages 6.1 Servicing Symptom Possible Suggested Whendocuments are blocked inside the fold unit, the Disconnect the mains supply before performing cause sollution documents can be removed by pulling out and rotating the any maintenance. -
Page 9: Specifications
7. SPECIFICATIONS EEC-declaration of concurrence. This operator manual refers to machines as from machine number FO-1: 98 L-5353 or higher Neopost Technologies B.V., FO-2A: 97 AL-5391 or higher De Tijen 3 9201 BX Drachten Machine specifications The Netherlands Model FO-1/2A...
