ThinkPad S230u operating

modes

ThinkPad

S230u provides the laptop mode, stand mode, tablet mode, and tent

mode that enable you to work more conveniently in your working environment.

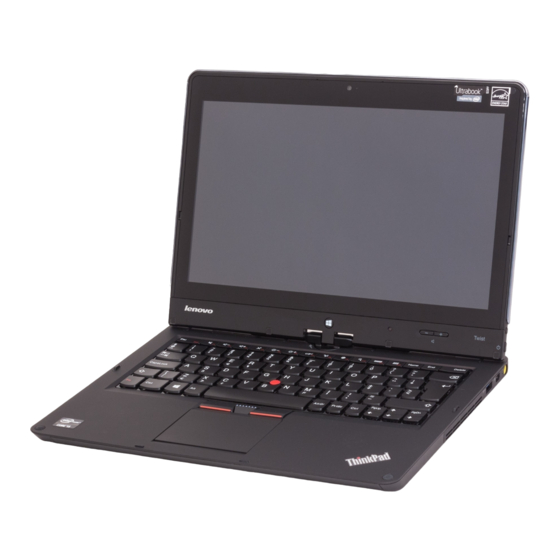

Laptop mode

Open the computer display slowly. Your computer is now in laptop mode. By

default, the Autorotate feature is disabled.

Stand mode

If your computer is in laptop mode, to enter stand mode, slowly rotate the display

clockwise until the back of the display is facing the keyboard. Your computer

is now in stand mode.

Page 1 ThinkPad S230u operating modes ThinkPad ® S230u provides the laptop mode, stand mode, tablet mode, and tent mode that enable you to work more conveniently in your working environment. Laptop mode Open the computer display slowly. Your computer is now in laptop mode. By default, the Autorotate feature is disabled.
Page 2 Tablet mode If your computer is in stand mode, slowly close the display to enter tablet mode. After your computer enters tablet mode, the Autorotate feature is enabled and the Autorotate-on indicator is displayed on your screen. To avoid undesired screen rotation in tablet mode, press the Screen Rotation Lock button to disable the Autorotate feature.
Page 3 To enter stand mode from tent mode, do the following: 1. Position your computer as shown. 2. Press the Screen Rotation Lock button to rotate the screen 180 degrees. Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo ThinkPad Other company, product, and service names may be trademarks or service marks of others.
