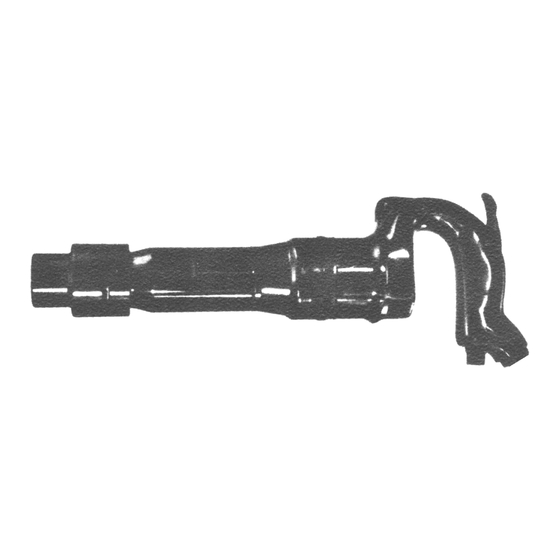

CH SERIES CHIPPERS
NORTH AMERICA
CooperTools
P.O. Box 1410
Lexington, SC 29071
CH
Series:
CH
Stroke:
22
2 1/4
32
3 1/4
Nose Type :
RD
Round
HX
Hexagon
Retainer :
H
Standard for CH Models Only
C
Cleco Type for CH Models Only
Q
Quick Change for CH Round Collar Chisels Only
Operation & Service Manual
823049
-
-
XX
-
XX
X
EUROPE
Cooper Power Tools GmbH & Co.
Postfach 30
D-73461 Westhausen
6/01
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cleco CH-22
Summary of Contents for Cleco CH-22
- Page 1 3 1/4 Nose Type : Round Hexagon Retainer : Standard for CH Models Only Cleco Type for CH Models Only Quick Change for CH Round Collar Chisels Only NORTH AMERICA EUROPE CooperTools Cooper Power Tools GmbH & Co. P.O. Box 1410...
- Page 2 Also, do not use cupped rivet sets with Cleco percussion tools to WARNING drive nails. Blows not centered on the nail can cause the nail to ricochet off the work and strike the user.
- Page 3 Safety Recommendations the throttle is accidently engaged. Use of a self-relieving contribute to the conditions. Any user suffering prolonged valve within reach of the user of the tool is highly recom- symptoms of tingling, numbness, blanching of fingers, clum- mended. siness or weakened grip, nocturnal pain in the hand, or any other disorder of the shoulders, arms, wrists, or fingers is advised to consult a physician.
- Page 4 OPERATING INSTRUCTIONS The CLECO "CH" series chipper is designed to operate If the operation of the chipper becomes sluggish or erratic, on 90 psig air pressure using a 1/2" I.D. hose up to 8' in pour one teaspoon of kerosene into the air inlet and length.
- Page 5 OPTIONAL QUICK CHANGE RETAINER FOR ROUND COLLARED CHISEL ONLY OPTIONAL CLECO TYPE RETAINER INSTALL RETAINER ONTO BARREL INSTALL RETAINER ON BARREL. BARREL WITH SLOT IN RETAINER AND BARREL ALIGN SLOT IN RETAINER WITH GROOVE GROOVE ON BARREL IN ALIGNMENT. GROOVE ON BARREL.
-
Page 6: Name Of Part
Optional Quick Change Retainer Ball 834877 Optional Quick Change Retainer Lock Spring 839033 Standard and Optional Cleco Type Retainer Lock Spring The Retainer subassemblies can be purchased using these Part Numbers: Standard Retainer — 833163 Optional Cleco Type Retainer — 831847... - Page 8 Tool Nose (Opt. - Hex) 833155 Throttle Valve Cap Handle (incl. 832210, 836178) 833157 833471 Inlet Bushing 834276 CH-32 Plunger 834293 CH-22 Plunger 834674 Exhaust Deflector 834852 Throttle Valve Spring 834853 Throttle Valve Pin 834854 Throttle Valve 834855 Throttle Lever...
- Page 9 NOTES...
- Page 10 NOTES...
- Page 11 NOTES...
- Page 12 CooperTools 670 Industrial Drive Lexington, SC 29072 Phone: (803) 359-1200 Fax: (803) 359-2013 www.cooperindustries.com...
