6 DISPLAY (DP C07.UART)
6.1
Specifications and Parameters of the Display
• 36V / 43V / 48V Power Supply;
• Rated Current: 10 mA
• Maximum Operating Current: 30 mA
• Power-off Leakage Current: <1uA
• Operating Current Supplied to the Controller: 50 mA
• Operation Temperature: -18 ~ 60 %
• Storage Temperature: -30~70 %
• Waterproof Grade: IP65
• Storage Humidity: 30 % – 70 %
6.2

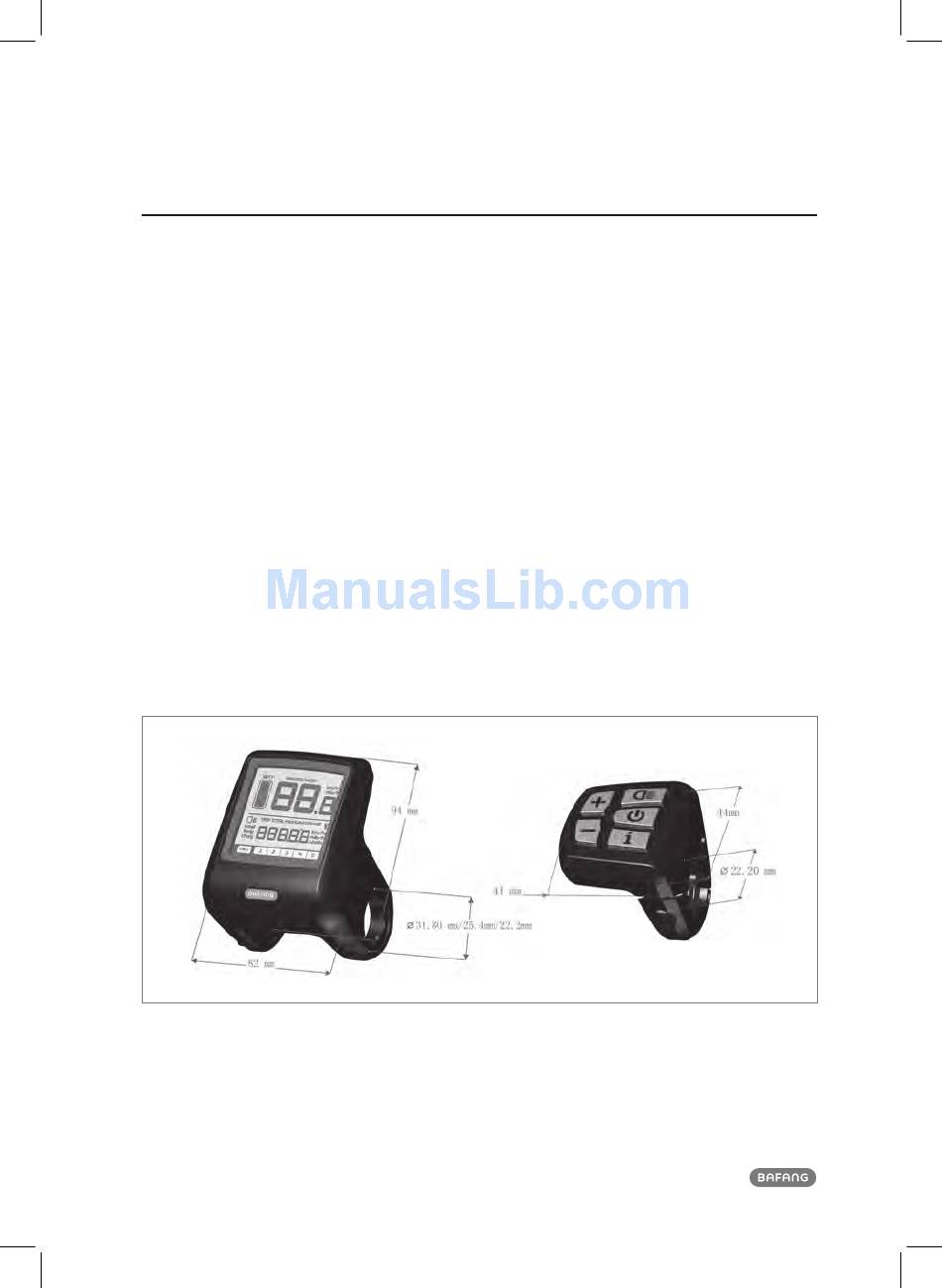

Appearance and Dimensions
6.2.1
Materials and Dimensions
•
The shell is made of PC. The liquid crystal display is made of hardened PMMA.
45
DEALER MANUAL MAX DRIVE SYSTEM
