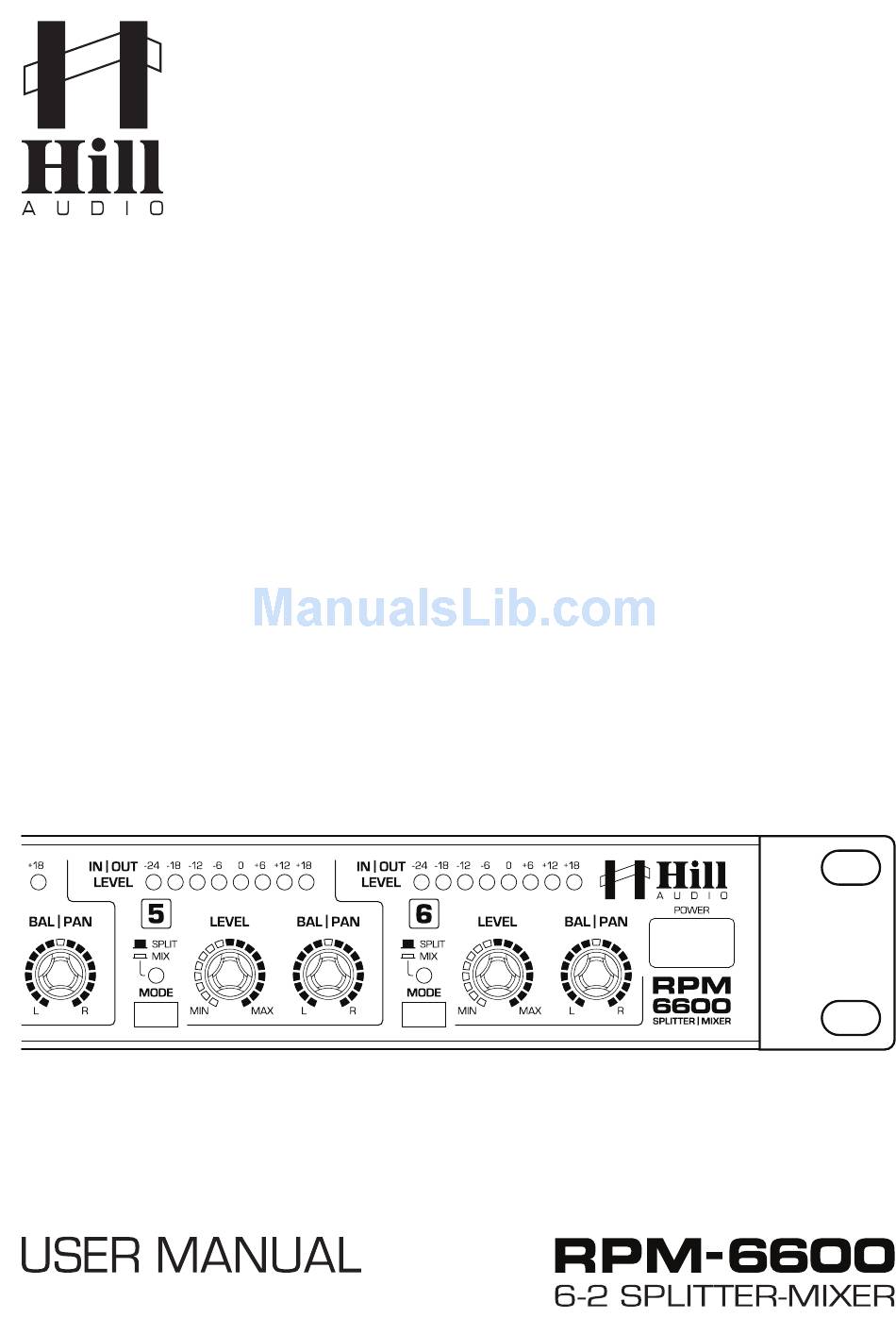

- Page 1 RevA 09-2016...
-
Page 2: Important Safety Instructions
USER MANUAL - RPM6600 SPLITTER MIXER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. -
Page 3: Health Advice
USER MANUAL - RPM6600 SPLITTER MIXER Description The RPM6600 6-2 is a Splitter/Mixer with 6 universal in/outputs, one master input and one master output. The unit is configurable to work as a 2-in-6 splitter, as a 8-in-2 mixer or as a matching ampli- fier. -
Page 4: Controls And Connections
USER MANUAL - RPM6600 SPLITTER MIXER Controls and Connections Connections - Rear Controls - Front PAGE 3... -
Page 5: Functional Description
USER MANUAL - RPM6600 SPLITTER MIXER Functional Description The RPM6600 6-2 is a Splitter/Mixer with 6 universal in/outputs, one master input and one master output. The unit is configurable to work as a 2-in-6 splitter, as a 8-in-2 mixer or as a matching ampli- fier;... -
Page 6: Block Diagram
USER MANUAL - RPM6600 SPLITTER MIXER 8-digit OUTPUT LEVEL meter. Shows the output level of each channel within a range from -24 to +18 dB. BALANCE/PAN control. Allows to set the balance between the left and right main signals. In SPLIT mode, the main input signal is routed to the mono output, with the BALANCE control determining the balance beween the left and right main signal portions. -
Page 7: Operation
USER MANUAL - RPM6600 SPLITTER MIXER Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. - Page 8 USER MANUAL - RPM6600 SPLITTER MIXER Connections The RPx series mixers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.
-
Page 9: Technical Specifications
USER MANUAL - RPM6600 SPLITTER MIXER Technical Specifications AC IN (115V setting......AC110-120V~ 60Hz Signal/Noise..........＞92dB (Line) Power consumption........max. 18W Crosstalk Damping........＞65dB (Line) Dimensions....W483(427)xH44.5xD183.5mm THD............＜0.005% (Line) (parentheses = without rack ears) Frequency response.........20Hz – 20 kHz Weight..............2.2kg AC IN (230V setting).......AC220-250V~ 50Hz Maintenance and warranty While we have chosen the best components to make this product as rugged and reliable as possible, some parts in audio products (potentiometers, faders, switches) are subject to wear which is a... - Page 10 USER MANUAL - RPM6600 SPLITTER MIXER PAGE 9...
- Page 11 USER MANUAL - RPM6600 SPLITTER MIXER PAGE 10...
-
Page 12: Ec Declaration Of Conformity
Burnham-on-Crouch, 16.09.2016 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
