Summary of Contents for Hill Audio IPA-200

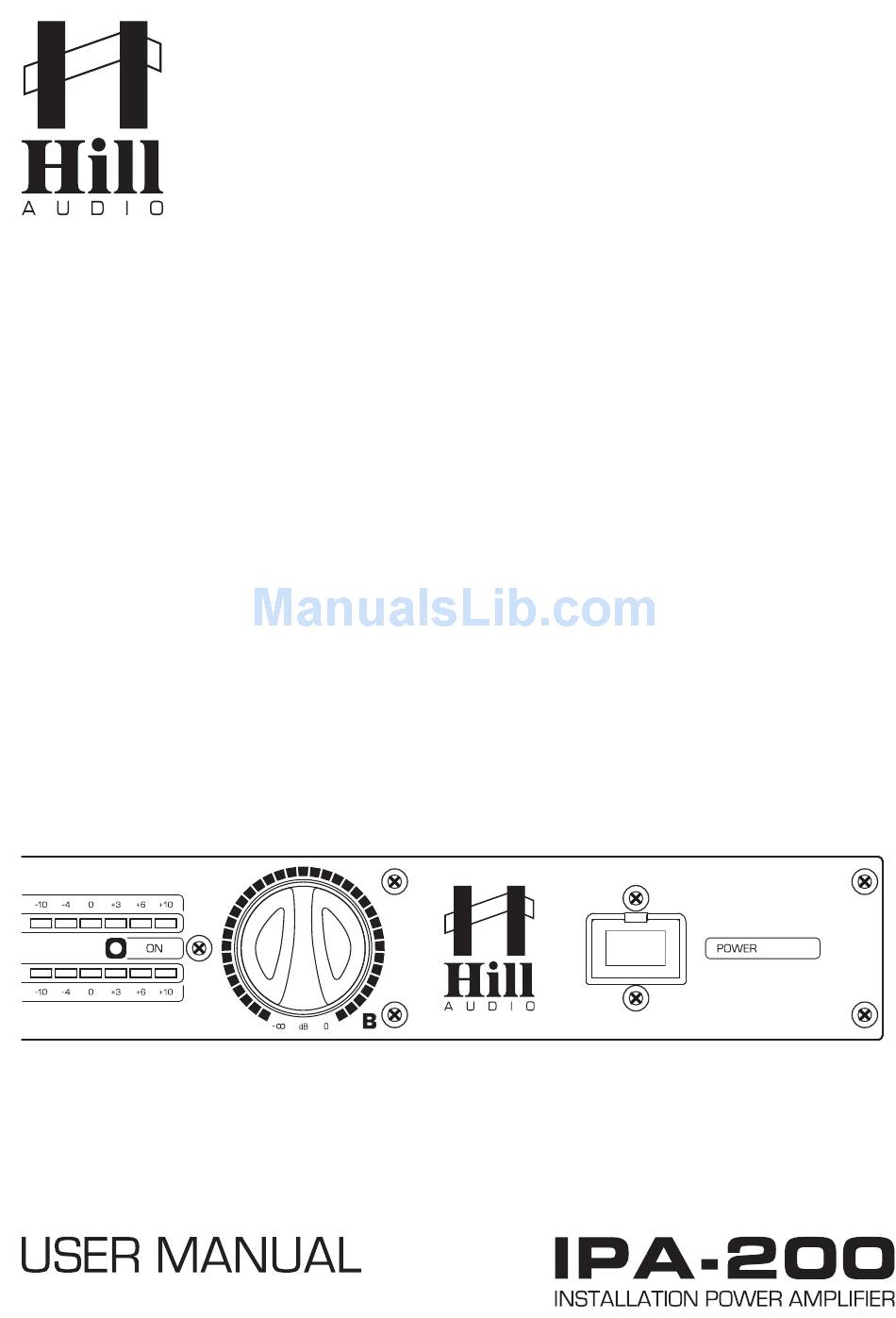

- Page 1 RevA 12-2013...
-
Page 2: Important Safety Instructions
USER MANUAL - IPA200 INSTALLATION AMPLIFIER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English. -
Page 3: Health Advice
USER MANUAL - IPA200 INSTALLATION AMPLIFIER Description The IPA200 is a stereo power amplifier for background music or studio monitoring applications, which is user-configurable to work in stereo or parallel mono mode. It offers additional filters and equalizers to adapt perfectly to the connected speakers, and can be set up in a tamper-proof way with its front-panel volume controls disabled. -
Page 4: Controls And Connections
USER MANUAL - IPA200 INSTALLATION AMPLIFIER Controls and Connections Connections - Rear (Outputs) Note: Illustration shows channel A controls only. Channel B controls and connections are the same. Controls - Front 15 16 PAGE 3... -
Page 5: Functional Description
USER MANUAL - IPA200 INSTALLATION AMPLIFIER Functional Description The IPA200 is a convection-cooled stereo installation amplifier with a flexible input section to adapt it to both stereo and dual mono applications with low-impedance speaker systems from full range to limited frequency response,. The flexibility of the inpout section makes the IPA200 the right choice for both full range background music systems as well as speech-range paging systems, both in main and zone applications. -
Page 6: Operation
USER MANUAL - IPA200 INSTALLATION AMPLIFIER Maximum level setting. This control allows to limit the maximum level of channel A and B inde- pendently in order to match the connected sound system. Adjustments made on this control will will limit the adjustment range of the front-panel volume controls (14). Note that settings shall be made with a small screw driver;... - Page 7 USER MANUAL - IPA200 INSTALLATION AMPLIFIER B. Powering up Following a proper power-up sequence protects your equipment – specifically speakers – and your ears. Follow the below procedure: Turn down all output volume controls of any equipment in your audio system. Switch on your audio sources first (Tuners, CD Players, PC’s with soundcards, Tapedecks, etc.) Switch on this unit, and set it to the desired audio source Turn up the audio level on your sources if such controls are provided.
- Page 8 USER MANUAL - IPA200 INSTALLATION AMPLIFIER Connections This unit uses the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasi- ble.
-
Page 9: Technical Specifications
USER MANUAL - IPA200 INSTALLATION AMPLIFIER Technical Specifications Preamplifier Section General Data Signal/Noise..........＞82dB (Line) AC IN (EU version)......AC220-250V~ 50Hz Crosstalk Damping........＞65dB (Line) AC IN (US version)......AC110-120V~ 60Hz THD............＜0.05% (Line) Power consumption........max. 200W Frequency response.........20Hz – 20 kHz Dimensions....W483(447)xH44.5xD194.0mm (parentheses = without rack ears) Power Amplifier Section Weight..............4.4kg Power, both channels driven @ 4 Ohms..2x80W RMS... - Page 10 USER MANUAL - IPA200 INSTALLATION AMPLIFIER PAGE 9...
- Page 11 USER MANUAL - IPA200 INSTALLATION AMPLIFIER PAGE 10...
-
Page 12: Ec Declaration Of Conformity
ROHS Directive 2002/95/EC and is marked as follows: Shoeburyness, 24. January 2014 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Vanguard Way, Shoeburyness, Essex SS3 9QY, UK www.adelto.com | sales@adelto.com...
