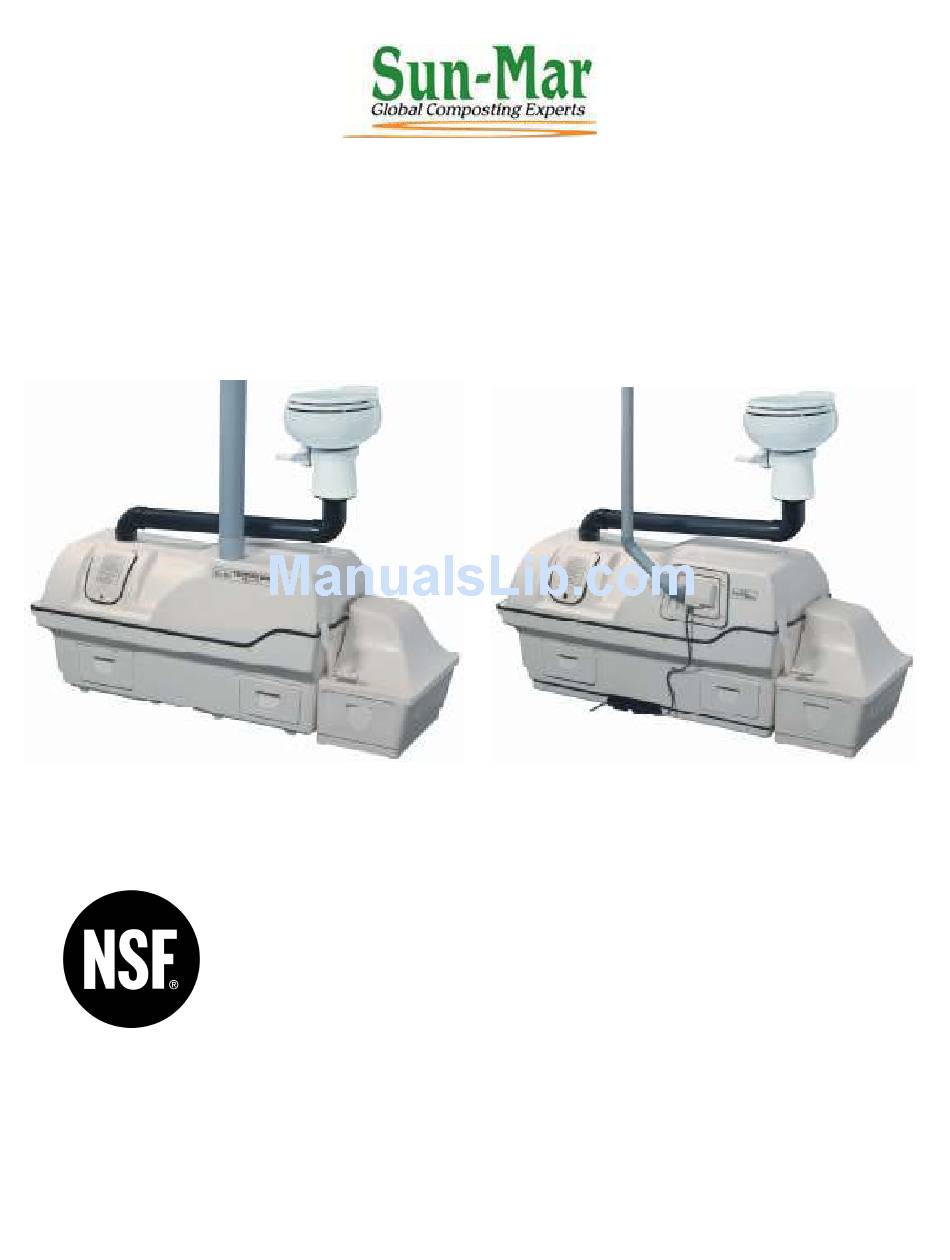

CENTREX 3000
Certified to NSF/ANSI Standard 41
Standard 41
Certified for liquid containment,
odors, and solid end products in
both residential and cottage use
CENTREX 3000
OWNER'S MANUAL
CENTREX 3000 NE
RATED CAPACITY
Residential & Continuous Use
CENTREX 3000:
CENTREX 3000 NE: 5 Adults
Weekend & Vacation Use
CENTREX 3000:
CENTREX 3000 NE: 8 Adults
Serial No.______________
6 Adults
9 Adults

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CENTREX 3000 NE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sun-Mar CENTREX 3000 NE

Summary of Contents for Sun-Mar CENTREX 3000 NE

  • Page 1 OWNER’S MANUAL CENTREX 3000 CENTREX 3000 NE RATED CAPACITY Residential & Continuous Use CENTREX 3000: 6 Adults CENTREX 3000 NE: 5 Adults Certified to NSF/ANSI Standard 41 Weekend & Vacation Use Standard 41 CENTREX 3000: 9 Adults Certified for liquid containment,...
  • Page 2 Models for which the manual applies: CCEB-02510 Centrex 3000 115V CCNB-02540 Centrex 3000 NE CCEB-02515 Centrex 3000 230V Unit must be installed so electrical components in the base are protected from rain, flooding and melting snow. Place the warning and cleaning sticker on the inside lid of the ultra low flush toilet.

  • Page 3: Table Of Contents

    Space requirements Liquid Buildup/ Vent Piping Location Lack of Evaporation Electrical Considerations Liquid Overflow 15-16 CENTREX 3000 NE Installation Heating System Not Working Space requirements Liquid In Finishing Drawer Vent Piping Location Drum Will Not Turn Installation Common To Electric...

  • Page 4: How Composting Works

    Almost all organic material will compost. The proper bulking material and human waste should be added to the composting toilet. In order to maintain a good balance between carbon-rich materials (SUN-MAR Compost Sure Blue) and nitrogen-rich human waste only. - 2 –...

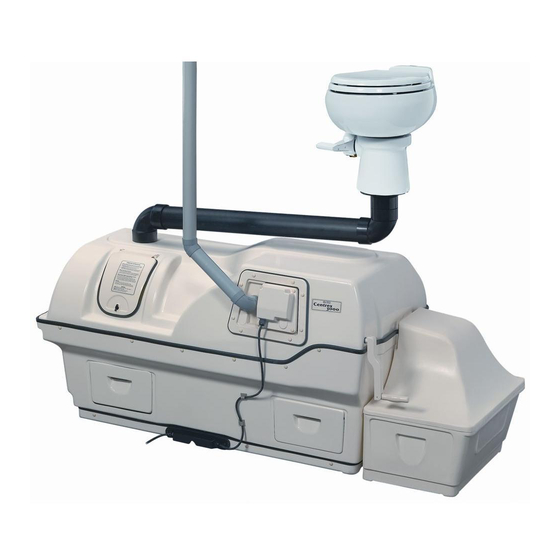

  • Page 5: The Centrex 3000 Toilet

    NE (non-electric) version is for use where there is no continuous electric supply. The CENTREX 3000 NE has no heater but does include a 12 volt fan. Odorless operation is achieved by a 4” vent assisted by the fan which acts like a chimney creating a partial vacuum within the unit.

  • Page 6: Inspection

    1) If there is any visible damage to the carton- Inspecting the The contents of the carton should be inspected before signing the unit for bill of lading. Damaged units should be refused. Call Sun-Mar Damage immediately. 2) If the shipper has left- Report the damage immediately to the shipping company and call Sun-Mar.

  • Page 7: Installation

    Installation CENTREX 3000 ROUGH IN DIMENSIONS - 5 –...

  • Page 8: Centrex 3000 Electric Installation

    CENTREX 3000 Electric Installation 1) To facilitate maintenance and compost removal, ensure that there is at least 17” in front of the Space CENTREX 3000, for removal of the drawer and access panel. Required and 2) The safety drain is required in ALL installations. Install the unit in a location where the safety drain can be connected.

  • Page 9: Centrex 3000 Ne Installation

    Considerations operation. 5) Ensure that the CENTREX 3000 NE is accessible for ongoing maintenance. 6) Ensure that the installation area is a minimum of 28” in height. WE DO NOT RECOMMEND DIGGING BELOW GROUND TO FACILITATE THE INSTALLATION OF THE CENTREX 3000.

  • Page 10: Installation Common To Electric And Ne Units

    The safety drain MUST be connected as it will be required in all Centrex 3000 NE Drain installations or Centrex 3000 electric with ultra-low flush toilets.

  • Page 11: Positioning The Collection Chamber

    Place the top of the collection Chamber chamber on the base. SUN-MAR Autoflow® technology allows compost to automatically deposit into the collection chamber. When installing the waste pipe from the toilet to the unit, the following should be...

  • Page 12: Start Up And Use

    Initial Start Up and Use These steps are only used when starting up your CENTREX 3000 toilet for the first time or when you have emptied the drum and need to re-start the compost. After installation is completed do the following: Step 1 : Spray Compost Quick: Remove the finishing drawer and spray the whole inner floor of the unit under the...

  • Page 13: Ongoing Maintenance

    Ongoing Toilet Maintenance Once your CENTREX 3000 toilet is installed and you have gone through the initial start-up procedure, follow the steps outlined below to keep your composting toilet working optimally. Even if you only use the toilet for urination then at least one cup of Add one cup of Compost Sure Blue should be added per person per day of use.

  • Page 14: Spring Time Start Up

    Add Water & Microbe Mix Add some warm water to the remaining compost, enough to ensure that it is quite moist. Also, add some Sun-Mar Microbe Mix (two of scoops) to give the compost pile a “kick-start” and rotate the drum several times to mix. If your composting toilet is electric, plug it in and use for another season.

  • Page 15: Compost Troubleshooting

    IMPORTANT: due to the fungus which Application of a pesticide in a SUN-MAR begins to form on the surface toilet is not a health concern because all when it dries out. A good, SUN-MAR units are vented.

  • Page 16: Mechanical Troubleshooting

    3) SUN-MAR has a filter box available located in a valley which will filter the ammonia out of the or close to a hill vented air in a downdraft situation.

  • Page 17: Fan Not Working

    Check the power source. If this does not eventually have to be remedy the problem, have your serial changed. Do Not turn on number ready and call SUN-MAR and off daily. Increased usage. The amount of liquid varies substantially Install the overflow drain.

  • Page 18: Heating System Not Working

    MAR for a handle replacement kit Turn broken (instructions included). Have your serial number ready and call Steel roll-pin SUN-MAR for a replacement small gear kit. securing gear wheel to shaft has broken Drum too full Drum Door Spray hinges with Compost Quick. Scrub...

  • Page 19: Basic Instructions

    Basic Maintenance Instructions Ultra low flush toilet and CENTREX 3000 Units These instructions are not to replace the owner’s manual, but are intended as simple instructions for daily use. USING THE TOILET Deposit your toilet paper, step on the foot pedal to flush, close the lid and walk away…your job is done.

  • Page 20: Composting Toilet

    ACCESSORY ITEMS FOR THE CENTREX 3000 TOILET SUN-MAR has developed a number of composting accessory items over the years in response to frequent requests from users. These items may serve to improve composting speeds under some circumstances. Name Description Container Cleans and accelerates the composting action of your Sun-Mar “Compost...

  • Page 21: Centrex 3000 Specifications

    - 19 – CENTREX 3000 SPECIFICATIONS CENTREX 3000 EXPLOSION DIAGRAM & PART NUMBERS 1 Centrex 3000 Access Door 14 Insulation (Electric) 27 3” (75mm) Air Intake 2 Fan (Electric) 15 Thermostat (Electric) 28 Centrex 3000 Drum 3 Fan Assembly Housin (Electric) 16 Rubber U Channel 29 Drum Screen 4 Plastic Fan Motor Cover (Electric)
  • Page 22 Rev.D15 WARRANTY SUN-MAR Corp. warrants the original purchaser that this toilet is free from defects in material and workmanship under normal house or cottage use. SUN-MAR Corp. will furnish new parts for any part that fails within three years and five years on the fiberglass tank, provided that our inspection shows that such failure is due to defective material or workmanship.
