Cad Drawing; General Setup - ADJ Entourage User Instructions

Entourage

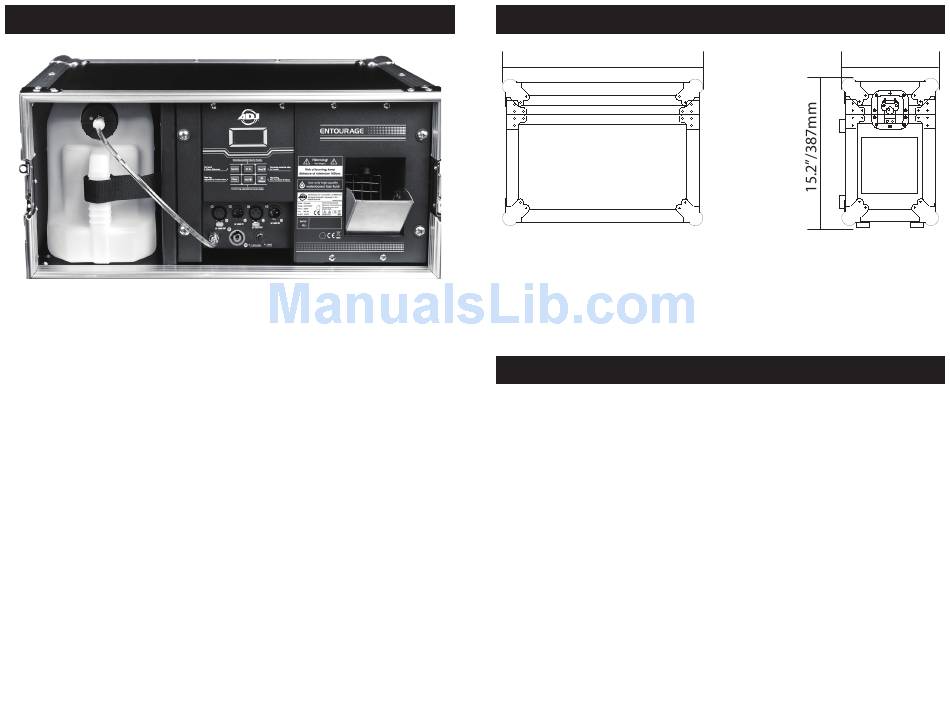

A. Flight Case
B. Unique Anti-Spill Tank
C. Quick Connector
D. Blue LCD Screen
E. 6 Buttons of Control
F. DMX 5-Pin XLR Output
G. DMX 5-Pin XLR Input
ADJ Products, LLC - www.adj.com - Entourage Instruction Manual Page 6
Layout
H. DMX 3-Pin XLR Output
I. DMX 3-Pin XLR Input
J. Breaker
K. PowerCon Input
L. Fog Output Deflector
M. Sponge
Entourage
21"/533mm
Entourage
1. Open the shipping carton and carefully remove the unit from the shipping
carton.
2. Be sure to remove all the packing material especially around the nozzle.
3. Set the fog machine on a flat dry surfaceand fill the fog fluid reservoir with
American DJ brand fog juice. Place the feeder tube with the filter deep
inside the reservoir and tighten the cap.
4. Plug the unit in to a matching power supply and the unit will begin to heat
up. Wait about 45 seconds for the fogger to reach normal operating
temperature.
5. Follow the operating instructions on the next pages for proper operation.
ADJ Products, LLC - www.adj.com - Entourage Instruction Manual Page 7

CAD Drawing

9.8"/249mm
General Set-up
