Installation Manual
ICT 801, ICT 802, ICT 810 Transmitters
®
R21 v4.0 Computer Collar
Receiver
www.invisiblefence.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ICT 801 and is the answer not in the manual?

Questions and answers

Related Manuals for INVISIBLE FENCE ICT 801

Summary of Contents for INVISIBLE FENCE ICT 801

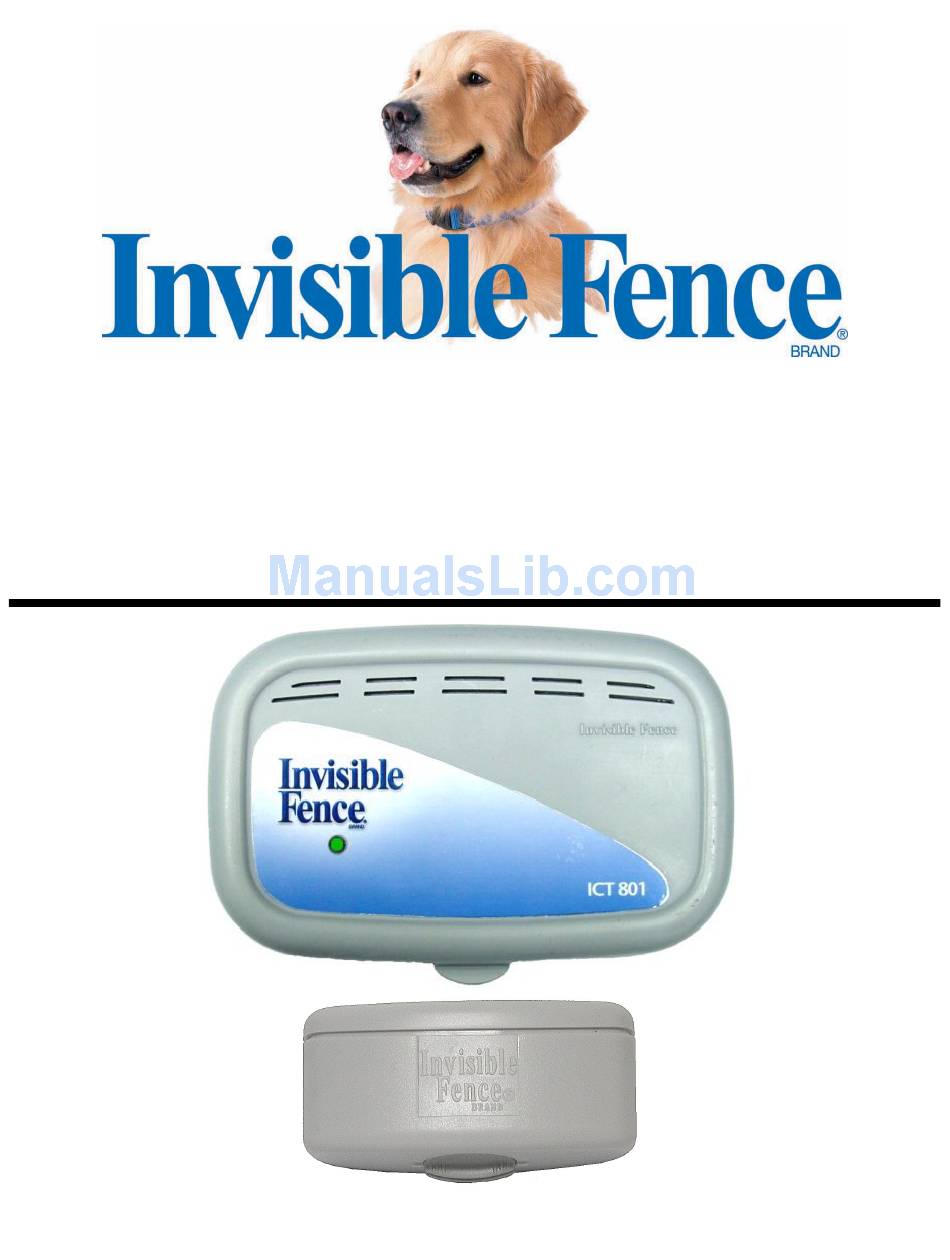

  • Page 1 Installation Manual ICT 801, ICT 802, ICT 810 Transmitters ® R21 v4.0 Computer Collar Receiver www.invisiblefence.com...

  • Page 2: System Information

    12 AWG is recommended, however, it may require a pigtail to 14 AWG for insertion into the LP-4100 or LP-4200 connectors. The ICT 801 and ICT 802 are programmable to transmit a digital signal either at 7KHz or at 10KHz, whereas the ICT 810 transmits only a 7KHz digital signal. The ICT 801, ICT 802, and ICT 810 Transmitters are only compatible with the R21 v4.0 Titanium...
  • Page 3 Brand Pet Containment Systems must be grounded per the NATIONAL ELECTRICAL CODE (NEC) to be protected against lightning. ICT 801, ICT 802, and ICT 810 Transmitters must be installed using the LP-4100 (ICT 801 and ICT 810) or LP-4200 (ICT 802) Lightning Protection devices in accordance with the NEC and applicable local building codes.
  • Page 4 Brand system and the LP-4100/LP-4200 will function properly in a GFCI ® outlet. In rare cases, lightning strikes or overload fault conditions may cause the GFCI to trip. You must instruct the homeowner to reset the tripped CFCI outlet in order for the Invisible Fence Brand ®...
  • Page 5 User Settings and Functions for ICT 801 Transmitter: Loop 1: Loop 1 is always functioning on the ICT 801. (No indicator light on the circuit board.) L1 Freq.: Select either 7K or 10K signal for Loop 1. The default setting is 7K.
  • Page 6 ICT 802 Transmitter The ICT 802 is a dual loop programmable transmitter. Each loop on the ICT 802 can have up to 3,000 feet of loop wire and up to150 feet of twisted pair. Signal width for each loop can be adjusted by using the signal field adjustments for Loop 1 and Loop 2.
  • Page 7 ICT 810 Transmitter The ICT 810 is a single loop programmable transmitter designed for installations with up to 5,000 feet of signal field wire and up to 200 feet of twisted pair wire. The ICT 810 has one signal field adjustment to increase or decrease the width of the signal field.
  • Page 8 Typical ICT 801 and ICT 810 Installation ICT 801: loop can be up to 3000 feet long ICT 810: loop can be up to 5000 feet long Typical ICT 802 Installation ICT 802: each loop can be up to 3000 feet long...
  • Page 9 To program the transmitter: 1. Press and hold the S1 button for approximately 4 seconds until a. For ICT 801: The L1 Freq. LED begins to blink. b. For ICT 802: The Loop 1 LED begins to blink. c. For ICT 810: The Range LED begins to blink.
  • Page 10 ICT 802 Transmitter: AC Adapter Model 100-0018-01 ICT 810 Transmitter: AC Adapter Model 100-0018-01 Backup Battery power: The ICT 801, ICT 802, and ICT 810 Transmitters can continue to function in the event of a power outage when connected to a fully charged backup battery system.
  • Page 11 There is one signal field adjustment knob on ICT 801 and ICT 810 transmitters and two signal field adjustment knobs on the ICT 802 transmitter. See page 5, 6, or 7 as appropriate for location of signal field adjustment knobs.
  • Page 12 ® Setting the Break-Alert Detection Level: ® The Break Alert alarm can be set to make a sound when the signal field width is reduced by 25% or more of the set signal field width. Read entire procedure before performing. Only the loops turned on will be programmed.
  • Page 13 Fitting the Invisible Fence Brand Titanium Computer Collar receiver on the Pet: ® ® To work properly, the correction posts on the Invisible Fence Brand Computer Collar receiver must touch the pet’s skin. ® ® 1. Position the Invisible Fence Brand Computer Collar receiver high up on the pet’s...
  • Page 14 Invisible Fence Brand R21 v4.0 Titanium Computer Collar ® Power Cap Battery Status: The ICT 801, ICT 802, and ICT 810 Transmitters utilize the R21 v4.0 Titanium ® ® Computer Collar receiver. This receiver monitors Power Cap battery status and will ®...
  • Page 15 ® Changing the Power Cap Battery: ® 1. Use a small, thin coin to remove the Power Cap battery ® from the R21 v4.0 Titanium Computer Collar receiver. ® Insert the coin in the slot on top of the Power Cap battery and turn it counter-clockwise.
  • Page 16 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” INDUSTRY CANADA CERTIFIED Canada 2430A-050261 © 2005 Invisible Fence, Inc., 1000 Fuller Drive, Garrett, IN 46738 0405 2100289-1 Printed in USA. All rights reserved.
