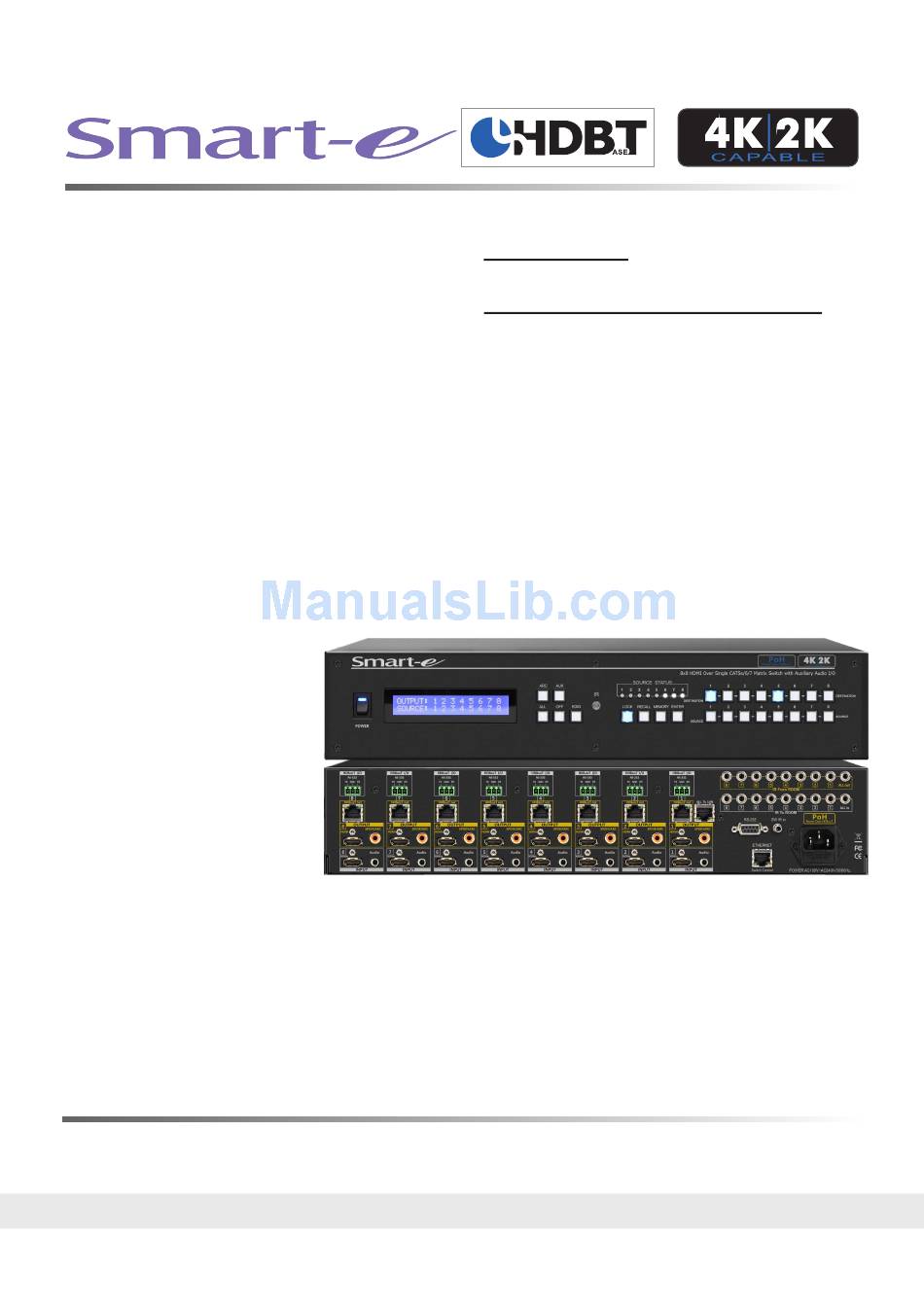

- Page 1 S4K-8x8 Instruction Manual MODEL : S4K-8x8 8x8 HDMI-HDBaseT Matrix Switch with Auxiliary Audio I/O with PoH (Power Over HDBaseT)
-
Page 2: Safety Information
SAFETY INFORMATION WARNING! CAUTION RISK OF ELECTRIC SHOCK TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. This symbol is intended to alert the user to the presence of uninsulated of uninsulated “dangerous voltage”... -
Page 3: Table Of Contents
EDID-5 - LEARNING MODE-#2 MULTIPLE LEARNING _______________________________________________ EDID-6 - EDID DEFINITIONS _______________________________________________ TYPICAL APPLICATIONS : ______________ 1 - TYPICAL-#1 Switch controls _______________________________________________ 2 - TYPICAL-#2 HDBaseT I/O Applications _______________________________________________ 3 - TYPICAL-#3 HDBaseT IR Matrix Applications _______________________________________________ S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 3... -
Page 4: Introduction And Package Contents
INTRODUCTION AND PACKAGE CONTENTS INTRODUCTION The S4K-8x8 is professional 8x8 matrix routing switch with PoH. Supporting eight (8) HDMI Inputs and (8) Auxiliary T (PoH). The S4K-8x8 is based on the HDB Audio Inputs. Output supported (8)x HDMI, (8)x SPDIF and 8x HDB standard and supports full resolution HDMI Video with embedded EDID and PoH function, Audio, RS-232, Ethernet and bi-directional IR, all over a single Category cable. -
Page 5: Features
Support IR Remote and IR Extender with distance up to ~ 984 feet (300M) Maximum. Support Universal power adaptor AC100V~AC240V, 50/60Hz. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 5... -
Page 6: Specification-1
1x IR External port (switch control via 3.5mm OD Jack) 1x RS 232 series interface (switch control) 1x Ethernet series interface (switch control) _________________________________________________________________________________________ As product improvement is continuous, specifications are subject to change and without notice or liability. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 6... - Page 7 AC 100~240 VAC 50/60Hz (Power Consumption:10A Maximum) _________________________________________________________________________________________ Safety Approvals CE, FCC, RoHS, REACH, WEEE. _________________________________________________________________________________________ Product Weight 3.85 Kgs / 8.47 lb _________________________________________________________________________________________ As product improvement is continuous, specifications are subject to change and without notice or liability. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 7...
- Page 8 - function selection button - function selection button - function selection button EDID - function selection button RECALL - function selection button MEMORY - function selection button ENTER - function selection button LOCK - function selection button S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE...
- Page 9 46B9 10EF 46B9 05FA Destination # 1 , Source #6 46B9 10EF 46B9 06F9 Destination # 1 , Source #7 46B9 10EF 46B9 07F8 Destination # 1 , Source #8 46B9 10EF 46B9 08F7 S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE...
-
Page 10: Ir Data Code
SOURCE #7 : 46B9 47B8 SOURCE SOURCE SOURCE #8 : 46B9 38C7 SOURCE #8 : 46B9 48B7 31CF 35CA 41BE 45BA 32CD 36C9 42BD 46B9 33CC 37C8 43BC 47B8 34CB 38C7 44BB 48B7 S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 10... - Page 11 46B9 7788 SOURCE #7 : 46B9 8778 SOURCE #8 : 46B9 7887 SOURCE #8 : 46B9 8877 718E 758A 817E 857A 728D 7689 827D 8679 738C 7788 837C 8778 748B 7887 847B 8877 S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 11...
-
Page 12: Ir Extender Package
The External IR jack has voltage on the “Ring” portion of a 3-conductor plug. You must use a 3-conductor plug (aka: stereo plug). Using a 2-conductor plug will short out the power supply. Always make connections with the switcher power off. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 12... -
Page 13: Ethernet Serial Interface
ETHERNET TCP/IP PROTOCOL COMMANDS ( Ethernet / RS232 Control driver V2.0 ) *** The Ethernet port and RS-232 port cannot be used simultaneously. Any connection to the Ethernet Control port will disable serial commands send to the RS-232 port.*** S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 13... - Page 14 RS-232 Pin Diagram RS-232 SERIAL INTERFACE PROTOCOL COMMANDS ( Ethernet / RS232 Control driver V2.0 ) The Smart-e switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system.
-
Page 15: System Reset - Factory Defaults
4. Aux function will disable and return un-AUX (on select models) 5. ARC function will disable and return SPDIF as output (on select models). 6. EDID will return to FSS® (1080p-2ch mode) 7. Ethernet port will return to DHCP=ENABLED S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 15... -
Page 16: Front Panel
Example : Press Destination 1,3,5 then press Source 2 will route Input 2 to Output 1,3,5 respectfully. 19 INCH EAR MOUNT PAIR Converts desktop to 19 inch rack mount. Bracket (part # 2U-440L) INCLUDED. Image shows rack mount bracket attached. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 16... -
Page 17: Arc
1. Operation will abort if no keys are pressed within 5 seconds. 2. The AUX Audio input only function when a valid HDMI / DVI video signal is present. Without a video, the AUX audio will not operate. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 17... -
Page 18: Aux
1. Operation will abort if no keys are pressed within 5 seconds. 2. The AUX Audio input only function when a valid HDMI / DVI video signal is present. Without a video, the AUX audio will not operate. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 18... -
Page 19: Edid
HDBaseT out port EDID, The EDID for HDBaseT (CATx) has been learned. - Press ENTER to ready memory location. - or press EDID again to cancel operation. Operation completes. Note : Operation will abort if no keys are pressed within 5 seconds. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 19... - Page 20 - Press and hold LOCK button for two seconds lockout the front panel. - Press and hold LOCK button for two seconds to enable the front panel. FUNCTION KEY - ENTER Press ENTER to confirm entries. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 20...
- Page 21 - or press MEMOR Y again to cancel operation. Operation completes. Note : Operation will abort if no keys are pressed within 5 seconds. - or press MEMOR Y again to cancel operation. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 21...
-
Page 22: Switch Control
Such as a computer or touch panel control (not a web-browser), simultaneously. Any connection to the Ethernet port will to the switcher via this RJ-45 Female connector to control switcher. disable serial commands send to the RS-232 port. Switch Control S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 22... -
Page 23: Hdmi I/O
The Audio can be used with HDMI Audio, DVI Audio Audio Output signals : and Auxiliary Audio signals outputs. - ARC Audio (HDTV ARC Turn On) The Auxiliary Audio use digital LPCM-2CH output. - S/PDIF (HDMI/DVI Source Audio or Auxiliary Audio LPCM-2CH) S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 23... -
Page 24: Hdbaset Controls
Receive IR signal from room via Switcher HDBaseT Transmitter. ALL out When you plug the Switcher HDBaseT IR Transmitter into the IR Extender Jack: external port, the room IR HDBaseT receiver remain active. Female Jack - inner OD O 3.5 mm S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 24... - Page 25 65.00 MHZ __________________________________________________________________________________ 1280x720p@60Hz 73.84 MHZ __________________________________________________________________________________ 1920x1080i@60Hz 74.25 MHZ __________________________________________________________________________________ 1280x1024@60Hz 108.00 MHZ __________________________________________________________________________________ 1920x1080p@60Hz 148.50 MHZ __________________________________________________________________________________ 1920x1200@60Hz 152.90 MHz __________________________________________________________________________________ 1600x1200@60Hz 162.00 MHZ __________________________________________________________________________________ BD player : 1080p 174.00 MHz __________________________________________________________________________________ S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 25...
- Page 26 Repeatedly depressing the source 1 button will cycle up thru the options. Mode 4 : H36-3D Repeatedly depressing the source 2 button will cycle down thru the options. Mode 5 : H36-3D-M Mode 6 : 4K2K Mode 7 : DVI-D 1920x1200-60Hz S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 26...
- Page 27 HDMI Support : 4K2K-3D, PCM 2CH (3860x2160-24/30Hz) EDID 6. 4K2K-3D, PCM 2CH Audio Support : PCM 2CH Mode 7 . 1920x1200-60Hz (DVI-D) DVI Support : EDID DVI-D 1920 x 1200 60Hz 7. DVI-D 1920 1200-60HZ S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 27...
- Page 28 EPROM and the EDID data cannot change. Please select new learning destination to sources or change to one of the embedded EDID modes when you want to remove the learning EDID memory from EPROM. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 28...
- Page 29 Learning anyone 1~8 Destination EDID to all sources. Step 2 . Press destination button 1 thru 8 Step 3 . Learning selected destination EDID to all sources. Press ALL button Step 4 . Press ENTER button To confirm entries. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 29...
- Page 30 When the Source has "Learned" the EDID data from a destination, it will save that EDID information into EPROM and the EDID data will not change. To change a saved HDMI EDID information, you have to select a new LEARNING destination to source or Disable the LEARNING. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 30...
- Page 31 When the Source has "Learned" the EDID data from a destination, it will save that EDID information into EPROM and the EDID data will not change. To change a saved HDMI EDID information, you have to select a new LEARNING destination to source or Disable the LEARNING. S4K-8x8 INSTRUCTION & OPERATION MANUAL PAGE 31...
- Page 32 INSTALLING DIAGRAM Samples connection : 1. Using IR External, RS-232 or Ethernet command to control Switcher S4K-8x8 via PC or SB-100 IR receiver transmit the SB-5688CAP’s IR signal. 2. Audio output link ARC from TV return channel, HDMI audio source or mixing Auxiliary audio.
- Page 33 TYPICAL-2 HDBaseT I/O APPLICATION INSTALLING DIAGRAM Sample connection using S4K-8x8 HDBaseT Transmitter and one HDBaseT Receiver (SB-6320R) to control a projector via RS-232 or IR signals. HDMI Projector NOTE: 1. IR Control Projector Over HDBaseT SB-101 Extender: S4K-8x8 HDBaseT Transmitter...
- Page 34 TYPICAL-3 HDBaseT APPLICATION INSTALLING DIAGRAM Sample connection using S4K-8x8 with IR Transmitters (SB-101) via SB-6320R to control a IR signal from Satellite Receiver. Audio Amplifier NOTE : Extender- AUD IO AMP LIFIE R Receiver 1. IR Control Satellite Receiver Over HDBaseT...
- Page 35 LIMITED WARRANTY Smart-e WARRANTY Smart-e Technology warrants this product against defects in materials and workmanship for a period of 1 year from the date of purchase. Should this product, in Smart-e Technology's opinion, prove defective within this warranty period, Smart-e Technology, at its option, will repair this product without charge, to whatever extent it shall deem necessary to restore the product to proper operation condition.
- Page 36 smart-e.co.uk...
