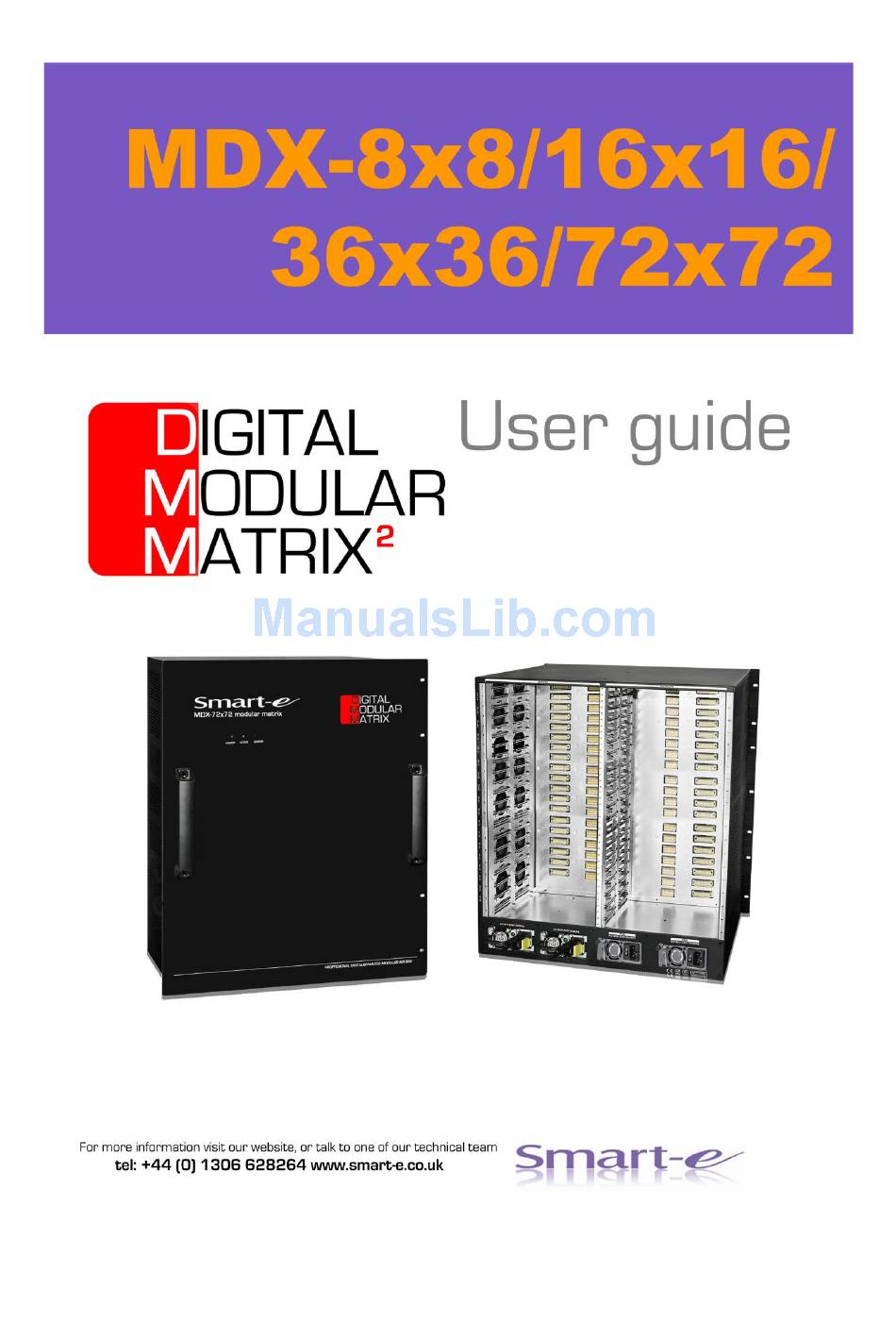

smart-e MDX-8X8 User Manual

Mdx digital modular matrix chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDX-8X8 and is the answer not in the manual?

Questions and answers

Related Manuals for smart-e MDX-8X8

Summary of Contents for smart-e MDX-8X8

  • Page 2 If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 2...
  • Page 3  Do not dismantle the equipment, and avoid damaging the internal electrical components. Please refer all servicing to qualified service personnel. DISPOSAL  Be sure to dispose of the equipment in accordance with local regulations. © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 3...

  • Page 4: Table Of Contents

    TCP/IP CONNECTION DIRECT VIA CROSS-CONNECT ..............18 ACCESSORIES ............................19 MULTIFORMAT ANALOGUE VIDEO ADAPTER CABLE ................19 TECHNICAL SPECIFICATION ......................... 20 MDX-8X8 / 16X16 / 36X36 / 72 72 ....................20 MDX-IP4-HDMI / MDX-OP4-HDMI ......................21 -IP4-DVI / MD -OP4-DVI ........................ 21 MDX-IP4-VGA / MDX-OP4-VGA......................

  • Page 5: Function

    MDX MATRIX SERIES USER MANUAL V2.0 1 FUNCTION The MDX Digital Modular Matrix 2 (DMM2) series from Smart-e is a range of rack-mountable modular analogue/digital audiovisual matrix switches – providing a high performance solution to analogue/digital matrix switching, with flexible configuration.

  • Page 6: Features

     External control via RS232 serial.  External control via TCP/IP.  Supports control via Smart-e web interface software, Smart-iP.  Integrated cooling fan system (with manual activation temperature settings).  Dual redundant power supply. © 2016 Smart-e (UK) Ltd www.smart-e.co.uk...

  • Page 7: System Components

    DVI-D [DVI-D] (Plus 3.5mm stereo jack for analogue audio MDX-OP4-DVI output) Analogue [HD15] (Plus 3.5mm stereo jack for analogue audio MDX-OP4-VGA output) MDX-TX4-HDBT HDbaseT MDX-OP4-3GSDI 3G-SDI MDX-TX4-MFB Single Core Fibre © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 7...

  • Page 8: Chassis Panel Description

    MDX MATRIX SERIES USER MANUAL V2.0 4 CHASSIS PANEL DESCRIPTION Front Panel | MDX-8x8 Rear Panel | MDX-8x8 Front Panel | MDX-16X16 Rear Panel | MDX-16X16 © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 8...
  • Page 9 MDX MATRIX SERIES USER MANUAL V2.0 Front Panel | MDX-36X36 Rear Panel | MDX-36X36 © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 9...
  • Page 10 MDX MATRIX SERIES USER MANUAL V2.0 Front Panel | MDX-72X72 © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 10...
  • Page 11 MDX MATRIX SERIES USER MANUAL V2.0 Rear Panel | MDX-72X72 © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 11...
  • Page 12 Power supply inlets to power remote transmitter and receiver units (TX/RX 4K-866s – 24V) BLANK SOCKET – NO BLADE CAN BE INSERTED IN THIS SLOT INFRARED SWITCH SLOT – Contact Smart-e for More info on Infrared Applications © 2016 Smart-e (UK) Ltd www.smart-e.co.uk...

  • Page 13: Input / Output Blades

    Provides 4x independent 3.5mm stereo jack inputs for external stereo audio  VGA/RGBHV  Supports: Component YPbPr, Y/C S-video, Composite-video (using adapter cable)  Maximum input resolution: HDPC: 1920x1200p @ 60Hz 24bit HDTV: 1920x1080p @ 60Hz 36bit (HD1080p60) © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 13...

  • Page 14: Hdbaset 4-Way Receiver Blade [Mdx-Rx4-Hdbt]

    Supports EDID editing function  Maximum input resolution: HDPC: 1920x1200p @ 60Hz 24bit HDTV: 1920x1080p @ 60Hz 36bit (HD1080p60)  Maximum recommended input cable length ≤15-meters (always use high quality cable) © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 14...

  • Page 15: Output Blades

    Supports individual output port scaling  Maximum output resolution: HDPC: 1920x1200p @ 60Hz 24bit HDTV: 1920x1080p @ 60Hz 36bit (HD1080p60)  Maximum recommended output cable length ≤5-meters (always use high quality cable) © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 15...

  • Page 16: Hdbaset 8-Way Transmit Blade [Mdx-Tx4-Hdbt]

    Supports individual output port scaling  Maximum input resolution: HDPC: 1920x1200p @ 60Hz 24bit HDTV: 1920x1080p @ 60Hz 36bit (HD1080p60)  Maximum recommended input cable length ≤15-meters (always use high quality cable) © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 16...

  • Page 17: Application Diagram

    MDX MATRIX SERIES USER MANUAL V2.0 6 APPLICATION DIAGRAM 4K-RX866 4K-TX866 MDX-36x36 4K-TX866 4K-RX866 4K-RX866 © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 17...

  • Page 18: Remote Control Interfaces

    One end of the patch cable should be terminated to EIA/TIA 568A standard: EIA/TIA 568A Standard Linear Order PIN 1 PIN 2 PIN 3 PIN 4 PIN 5 PIN 6 PIN 7 PIN 8 White/Green Green White/Orange Blue White/Blue Orange White/Brown Brown © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 18...

  • Page 19: Accessories

    8.1 MULTIFORMAT ANALOGUE VIDEO ADAPTER CABLE A multi-format analogue video adapter cable can be utilised with any input on the SDX-IP8-VGA Blade to facilitate the connectivity to various types of analogue video device. © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 19...

  • Page 20: Technical Specification

    MDX MATRIX SERIES USER MANUAL V2.0 9 TECHNICAL SPECIFICATION 9.1 MDX-8X8 / 16X16 / 36X36 Model 16x16 36x36 72x72 Specifications Interface Number input 4/16 9/36 18/72 boards/input channels Number of output boards/output 4/16 9/36 18/72 channels MDX-IP4-HDMI；MDX-IP4-DVI； MDX-RX8-HDBT； MDX-IP4-VGA； Supported input board type MDX-RX4-MFB；...

  • Page 21: Mdx-Ip4-Hdmi / Mdx-Op4-Hdmi

    HDTV: 1920x1080p @ 60Hz 36bit (HD 1080p60) Clock Jitter <0.15T bit Rise Time <0.3T bit (20%~80%) Fall Time <0.3T bit (20%~80%) Maximum Transmission Delay 5ns (±1ns) Signal Strength TMDS +/- 0.4Vpp © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 21...

  • Page 22: Mdx-Ip4-Vga / Mdx-Op4-Vga

    Minimum/Maximum Level Analogue Signal: ±2V Impedance 75Ω Echo Loss < -30dB @ 5MHz Y/C S-VIDEO 4x independent Multi-format Analogue [HD15] Female Interface (Using adapter cable) Signal Type Y/C S-video Gain 0 dB © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 22...

  • Page 23: Mdx-Rx4-Hdbt / Mdx-Tx4-Hdbt

    High speed differential signal defined in HDBaseT protocol +24V EDID Optional default EDID and load function [MDX-RX4-HDBT] RS232 Serial Control Signal Pass-through Infrared Control Signal Pass-through Maximum DC offset error 15mV © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 23...

  • Page 24: Mdx-Rx4-Mfb / Mdx-Tx4-Mfb

    Clock Jitter <0.15T bit Rise Time <0.3T bit (20%~80%) Fall Time <0.3T bit (20%~80%) Signal Type HD-SDI / 3G-SDI EDID Optional default EDID and load function Maximum DC offset error 15mV © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 24...
  • Page 25 (always use high quality cable) 15 meters @ 1920x1080p 60Hz Maximum Output Cable (always use high quality cable) PHYSICAL Form Factor MDX Blade Weight Maximum Power Consumption 15W [MDX-IP4-3GSDI] / 15W [MDX-OP4-3GSDI] © 2016 Smart-e (UK) Ltd www.smart-e.co.uk PAGE | 25...

This manual is also suitable for:

Mdx-16x16Mdx-36x36Mdx-72x72
