Summary of Contents for MultiChannel MPA32I

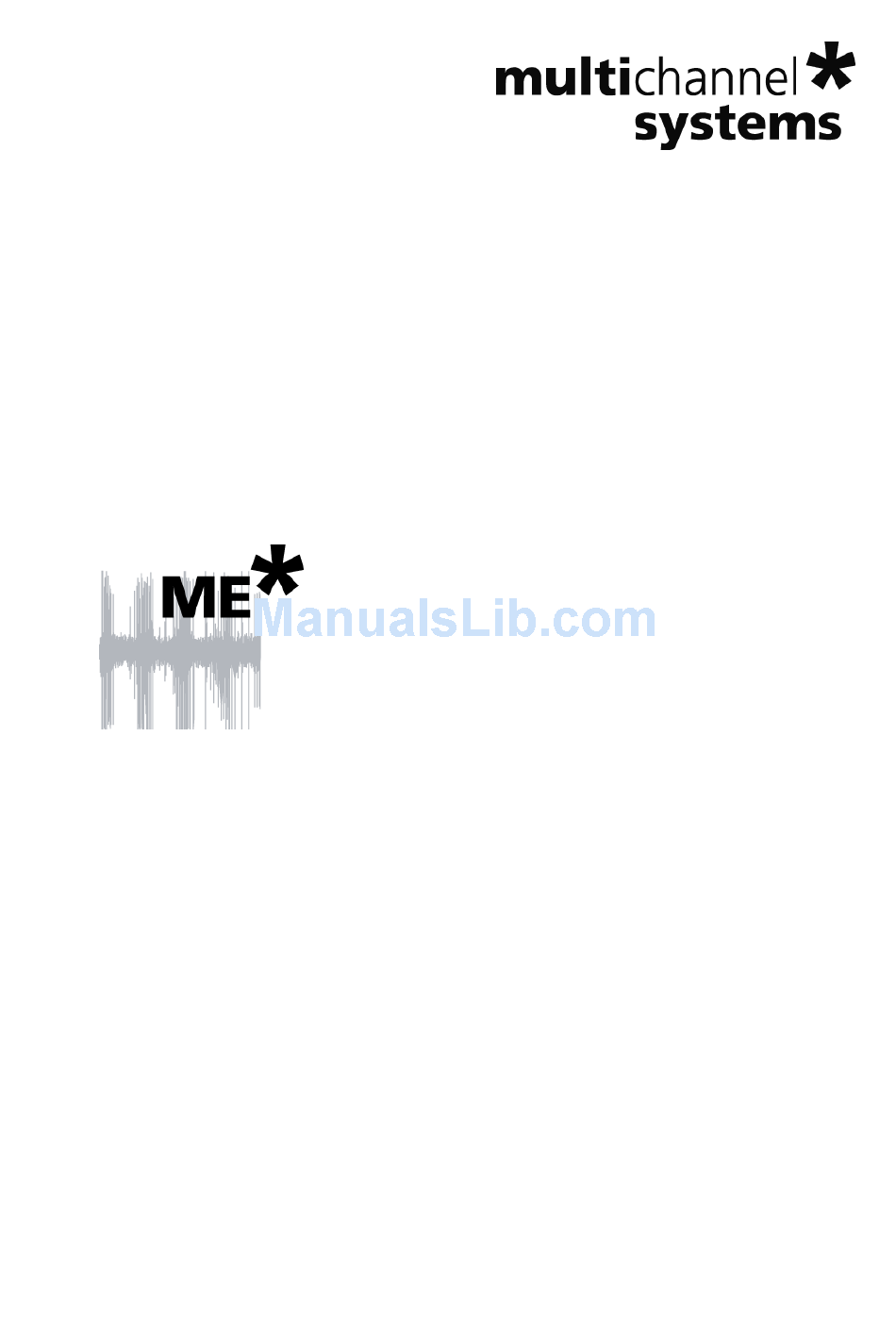

- Page 1 32-Channel Miniature Preamplifier Manual...
- Page 2 Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted without the express written permission of Multi Channel Systems MCS GmbH. While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility for errors or omissions, or for damages resulting from the use of information contained in this document or from the use of programs and source code that may accompany it.
-
Page 3: Table Of Contents
Table of Contents Important Information and Instruction Operator's Obligations Guarantee and Liability Important Safety Advice Welcome to the MPA32I Setting Up and Connecting the MPA General Setup Recommendations Testing the Noise Level of the Setup Setting up MC_Rack Connecting FlexMEAs EcoFlexMEAs 5.1.1 Connecting 32-Channel NeuroNexus Probes... -
Page 4: Table Of Contents
Important Information and Instruction Important Information and Instruction Operator's Obligations The operator is obliged to allow only persons to work on the device, who are familiar with the safety at work and accident prevention regulations and have been instructed how to use the device;... -
Page 5: Important Safety Advice
Important Information and Instruction Important Safety Advice Warning: Make sure to read the following advices prior to install or to use the device and the software. If you do not fulfill all requirements stated below, this may lead to malfunctions or breakage of connected hardware, or even fatal injuries. -
Page 6: Welcome To The Mpa32I
FlexMEAs Welcome to the MPA32I The 32-Channel Miniature Preamplifier MPA32I is connected to the microelectrodes for providing the initial tenfold amplification stage. It has additional common ground and reference electrode inputs. The reference electrode is ideally identical to the recording electrodes and placed into a comparable but inactive area or tissue. -
Page 7: Setting Up And Connecting The Mpa
FlexMEAs Setting Up and Connecting the MPA General Setup Recommendations In the following, you find general recommendations for the installation. Important: It is important that the complete setup refers to a single common ground. The reference input has always to be connected. It is recommended to use a reference electrode. However, if you are not using a reference electrode, connect the reference input to ground (GND). -
Page 8: Testing The Noise Level Of The Setup
1. Connect the terminal plug to one miniature preamplifier and the test model probe to the other as shown in the picture (do not mismatch the polarity). If you have only one MPA32I, you can perform the two tests consecutively. -
Page 9: Setting Up Mc_Rack
FlexMEAs Setting up MC_Rack Please refer to the MC_Rack Manual for more information. Start MC_Rack. Open the file MPA32I_NoiseTest.rck on the installation volume (see folder Tutorial).This rack contains the virtual MC_Card instrument as data acquisition device with a continuous raw data display and an Analyzer to measure the peak-to-peak amplitude. - Page 10 FlexMEAs Typical Results Typical results of this test are shown in the following screen shot. The filter amplifier used for this test had a gain of 100 and a bandwidth of 0.5 to 5000 Hz (FA64I-100-0.5-5000). If you use a filter amplifier with a narrower bandwidth, you can generally expect a slightly lower noise level.
-
Page 11: Connecting Flexmeas
FlexMEA36, plastic spacer and adapter (ADPT-FM-32) connected to a 32-channel miniature amplifier MPA32I. The side with no screws is considered the top side of the MPA32I. If the adapter is oriented as shown in the figure, the FlexMEA36 is inserted with the contact pads facing downward. - Page 12 (see also the ME-System product line of Multi Channel Systems MCS GmbH). FlexMEAs can be via adapter connected to a 32-channel miniature preamplifier MPA32I from Multi Channel Systems for in vivo experiments. FlexMEAs are stable at a temperature range from 10 °C to 40 °C.
-
Page 13: Ecoflexmeas
FlexMEAs EcoFlexMEAs EcoFlexMEAs are made of flexible polyimide material (Kapton), perfect for in vivo and special in vitro applications. Only 50 µm "thick" and weighing less than 10 g, the EcoFlexMEA biosensor is thin and lightweight. EcoFlexMEA36 has 32 gold electrodes plus two internal reference electrodes and two ground electrodes. -
Page 14: 5.1.1 Connecting 32-Channel Neuronexus Probes
Important: REF has to be connected for obtaining a proper signal. Insert the pin array of the NeuroNexus probe into the black connector of the ADPT-NN-32. Connect the MPA32I to the adapter outputs. Make sure that the orientation of the MPA32I is correct (see illustration). -
Page 15: 5.1.2 Adapter-Nn-32 Pin Layout
GND is the ground, REF is the reference input of the miniature preamplifier and “nc” means not connected. Channel Assignment NeuroNexus Probe to MPA32I and Data Acquisition Program The following list shows the assignment to the electrode numbers as given by NeuroNexus... -
Page 16: Connecting 54-Channel Neuronexus Probes
CH 32 EL 16 Connecting 54-Channel NeuroNexus Probes Important: REF has to be connected for obtaining a proper signal. Connect the two MPA32I to the ADPT-NN-54 adapter outputs. Make sure that the orientation of the amplifiers is correct (see illustration). - Page 17 FlexMEAs ADPT-NN-54 Pin Layout Numbers in italics are the MPA32I pin numbers. The electrode numbers are aligned to the input pins of the MPA32I. The next figure shows the numbering of the polytrode electrodes.
-
Page 18: Service And Maintenance
Service and Maintenance Service and Maintenance Cleaning the Connectors Warning: It is recommended to avoid the use of cleaning solutions to avoid corrosion. If a wet cleaning is required, use distilled water. Make sure that only the connectors touch the liquid; do not submerge the miniature preamplifier or the cable. -
Page 19: Pin Layout
Pin Layout Pin Layout Power Supply Supply voltage is applied to the output connector pins 19 and 37. The voltage source should supply a stable noise-free voltage. Do not exceed the maximum voltage. Pin 19: –3 V to –8 V Pin 37: +3 V to +8 V Warning: Do not mismatch the polarity of the power supply. -
Page 20: Test Model Probe
Pin Layout Test Model Probe Test signal IN: You can use the jumper to connect the signal input pin (Signal IN) to ground (standard situation for a noise level test), or you can connect a data source, for example, a sine wave generator to the input (and the ground of the test signal to the signal ground input) to test the signal distribution. -
Page 21: Contact Information
Pin Layout Contact Information Local retailer Please see the list of official MCS distributors on the MCS web site. User forum The Multi Channel Systems User Forum provides an excellent opportunity for you to exchange your experience or thoughts with other users worldwide. Mailing list If you have subscribed to the ME-System mailing list, you will be automatically informed about new software releases, upcoming events, and other news on the product line. -
Page 22: Technical Specifications Mpa32I
Technical Specifications MPA32I Operating temperature 0° C to 50° C Storage temperature 0° C to 50° C Relative humidity 10 % to 85 % non-condensing Dimensions (W x D x H) 27 x 36 x 5 mm Weight 7 g w/o cable and plug, 56 g with cable and plug Length of the cable 1.5 m...
