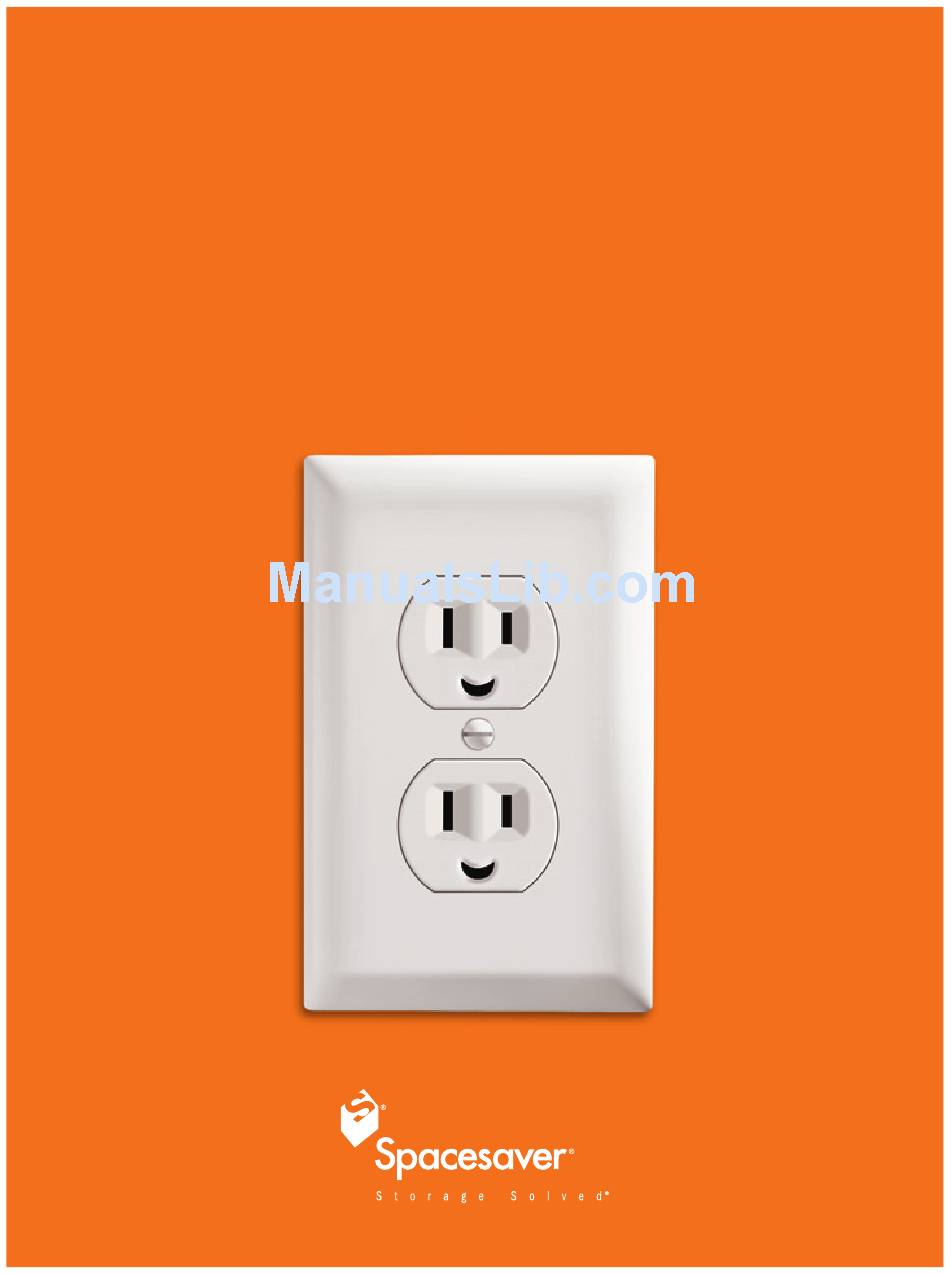

Page 1 Eclipse Powered System ™ OWNER’S MANUAL...
Page 2: Table Of Contents
Introduction......3 Proper System Use ..... . . 3 Improper System Use .
Page 3: Introduction
As the owner of a Spacesaver high-density mobile storage system, you can be assured that you have purchased the best in the industry. Its quality, safety, and ease of use are unsurpassed. Together with your local representative, we stand behind our products with an installation and service team dedicated to meeting your needs.
Page 4: Control Functions
Our push-button control is the standard control for our powered systems. For your convenience, Spacesaver’s web address is printed on the front of the control label. The control has easy- to-use functionality. A simple push of a button will move, stop or reset the system.
Page 5: Control Options
Infrared-Capable Control An optional control is available that allows the user to move a carriage, program aisles, and conduct the auto move functions. The buttons on the control itself function identically to the standard controls. (See Control Functions section of this manual.) Remote Controls For Use With Optional Infrared-Capable Control There are two remotes available for use with this control.
Page 6: Safety
A floor-level safety sweep is considered the system’s primary safety. Every aisle is required to have a minimum of one sweep. Spacesaver has two options available for safety sweeps; Photo Sweep and mechanical sweep. ® Photo Sweep ® An infrared light beam sweeps for obstructions close to the floor.
Page 7: Optional Safeties
In addition to a floor-level safety sweep, your system may be equipped with one or more of the following safety options: Waist-High Photo Sweep An additional set of Photo Sweep sensors can be mounted at waist level for additional safety. This is typically mounted at reference shelf height.
Page 8: Security
A variety of options exist to secure materials stored on the system. TouchPad Aisle Access requires a 4- digit Personal Identification Number (PIN) to access a specific aisle, limiting it only to authorized individuals. Upon exiting the open aisle, the user must depress the “Close”...
Page 9 Carriage Lock The carriage lock is placed on the carriage and interfaces with the system’s controls to provide security for stored materials. It features a key-controlled dead bolt that locks into a floor- Security mounted strike plate. It can be used to lock all of the system’s Continued aisles closed or to secure one or more selected aisles.
Page 10: Programmable Options
“building interface signal.” These functions may be programmed through your local Spacesaver service technician. Auto Move Functions • System Priority Aisle – Opens a specified aisle (or two) after a period of inactivity.
Page 11: Power Outage Options
Spacesaver has two options that allow the system to operate during power outages. You can be assured of continuous access to your stored material. Automatic Battery Backup switches the system to battery power if AC power is lost. It provides for full system function, including the safeties.
Page 12: Lighting Options
Your system may be equipped with optional overhead lights. Use of these lights usually requires no effort on your part. The lights will come on when the aisle is opened or when an aisle is entered. The lights will shut off automatically shortly after you leave the aisle.
Page 13: General Maintenance
• Check all the functions of every control. Carriage Bumpers and End Stops • Please notify your local Spacesaver service technician if you observe any missing or damaged bumpers and/or stops. Stored Media • All materials must be pushed onto the shelves and be flush with the shelf front.
Page 14: Statement Of Warranty
Spacesaver‘s negligence, or otherwise. manual. Spacesaver shall have no liability for any advice or assistance rendered by any party outside the scope of Spacesaver‘s written specifications Note: You MUST complete the online for the manufacture, operation or maintenance of the warranted form to activate your warranty.
Page 15 No one packs more into With over 100,000 installed systems – more than all of our competition combined – Spacesaver leads the industry in customized, every storage solution. high-density mobile storage solutions. A tailored storage system Almost any type of material – regardless of its that meets your unique criteria.
Page 16 Green Bay, WI 54302-8100 1-800-492-3434 1-800-424-2432 www.spacesaver.com www.ki.com Spacesaver Corporation is a division of KI. KI and Spacesaver are registered trademarks of Krueger International, Inc. © 2007 KI and Spacesaver Corporation. All Rights Reserved. Litho in USA. REV. 1.0/SC-0603 SSC/MAR 11/07...
