Summary of Contents for Firetide HotPort 7010W

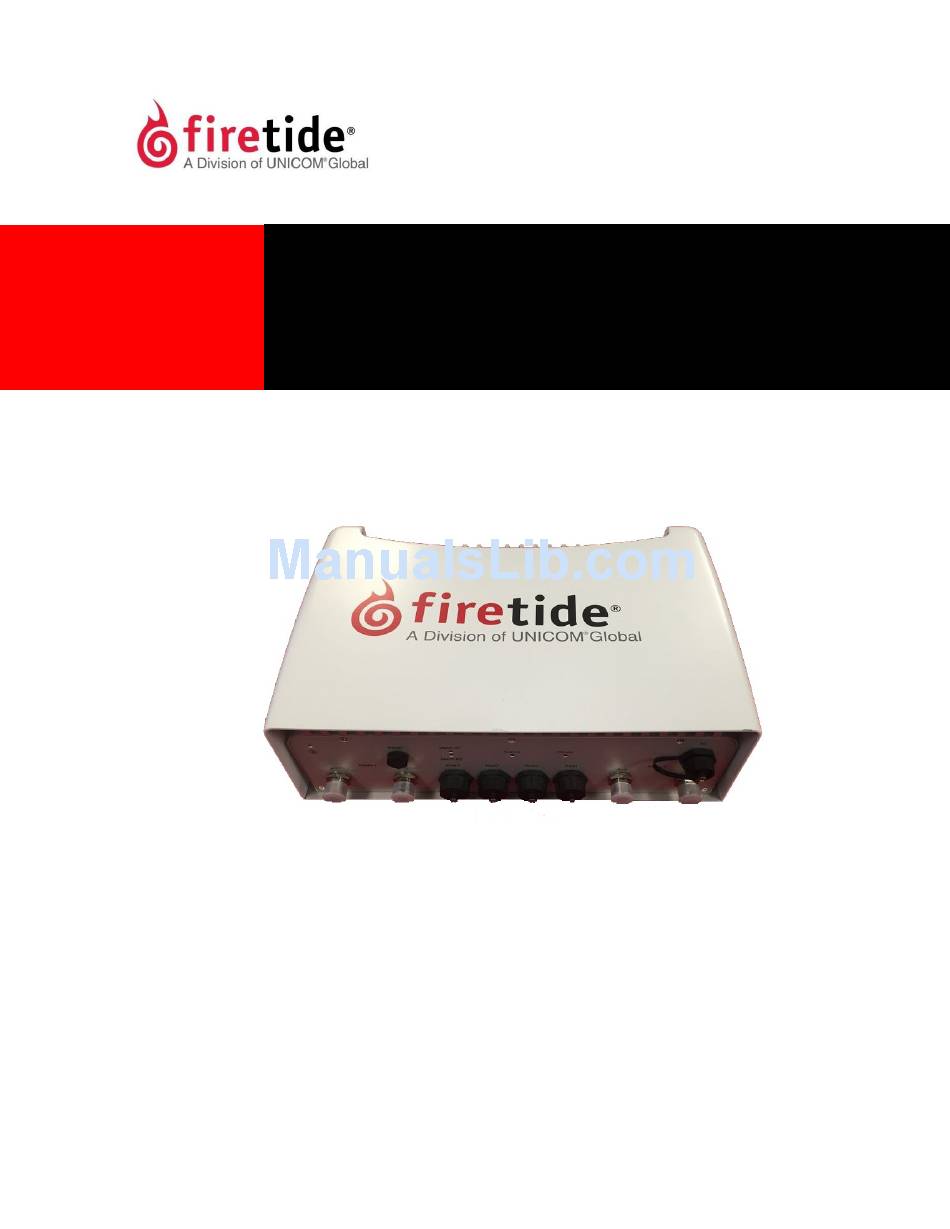

- Page 1 HotPort Firetide Installation Guide HotPort 7010(W) Mesh Node Published July, 2016...
- Page 2 Firetide, the Firetide logo, Reliable connectivity anywhere, HotPort and HotPoint are all trademarks of Firetide, Inc. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice. Firetide, Inc. 2105 S. Bascom Avenue, Suite 220 Campbell, CA 95008 www.firetide.com...
-
Page 3: Audience
This section lists the audience, purpose, summary of information, and conventions used in this document. Audience This document is intended for certified professionals who install Firetide wireless solutions. Purpose This document has the information and procedures necessary to install and do basic tests with Firetide HotPort 70 10(W) mesh node. -
Page 4: Contacting Customer Support
The next table lists the contact information for customer support. Worldwide customer support Days/Hours Contact Americas Monday to Friday http://www.firetide.com/requestsupport 7:00 am to 5:30 pm PST 1 (877) FIRETIDE, extension 2 (Pacific standard time) +1 (408) 399-7771, extension 2 +1 (408) 355-7271 http://www.firetide.com/requestsupport Africa Monday to Friday Asia... -
Page 5: Table Of Contents
Contents About this document iii Audience ............iii Purpose ............iii Conventions ............iii Document feedback .........iii Contacting customer support ......iv ............iv HotPort 7010(W) mesh nodes Before you permanently install a HotPort 7010(W) mesh node 1 Preparing what you need to install Box contents for an outdoor mesh node Parts of an outdoor mesh node ......2 Ground screw... - Page 6 Preparing earth ground ........13 Installing a mesh node and antenna assembly 14 Opening the mount bracket ......15 Attaching the mesh node to a wall Attaching a mesh node to a vertical pole 17 Attaching a mesh node to a horizontal pole 19 Attaching straps Troubleshooting Cannot see a mesh node in HotView Pro ...22...
-
Page 7: Hotport 7010(W) Mesh Nodes
If you plan to use DFS, you must take the web-based training class. After you pass the class, Firetide will give you login credentials so you can configure DFS with HotView Pro. -
Page 8: Preparing What You Need To Install
2. Remove the contents. 3. Check the contents for damage. If a part is missing or damaged, call your Firetide reseller. 4. If the contents are good and correct, keep the box for future use. Box contents for an outdoor mesh node An outdoor model comes with these items: •... -
Page 9: Ground Screw
HotPort 7010(W) mesh node Radio 1 connectors Pressure relief valve/ Reset button Radio 2 connectors Ethernet ports Ground screw AC Power connector Ground screw The ground screw is in the upper left hand corner of the bottom panel. You must ensure adequate grounding for the mesh node. -
Page 10: Pressure Relief Valve
HotPort 7010(W) mesh node Pressure relief valve The pressure relief valve is on the bottom panel. If you need to remove the valve to reset the mesh node, turn it by hand or use a wrench. If you remove the valve cover only, you can see the valve. -
Page 11: Sun Shield
HotPort 7010(W) mesh node Sun shield The next picture shows the sun shield that covers the chassis. Four Phillips-head screws hold the sun shield to the chassis. Test before you install You should set up and test the mesh nodes indoors on a table before you install them in permanent locations. -
Page 12: Required Material That Is Not Included
For the procedures related to license installation, refer to the HotView Pro Reference Manual. Certification requirement All people who install and manage networks that contain Firetide products must comply with the training and certification requirements of the installation. Doing the tests For efficiency, you can configure six to eight mesh nodes at one time. - Page 13 5. Login with the correct user name and password. The default user name is hv_admin; and the default password is firetide. The system initializes. 6. Go to Mesh > Add Mesh > login with the default user name and password.
- Page 14 HotPort 7010(W) mesh node Select the country of operation from the drop-down list. Click Set Country Code Now. When you set the country code the system refreshes the mesh configuration and gives all visible nodes the same country code. For a few minutes the mesh nodes might appear and disappear from the graphic mesh record in HotView Pro.
-
Page 15: Environmental Specifications
HotPort 7010(W) mesh node Click Execute. 14. After you finish the tests, remove the staging antennas. Caution! The staging antennas are not rated for outdoor use. You are now ready to permanently install the mesh nodes. Power Input 100-240 VAC , 50-60 Hz, 0.8 A Port 1 : IEEE 802.3at compliant PoE-PD Environmental Specifications Operating temperature: -20... -
Page 16: Hotport 7010(W) Mesh Node Installation
• To identify possible hazards that might be new since the complete site survey • To identify the presence of objects that might cause interference for the radios Warning! Certified professionals must install Firetide products. Failure to install this equipment correctly can result in equipment damage, personal injury, or death. -
Page 17: Safe Installation Practices
Electrical shock hazard warning! Make a plan to keep the installation personnel safe. Warning! Do not install Firetide products where possible contact with power lines can be made. Antennas, poles, towers, guy wires, or cables can touch power lines. People can be injured or killed if they touch or hold any part of the equipment when it contacts electric lines. -
Page 18: Preparing A Mesh Node For Installation
Note: Collect all tools before you install the mesh nodes. Make sure that you have antennas rated for outdoor use. For information about antennas and how to select them, see the Firetide Antenna and Accessory Guide. Note: Install the antenna and any other wireless devices higher than the HotPort mesh node or access point. -
Page 19: Preparing Earth Ground
HotPort 7010(W) mesh node Preparing earth ground Warning. A HotPort mesh node must be correctly connected to earth ground. Failure to do so can result in equipment damage, injury, or death. The product warranty does not include damage from incorrect grounding. Obey all local building and electrical codes regarding antennas. -
Page 20: Installing A Mesh Node And Antenna Assembly
HotPort 7010(W) mesh node Installing a mesh node and antenna assembly The process to install a mesh node to a mast or tower is the same as a roof installation. Note: Gather and take all tools and materials with you to the installation site. Warning! Do not install this product on a windy or rainy day. -
Page 21: Opening The Mount Bracket
HotPort 7010(W) mesh node Opening the mount bracket A HotPort mesh node comes with a two-piece mounting bracket. The next picture shows the bracket backplate that is attached to the mesh node. Two captive screws are on each side of this device. Captive screws The next picture shows the bracket pieces and orientation to the mesh node. - Page 22 HotPort 7010(W) mesh node The mount kit includes extra nuts and bolts. Required tools: #2 Phillips screwdriver To open the mount bracket so you can attach the mesh node to a wall or pole: 1. Connect the backplate bracket that is connected to the mesh node to the to the mounting bracket on the pole.
-
Page 23: Attaching The Mesh Node To A Wall
HotPort 7010(W) mesh node Attaching the mesh node to a wall Required materials: four screws or masonry anchors To attach a mesh node to a wall: 1. Use four screws or masonry anchors to attach the mount bracket securely to the wall. - Page 24 HotPort 7010(W) mesh node 6. Use lock washers and nuts to secure the bracket to the U-bolts. Rails 7. Hang the mesh node with the hooks over the rail of the bracket.
-
Page 25: Attaching A Mesh Node To A Horizontal Pole
HotPort 7010(W) mesh node Hooks The installation is correct if the node does not easily move from side to side, and the connectors are oriented to the ground. Note: If you need to, add other straps or a sling to increase durability of the attachment to the pole. -
Page 26: Attaching Straps
HotPort 7010(W) mesh node Hooks 4. With the Phillips screwdriver tighten the four captive screws to secure the mesh node to the bracket. The installation is correct if the mesh node does not easily move from side to side, and the connectors are oriented to the ground. Note: If you need to, add other straps or a sling to increase durability of the attachment to the pole. - Page 27 HotPort 7010(W) mesh node The installation is correct if the node does not easily move from side to side, and the connectors are oriented to the ground. Note: If you need to, add other straps or a sling to increase durability of the attachment to the pole.
-
Page 28: Troubleshooting
Troubleshooting If a mesh node does not operate correctly, try these suggestions. If you recorded the performance of your network when you set it up, you have a benchmark against which you can compare future performance and you might be able to identify problem areas faster than if you try to diagnose a new problem. -
Page 29: Resetting An Outdoor Mesh Node To Factory Default Settings
Attach the AC power cable to AC power connector on the HotPort. AC connector comes disassembled and will need to be assembled and then soldered to a cable length of the integrators choosing. 5 and 10 meter cables with connectors are avilable from Firetide. -
Page 30: Connector Pin And Cable Information
Connector pin and cable information This section lists information about the HotPort 70 10(W) connector pins and custom cables. For information about antenna cables and other custom cables, see the Firetide Antenna and Accessory Guide. HotPort 7010(W) AC power connector The next table lists the pins for the AC power connector. -
Page 31: Weatherproof Procedures
Cable connections become loose over time because of vibration. Loose connections let moisture contact and erode the interface to a connector. To prevent performance problems due to moisture damage, Firetide recommends that you use butyl mastic to make weatherproof all outdoor connections. - Page 32 Weatherproof procedures Mastic tape 2. Remove the sun shield from the mesh node. 3. Ensure that the cable and connectors are clean. Clean off oil, water, grease, and dirt before you continue. 4. Wrap a layer of electrical tape (sticky side out) over the arrestor to node connector and wrap approximately 1 inch (2.5 cm) of cable.
- Page 33 Weatherproof procedures Note: To make a watertight connection, keep tension in the butyl mastic when you stretch it over the cable and connector. 6. Tightly wrap a layer of mastic tape over the electrical tape. Make a 40% overlap on each turn. Start from the base of the unit to at least 1 inch (2.5 cm) of the cable.
