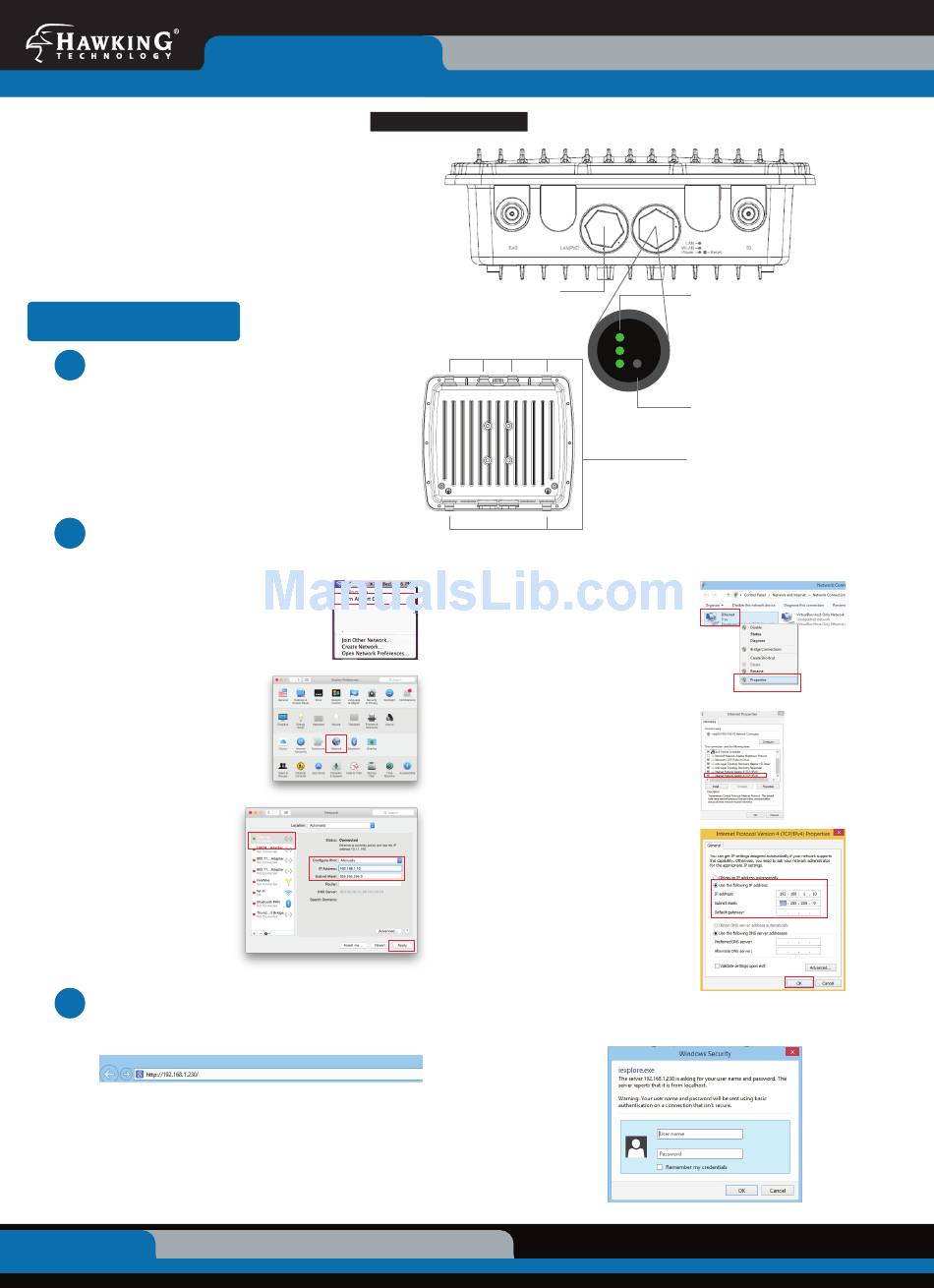

Hawking HOW17ACM Quick Installation Manual

Requirements
• Wired Network Connection
• A Wired Network Device (Mac or Windows
Computer)
• PoE Switch/Injector (Not Included)

Package Contents

• 1x Outdoor Wireless-1750AC Managed AP Pro
• 6x Omnidirectional Antennas
• 1x Mounting Bracket
• 1x Wall/Pole Mount Kits
• 1x RJ-45 Ethernet Cable
• 1x Setup CD-ROM
• 1x Quick Installation Guide (QIG)
Start Here

1

Hardware Setup

Connect the provided antennas into the correct antenna ports.
Note: 2.4GHz and 5GHz antennas each go into their labeled
antenna ports.
Connect the PoE switch or injector into the HOW17ACM LAN
port.
Connect a computer to the PoE Switch/Injector.
2
Computer Configuration
Configure the HOW17ACM with a Mac computer
a. Connect your computer to the network using
an ethernet cable. If your computer is Wi-Fi
enabled, you'll need to turn off the Wi-Fi
connection from your computer until you are
done configuring the HOW17ACM.
b. Open your System
Preferences and select the
'Network' option.
c. Select the 'Ethernet'
option. Find the
'Configure IPv4' drop
down menu and select
'Manually'. In the IP
address, enter
'192.168.1.10'. In the
Subnet Mask, enter
'255.255.255.0' and
select 'Apply'.
3
Accessing the Setup via Web Browser
a. Open any web browser from the computer that is plugged into the
HOW17ACM. In the address field, type in '192.168.1.230'. Press enter.
Technical Support
Tel: 1.888.202.3344
HOW17ACM- QIG 2017-12-19
Q I G
uick nstallation uide

Product Description

10/100/1000M LAN PoE Port

E-mail: techsupport@hawkingtech.com
HOW17ACM  Hawking Outdoor Wireless-1750AC Managed AP Pro
LAN
WLAN
PWR
3x 4dBi External N-Type 2.4GHz Ports
3x 6dBi External N-Type 5GHz Ports
Configure the HOW17ACM with a Windows computer
a. Connect your computer to the network
using an ethernet cable. If your computer
is Wi-Fi enabled, you'll need to turn off the
Wi-Fi connection from your computer until
you are done configuring the HOW17ACM.
b. Go to your control panel and select
'Network and Sharing Center'. On the left
hand column, choose 'Change Adapter
Settings'. Right click on 'Ethernet' and
choose properties.
c. Select 'Internet Protocol (TCP/IPv4)' and
click on properties.
d. Select 'Use the following IP
address'. In the IP address, enter
'192.168.1.10'. In the Subnet
Mask, enter '255.255.255.0' and
click 'OK'. Select 'OK' again to
close the properties and save.
b. A security prompt will appear asking for a username/password.
Username: admin
Password: 1234
© 2017 Hawking Technologies, Inc. All rights reserved. All trademarks herin are the property of their respective owners. Apple, Mac, iPad, and iPhone are registered trademarks of Apple Computer, Inc. No Affiliation implied or expressed.
LED
LAN: On, LAN Port Connected
Blinking, Activity (Transferring/Receiving)
Off, LAN Port is Unconnected
WLAN: On, Wireless Enabled
Blinking, Activity (Transferring/Receiving)
Off, Wireless Disabled
Reset PWR: On, AP is On
Off, AP is Off
Reset Switch
Use a pin or similar small object and press
and hold for 30 seconds to factory reset
Antenna Ports
