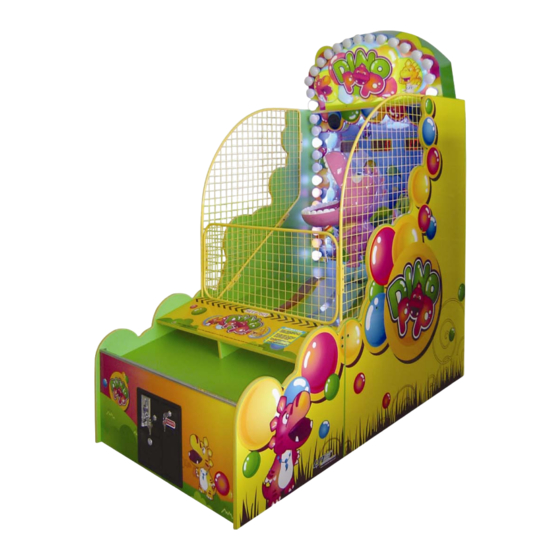

Universal Space DINO POP Operation Manual

Hide thumbs

Advertisement

Quick Links

Operation Manual
www.universal-space.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the DINO POP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Space DINO POP

Summary of Contents for Universal Space DINO POP

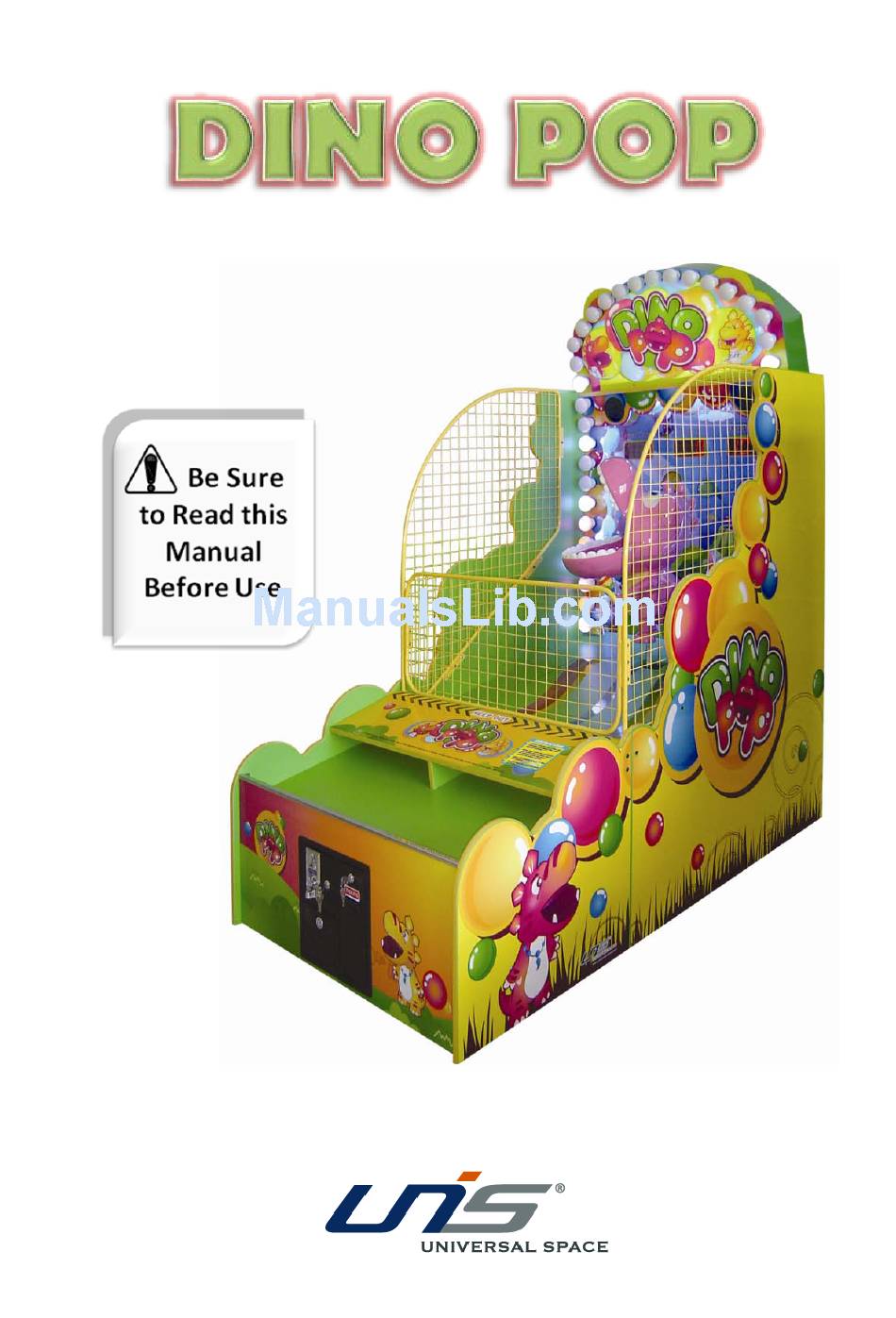

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

    CONTENT Important Safety Instructions ................. 2 1. SPECIFICATIONS ..................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ......................11 6. GAME OPTION ....................... 12 7. MAINTENANCE, INSPECTION ................21 8.

  • Page 3: Important Safety Instructions

    Thank you for purchasing DINO POP from UNIVERSAL SPACE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 No Touching Hazard: This part may be hot or can cause electric shock. Do not touch. Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine.

  • Page 5: Specifications

    1. SPECIFICATIONS Rated power supply： 110V 50/60Hz Min. P ower c onsumption: 140W Max. Power consumption： 160W Dimensions： W1840×D1000×H2033.8 (mm) Weight： About 212Kg NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

    2. PACKAGE CONTENTS Open the package and make sure all the items are included: • 1 x Body Assembly • Following accessories Part No. Name Spec. Qty. Illustration Note D107-804-000 AC power 10A/250V 1.8m Choose by T3A/250V（T6A/125V） D107-430-000 Fuse area Φ5-20mm Choose by D107-728-000...

  • Page 7: Part Names

    3. PART NAMES FRONT VIEW REAR VIEW...

  • Page 8: Set Up & Installation

    4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface  Ventilation openings in the back of the unit must not be obstructed by objects or by wall. 4.1 Play Zone This machine requires space for playing and for maintenance as shown below.
  • Page 9 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause a malfunction. To fix the game, adjust the Leveler down until it touches the floor, lifting the casters off the ground by 5mm.
  • Page 10 4.3 Transporting the Game If you need to move the game, adjust the levelers back to an “up” position so the casters touch the ground. Leveler Caster Move NOTICE • Be careful not to damage the machine during transport. • The machine should be handled with care when bringing it down from a higher level.
  • Page 11 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source. Please refer the label of the machine. • Do not plug the equipment power cables into an electrical outlet if the power cable is damaged.
  • Page 12 5. HOW TO PLAY Dino Pop is a new ball toss game for children and the whole family! This is a simple and fun game where players toss as many balls as they can into the Dino’s mouth within the time limit.

  • Page 13: Game Option

    6. GAME OPTION 6.1 Switching Control Signals efer to the attached I/O chart and schematics. To adjust DIP, please refer to the I/O chart. The initial setting is in CAPITAL LETTERS. Main Board ：...
  • Page 14 TESTING: Press the TEST button in the main board. LED Display BONUS LED<2>3-1 Time L ED<1>7-5 Score L ED<1>3-1 Testing - Options Test LED display; normal when it shows< 1.2.3.4.5.6.7.8.> Press TEST button again and LED displays 1, it shows the LED 1and LED2 of 1# in DIP SW state.
  • Page 15 6.2 DIP adjust（Default Setting） Note: Game parameters are subject to change without notice.
  • Page 16 6.2 Parameter Settings DIP Adjust 1（SW1） （1）Coin(s) per game DIP Adjust（SW1） Item Content Note Coin(s) per game （2）Game play time DIP Adjust（SW1） Item Content Note Game play time （3）Mercy Tickets DIP Adjust（SW1） Item Content Note Mercy tickets...
  • Page 17 （4）Score memory DIP Adjust（SW1） Item Content Note Score memory DIP Adjust 2（SW2） （5）Score per ball DIP Adjust（SW2） Item Content Note Score per ball （6）Score per ticket DIP Adjust（SW2） Item Content Note Score per ticket...
  • Page 18 （7）Score to get BONUS score DIP Adjust（SW2） Item Content Note Score to get BONUS score DIP Adjust 3（SW3） （8）BONUS score DIP Adjust（SW3） Item Content Note BONUS score （9）BONUS score + DIP Adjust（SW3） Item Content Note BONUS score +...
  • Page 19 （10）BONUS score max DIP Adjust（SW3） Item Content Note BONUS score DIP Adjust 4 (SW4） （11）Ticket payout max DIP Adjust（SW4） Item Content Note No limit Ticket payout No payout (12) No use SW...
  • Page 20 Input & output parts： Input part： INPUT CONTENT INPUT CONTENT INPUT CONTENT INPUT CONTENT J9-1 Ticket reset J9-11 J9-21 J9-31 J9-2 Score sensor J9-12 J9-22 J9-32 J9-3 Ball gate SW J9-13 J9-23 J9-33 J9-4 J9-14 J9-24 J9-34 J9-5 J9-15 J9-25 J9-35 J9-6 J9-16...
  • Page 21 ○ J20-4 J19-4 J21-4 J28-2 Speaker _R - POT_R ○ J20-5 J19-5 J21-5 Counter POT_L ○ J20-6 J19-6 J21-6 J8-1 +12V POT_R J21-7 J8-2 +12V J21-8 J8-3 Coin counter Ticket J8-4 counter...

  • Page 22: Maintenance, Inspection

    7. MAINTENANCE, INSPECTION 7.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Try to run the game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 23: Overall Construction

    8. OVERALL CONSTRUCTION 9.1 Main Assembly 1：...
  • Page 24 Part No. Code Name Qty. Spec. Note DZPPL-00-05 LED upper holder D107-101-000 Q235 δ1.5 DZPPL-00-06 LED L&R holder 1 D107-102-000 Q235 δ1.5 DZPPL-00-07 LED L&R holder 2 D107-103-000 Q235 δ1.5 DZPPL-00-10M LED L&R board D107-501-000 Plywood δ9 22006021020 D107-401-000 T5 daylight lamp T5-21W 220V/blue DZPPL-00-13 Speaker net...
  • Page 25 9.2 Cabinet：...
  • Page 26 Part No. Code Name Qty. Spec. Note DZPPL-02-00 Header Assy. D107-003-000 Assembly 22003000023 D107-405-000 Φ60 lamp-chimney Φ60×65 white 22003000021 D107-406-000 LED lamp DC12V White 22003000022 D107-407-000 LED lamp DC12V Pansy 22003000023 D107408-000 LED lamp DC12V Yellow DZPPL-01-03M D107-503-000 R_back board Plywood δ15 DZPPL-00-12 D107-116-000...
  • Page 27 9.3 Coin Door Assembly Part No. Code Name Qty. Spec. Note 25300171001 Lock D107-409-000 DZPPL-00-14 D107-120-000 Lock board 171 Q235 δ2.5 25302222001 Lock D107-410-000 2222 2310000006 D107-411-000 Ticket machine CL-022Q-386 22301000001 D107-412-000 Coin machine TY-JX-002 D107-121-000 Counter install board A Q235 δ1.5 DZPPL-00-02 D107-122-000...
  • Page 28 9.4 Header Assembly： Part No. Code Name Qty. Spec. Note DZPPL-02-03 lamp-chimney D107-604-000 Clarity PVC δ3 22006000020 D107-413-000 T5 daylight lamp T5-21W 220V DZPPL-02-01 D107-124-000 Cabinet Q235 δ1.5 D107-125-000 DZPPL-02-02 Back board Q235 δ1.5...
  • Page 29 9.5 Ball gate Assembly： Part No. Code Name Qty. Spec. Note DZPPL-03-03 Fixation board D107-126-000 Q235 δ1.5 DZPPL-03-04 D107-605-000 Moving board Black POM δ6 DZPPL-03-05 D107-127-000 Guide track Q235 D107-513-000 DZPPL-01-15M Ball gate board δ15 Plywood D107-415-000 23405000091 DC motor ZGB37 DC12V Motor fixation DZPPL-03-01...
  • Page 30 9.6 Left and Right Swing Assembly： Part No. Code Name Qty. Spec. Note 20102000021 D107-301-000 Q235 M24 DZPPL-04-04 D107-131-000 Washer #45 δ3 20106000120 D107-418-000 Bearing 61906 D107-419-000 DZPPL-04-02 Rotation pole Q235 δ6 D107-420-000 23405000117 single-phase Motor YN80-25/80JB150G10 D107-132-000 DZPPL-04-03 Motor holder Q235 δ5 D107-133-000 DZPPL-04-06...
  • Page 31 9.7 Up and Down Swing Assembly： Part No. Code Name Qty. Spec. Note DZPPL-05-07 Moving pole D107-136-000 Q235 δ3 DZPPL-05-06 D107-137-000 Casing Q235 δ3 DZPPL-05-02 D107-138-000 Guide track #45 δ12 D107-606-000 DZPPL-05-05 sleeve D107-139-000 DZPPL-05-03 Connect pole B #45 δ12 D107-422-000 20106000003 Bearing...
  • Page 32 9.8 Mouth Assembly： Part No. Code Name Qty. Spec. Note DZPPL-06-04 Circumrotate arm D107-142-000 Stainless steel δ2 DZPPL-06-03 D107-143-000 Connect sleeve Stainless steel δ2 D107-302-000 20105010001 Ring Q235 d5 Black D107-303-000 20107100301 R type pin Φ1.2 D107-607-000 DZPPL-06-05 Baffle PVC δ2 D107-613-000 DZPPL-06-06 Dino...
  • Page 33 9.11 Coin Counter & Electrical Box： Coin counter Ticket counter - Volume+ Ticket reset Fuse Part No. Code Name Qty. Spec. Note 23000000005 Counter D107-426-000 C-012 DC12V 22403000001 D107-427-000 Pot. knob Black 21709000002 D107-428-000 Pot. Connect board VR.PCB D107-429-000 22402010002 Button PB：11C02R（Red）...
  • Page 34 9.10 Electrical Part： Part No. Code Name Qty. Spec. Note 21706000037 2.3” LED PCB D107-801-000 LED23B3.PCB 21701000014 D107-802-000 Main board PLAY V9 21704000214 D107-803-000 Lamp control board LED CON-DDL.PCB(V1.0) D107-434-000 22140000002 Relay SSR-25DA D107-435-000 21901000018 Fuse Φ6×30mm T3A 250VAC D107-436-000 21902000015 Fuse holder FS-10...
  • Page 35 9.11 Game Decals： Front ：...
  • Page 36 Back ：...
  • Page 37 Part No. Code Name Spec. Qty. Note D107-729-000 DZPPL-HM-02E Main menu 980×965δ3 D107-702-000 DZPPL-HM-04 L_board menu 126×836(PVC100u) D107-703-000 DZPPL-HM-05 R_board menu 126×836(PVC100u) D107-730-000 DZPPL-HM-01E Header menu δ3 D107-706-000 DZPPL-HM-13 Baffle menu 280×166 2PVC3 D107-705-000 DZPPL-HM-03 U_board menu 976×136(PVC100u) D107-731-000 DZPPL-HM-07E Ball gate board menu 976×396(PVC100u) D107-708-000...
  • Page 38 Have Questions? Contact us! www.zs-shiyu.com www.universal-space.com Canada Office Parts & Service +1-905-477-2823 Email: service@universal-space.com...
