Service Manual – SC500

Brush Deck Actuator

Remove
1 Lower the brush deck
2 Switch off the machine and disconnect the battery connector
3 Remove the cover and disconnect the actuator connector (A) (Figure 17)
4 Unscrew the screw (B) of the lower pin, retaining the bushings
5 Remove the screws (C), retaining the plates (D)
6 Remove the actuator (E)
installation
7 Assemble the components in the reverse order of disassembly
A
C
D
C

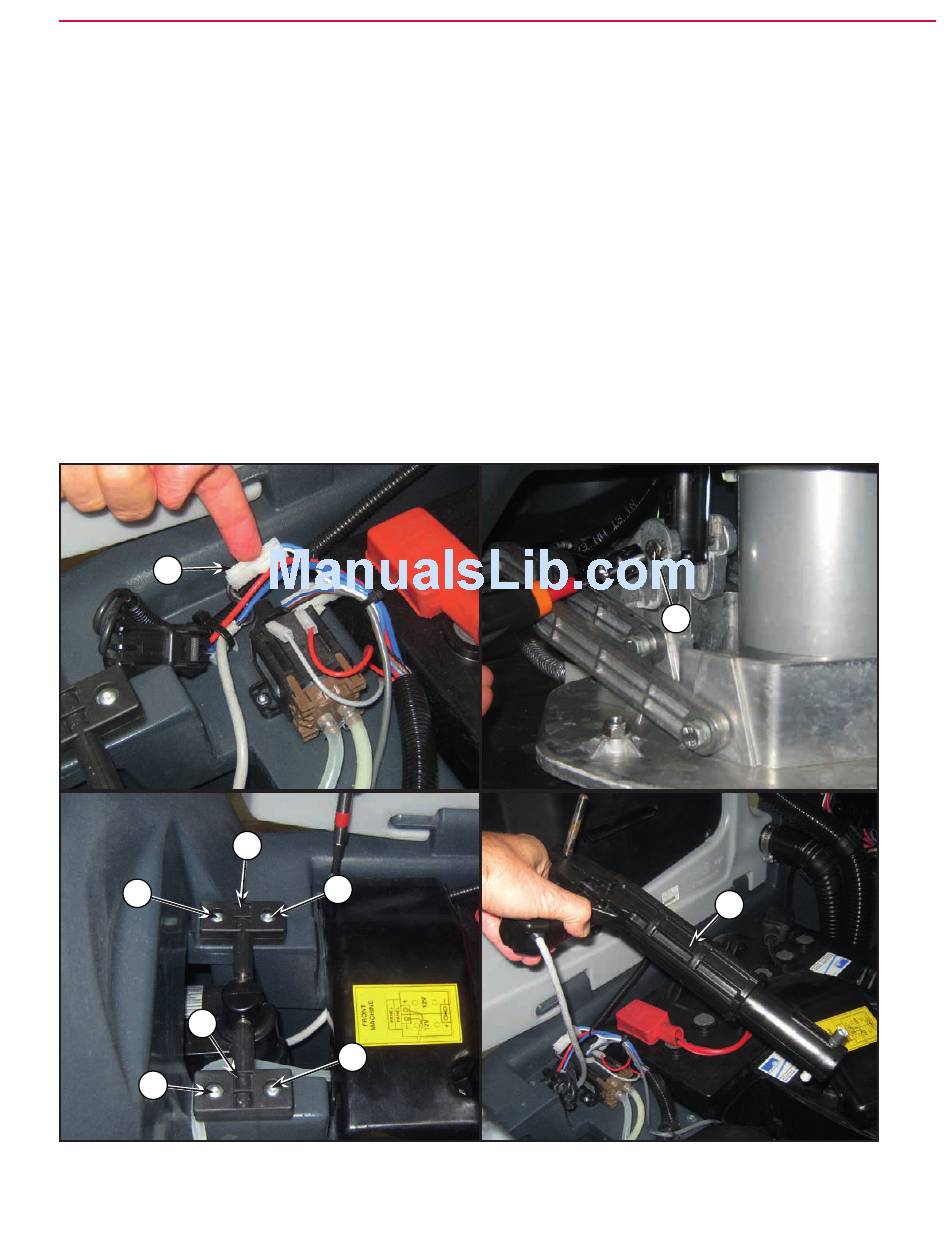

Figure 17:
D
C
C
34 - Scrub System, REV
B
E
165
