SERVICE MANUAL
Model: WS49GDB
Chapter 4 Disassembly

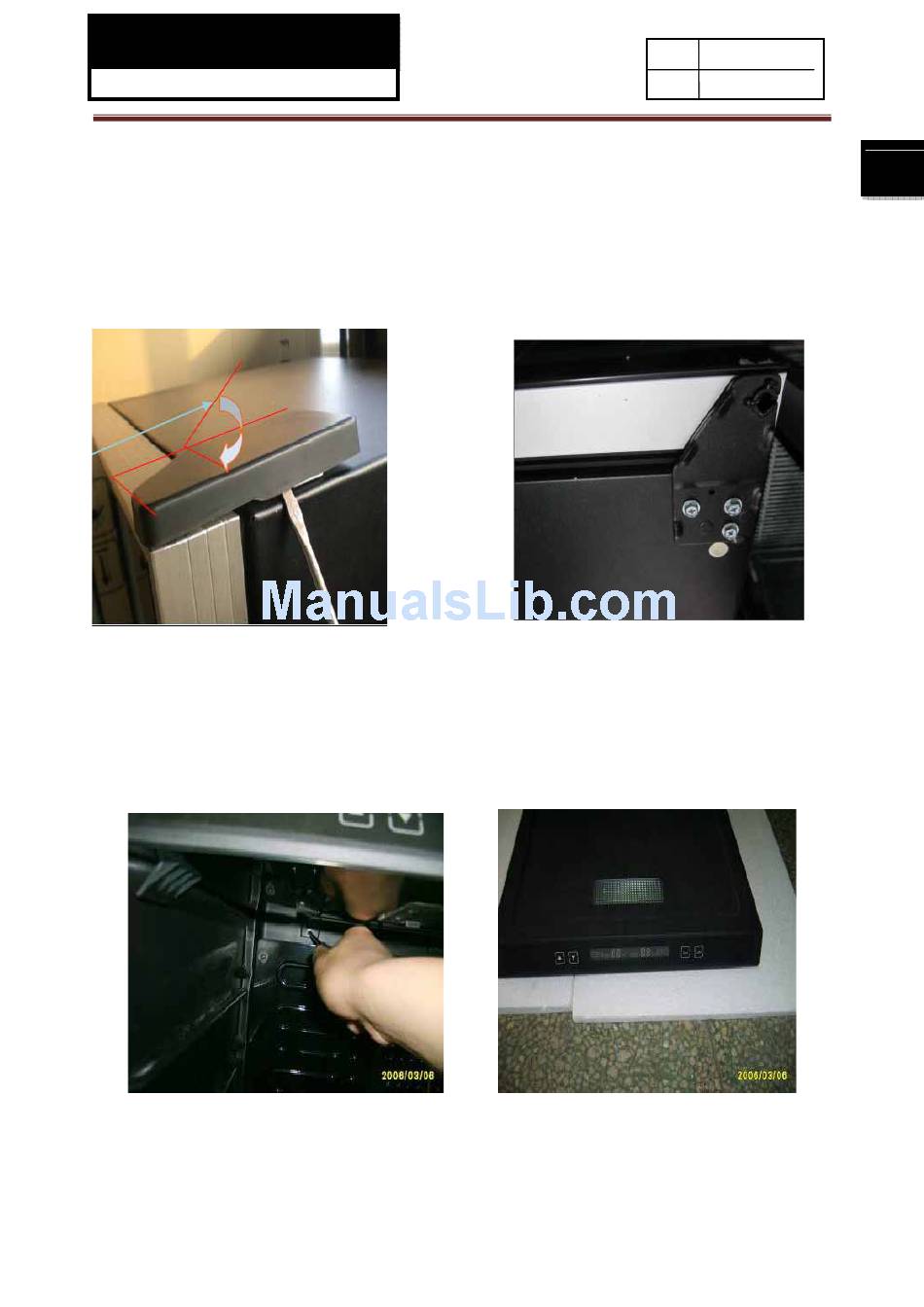

4-1. Door assembly (Door, hinge, hinge cover)
a. Remove the hinge cover
4-2. Control panel
a. Firstly, pick out all wine supports. Then remove
Fan baffle ,loosen the Philip screws on the two
sides of the middle separate structure
Issue 2014-12-10
Rev.
b. Remove the screws fixed the up hinge and lift
the door.
b. Pick out the middle separate structure
FZ1412S025V3
10
