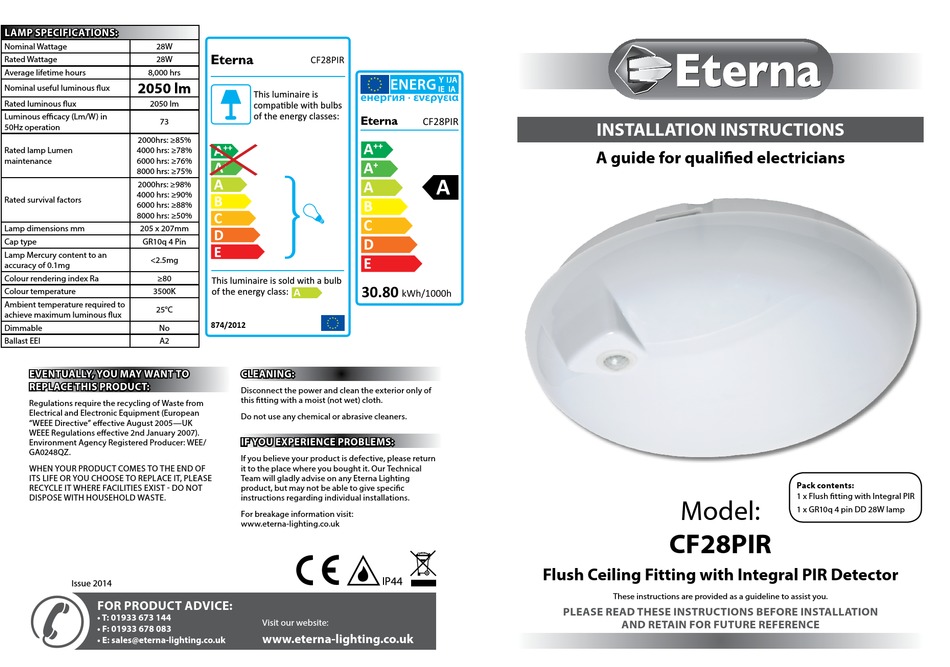

Eterna CF28PIR Installation Manual

LAMP SPECIFICATIONS:

Nominal Wattage 28W
Rated Wattage 28W
Average lifetime hours 8,000 hrs
2050 lm
Nominal useful luminous flux
Rated luminous flux 2050 lm
Luminous efficacy (Lm/W) in
73
50Hz operation
2000hrs: ≥85%
Rated lamp Lumen 4000 hrs: ≥78%
maintenance 6000 hrs: ≥76%
8000 hrs: ≥75%
2000hrs: ≥98%
4000 hrs: ≥90%
Rated survival factors
6000 hrs: ≥88%
8000 hrs: ≥50%
Lamp dimensions mm 205 x 207mm
Cap type GR10q 4 Pin
Lamp Mercury content to an
<2.5mg
accuracy of 0.1mg
Colour rendering index Ra ≥80
Colour temperature 3500K
Ambient temperature required to
25°C
achieve maximum luminous flux
Dimmable No
Ballast EEI A2
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
"WEEE Directive" effective August 2005—UK
WEEE Regulations effective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST - DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
Issue 2014
FOR PRODUCT ADVICE:
• T: 01933 673 144
• F: 01933 678 083
• E: sales@eterna-lighting.co.uk
CF28PIR
MODELNO.
XXX
30.80
A
874/2012
CLEANING:
Disconnect the power and clean the exterior only of
this fitting with a moist (not wet) cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specific
instructions regarding individual installations.
For breakage information visit:
www.eterna-lighting.co.uk
Visit our website:
www.eterna-lighting.co.uk
CF28PIR
MODELNO.
A
++
A
kWh/1000h
Flush Ceiling Fitting with Integral PIR Detector
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
Installation INSTRUCTIONS
A guide for qualified electricians
Model:
CF28PIR
These instructions are provided as a guideline to assist you.
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x Flush fitting with Integral PIR
1 x GR10q 4 pin DD 28W lamp
