Summary of Contents for Eterna CF28PIR

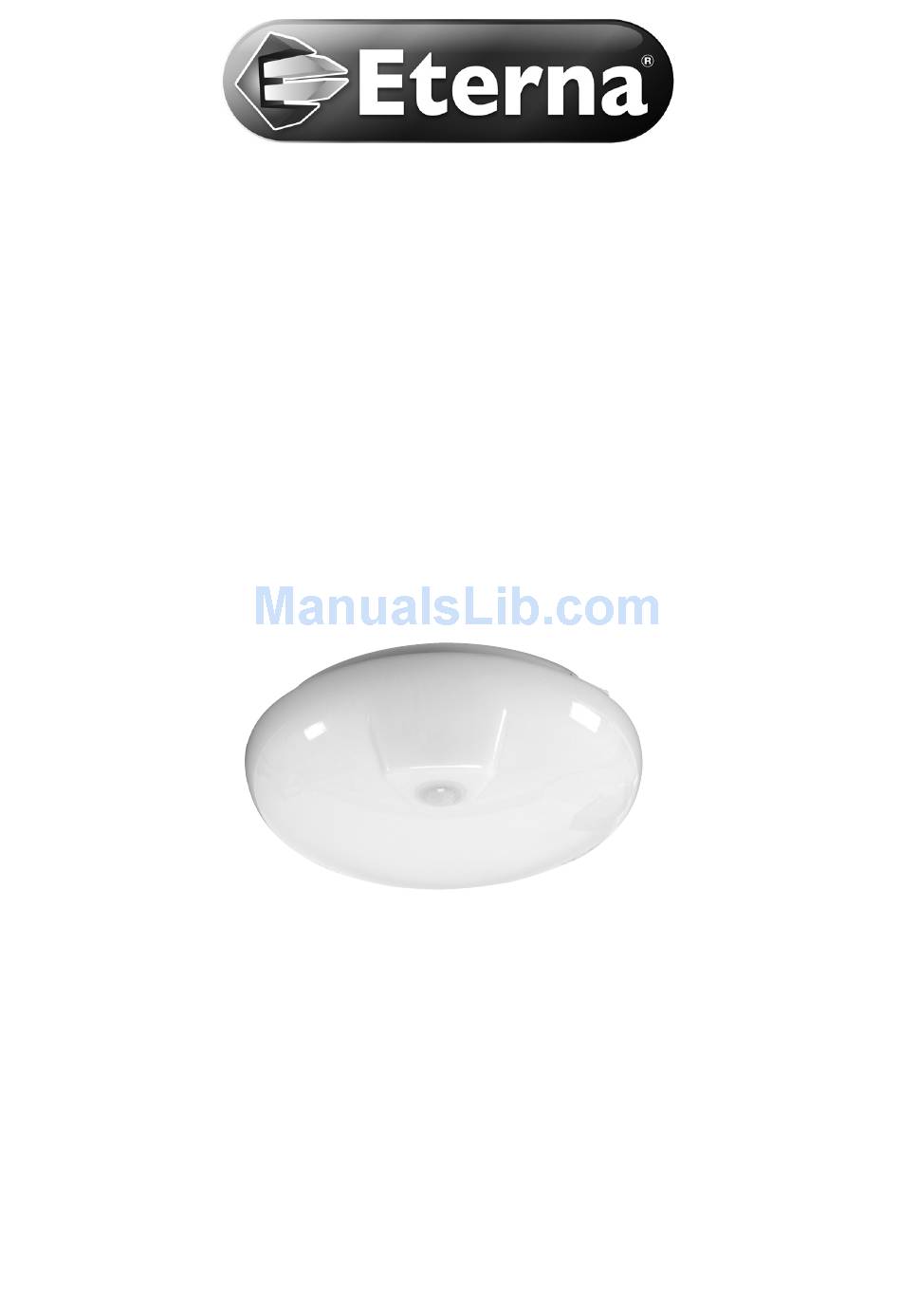

- Page 1 SAFETY AND INSTALLATION INSTRUCTIONS Models: CF28PIR Flush Ceiling Fitting with Integral PIR Detector IMPORTANT! Please read these instructions before installing your new fitting. Please retain for future reference. Pack Contents: Flush fitting complete with PIR Detector x 1 TC-DD 28W Lamp x 1...
-
Page 2: General Information And Safety Instructions
fitting is fit (lighting circuit). for the purpose for which you have intended it. Eterna Lighting cannot accept any liability for loss, damage or If the location of your new fitting requires the provision premature failure resulting from inappropriate use. -
Page 3: Installation
Installation Instructions and Care Wrap loose terminal blocks well with insulating tape. 5. Undo the screws at each end of the hinge and lift off the gear tray – take care not to lose the screws This product must be connected to Earth. and washers. -
Page 4: Installation Diagram
Installation Instructions and Care Installation Diagram 120º 3.5m 360º 2.5m Sense Range Diagram 120º 3.5m 360º 2.5m 360º Lux/Time Diagram 360º 120º 3.5m 360º 2.5m... -
Page 5: Specification
Installation Instructions and Care Understanding the Controls 5. To set the Lux level at which the lamp will automatically switch “on” at night, please turn the Adjusting the Duration Time: The length of time that LUX control from daylight to night. If the lamp is the light remains on after activation can be adjusted required to switch on earlier, e.g. - Page 6 If your light is defective or develops a fault, please return it to the place where you bought it. You can call our Helpline for advice. The Helpline will gladly give advice on any aspect of any Eterna Lighting product but may not be able to give specific instructions regarding individual installations.
