Assembling the monitor

The monitors are designed for use on a
desktop.
The arm of the monitor stand is shipped pre-
installed on the monitor.
To assemble the monitor:
1. Put a smooth pad or cloth on a level
surface. Place the monitor on the surface
facing downwards.
2. TVM-2002 only: Insert the arm of the
monitor stand into the slot on the back of
the monitor as shown below.
3. Insert the arm of the monitor stand into
the pedestal foot provided as shown
below.
4. TVM-2402/2702/3202/4002 only: Secure
the base to the stand using the supplied
screw.

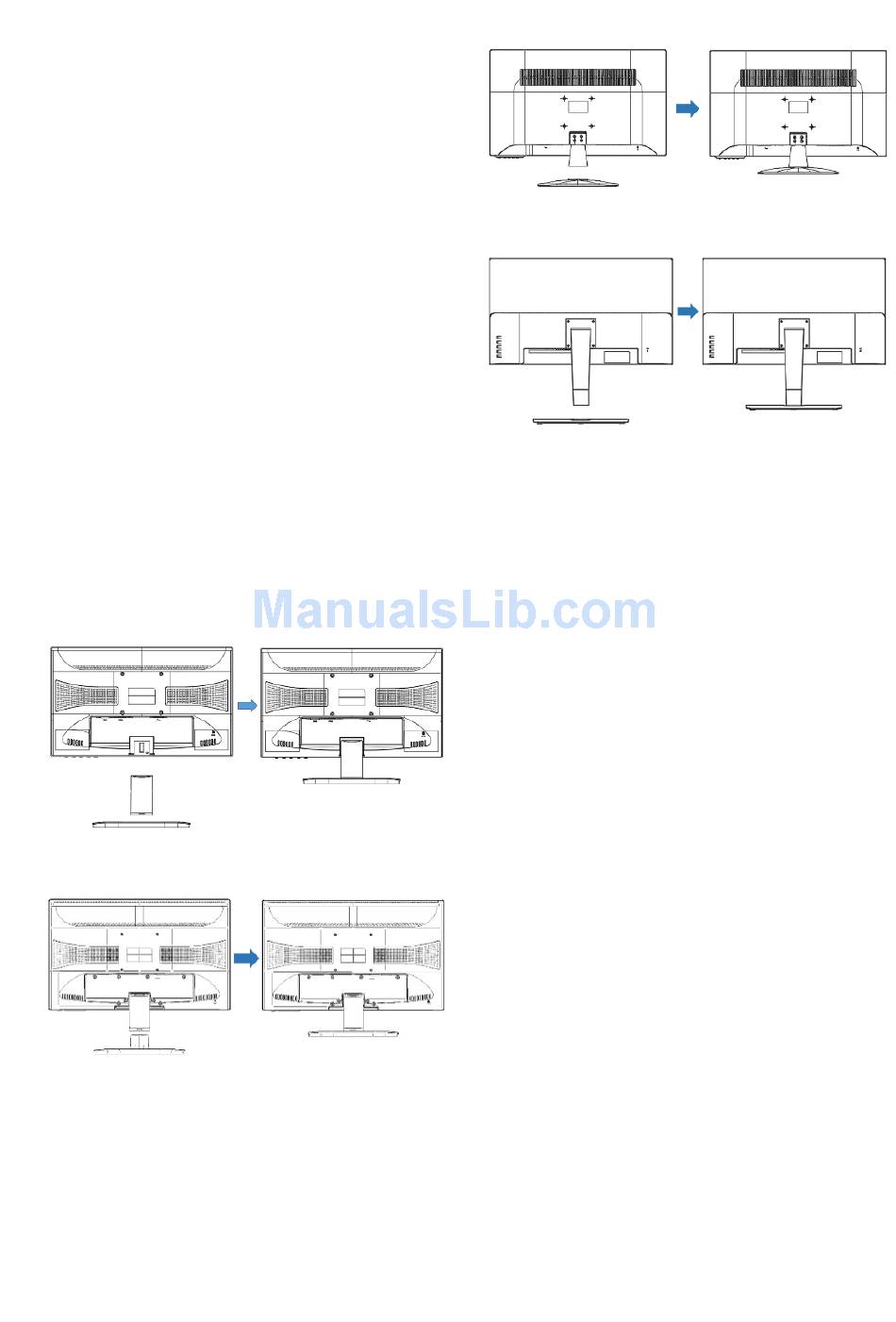

TVM-2002 model
TVM-2202/2212 models
TruVision Monitor User Manual
TVM-2402/2702 models
TVM-3202/4002 models
Disassembling the
monitor
1. Turn off the monitor and unplug the
power cable.
2. Place a cushion or a soft cloth on the
floor and place the monitor on top of it
with the monitor screen facing the floor.
3. TVM-2002 only: Using a screwdriver or a
similar object with a sharp end, carefully
detach the supporting arm by pressing
the groove on the back of the supporting
arm (note that the fixation point can be
broken if too much force is applied).
4. Remove the four screws connecting the
stand and monitor body as shown in the
following illustrations.
5. Remove the base by squeezing the tabs
underneath the base and carefully
pulling it off of the stand (TVM-
2002/2202/2212), or by removing the
screw underneath the base and carefully
pulling it off of the stand (TVM-
2402/2702/3202/4002).
