Genelec 8341A Operating Manual page 3

USB CABLE
SUBWOOFER
DIP SWITCHES FOR
STAND-ALONE USE
ON
OFF
COAXIAL TRI-AMPLIFIED
SMART ACTIVE MONITOR
+2
ALL OFF
0
-2
BASS
-4
TILT TREBLE
-6
TILT
dB DESKTOP
BASS
ROLL-OFF
20 160 800 4k 20k
Frequency (Hz)
MAINS
MAINS INPUT GLM DIGITAL IN
50 / 60 Hz 200 W
NETWORK AES/EBU
100 - 240 V~
INPUT
This device complies
with FCC Part 15 and
Canadian ICES-003
radio frequency
SERIAL NUMBER
Class B emission
requirements. Refer
to operating manual
for full information.
GLM NETWORK
CONNECTORS
Figure 2. Connectors and controls on the back panel of a 8341A.
have the monitoring system immediately ready for action. The
default wait time when ISS is enabled using the ISS DIP switch
is 60 minutes.
Setup Using The
GLM™ Control Network
Although the 8341A can be used without the GLM software and
control network, it can only reach its full potential when set up
and calibrated using GLM software, running on a Mac or PC.
Genelec therefore recommends setting up the 8341A
COMPUTER
RUNNING
GLM SOFTWARE
GLM ADAPTER
GLM
MONITORS
ROTARY LEVEL
CONTROL
POWER
-4
-2 -6
SWITCH
0
dBu
+2 +6
+4
INPUT dBu
PRODUCING
RESET TO FACTORY
100 dB SPL (1 m)
SETTINGS: PUSH
BUTTON FOR 10 SEC
AUDIO SIGNAL
DIGITAL THRU ANALOG
AES/EBU IN
CONNECTORS:
8341A
MADE IN FINLAND
www.genelec.com
-DIGITAL IN
-DIGITAL THRU
-ANALOG IN
MICROPHONE
PLACED IN
THE LISTENING
POSITION
TERMINATOR
GLM NETWORK
CABLE
Figure 3. Connector panel detail.
and other SAM monitors using GLM. You can find a detailed
description of the setup and the use in the GLM System
Operating Manual.
The GLM software and the proprietary Genelec monitor
control network offer automated acoustic equalization and
alignment for any reproduction system from mono over stereo
to complex 3D immersive audio setups, including also one or
more subwoofers. GLM includes AutoCal, an expert algorithm
built on data from thousands of professional listening rooms.
Setup with the GLM User Kit consists of the following steps:
1. Connect a CAT5 (RJ45) cable between each monitor (and
subwoofer) and finally to the control network input of the
GLM Adapter device (see Figure 1).
2. Connect the GLM Adapter device to computer USB connector.
3. Using a microphone stand, place the Genelec measurement
microphone at the listening location with the microphone
pointing upwards and the microphone top at the height of
the engineer's ear. The microphone is a part of the GLM

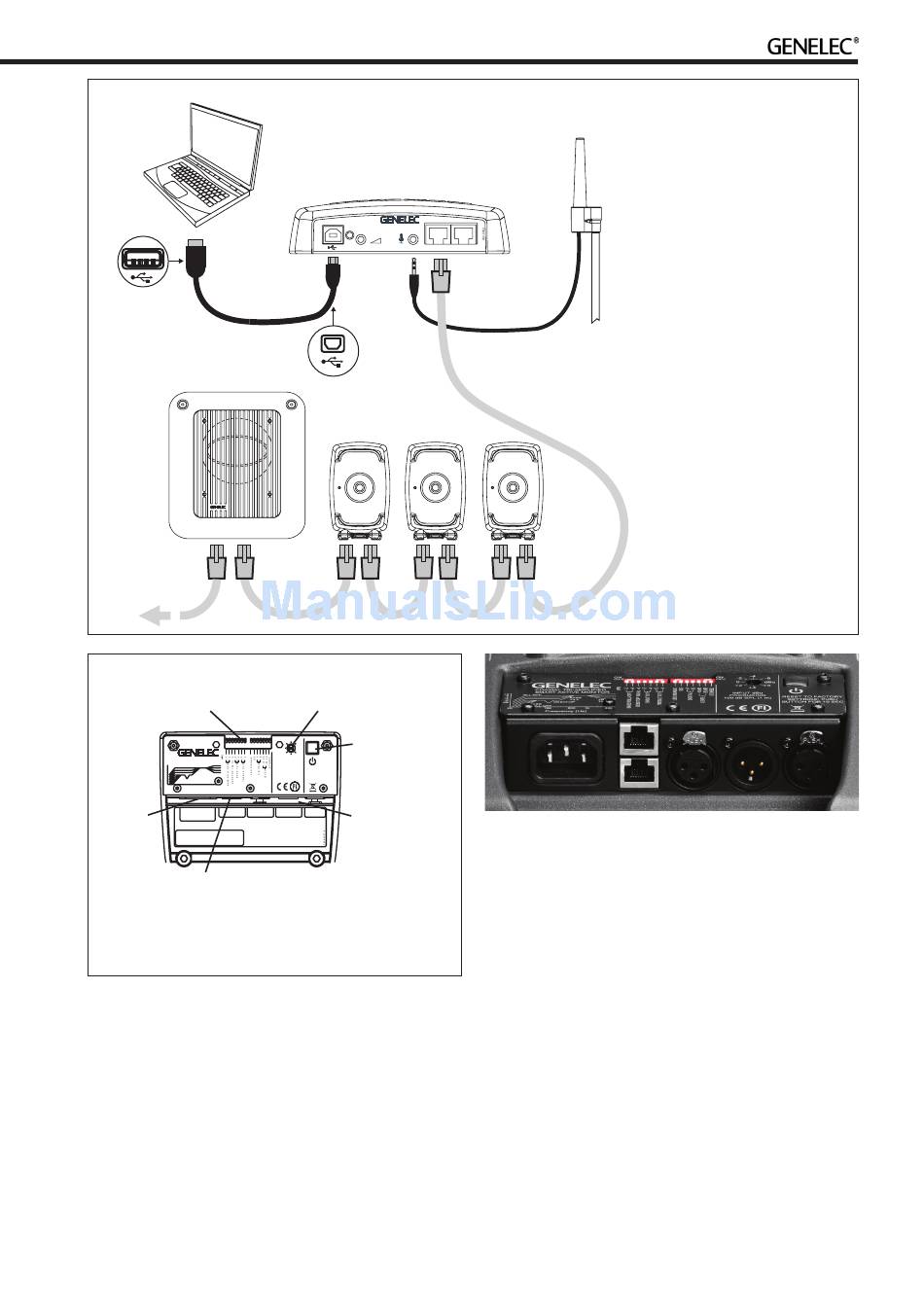

Figure 1. GLM control network cabling
3
