INSTALLATION
OPERATING
INSTRUCTIONS

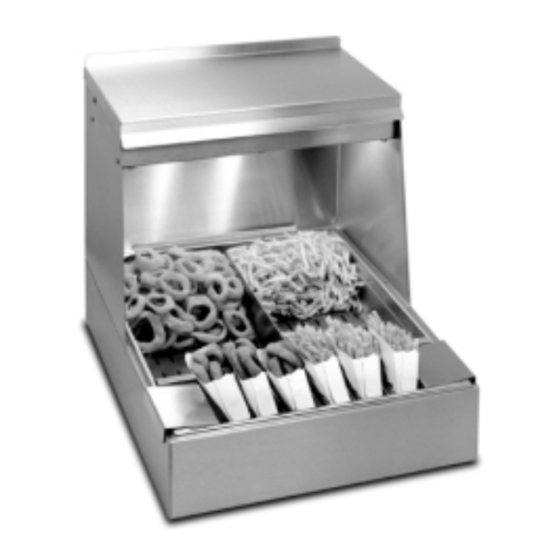

FRY HOLDING BIN
CFHS Series
Model:
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Improper installation, operation, service, or maintenance can cause property damage and/or result in
personal injury . Read this manual thoroughly before installing, operating, or servicing this equipment.
APW Wyott's equipment is designed, built and sold for commercial use and should be operated
by
trained personnel only .
clearly posted near each unit to insure proper operation and reduce the chance of personal injury
and/or equipment damage.
Always disconnect power before cleaning or servicing the unit. Surfaces will remain hot after
power has been removed, allow unit to cool before cleaning or servicing. Never clean the unit by
immersing it in water. The unit is not protected against water jets; DO NOT CLEAN UNIT WITH A
WATER JET . Always clean equipment properly before first use.
Phone:
(214) 421-7366
Fax:
(214) 565-0976
Toll Free: (800) 527-2100
Website: www.apwwyott.com
E-mail:
info@apwwyott.com
AND
SAFETY PRECAUTIONS
Make sure
all
CAUTIONS, WARNINGS and
WARNING
APW WYOTT
Foodservice
729 Third Avenue,
1
operating instructions are
P/N: 95000018
Equipment
Company
Dallas, TX 75226
9/05
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APW Wyott CFHS-16
Summary of Contents for APW Wyott CFHS-16
-
Page 1: Safety Precautions
Improper installation, operation, service, or maintenance can cause property damage and/or result in personal injury . Read this manual thoroughly before installing, operating, or servicing this equipment. SAFETY PRECAUTIONS APW Wyott's equipment is designed, built and sold for commercial use and should be operated trained personnel only . Make sure... - Page 2 TABLE OF CONTENTS SECTION ITEM PAGE General Information Installation Operation Instructions Cleaning Instructions Troubleshooting Replacement Parts Wiring Diagrams Warranty Policy IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment. For Warranty Service and/or Parts, this information is required. Model Number Serial Number Date Purchased...
-
Page 3: General Information
1. GENERAL INFORMATION Check the rating label for your model designation and electrical rating. Rating Label is located on the rear base of the unit. Overall dimensions: CFHS-16 CFHS-21 22.31” 22.70” (56.67 cm) (57.66 cm) Electrical ratings: CFHS-16 120V AC, 880W, 60Hz, 7.33A, NEMA 5-15 Plug CFHS-21 120V AC, 1130W, 60Hz, 9.42A, NEMA 5-15 Plug... -
Page 4: Operation Instructions
3. OPERATION INSTRUCTIONS The On/Off switch should be in the offline position “0”. Flip switch to online position “I”. Caution External Surface Temperatures The unit's external surface temperatures will be hot. Use caution when touching these areas to avoid injury . Warning Severe Burns - Ceramic Elements Do not touch elements after power is... -
Page 5: Replacement Parts
Lamp, 40w, T eflon Coated 95000026 Element, Ceramic, CFHS-21 95100006 Element, Ceramic, CFHS-16 95000035 Divider, Trivet 95000005 Trivet, CFHS-21 95100021 Trivet, CFHS-16 95000036 Ribbon, 6 Bag (CFHS-21 only) 95000046 Pan w/Bottom Heater, CFHS-21 95100020 Pan w/Bottom Heater, CFHS-16 89488 Switch 95000041 Thermostat (Not Shown) - Page 6 7. WIRING DIAGRAMS FOR CFHS SERIES CFHS-21 RACEWAY (BLUE) (BROWN) OVERHEAD BASE CFHS-16 RACEWAY (BLUE) (BROWN) OVERHEAD BASE...
- Page 7 APW Wyott's option or its Authorized Service Agency, it will be serviced on site or replaced. From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs.
- Page 8 Phone: (214) 421-7366 Fax: (214) 565-0976 APW WYOTT Toll Free: (800) 527-2100 Website: www.apwwyott.com 729 Third Avenue E-mail: info@apwwyott.com Dallas, TX 75226...
