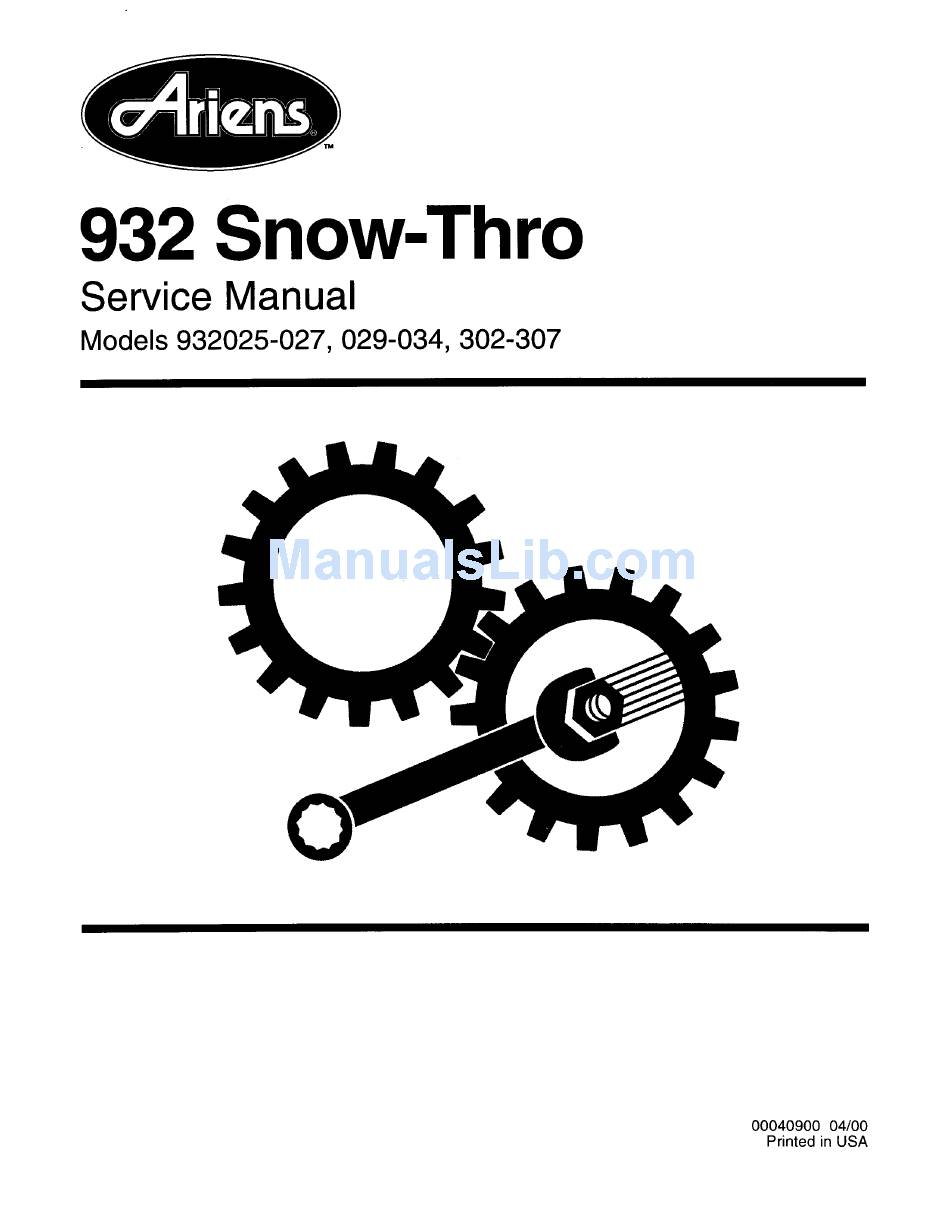

Ariens 932025 Service Manual
  1. Manuals
  2. Brands
  3. Ariens Manuals
  4. Snow Blower
  5. 932025
  6. Service manual
Ariens 932025 Service Manual

Ariens 932025 Service Manual

932 series snow-thro
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 932025 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ariens 932025

Summary of Contents for Ariens 932025

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section 1 - Introduction ....1-3 Section 5 - HandleBars & Controls ..5-20 1.1 The Manual ..... . . 1-3 5.1 Lower Handlebar .

  • Page 3: Section 1 - Introduction

    Operation and may void the warranty. Ariens disclaims liability for Before operation of the unit, carefully and completely any claims or damages, whether warranty, property read manuals supplied with the unit. The contents will...

  • Page 4: Section 2 - Safety

    SECTION 2 - SAFETY 2.1 SAFETY ALERTS 2.6 PREPARATION Look for these symbols to point out Before starting any removal of parts, proper important safety precautions. They preparation is very important for efficient work. A clean mean: work area at the start of each job will allow you to perform service repairs easily and quickly.

  • Page 5: Safety Rules

    2.9 SAFETY RULES Hazardous Slopes DO NOT operate on steep slopes. Avoid operating on Walk Around Inspection slopes. When you must operate on a slope, travel up Complete a walk around inspection of unit and work and down the slope. Never operate cross a slope. area to understand: Never operate on a slope greater than 10 degrees.
  • Page 6 Before maintenance, adjustments, or service (except where specifically recommended), shut off engine. Allow hot parts to cool. Keep unit free of dirt, stones, and other debris. Clean up oil or fuel spills. Storage DO NOT store unit inside a building with fuel in the fuel tank where any ignition sources are present.

  • Page 7: Section 3 - Specifications

    SECTION 3 - SPECIFICATIONS Model Number 932025 932026 932027 932029 932030 Description ST 5+2 ST 524 ST 724 ST 824 ST 5+2 Engine HSK-50 HSK-50 HSK-70 HSK-80 HSK-50 Manufacturer Tecumseh Tecumseh Tecumseh Tecumseh Tecumseh Fuel Unleaded Unleaded Unleaded Unleaded Unleaded Fuel Tank Capacity - qt (L) 2 (1.9)
  • Page 8 Model Number 932031 932032 932033 932300 932301 Description ST 524 ST 724 ST 724 ST 524 CE ST 524 s Engine HSK-50 HSK-70 HSK-70 HSK-50 HSK-50 Manufacturer Tecumseh Tecumseh Tecumseh Tecumseh Tecumseh Fuel Unleaded Unleaded Unleaded Unleaded Unleaded Fuel Tank Capacity - qt (L) 2 (1.9) 4 (3.8) 4 (3.8)
  • Page 9 Model Number 932034 932302 932303 932304 932305 Description ST 724 ST 524 ST 724 ST 824 ST 524 Engine HSK-70 HSK-50 HSK-70 HSK-80 HSK-50 Manufacturer Tecumseh Tecumseh Tecumseh Tecumseh Tecumseh Fuel Unleaded Unleaded Unleaded Unleaded Unleaded Fuel Tank Capacity - qt (L) 4 (3.8) 2 (1.9) 4 (3.8)
  • Page 10 Model Number 932306 932307 Description ST 724 ST 724 Engine HSK-70 HSK-70 Manufacturer Tecumseh Tecumseh Fuel Unleaded Unleaded Fuel Tank Capacity - qt (L) 4 (3.8) 4 (3.8) Idle RPM 1800 1800 Governed RPM 3600 3600 Crank Case Capacity - oz (L) 21 (.62) 21 (.62) Engine Oil Type...

  • Page 11: Section 4 - General Maintenance & Adjustments

    SECTION 4 - GENERAL MAINTENANCE & ADJUSTMENTS 4.1 CONTROLS AND FEATURES 1. Traction Drive Lever 11.Discharge Chute 2. Attachment Clutch Lever 12.Auger 3. Engine Ignition and Key 13.Impeller 4. Primer Bulb 14.Scraper Blade 5. Choke 15.Runner(s) 6. Throttle 16.Gas Tank and Cap 7.

  • Page 12: Service Positions

    4.2 SERVICE POSITIONS Ariens Dealers will provide any service or adjustments which may be required to keep your unit operating at peak efficiency. Should engine service be required, contact an Ariens dealer or an authorized engine manufacturer’s service center. WARNING: ACCIDENTAL ENGINE START UP can cause death or serious injury.

  • Page 13: Fuel Shut-Off Valve

    IMPORTANT: DO NOT allow grease or oil to get on To add fuel to the fuel tank: friction wheel, drive disc or belts. 1. Refuel the unit only in a well ventilated, open area. Apply Sten Mix Hi-Temp Grease or equivalent to the 2.

  • Page 14: Auger Gearcase

    2. Add lubricant, if required, allow oil to drain to level IMPORTANT: DO NOT over fill. Oil level must not of plug and replace plug (Figure 4). exceed Full (F) mark. 3. Use only Ariens special gear lubricant L-2 (P/N 00008000). Engine Oil Type Ambient Temperature...

  • Page 15: Attachment Drive Belt

    4.8 ATTACHMENT DRIVE BELT WARNING: IMPROPER ADJUSTMENT could result in death or serious injury. IMPELLER BRAKE MUST DISENGAGE when clutch is engaged. Brake must be at least 1/16" (1.6 mm) to 1/8" (3.2 mm) minimum from belt when disengaged. BELT FINGERS MUST BE between 1/16 to 1/8"...

  • Page 16: Shear Bolts

    4. The shear bolts should not be overtightened to collapse the auger center tube to the auger drive shaft. IMPORTANT: Use only Ariens Shear Bolts for replacement. Use of any other type of shear bolt may 4.11 TIRE PRESSURE result in severe damage to the unit.
  • Page 17 The chute bracket and gear strap are also slotted for vertical adjustment of the discharge chute. Loosen mounting nut and move discharge chute up or down so that chute ring is approximately centered between retainer clip and lower ring. Retighten. Runners Runners should be adjusted as conditions require.
  • Page 18 3. Measure distance between impeller brake shoe Attachment Clutch/Impeller Brake pad and belt with attachment clutch engaged (Figure 10). Impeller brake shoe should be 1/16" WARNING: AUGER/IMPELLER MUST STOP (1.6 mm) minimum from belt. When attachment within 5 seconds when attachment clutch/ clutch is disengaged, brake must contact belt.
  • Page 19 With the other hand move the traction drive clutch lever toward the handle grip until all cable slack is removed, and hold it there. 3. Measure the distance between the lever and 3 1 /4"- 3 3 /4" handle grip. Proper measurement is 3-1/4 to 3-3/4" (8.25 - 9.52 cm) (Figure 11).

  • Page 20: Section 5 - Handlebars & Controls

    SECTION 5 - HANDLEBARS & CONTROLS 1. Chute Crank Handle 2. Speed Selector Lever 3. Attachment Clutch Arm 4. Clutch Cable Spring 5. Clutch Cable 6. Traction Clutch Arm 7. Speed Selector Rod 8. Traction Clutch Cable Figure 13 5.1 LOWER HANDLEBAR 5.3 WHEEL DRIVE CLUTCH LEVER &...

  • Page 21: Section 6 - Engine

    SECTION 6 - ENGINE 6.1 ENGINE TROUBLESHOOTING The following troubleshooting chart is to be used to The troubleshooting key is generic and can be used for isolate engine problems and give possible causes and several types of engines. Use only those possible corrective action responses.

  • Page 22: Removing The Engine

    See your engine manual for information on the opera- tion and maintenance of your engine. Follow those instructions for oil and filter changes. 6.2 REMOVING THE ENGINE 1. Drain gasoline. 2. Place unit in the Belt Service Position. 3. Remove both belts from the engine pulleys. Remove pulleys.

  • Page 23: Section 7 - Reduction Drive

    SECTION 7 - REDUCTION DRIVE 7.1 WHEELS AND AXLE 7.2 SPROCKET AND CHAIN - 824 MODELS ONLY The wheels are bolted directly to the axle shaft. To remove the wheels, loosen the bolt and nut. Push the The 824 models have a reduction sprocket driven by bolt out and slide the wheel hub off of the axle.

  • Page 24: Section 8 - Friction Wheel Drive

    SECTION 8 - FRICTION WHEEL DRIVE 8.1 FRICTION WHEEL NOTE: The 824 Models have a sprocket assembly with chain drive. Slide the sprocket off the shaft and remove 1. To replace friction wheel, tip unit up onto housing (see Figure 19). on a level surface.

  • Page 25: Friction Wheel Carrier

    8.2 FRICTION WHEEL CARRIER appropriate sections of this manual for more information. The friction wheel carrier is not repairable and is 6. Pull the shaft out of the bushing. replaced when needed. Inspect the carrier when the friction wheel is serviced. 7.

  • Page 26: Section 9 - Auger/Impeller

    5. Remove three lock nuts attaching bearing support IMPORTANT: Use only Ariens shear bolts for to housing and remove bearing support. replacement. Use of any other type of shear bolt may 6.

  • Page 27: Discharge Chute

    9.4 DISCHARGE CHUTE NOTE: Chute must rotate freely. To adjust the gears tighten or loosen the lower nut (Figure 21). This will adjust the spring tension on the gears. WARNING: DO NOT put hands or feet near or under rotating parts. Keep clear of discharge opening at all times.

  • Page 28: Runners

    9.5 RUNNERS raise runners so that scraper blade scrapes clean. To reduce tendency of housing to ride up over heavy wet or hard-packed snow, remove runners and re-install CAUTION: Adjust auger/impeller housing with the narrow edge down. height to clear gravel or crushed rock surfaces.

  • Page 29: Section 10 - Gear Case

    This case requires Ariens L-2 P/N 00008000 and 5. There are two special washers, one on either side should be half full.
  • Page 30 Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.ariens.com...
