Rinstrum 5230 Applications Manual

Digital indicator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

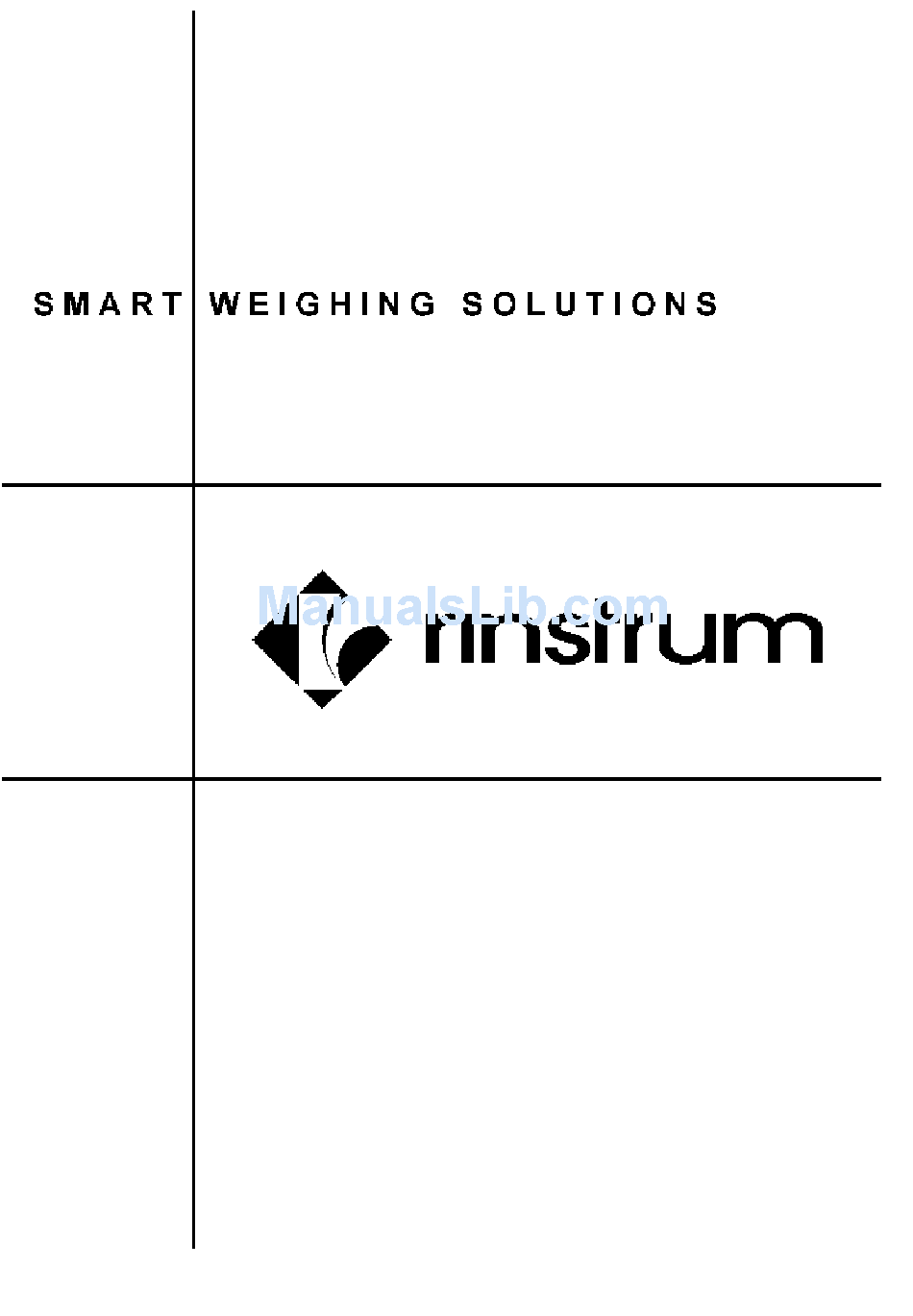

5230
(Truck Weigher)
Digital Indicator
Applications Manual
For use with Software Versions 2.0 and above
5200-604-120

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rinstrum 5230

Summary of Contents for Rinstrum 5230

  • Page 1 5230 (Truck Weigher) Digital Indicator Applications Manual For use with Software Versions 2.0 and above 5200-604-120...
  • Page 2 This manual may occasionally make reference to Trade Use settings of the 5230. Only properly marked Trade Certified versions of the 5230 can be used in Legal for Trade applications. Trade Certification is available only on 5230 units with software Versions 2.0 and above.

  • Page 3: Table Of Contents

    Rinstrum - 5230 Applications Manual 5200-604-120 Table of Contents INTRODUCTION ........................4 1.1. Audience ........................4 1.2. Scope ..........................4 1.3. Manuals ......................... 4 PRELIMINARY FUNCTIONS ....................5 2.1. Creating IDs Prior to a Transaction ................5 2.1.1. Creating Truck IDs ..................5 2.1.2.

  • Page 4: Introduction

    Variable Multi-Axle option is available to allow for weighings where the number of axles in the first weighing differs from the second weighing. An automatic weighing function has also been included in the 5230 to allow axle weighing to be performed with only one visit to the indicator. Figure 1: Rinstrum 5230 Digital Indicator 1.1.

  • Page 5: Preliminary Functions

    This section and the following sections in this manual provide information on setting up specific aspects of the most commonly used functions for the 5230 (using the keypad). It is assumed that the user has knowledge of the 5230 and that some menu options have been previously set (eg. BUILD).

  • Page 6: 2.1.3. Creating Destination Ids

    Rinstrum - 5230 Applications Manual 5200-604-120 2.1.3. Creating Destination IDs • Press and hold the <DEST> key for two seconds. • Press and hold the <FIND> key for two seconds. • Enter the ID name from the alphanumeric keypad. • Press the <ACCEPT/OK> key to create the ID.

  • Page 7: Printer Setup (Serial Port 2)

    Rinstrum - 5230 Applications Manual 5200-604-120 2.4. Printer Setup (Serial Port 2) In each example the printer port SER.P2 has been set to the choices in the following table. Note: In the examples the PRN.TYP has been set to FIXED.1, FIXED.2 or FIXED.3. Samples of the different printer tickets using various options accompany each example.

  • Page 8: Single Weight Ticketing (One Pass Only)

    Rinstrum - 5230 Applications Manual 5200-604-120 Single Weight Ticketing (One Pass Only) With Single Weight Ticketing the gross weight of a truck is printed but not stored. An option is available to allow for a user defined Print ID to be entered for each weighing (as in this example).

  • Page 9: Setup (Single Weight Ticketing (One Pass Only))

    Rinstrum - 5230 Applications Manual 5200-604-120 3.3. Setup (Single Weight Ticketing (One Pass Only)) • To enter setup press and hold both the <ZERO> and <FIND> keys together for two seconds. • Each press of the <ESC/C> key will go back one step in the menus.

  • Page 10: Single Weighing (In-Out)

    Rinstrum - 5230 Applications Manual 5200-604-120 Single Weighing (In-Out) Single Weighing allows a vehicle to be weighed and the weight stored as a first weight. This first weight can be printed if required. When the second weight is performed, the difference between the first and second weight is registered as the net weight.

  • Page 11: Sample Print Tickets (Fixed.1)

    Rinstrum - 5230 Applications Manual 5200-604-120 4.2. Sample Print Tickets (FIXED.1) FIRST WEIGHING SECOND WEIGHING UNIT ID : 22 UNIT ID : 22 TRUCK : 350BMC TRUCK : 350BMC PRODUCT : CEMENT DATE : 06-03-03 DESTINATION : S CITY TIME : 14:57 REFERENCE No.: 999999...

  • Page 12: Single Weighing With 7 Day Preset Tare (In-Out)

    Rinstrum - 5230 Applications Manual 5200-604-120 Single Weighing with 7 Day Preset Tare (In-Out) A Single Weighing with Preset Tare allows the weight of a vehicle to be entered via the keypad. The weight is stored as a first weight preset tare and can be set to expire after a selectable time frame.

  • Page 13: Setup (Single Weighing With 7 Day Preset Tare (In-Out))

    Rinstrum - 5230 Applications Manual 5200-604-120 5.3. Setup (Single Weighing with 7 Day Preset Tare (In-Out)) • To enter setup press and hold both the <ZERO> and <FIND> keys together for two seconds. • Each press of the <ESC/C> key will go back one step in the menus.

  • Page 14: Batch Process Single Weighing (In-Out)

    Rinstrum - 5230 Applications Manual 5200-604-120 Batch Process Single Weighing (In-Out) With Batch Process Single Weighing the batching is performed directly on the weighbridge. The operation allows a truck to be tared off and, via the optional outputs, a silo can be controlled to dump a specified amount of product into a truck while it is still on the weighbridge.

  • Page 15: Setup (Batch Process Single Weighing (In-Out))

    Rinstrum - 5230 Applications Manual 5200-604-120 6.3. Setup (Batch Process Single Weighing (In-Out)) • To enter setup press and hold both the <ZERO> and <FIND> keys together for two seconds. • Each press of the <ESC/C> key will go back one step in the menus.

  • Page 16: Multiple Axle Weighing (In-Out)

    Rinstrum - 5230 Applications Manual 5200-604-120 Multiple Axle Weighing (In-Out) A Multiple Axle Weighing allows up to 10 axles of a vehicle to be weighed and the weights stored as a first weight. These weights can be printed if required. With the first and second weighings, the number axles on the vehicle must be the same.

  • Page 17: Sample Print Ticket (Fixed.2)

    Rinstrum - 5230 Applications Manual 5200-604-120 7.2. Sample Print Ticket (FIXED.2) FIRST WEIGHING SECOND WEIGHING TRUCK : 350BMC TRUCK : 350BMC PRODUCT : COAL DATE : 06-03-03 DESTINATION : N CITY TIME : 15:51 REFERENCE No.: 999999 DATE : 06-03-03 SEQUENCE No.

  • Page 18: Variable Axle Weighing (In-Out)

    Rinstrum - 5230 Applications Manual 5200-604-120 Variable Axle Weighing (In-Out) A Variable Axle Weighing allows up to 10 axles of a vehicle to be weighed and the weights stored as a first weight. These weights can be printed if required. With the first and second weighings, the number axles on the vehicle may be different (eg.
  • Page 19 Rinstrum - 5230 Applications Manual 5200-604-120 Page 19...

  • Page 20: Sample Print Ticket (Fixed.3)

    Rinstrum - 5230 Applications Manual 5200-604-120 8.2. Sample Print Ticket (FIXED.3) FIRST WEIGHING SECOND WEIGHING TRUCK : 350BMC TRUCK : 350BMC PRODUCT : COAL DATE : 07-03-03 DESTINATION : N CITY TIME : 09:57 REFERENCE No.: 999999 DATE : 07-03-03 SEQUENCE No.

  • Page 21: Automatic Multiple Axle Weighing (In-Out)

    (When the 5230 is in automatic weight accept mode, the 6500 is the most appropriate remote display unit.) When the second weighing is performed, the difference between the first and second weight is registered as the net weight.
  • Page 22 Rinstrum - 5230 Applications Manual 5200-604-120 Page 22...

  • Page 23: Sample Print Ticket (Fixed.2)

    Rinstrum - 5230 Applications Manual 5200-604-120 9.2. Sample Print Ticket (FIXED.2) FIRST WEIGHING SECOND WEIGHING TRUCK : 350BMC TRUCK : 350BMC PRODUCT : COAL DATE : 07-03-03 DESTINATION : N CITY TIME : 09:35 REFERENCE No.: 999999 DATE : 07-03-03 SEQUENCE No.
  • Page 24 Rinstrum - 5230 Applications Manual 5200-604-120 Notes: Page 24...
  • Page 25 Rinstrum - 5230 Applications Manual 5200-604-120 Notes: Page 25...
