Install Cranks And Pedals - Razor ScreamMachine Owner's And Safety Manual

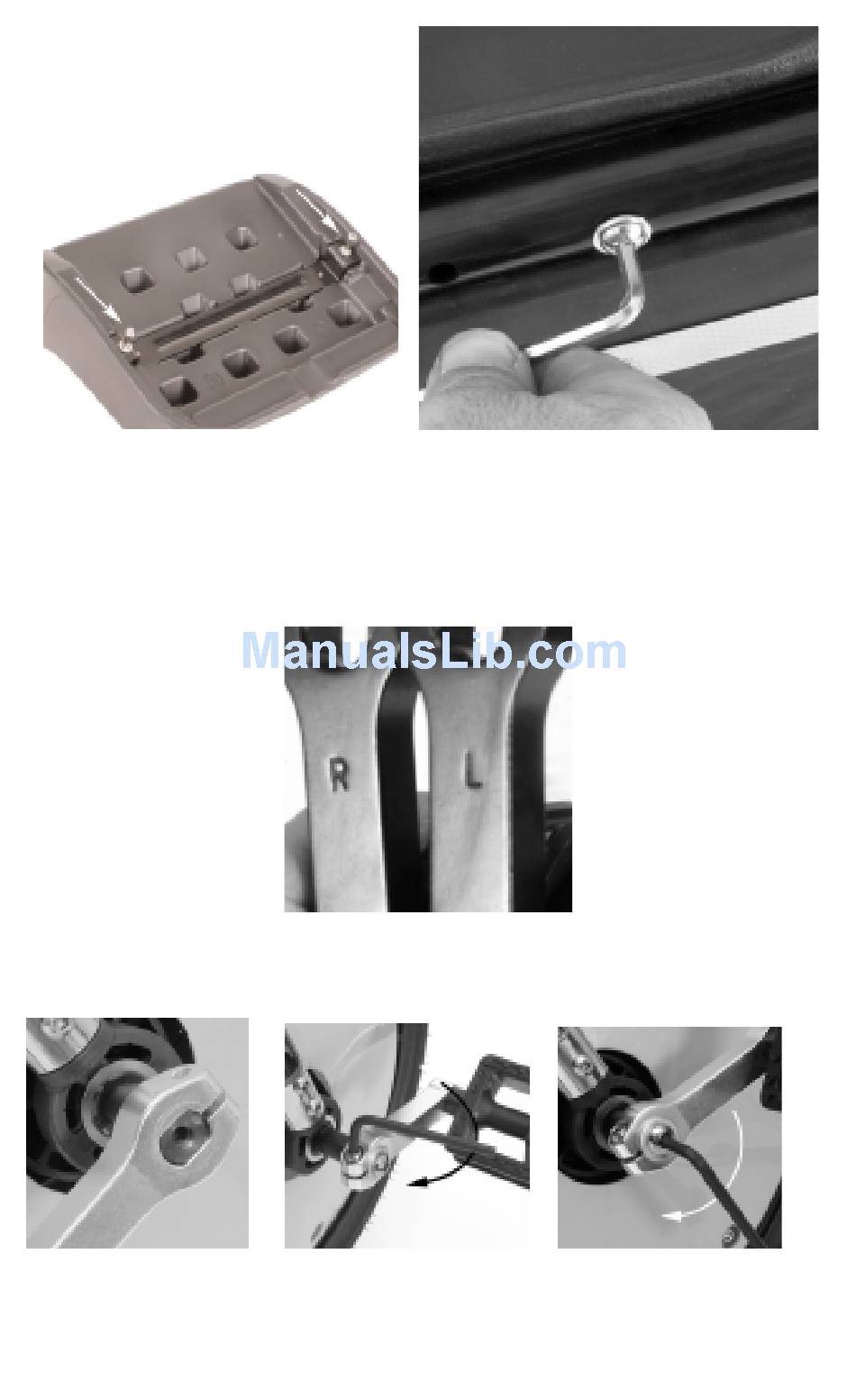

Figure 5a. Figure 5b.
6F. Install cranks and pedals. The crankarms, pedals and hardware
are supplied in the parts bag and must be installed. The crank marked
L goes on the left side and the crank marked R goes on the right
side (when sitting in the seat).
Figure 6a.
Assemble as shown in the sequence below. Tighten securely.
Figure 6b. Figure 6c. Figure 6d.
13
