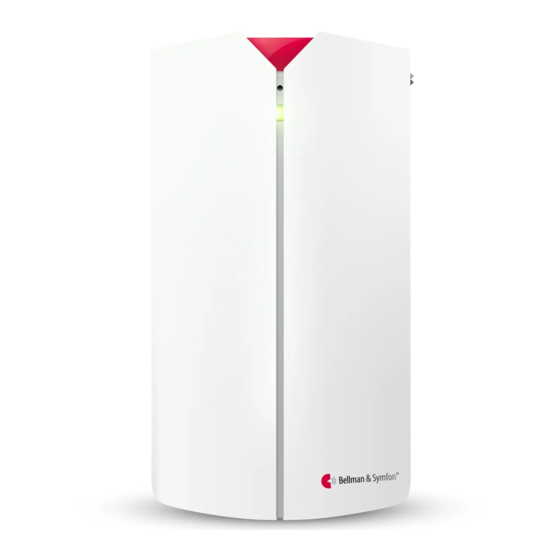

Bellman Visit Baby Cry Transmitter, BE1490

Bellman Visit Baby Cry Transmitter, BE1490 (GB)

Thank you for choosing products from Bellman & Symfon.

The Bellman Visit 868 System consists of a number of radio transmitters and receivers. The transmitters

detect different events in the surrounding area and transmit a radio signal to the receivers. The receivers

pick up this signal and provide indications using light, sound and/or vibration.

The transmitter determines what type of light, sound or vibration should be displayed so that the reason for

the indication is evident.

Read through the entire user manual first and then start to install the system.

Refer to the illustration of the Bellman Visit 868 System on the inside of the cover.

Getting started

Unpacking, installing and testing the unit

1. Open the battery cover (6). Fit one 9V battery, either a 6LR61 alkaline or 6F22 lithium type battery, and close the battery

cover.

2. Press the Test Button (3). The Bellman Visit 868 Baby Cry Transmitter lights up the LED (1) to indicate that the unit is

transmitting a radio signal. The Bellman Visit 868 receivers will indicate the Baby Cry Transmitter.

3. The Bellman Visit 868 Baby Cry Transmitter can either be placed on a level surface using the base supplied or suspended

on the wall mount bracket (5) on the screw supplied. A suitable distance from the child is 0.5-2 m. It should not be placed

close enough for the child to reach it.

Function

General

The BE1490 Bellman Visit 868 Baby Cry Transmitter is a radio transmitter within the Bellman Visit 868 System for indoor

Do you have a question about the BE1490 and is the answer not in the manual?

Page 1: Getting Started
(5) on the screw supplied. A suitable distance from the child is 0.5-2 m. It should not be placed close enough for the child to reach it. Function General The BE1490 Bellman Visit 868 Baby Cry Transmitter is a radio transmitter within the Bellman Visit 868 System for indoor...
Page 2: Power Supply
use, which recognises the sound from a crying baby. The Baby Cry Transmitter is activated by the built-in microphone and can transmit different signal patterns to the receivers in the Bellman Visit 868 System. The sensitivity can be controlled via the sound sensitivity switch (4) and the delay time before the Baby Cry Transmitter transmits radio signals can be controlled via the delay switches (7).
Page 3 Nothing happens when the • Check that the Baby Cry Transmitter is switched on. transmitter is activated. • Change the battery. Only use an alkaline 6LR61 or a lithium 6F22 type battery. The LED (1) lights up yellow • Change the battery. Only use an alkaline 6LR61 or a lithium 6F22 when the Baby Cry type battery.
