ATC ASP-09301 Quick Start Manual

HIGH PERFORMANCE
AUDIO DAC &
HEADPHONE
AMPLIFIER
ASP-09301
QUICK START GUIDE
2016
Introduction
ASP-09301 is the latest full-featured hi-end portable headphone amplifier released by ATC. The small device
contains high performance USB, optical fiber, coaxial audio decoding and headphone amp with an OLED
display and a real time display digital information flow. ASP-09301 can be connected to WINDOWS, IOS and
Android system with USB, supporting up to 32Bit/384KHz PCM signal, DSD256 signal and 32Bit/384KHz DXD
signal. it can also be connected to all kinds of DAP output with coaxial or optical, supporting up to
24BIT/192KHz PCM signal. External with Gain settings, Bass boost settings, DAC filter settings and SRC set
function. This product is suitable for the use of PC, PAD, mobile phones, and other HI-FI player connections,
effectively enhancing the quality of original playback device as well as driving a variety of high-end
headphones. With ASP-09301, we guarantee the highest quality of music for your enjoyment.
Features
• Supports PC USB audio decoding functions, works in asynchronous transfer mode, and supports WASAPI,
ASIO and KS kernel flow mode, supports up to 32Bit/384KHz PCM signal; supports up to 32Bit/384KHz
DXD signal; supports up to 1bit/11.28MHz DSD signal, works in DOP or NATIVE mode.
• Using Lightning to USB Camera Adapter line connection; supports for iPod, iPhone, iPad USB audio
decoding functions and supports up to 24Bit/192KHz PCM signal, supports up to DSD128 signal (Note:
Apple's IOS limits maximum can only support DSD128)
• Using USB OTG cable connection; supports for Android phones' and music players' USB audio decoding,
supports up to 24Bit/192KHz PCM signal, supports up to DSD128 signal (Note: Android limits the
maximum can only support DSD128)
• Supports coaxial audio decoding, supports up to 24bit / 192Khz PCM signal can be connected with a
coaxial audio output of the player to obtain the highest quality of sound.
• Supports optical audio decoding, supports up to 24bit / 192Khz PCM signal can be connected with a
optical audio output of the player to obtain the highest quality of sound.
• Supports AUX input / output.
• Audio processing chip: USB audio processor by XMOS latest 8 core processing chip: U8a chip; Optical /
Coaxial audio processor by Cirrus logic cs8422 chip; DAC processor uses the AKM's top chip AK4490 and
support for DSD, DXD and PCM native signal.
• The amp part uses OP+BUF structure, which is dynamic with strong driving ability.
• Using efficient power conversion chip, provides +/ 9V power to the power amplifier chip, OCL circuit
structure, greatly improves the dynamic range of output signal, can drive headphones easily.
• The external 3 gears of gaining, suitable for matching different Headphone.
• The external 2 gears bass boost, satisfying all kinds of requirements.
• The external DAC chip filter adjustment for different listening experience.
• The external SRC adjustment for different listening experience.
2. Use Lightning to USB Camera Adapter to connect with IOS device such as iPhone, iPod Touch, iPad.
Make sure to turn the INPUT switch to USB IN position. (* Note: For the first time connecting with the
iphone, you will need to manually turn up to maximum volume.)
XD-05
IPHONE
Input Setting
Lightning to USB Camera Adapter
3. Use the OTG USB cable to connect to Android mobile phone / player with the OTG function. Make sure to
turn the INPUT switch to USB IN position.
ASP-09301
Android Device
Input Setting
USB OTG Cable
4. Use the Coaxial cable to connect to the Coaxial audio output device. Make sure to turn the INPUT switch
to USB IN position.
ASP-09301
HI- FI Player
Input Setting
Coaxial Cable

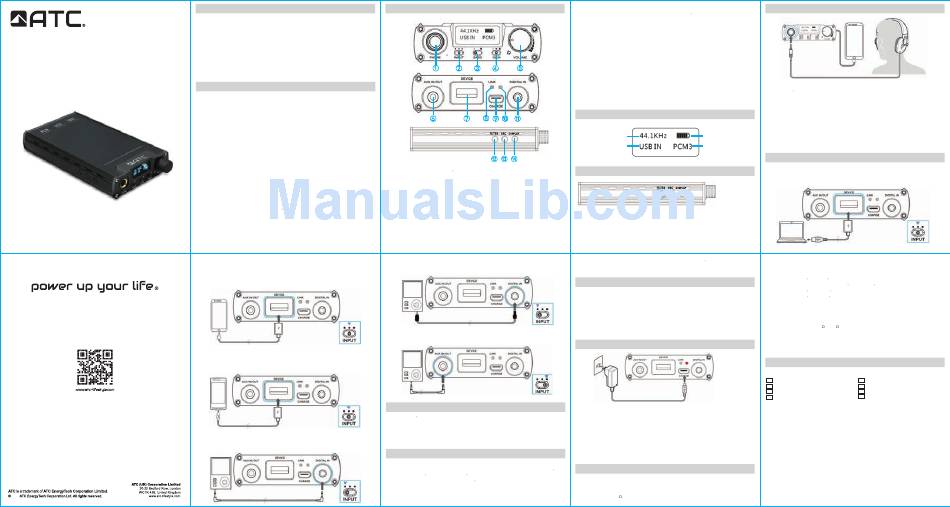

Parts and Controls
① ② ③ ⑤
④
⑧
⑥ ⑦ ⑨ ⑩ 11
FILTER SRC DISPLAY
12 13 14
① 6.5mm headphone jack. Applies to 8 300 euro earphones.
② Input selection switch. Choose USB/Coaxial/Optical/AUX input.
③ Bass boost switch boost up + 6 dB
④ Gain switch. Boost up + 3/+11 dB, for driving high impedance headphone.
⑤ Power/Volume knob. Turn right to turn on the power, brighten the display and to increase the volume;
turn left to reduce the volume.
⑥ Line out/in jack. When it is function as line in, USB/optical/coaxial decode, the port functions as line out.
5. Use the optical cable to connect to the Fiber audio output device. Make sure to turn the INPUT switch to
USB IN position.
ASP-09301
HI-FI Player
Input Setting
Optical cable
6. Use 3.5mm audio cable to connect to the Line out audio output device.
ASP-09301
HI-FI Player
Input Setting
Audio Cable
Recommended Player
When playing high resolution audio files, we suggest you to use the following players;
In PC：Jriver, Foobar2000
In MAC：Audirvana plus
In iPhones and iPad：HF player
In Android phone and PAD：Hiby player, HF player
Set Up In PC
1. If there is no sound when connected to the computer, please check if the PC playback devise setting are
correct. The sample windows7 set steps are as follows: Click PC start menu, select: control panel >
hardware and sound > hardware and sound > sound, after a computer is ejected from an interface,
click < play > option, and then select <XMOS XS1 U8 MFA> to set it as the default playback device.
2. Set the PC player output channel as local channel. The sample player Foobar2000 set steps are as follows:
⑦ USB audio input port. Compatible with Apple/Win/Linux system computer; requires Apple's camera
adapter for the iPhone, iPod touch, and iPad devices; requires USB OTG cable for Android devices.
⑧ Link LED. LINK Light turns on when USB is connected.
⑨ Charging jack. Connect to PC or to charger for charging.
⑩ Charging indicator. Red light blinks when charging; light turns off when full charged.
⑪ Optical/Coaxial input jack. Support up to 24 bit /192 KHz digital signal.
⑫ Filter Settings. For more information, see "DAC Filters Instruction".
⑬ SRC Settings. Only for coaxial/optical input, can be set to 48/96/192KHZ.
⑭ Display on/off. Long press to turn off, short press to turn on.
Screen Informations
Sampling Battery
Input soucre DAC filter
DAC Filters Instruction
FILTER SRC DISPLAY
The filter code name and actual name are one to one correspondence as follow
PCM FILTER DSD FILTER
PCM1 Sharp roll-off filter DSD1 Reserved Cut off filter
PCM2 Slow roll-off filter DSD2 50K Cut off filter
PCM3 Short delay Sharp roll-off filter DSD3 150K Cut off filter
PCM4 Short delay Slow roll-off filter
Open Foobar, click file→ preferences→ playback→ output, choose XMOS XS1 U8 MFA channel from Device
on the right side.
Install USB PC Driver
1. When the unit is connected to the computer, the driver is required to be installed.
(No need to install if your system is MAC.)
2. Use the CD we provided or it can be downloaded from the official website at (http://http://www.atc-life
style.com), choose TUSB_v2.23.0. Please refer to the site of the package for instructions.
3. When using the device to play a high resolution audio files on the computer, we recommend using Jriver
or Foobar2000 player.
Charging the unit
1. Charger specifications: output voltage 5V, output current ≥1A.
2. When charging, the red light turns on and stay on for 15 seconds, then it will start blinking acorrding to
the mode of charging (slow blink under slow chage mode,quick blink under quick charge mode), the light
will turn off after it's charged
3. Full charging requires around 5 hours.
4. Full charging requires up to 11 hours when PC USB is used for charging.
5. Can be charged when the device in working, but would require longer time. Advice you to charge after
turning it off.
6. If you are planning not to use the ASP-09301 for long period of time, charge it every half year to avoid
excessive battery discharge.
Specifications
Power Source: built in 3.7V/4000mAh rechargeable lithium polymer battery
Screen: 0.91 inch OLED screen
Compliant OS: Windows XP/7/8/10, Mac OS X, IOS, Android system
Output power: 500mW (32 load)
Listening to Music
-
XD 05
1. Connect headphone to the unit.
*Note: The XD 05 only supports dual channel Headset, it does not support the mono Headset or Headset
with remote control function or with microphone function.
2. Connect audio device with the unit. For details, see "Connecting to the Audio Device".
3. Turn the power/ volume knob to the right to turn on the unit. More time is required the first time the unit
connects with the computer.
4. Play music with the connected audio device.
5. Adjust the volume to your comfort zone and start enjoying music.
6. Set the GAIN according to your headset, you can also set up BASS and DAC filter according to your
preferences.
7. Bind your audio device with the unit with silicon tape for easy carrying.
Connecting to the Audio Device
1. Use the supplied USB cable to connect to Apple/Windows/Linux computer. Make sure to turn the
INPUT switch to USB IN position.
XD-05
PC
Input Setting
USB Cable
Frequency Response: AMP:10Hz~100KHz (±0.5dB)
USB/SPDIF: 20Hz~20KHz (±0.5dB)
Sampling Rate Support:
USB PCM:16 32Bit/44.1K 384KHz
DSD: DOP/NATIVE mode, DSD64 256 (1Bit/2.8M 11.2M)
DXD:24 32Bit/352.8K 384KHz
OPT/COA PCM:16 24BIT/44.1K 192KHz
Gain: +6/+9/+15dB
Bass boost: 0/+6dB
THD+N: 0.0025% (1KHz)
S/N: 112dB
Suitable Headphone impedance: 8 ~ 300 .
Battery life: >11H (USB IN), >16H (SPDIF IN), >23H (AUX IN)
Charging time: Quick charge 5H (with charger), slow charge 11H (with computer)
Size: 139.5*75*23mm
Weight: 270g
Package List
Please check the items in the package
ASP-09301 1 pc USB cable 2 pcs
Drive CD 1 pc Silicone band 2 pcs
User Manual 1 pc Welcome card 1 pc
Rubber feet 4 pcs 6.5 to 3.5 Converter 1 pc
