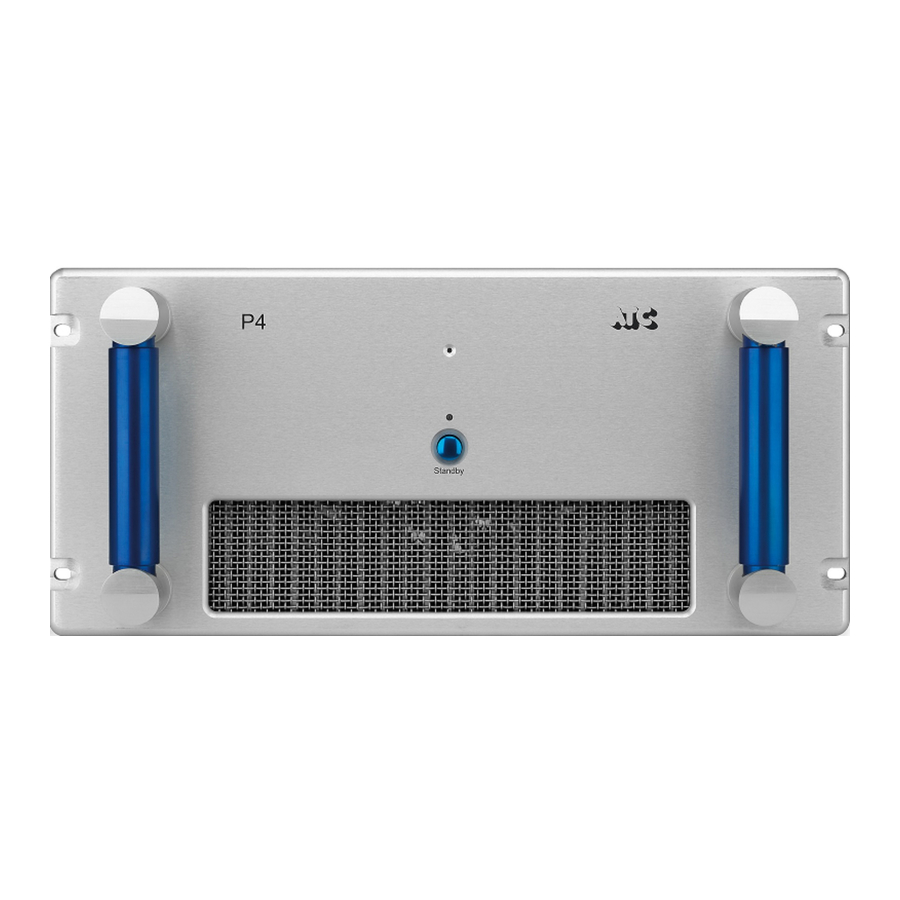

ATC P4 Specification Sheet

P 4 : 4 - w a y
■ 4-way mono block design.
F e a t u r e s
■ ATC "Grounded Plane Technology".
■ 850W Class A to 2/3 output.
■ 4th order active crossovers with phase correction.
■ Soft limiting driver protection.
■ Triple fan cooling.
■ Military specification interconnects.
■ 6 year warranty.
S p e c i f i c a t i o n s Output Power : HF 100W into 6Ω, Mid 200W into 16Ω, LF 275W x 2 into 8Ω
Frequency Response : 5Hz – 20 kHz ±0.1dB
100, 115, 230 Volts (region dependant 50/60Hz factory set)
Power Requirements :
19˝ Rack Mounting 5U high (222mm / 8.7˝), Overall Depth 545mm (21.4˝), Front Panel and Handles 75mm (3˝), Rear Handles 40mm (1.6˝),
Dimensions :
Amplifier Body 430mm (16.9˝ ) 40kg approx.
Weight :
ATC reserves the right to vary products and specifications without prior notice.
8 5 0 W m o n o b l o c k p o w e r
Input Sensitivity : 1V Input Inpedance: 10kΩ
Signal to Noise Ratio : Better than 105dB Crosstalk : Better than 90dB
a m p l i f i e r
