Wall Bed Assembly Instructions
Pardo European Adjustable Fold Away Bed Systems For Casework
•
Vertical Descending
•
Horizontal Descending
•
Concealed Hardware
•
Exposed Hardware
•
End Opening
•
Side Opening
•
Shallow Wall Cabinets
•
Thick Mattress Cabinets
•
Nationwide Distribution

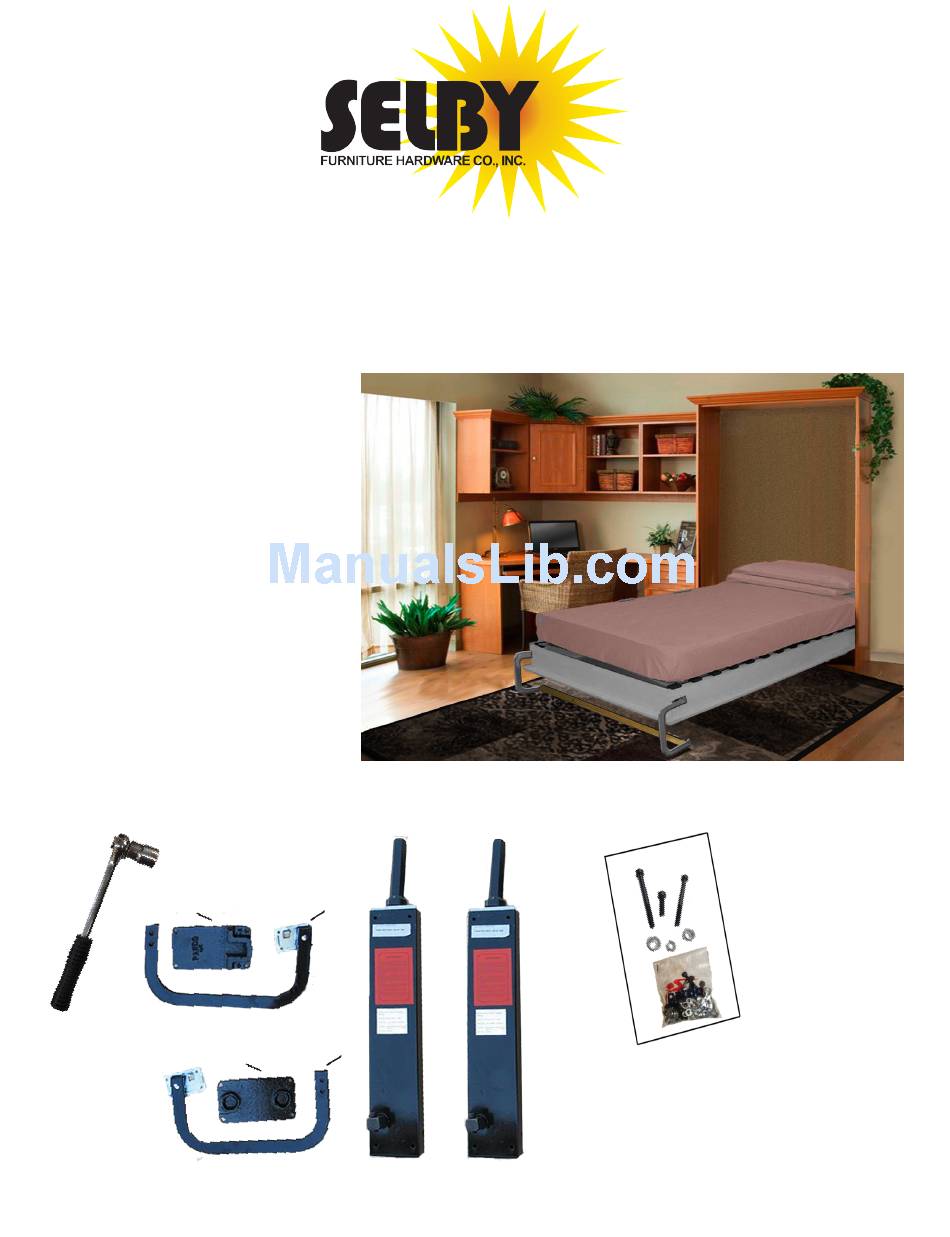

XSMVO Wall Bed Kit
1)Adjustable counter balance mechanisms
2)Pivot mounting mechanism plates
3)Pivoting legs
4)Hardware fasteners
2
XWRENCH
rev 1/17
The SM Series Bed Mechanisms
3
3
2
1
4
Selby Furniture Hardware Co. Inc.
321 Rider Avenue, Bronx, NY 10451
1
mail to: info@selbyhardware.com
techhelp@selbyhardware.com
Phone: 718-993-3700
FAX: 718-993-3143
TechnicaL support mail to:
Advertisement
Related Manuals for Selby XSMHO
Summary of Contents for Selby XSMHO
- Page 1 XSMVO Wall Bed Kit 1)Adjustable counter balance mechanisms 2)Pivot mounting mechanism plates 3)Pivoting legs 4)Hardware fasteners XWRENCH Selby Furniture Hardware Co. Inc. 321 Rider Avenue, Bronx, NY 10451 Phone: 718-993-3700 FAX: 718-993-3143 mail to: info@selbyhardware.com rev 1/17 TechnicaL support mail to:...
- Page 2 Foot Concealed Hardware 24mm Hex Adjustment Handle Exposed Hardware Install bed platform in a wall cabinet or between pier cabinets with a bridge. Wall Cabinetry Must be Securely Fastened to a Structural Wall! Before you start your project: • Mattress size will determine the size of the bed frame and the weight capacity of the Pardo counter balance. Standard mattress sizes will vary +/- 1”...
- Page 3 Hole Locations for Hardware Mounting Screws DIN 912 M6 x 25 All measurements are in milimeters 35mm diameter Countersinks x 11mm deep Hex Nuts DIN 934 M6 Hole for Square Axel Holes for Mounting Plate Countersink 35x11 350+ Components are produced in Europe using metric dimensions. Supplied countersink bushings are neccessary to reduce stress when platform is in motion.
- Page 4 CO., INC. The dimensions shown on this page are for the construction of cabinetry using Pardo brand wall bed mechanisms from Selby Furniture Hardware Company. This grid was produced based on use of 3/4" (.750") finished material. If the use of 13/16" or other thickness material for components Is necessary, these dimensions must be adjusted.
- Page 5 H-00 PIVOT HINGES Bed Frame Detail Case or Cavity Detail Bull nose top of head board on bed frame flush to mattress 1” x 2” cleat support for slats or platform, if used Head Board end only mattress retainer when closed 6”...
- Page 6 A 3/4” hardwood plywood cabinet back must be provided for cabinet integrity and attatchment of the cabinet to a structural wall. The platform can weigh several hunded lbs, and will be in motion when opening or closing. 6” Mattress Height Lift door platform and bed frame on a 45º...
- Page 7 Your new Selby Wall Bed is now ready for use! Selby Wall Beds can be relocated by reversing the procedures shown on this page. A professional installer is reccommended. www.selbyhardware.com...
-
Page 8: Important Safety Information
Countersink Bushings Required Countersink busings are supplied with the Selby wall bed system hardware and MUST be inserted in counter bores to attach the pivot mounting mechanislm plate to the side wall of the cabinet or piers and to attach the counter balance mechanisms to the bed frame with appropriate machine screws and washers.
