Featuring world Famous PARDO wall bed mechanisms
Selby Furniture Hardware Company
321 Rider Avenue
Bronx NY 10451
Call - 718-993-3700
Canada Call - 514-355-5185
CM-INST. 04-04-2014

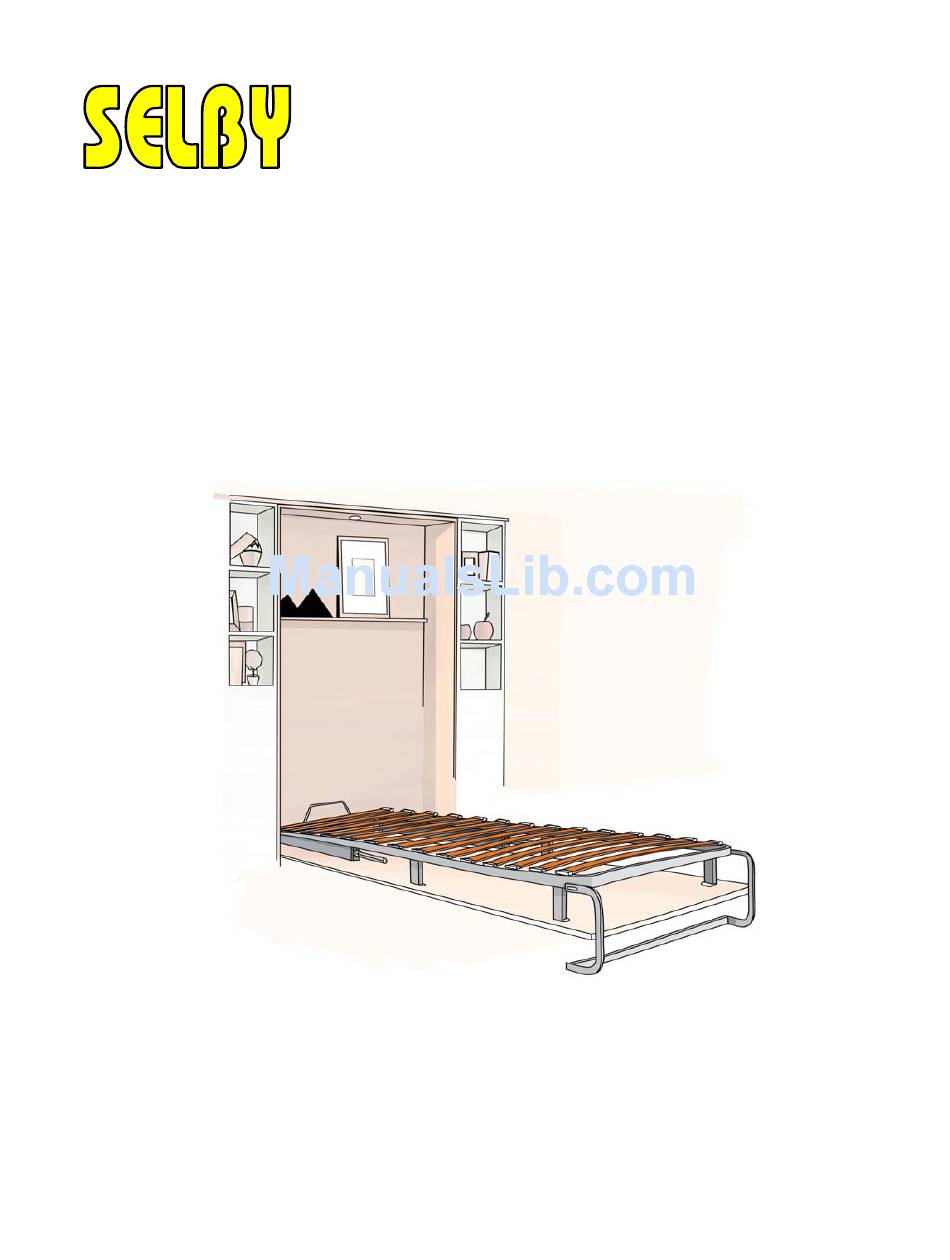

Wall Bed Systems
STEEL FRAME
WALL BED SYSTEM
Cambered Beech Slats in molded hard rubber
retainers Attached to a tubular steel frame
Model:
ASSEMBLY INSTRUCTIONS
www.selbybed.com
XCMVOBTSPLIT
FAX - 718-993-3143
Canada FAX - 514–355-4686
Advertisement
Table of Contents
Related Manuals for Selby XCMVOBTSPLIT
Summary of Contents for Selby XCMVOBTSPLIT
- Page 1 WALL BED SYSTEM Cambered Beech Slats in molded hard rubber retainers Attached to a tubular steel frame XCMVOBTSPLIT Model: ASSEMBLY INSTRUCTIONS Selby Furniture Hardware Company 321 Rider Avenue Bronx NY 10451 Call - 718-993-3700 www.selbybed.com FAX - 718-993-3143 Canada Call - 514-355-5185 Canada FAX - 514–355-4686...
- Page 2 • 4 screws DIN 912 M8x12. In any case of missing components, please contact your Selby Hardware Distributor. The following notes are intended as a guide for the construction of cabinets for the foldaway (CMVOBT) bed frames and mechanisms. Due to the differences in cabinet making production and joinery techniques, it is suggested that a prototype cabinet is made using this guide, in order to tailor these instructions to suit your individual requirements.
- Page 3 Type CM Wall Bed Systems detail for cabinet construction Width Dimensions Twin Double Queen Eastern King Bed Frame 39” 55-1/8” 59-3/64” 74-13/16” Door Panel 41-3/32” 56-15/32” 61-3/16” 76-15/16” Inside of Wall Cabinet 41-11/32” 56-11/16” 61-31/32” 77-11/64” Length Dimensions Bed Frame 74-13/16”...
