Geotech Geocontrol PRO Installation And Operation Manual

Hide thumbs Also See for Geocontrol PRO:
Table of Contents

Advertisement

Quick Links

Download this manual
Geocontrol
PRO
Installation and Operation Manual
Rev 10/27/2017 Part# 11150263
`

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Geocontrol PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Geotech Geocontrol PRO

Summary of Contents for Geotech Geocontrol PRO

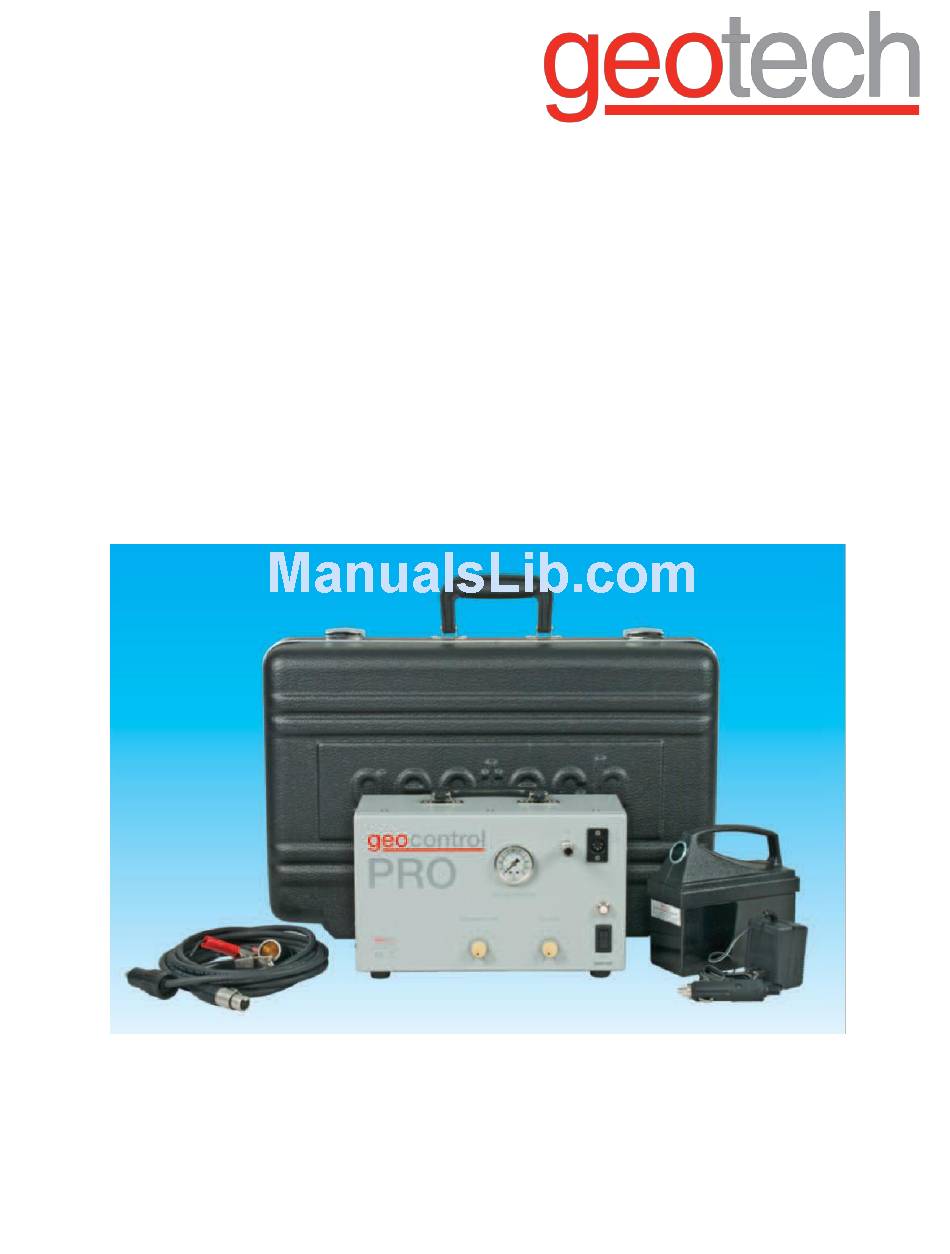

  • Page 1 Geocontrol Installation and Operation Manual Rev 10/27/2017 Part# 11150263...

  • Page 3: Table Of Contents

    Table of Contents DOCUMENTATION CONVENTIONS ....................1 Section 1: System Description ......................3 Section 2: System Installation .......................4 Section 3: System Operation ......................5 Section 4: System Maintenance....................7 Section 5: System Troubleshooting ..................... 10 Section 6: System Specifications ....................12 Section 7: Replacement Parts List ....................15 EC Declaration of Conformity .......................

  • Page 4: Documentation Conventions

    DOCUMENTATION CONVENTIONS This manual uses the following conventions to present information: An exclamation point icon indicates a of a situation or condition that WARNING could lead to personal injury or death. You should not proceed until you read and thoroughly understand the message.
  • Page 5 The Geotech Geocontrol PRO cannot be made dangerous or unsafe as a result of failure due to EMC Interference. Do not operate this equipment if it has visible signs of significant physical damage other than normal wear and tear. Notice for consumers in Europe: The following apply only to users in European countries This symbol indicates that this product is to be collected separately.

  • Page 6: Section 1: System Description

    Section 1: System Description Function and Theory The Geocontrol PRO is a unique controller for operating down well bladder type sampling pumps. When an external 12 VDC power source is connected to the controller, the internal air compressor is capable of producing pressure up to 100 PSI (7 bar). This pressure allows the user to take samples from a depth to 180’...

  • Page 7: Section 2: System Installation

    To assemble the Geocontrol PRO, make sure the power switch is in the OFF position (rocker in down position). Plug the power input cord into a fuse protected 12V lighter receptacle on a negatively grounded system.

  • Page 8: Section 3: System Operation

    DISCHARGE TIME knobs to adjust the cycle times. These knobs are located on the front face of the Geocontrol PRO below the airline pressure gauge. To the left is DISCHARGE TIME and to the right is FILL TIME. Use the radial number scales around each timer knob to adjust timer values in seconds.
  • Page 9 The air line pressure gauge can be utilized to maximize efficiency. The pressure indicated on the gauge should not exceed an equivalent depth to water pressure. 1 PSI = 2.31’ (1 bar = 1.02 m) of water. Once the bladder in the pump is empty of liquids the pressure will increase sharply. If a quick pressure increase is noticed, reduce the discharge time until the quick pressure increase is no longer noticeable.

  • Page 10: Section 4: System Maintenance

    Unit must be returned to Geotech Environmental Equipment for any service. In order to ensure a long service life, keep the Geocontrol PRO clean. A soft, damp cloth can be used to remove dust and dirt from the exterior surfaces of the Geocontrol PRO. In extreme cases, or to remove aged caked on dirt and dust, a mild soap and water solution can be applied to a soft cloth and used to clean the exterior surfaces of the Geocontrol PRO.
  • Page 11 Figure 4-1: Compressor 3. Remove the two screws that connect the solenoid to the casing. • Do not disconnect the three black wires from the solenoid; they should be long enough to allow you to set the solenoid down on a flat surface for cleaning. See Figure 4-2.
  • Page 12 8. Attach the tubing back to the compressor and the air pressure gauge. • Note that the longest piece of tubing attaches to the compressor. If you need further assistance or want to replace the breather screens call Geotech Service at 1- 800-833-7958.

  • Page 13: Section 5: System Troubleshooting

    Section 5: System Troubleshooting The Geocontrol PRO has been designed and manufactured to provide a long service life and trouble free operation in the field. If the compressor, during charge cycles, slows, check supply voltage. If the supply voltage falls below 12V, the compressor’s performance will be directly affected.
  • Page 14 Solution • Remove the air line from the front of the Geocontrol PRO. Block the air outlet on the front of the Geocontrol PRO while the compressor is running to verify the pressure gauge needle indicates an increase in pressure. Remove the blockage from the air outlet and observe whether a small burst of compressed air is released.

  • Page 15: Section 6: System Specifications

    • Operation with dedicated pump systems and special purpose well caps. • Approx. 45 to 60 minute operation with 8.0Ah lead acid battery (Battery Module w/o Charger, Geotech PN: 77250001). • Reverse polarity protection. • AC adapter optional for use with world mains connection.
  • Page 16 Figure 6-1: Wiring Diagram...
  • Page 17 Parts Assembly...

  • Page 18: Section 7: Replacement Parts List

    Section 7: Replacement Parts List MODEL GEOCONTROL PRO – 51150122 Item Description Part No. ENCLOSURE, GEOCONTROL PRO, BACK, CE 51150121 ENCLOSURE, GEOCONTROL PRO, BACK, CE 51150121 POT, 10K, 20% W/KNOB 11150244 SWITCH, GEOCONTROL PRO 11150248 HOSEBARB, SS4, BLKHD, .170 X 1/8"...
  • Page 19 Accessories Description Part N o. GEOCONTROL PRO W/CASE, 1.66, CE, PUMP, 12VDC CORD, BATTERY W/CHRG 91150011 GEOCONTROL PRO W/CASE, .85, CE, PUMP, 12VDC CORD, BATTERY W/CHRG 91150015 GEOCONTROL PRO W/CASE, .675, CE, PUMP, 12VDC CORD, BATTERY W/CHRG 91150016 GEOCONTROL PRO, W/CASE, CE, 12VDC CORD, NO PUMP, NO BATT...
  • Page 20 DOCUMENT REVISIONS EDCF# DESCRIPTION REV/DATE Previous Release 10/29/12 Added Compressor Repair Kit to Replacement Parts List. 1583 05/24/13 Added Revision History Table - SP Updated back page information, updated EC Declaration of Conformity, added “Maintenance Accessories” under Section 8: Replacement Parts 1/13/15 List, SP Project #1526...
  • Page 21 NOTES...

  • Page 22: Ec Declaration Of Conformity

    EN 61326-1: 2013, emissions Class A EMC conformity established 08/14/2009. Production control follows the ISO 9001:2008 regulations and includes required safety routine tests. This declaration issued under the sole responsibility of Geotech Environmental Equipment, Inc. Joe Leonard Product Development Serial number ________________...

  • Page 23: The Warranty

    Geotech agrees to repair or replace, at Geotech’s option, the portion proving defective, or at our option to refund the purchase price thereof. Geotech will have no warranty obligation if the product is subjected to abnormal operating conditions, accident, abuse, misuse, unauthorized modification, alteration, repair, or replacement of wear parts.
  • Page 24 Geotech Environmental Equipment, Inc 2650 East 40th Avenue Denver, Colorado 80205 (303) 320-4764 ● (800) 833-7958 ● FAX (303) 322-7242 email: sales@geotechenv.com website: www.geotechenv.com In the EU Geotech Equipos Ambientales Calle Francesc I Ferrer, Guardia Local 19, Mollet del Valles, Barcelona 08100, España Tlf: (34)93 5445937 email: ventas@geotechenv.com...
