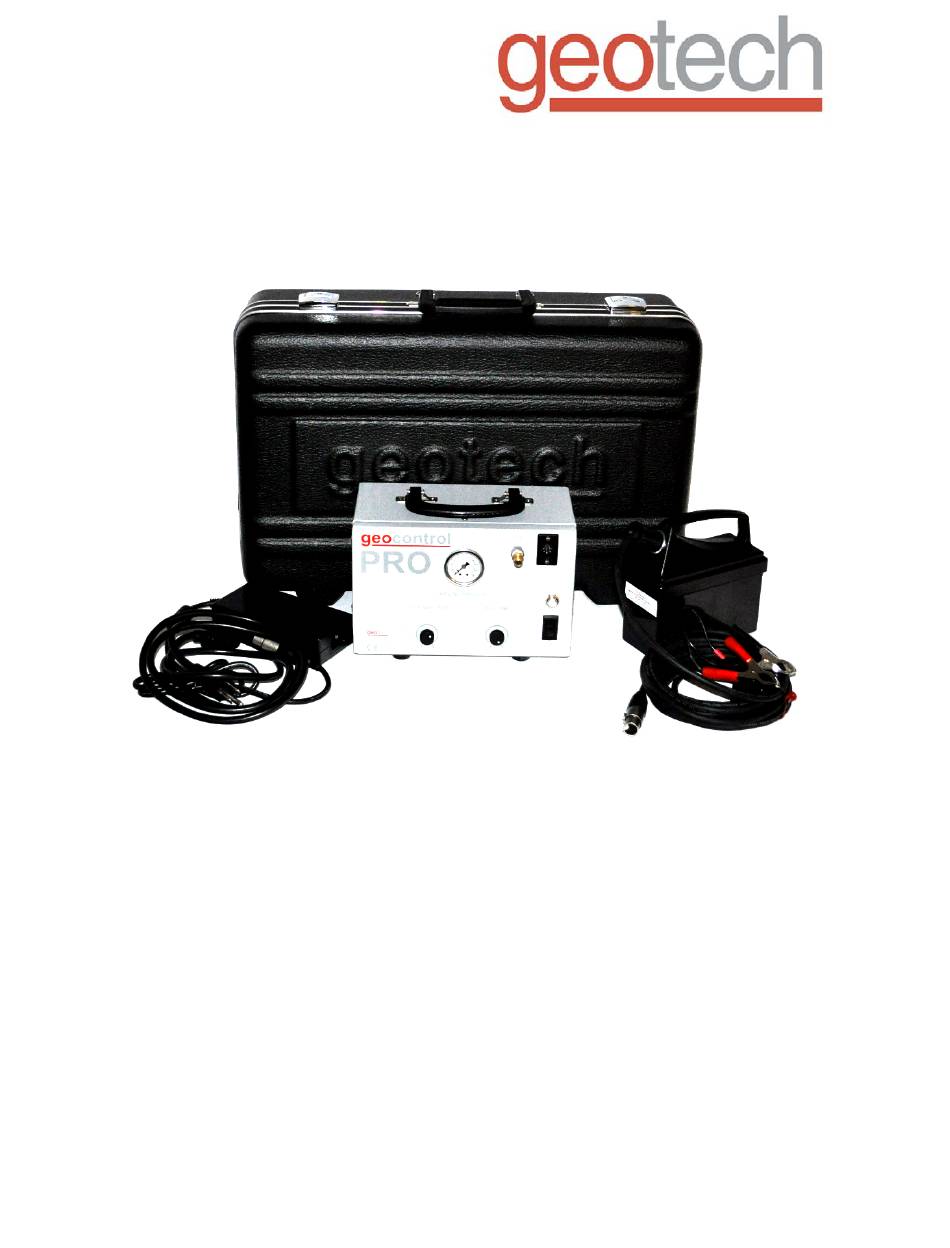

  • Page 1       Geocontrol Installation and Operation Manual  Rev. 8/15/09 Part # 11150263 Printed in the United States of America...
  • Page 2   2   ...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Documentation Conventions………………………………………………………4 Notices…………………………………………………………………………………4 CHAPTER 1: SYSTEM DESCRIPTION……………………………………………6 CHAPTER 2: SYSTEM INSTALLATION.............7 CHAPTER 3: SYSTEM OPERATION..............8 CHAPTER 4: SYSTEM MAINTENANCE.............10 CHAPTER 5: SYSTEM TROUBLESHOOTING...........11 CHAPTER 6: SYSTEM SPECIFICATIONS............13 CHAPTER 7: SYSTEM SCHEMATIC..............14 CHAPTER 8: REPLACEMENT PARTS LIST.............15 THE WARRANTY....................17 EQUIPMENT RETURN POLICY.................17 EQUIPMENT DECONTAMINATION..............17 DECLARATION OF CONFORMITY……………………………………………….18...
  • Page 4: Documentation Conventions

    DOCUMENTATION CONVENTIONS This uses the following conventions to present information: An exclamation point icon indicates a WARNING of a situation or condition that could lead to personal injury or death. You should not proceed until you read and thoroughly understand the WARNING message. A raised hand icon indicates CAUTION information that relates to a situation or condition that could lead to equipment malfunction or damage.
  • Page 5 Avoid using controller with obvious physical damage To prevent controller damage, avoid dropping controller The Geotech Geocontrol Pro cannot be made dangerous or unsafe as a result of failure due to EMC interference. WARNING Do not operate this equipment if it has visible signs of significant physical damage other than normal wear and tear.
  • Page 6: Chapter 1: System Description

    Chapter 1: System Description Function and Theory The Geocontrol PRO is a unique controller for operating down well bladder type sampling pumps. When an external 12 VDC power source is connected to the controller, the internal air compressor is capable of producing a pressure of 100 psi. This pressure allows the user to take samples from a depth to 180ft.
  • Page 7: Chapter 2: System Installation

    To operate the Geocontrol PRO, make sure the power switch is in the “off “position (rocker in down position). Plug the power input cord into a fuse protected 12V lighter receptacle on a negatively grounded system.
  • Page 8: Chapter 3: System Operation

    These knobs are located on the front face of the Geocontrol Pro below the airline pressure gauge. To the left is Discharge time and to the right is Fill time. Use the radial number scales around each timer knob to adjust timer values in seconds.
  • Page 9 compressor is still running and water has stopped coming out of the discharge tube, the discharge time should be decreased. Pumping efficiency can be maximized by measuring the amount of fluid discharged. If the volume of fluid after one pump cycle is less than the rated volume of the pump being used, then the fill rate can be increased.
  • Page 10: Chapter 4: System Maintenance

    Disconnect power source when not in use. Unit must be returned to Geotech for any service. In order to ensure a long service life, keep the Geocontrol PRO clean. Often a soft, damp cloth can be used to remove dust and dirt from the exterior surfaces of the Geocontrol Pro.
  • Page 11: Chapter 5: System Troubleshooting

    Pro, call Geotech at 1-800-833-7958 to arrange for the equipment to be sent back to a factory authorized repair location. • If pressure can be built at the air outlet on the front of the Geocontrol Pro while the compressor is running: 11 ...
  • Page 12 o Attach the air line only and block the end. Verify the pressure gauge needle indicates an increase in pressure. Remove the blockage from the end of the air line and observe whether or not a small burst of compressed air is released. If pressure cannot be built at the end of the air line, check the air line for cuts, kinks and holes, especially at, and near, the bladder pump hose barb or compression fitting connections.
  • Page 13: Chapter 6: System Specifications

    Variable pump Discharge time control. Variable pump Fill time control. Interchangeable pump connection configurations. Operation with dedicated pump systems and special purpose well caps. Approx 45 to 60 minute operation with 6Ah lead acid battery (Geotech PN:77250001)   13   ...
  • Page 14: Chapter 7: System Schematic

    Chapter 7: System Schematic   14   ...
  • Page 15 HOSEBARB,PE,90 DEG,.17X1I8MPT 11150252 VENT,BREATHER,1I4NPT 11150253 VENT,BREATHER,1I8NPT 87050509 HOSE 3.375" - GEOCONTROL PRO PRESSURE GAUGE TO HOSEBARB OUTSIDE 11150250 HOSEBARB, BRS, PNE, 90, .17 X 1/4 MPT 87050509 HOSE 7.75" - GEOCONTROL PRO SOLENOID TO COMPRESSOR 87050509 HOSE 7.75" - GEOCONTROL PRO PRESSURE GAUGE TO SOLENOID...
  • Page 16: Chapter 8: Replacement Parts List

    77250000 12VDC Battery and Charger 11150254 Pressure Gauge 51150044 Cycle Module 11150258 Compressor 11150244 Knob 51150061 External Water Trap 51150063 AC Adapter 77250001 Portable 12V battery 77250002 12V battery charger (from 120 VAC 230V option available contact Geotech) 15   ...
  • Page 17 16   ...
  • Page 18: The Warranty

    Geotech agrees to repair or replace, at Geotech’s option, the portion proving defective, or at our option to refund the purchase price thereof. Geotech will have no warranty obligation if the product is subjected to abnormal operating conditions, accident, abuse, misuse, unauthorized modification, alteration, repair, or replacement of wear parts.
  • Page 19: Declaration Of Conformity

    These products comply with harmonized standard EN 61326-1 May 2006. Signatory: Joe Leonard Product Development Year of manufacture: 2009 EMC conformity established 8/14/2009. This declaration is issued under the sole responsibility of Geotech Environmental Equipment Inc. Model ________ Serial number _______ 18   ...
  • Page 20 Geotech Environmental Equipment, Inc 2650 East 40 Avenue Denver, Colorado 80205 (303) 320-4764 ● (800) 833-7958 ● FAX (303) 322-7242 email: sales@geotechenv.com website: www.geotechenv.com In the EU Geotech Equipos Ambientales S.L. Abat Escarré # 12 Mollet del Valles, Barcelona 08100, España Tlf: 93 5445937 email: international@geotechenv.com website:...
