ECO pump series is created on the latest evolutionary and technical progress and
therefore one of the best pumps on the world market.
ECO pumps energy-efficient asynchronous motor ensures an eco-conscious operation
and high capacity at low power consumption.
ECO pumps are equipped with an internal automatic thermal security device, totally
waterproof and their ceramic bearings guarantees a reliable and long lifetime.
ECO pumps are suitable for the operation of filter- and pressure filters, larger filter-
systems and the preferable choice for landscaping streams and waterfalls.
ECO pumps are also suitable for dry installation, outside the pond, when installed below
the water level.
ECO pumps ensure an unexceptionable stabile operation and bring you a lot of joy with
your water landscapes.
It is important to read this user instructions carefully for to achieve the complete effi-
ciency of the pump and for ensuring a perfect operation without any interruptions and
errors.
Unpacking.
Check the pump for possibly defects or damages right after receipt!
At possibly defects or damages - contact the dealer immediately!
Congratulations with your new

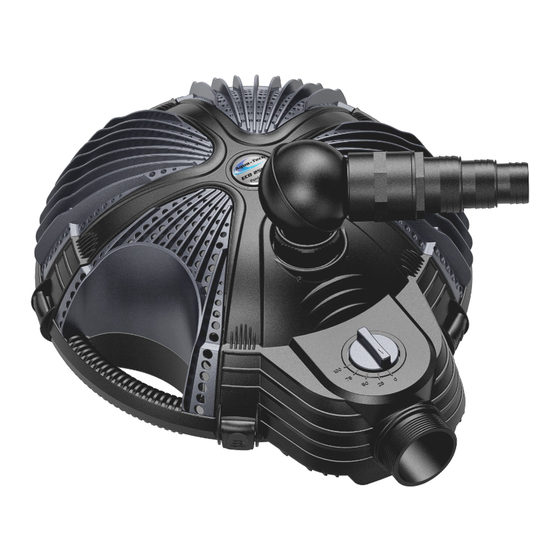

ECO multifunctional pond pump
UK
User Instructions
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AQUATECH ECO 3600
Summary of Contents for AQUATECH ECO 3600
- Page 1 User Instructions Congratulations with your new ECO multifunctional pond pump ECO pump series is created on the latest evolutionary and technical progress and therefore one of the best pumps on the world market. ECO pumps energy-efficient asynchronous motor ensures an eco-conscious operation and high capacity at low power consumption.
- Page 2 IMPORTANT about SECURITY! The installation and operation of ECO pumps may only be carried out by persons over 16 years, who can understand the text of this users instructions correctly. Check that the power supply is identically with the one indicated on the pump. ECO pumps are provided with 10 m of grounded electrical safety cable and casted plug.
-
Page 3: Maintenance
Ball-joint & hoses: The enclosed ball-joint may not be swivelled more than 15º, otherwise the capacity of the pump will be reduced considerably! If necessary, use the alternative outlet on the pump, vertical or horizontal and get the full value for your power money! Always use the biggest possible hose / pipe diameter, as this will ensure a low friction and a smooth waterflow! Always remember to cut the hose swivel to the biggest possible hose diameter! - Page 4 AT001273 Motor support AT001288 Impeller ECO 25000 AT001275 Bolts / screws 4 pcs AT001290 Gasket AT001292 Impeller housing 3600-11000 Impeller ECO 3600 AT001261 AT001294 Impeller ECO 4800 AT001263 Impeller housing 14000-25000 AT001296 Impeller ECO 7200 AT001265 Illustration A Illustration A...
- Page 5 Impeller housing 14000-25000 AT001296 - 25000 (not illustrated) Motor support 4 stk. AT001318 Universal hose adapter 1- AT001334 ½” for ECO 3600 - 11000 Bottom housing + handle AT001320 (not illustrated) Bottom housing for suction AT001322 Universal hose adapter 2” AT001338...
- Page 6 Use in the pond: ECO pumps are supplied complete ready for the operation in the pond (wet installation). Mount the swivel head (15) and the middle piece (16) plus the hose adapter (17) on the outlet adapter of the pump. NB: The gaskets have to be placed correctly between all joints.
-
Page 7: Technical Data
Technical data Head of Power Model Flow l/h Weight Voltage Frequency Outlet Inlet water consumption ECO 3600 3600 2,0 m 45 W 4,52 kg 230 V 50/60 Hz 1-½" 1-½" ECO 4800 4800 2,1 m 54 W 4,54 kg 230 V 50/60 Hz 1-½"... - Page 8 Optimal use of water flow: For getting the optimal flow out of your ECO pump, you have to use either the ver- tical or the horizontal connection and the ball-joint swivels maximum 15º. NB: If the ball-joint swivels like shown on these photos you will experience a flow loss of up to 30 % and that can be avoided easily by choosing the right pump outlet.
- Page 9 The pump can transport dirt particles The pump is tested and approved by TÜV, up to 8 mm size through the impeller which is the German electricity and safety control institution. The pump is certified system without effecting the water flow as a save product.
- Page 10 ECO multifunctional pump with big external suction and large pump housing, which is simple to dismount, so that it easy to clean and maintain the pump. The universal hose adapter dismounts and the 5 clips opens, so you have direct access to the pump. ECO is suitable for dry installation.
- Page 11 ECO 14000 ECO 11000 ECO 7200 ECO 4800 ECO 3600 ECO pumps head Optimal use of the pumps: Eco pumps head is indicated on above diagram. Follow f. ex. the graph for Eco 14000 (orange): at a head of 1 m, the pump yields about 12000 litre pr. hour.
- Page 12 The professional choice - for the eco-conscious consumer ! ECO pond pumps are created with precision, new thinking and according to the latest know how in the pump-technology! Developed with the purpose to create the optimal pump to a price everyone can effort ECO pumps are environment friendly and safe our resources! Welcome to the world of Aqua-Tech www.aqua-tech.dk...
