HOW TO REPLACE THE AUGER DRIVE BELT
The drive belt is of special construction and must be
replaced with original factory replacement belt avail-
able from your nearest authorized service center.
1. Remove the belt cover. See "How To Remove The
Belt Cover. "

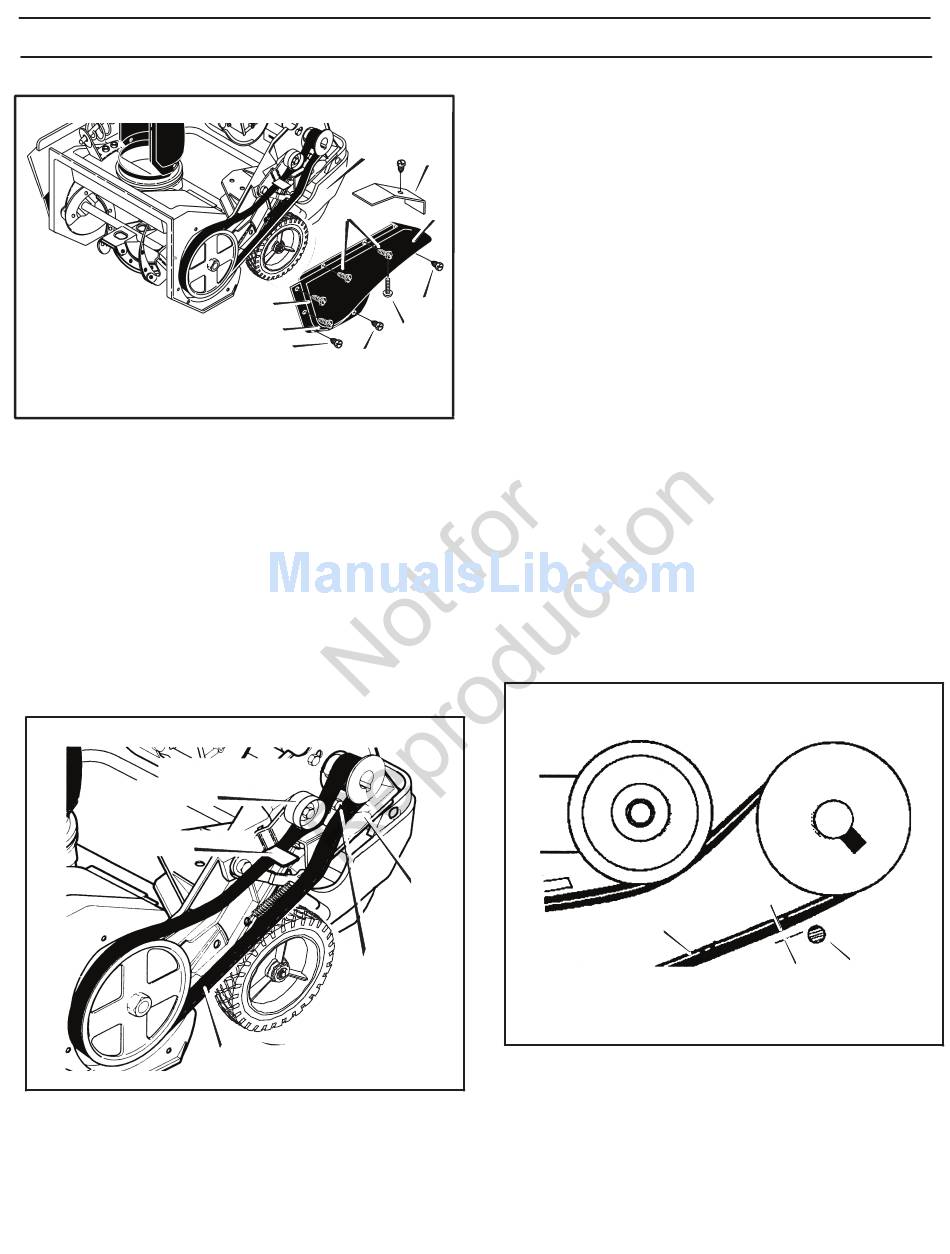

2. (Figure 9) Remove the drive belt (1) from the idler
pulley (2).
2
3
MAINTENANCE
5
6
3
3
3
3
Figure 8
5
1
Figure 9
3. Move the belt guide (4) away from the drive
belt (1).
1
4. To reduce pressure on the drive belt (1), move
the idler pulley (2) away from the drive belt (1).
2
Remove the drive belt (1) from between the
brake pad (3) and the roller (5).
5. Remove the old drive belt (1).
6
6. To install the new drive belt (1), reverse the
4
above steps.
7. Make sure the drive belt (1) is seated properly
on the pulleys.
8. (Figure 10) Set the belt guide (1) to 3/32"
clearance.
NOTE: When the auger control lever is en-
gaged, the belt guide (1) must be 3/32" (2 mm)
from the drive belt (2).
9. Install the belt cover. See "How To Remove
The Belt Cover."
4
21
2
3/32"
1
Figure 10
