Summary of Contents for Hugyfot Vision Hero 5

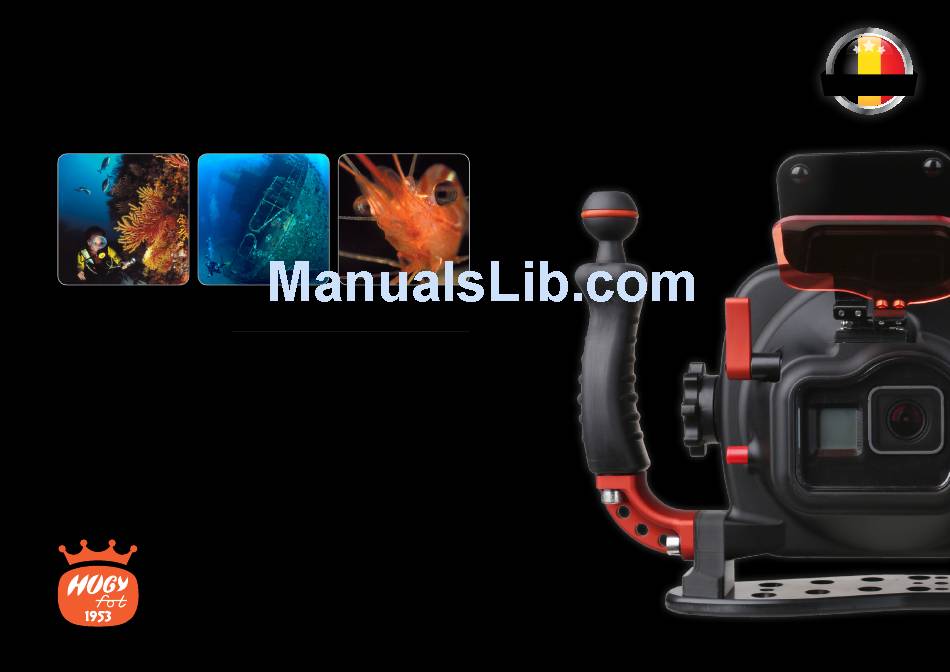

- Page 1 MADE IN MADE IN BELGIUM The only limit is your imagination ... Hugyfot User Manual Vision Hero 5 Hugyfot User Manual Vision Hero 5...
- Page 2 Luc Leys The diving industry is starting to take shape ... Philosophy At Hugyfot, our commitment to produce top quality underwater housings reigns supreme since 1953, distinguishing ourselves from the rest, thanks to our ergonomic designs, functionality, durable con...
-
Page 3: Table Of Contents
Hugyfot User Manual Table of Contents Introduction ....................... Safety precautions ..................Tips ........................... Housing overview ..................Installing the monitor sun hood ............Opening and closing the housing ............ Installing the battery packs 910 ............Installing the GoPro Hero 5 Black camera 1011... -
Page 4: Introduction
Your Hugyfot Vision Hero 5 housing is crafted using the state of the art Com puter Aided Design and Computer Aided Manufacturing techniques, ma... -
Page 5: Safety Precautions
122°F (0°C and 55°C). Do not use paint thinners, benzene nor harsh solvents to clean your Hugy fot Vision Hero 5 housing, as these products will damage the finish of your housing, can cause fire and are harmful to your health. Hugyfot... -
Page 6: Housing Overview
USB and HDMI connectors. power “On/Off” button 15. Two (2) Hama Premium 4. Flat port for GoPro Hero 5 Alu Power Pack 8000mAh and LCD screen. (5h battery life), 5. Small window for battery or approved equivalent. pack status indicators. 16. Dual O-ring system. 6. Rotary secure lock 17. Easy flip Macro lens mechanism. (sold separately). 18. Buoyancy control weights. 7. Easy flip red filter with flat port cover. 19. Monitor battery pack 8. Sturdy aluminum handles power “On/Off” button with 1” ball mounts. 20. GoPro Hero 5 Black 9. Multipurpose tray. battery pack 10. HDMI 7”monitor. power “On/Off” button 11. Monitor adjustment buttons. Hugyfot User Manual Vision Hero 5... -
Page 7: Installing The Monitor Sun Hood
This reduces glare, unwanted reflections and protects your monitor when open- ing or closing your housing. The sun hood of your Hugyfot Vision Hero 5 housing is fastened with 3 thumb nuts. To install the sun hood, loosen thumb nuts (1). -
Page 8: Opening And Closing The Housing
6. Opening and closing the housing Closing the housing: Place your Hugyfot Vision Hero 5 housing on a flat stable surface, with the monitor face down. Your Hugyfot Vision Hero 5 housing is equipped with a rotary secure lock ... -
Page 9: Installing The Battery Packs
7. Installing the battery packs Your Hugyfot Vision Hero 5 housing is powered by 2 battery packs. One powers the HDMI 7” monitor and one powers your GoPro Hero 5 Black. Fully charge battery packs prior to use. Battery packs are equipped with a 2.1A outlet and a 1A outlet (2). -
Page 10: Installing The Gopro Hero 5 Black Camera
Once your GoPro Hero 5 Black is in place, route HDMI/USBC cables through the square grommet next to camera cradle (3); Connect USBC cable to GoPro Hero 5 Black (4); power switch 2.1A Hugyfot User Manual Vision Hero 5... - Page 11 Connect HDMI cable to GoPro Hero 5 Black HDMI port (5); 9. Powering battery packs “On/Off” With both battery packs and GoPro Hero 5 Black installed, your Hugyfot Vision Hero 5 housing is ready to use. To power the monitor battery pack, holding your housing by handles facing the monitor, press the top red button on the on the left-hand side of the housing, holding it for 1 second (1);...
-
Page 12: Charging Battery Packs
10. Charging the battery packs 11. Adjusting the monitor The HDMI 7” monitor of your Hugyfot Vision Hero 5 housing can be adjusted to Battery packs can be charged in place, or removed from the housing. suit personal preferences. With your housing open, you can make adjustments using the push buttons. -
Page 13: Buoyancy Control
12. Buoyancy control 13. Recording video and taking photos Your Vision Hero 5 housing has a positive buoyancy of 544gr in salt water. It comes With you GoPro Hero 5 Black installed, battery packs fully charged, O-rings checked with 4 weights (136gr each) that can be used to make it 100% neutrally buoyant and your housing closed, you are ready to start recording videos and taking photos. -
Page 14: Macro Lens
Capture small subjects in sharp focus, with plenty of detail to fill your screen with a Macro lens. Your Hugyfot Vision Hero 5 housing can be upgraded with an The easy flip lens holder can be used in combination with a variety of M67 easy flip macro lens (sold separately). -
Page 15: Shutter Release Lock
Protect the flat port of your Hugyfot Vision Hero 5 housing by keeping the flat port cover closed when not in use. Alternatively, you can prevent unintended recordings from occurring by disabling your GoPro Hero 5 Black “Quickcapture”... -
Page 16: Video Lights
16. Video lighting system Your Hugyfot Vision Hero 5 housing can be upgraded with LED video lights. When filters can’t get the job done, a video lighting system is the perfect solution, enhancing performance of your Hugyfot Vision Hero 5 housing. -
Page 17: Maintenance
Once the grooves of your Hugyfot Vision Hero 5 housing are clean and your in place. Orings are lubricated, proceed to sit them one at a time. Inspect to ensure both Orings are in place, in their grooves. - Page 18 Fits your camera like a glove Hugyfot NV Industrielaan 30 Zuid III 9320 Erembodegem Belgium www.hugyfot.com info@hugyfot.com Hugyfot User Manual Vision Hero 5...
