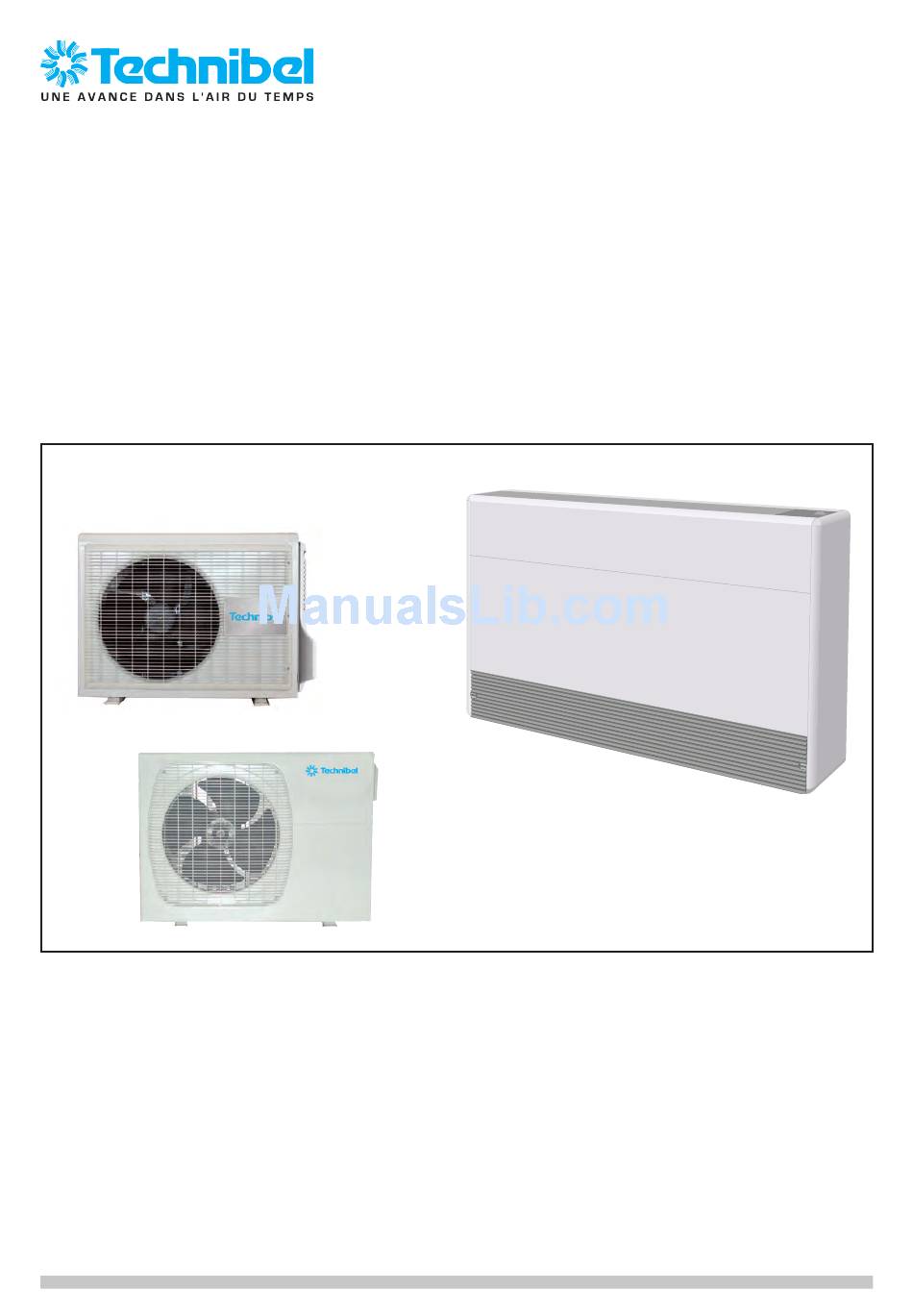

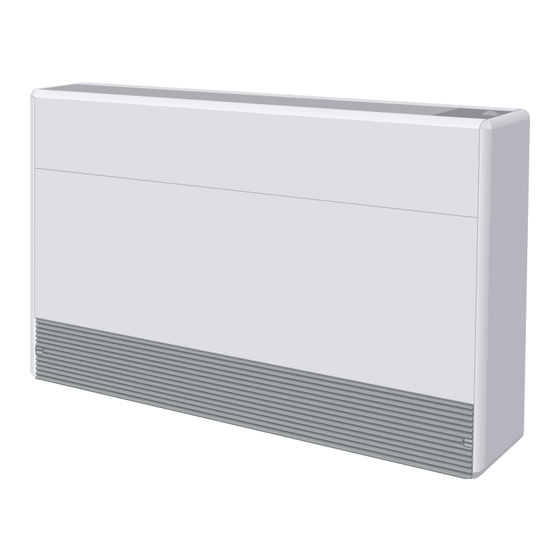

- Page 1 CSCF 208 / 308 / 408 LL SPLIT CONSOLE REFRIGERATION SYSTEM FOR LOW TEMPERATURE ROOMS R 410 A Cooling CSCF 208 LL - 1.84 kW CSCF 308 LL - 2.61 kW CSCF 408 LL - 3.72 kW / 3.82 kW * single-phase/ three-phase September 2012...
-
Page 2: Table Of Contents
MARKING This product marked conforms to the essential requirements of the Directives: - Low voltage no. 2006/95/EC. - Electromagnetic Compatibility no. 2004/108/EC. NOTE: This symbol mark and recycle system are applied only to EU countries and not applied to the countries in the other area of the world. -
Page 3: Presentation
1.5 - OPERATION • Expansion by capillary in the outdoor unit. • Direct expansion refrigeration cycle. 2 - TECHNICAL CHARACTERISTICS Model CSCF 208 LL CSCF 308 LL CSCF 408 LL Indoor unit TAF 208 L TAF 308 L TAF 408 L... -
Page 4: Physical Characteristics
3 - PHYSICAL CHARACTERISTICS 3.1 - DIMENSIONS INDOOR UNIT - TAF TAF 208 L TAF 308 L TAF 408 L Dimensions 1,140 1,260 Weight Dimensions 1,010 1,200 1,320 packaged Weight OUTDOOR UNIT - GRF GRF 98 L GRF 128 L GRF 188 L GRF 98 L / 128 L Dimensions... -
Page 5: Description
4 - DESCRIPTION Model CSCF 208 LL CSCF 308 LL CSCF 408 LL INDOOR UNIT TAF 208 L TAF 308 L TAF 408 L Construction • • • Galvanised steel and plastic coated sheet • • • M1 class polyethylene insulation Evaporator •... - Page 6 Model CSCF 208 LL CSCF 308 LL CSCF 408 LL OUTDOOR UNIT GRF 98 L GRF 128 L GRF 188 L Fan motor • • • Direct drive propeller fan motor Number Diameter • • • Power supply V/ph/Hz 2 3 0 / 1 / 5 0...
-
Page 7: Cooling Performances
5 - COOLING PERFORMANCES TOTAL COOLING CAPACITY TOTAL POWER CONSUMPTION 0.98 CSCF 208 LL 0.96 Indoor temperature (°C) Indoor temperature (°C) 18°C 0.94 15°C 18°C 12°C 0.92 15°C 12°C 0.90 0.88 0.86 0.84 0.82 0.80 0.78 Outdoor temperature (°C) Outdoor temperature (°C) 1.30 CSCF 308 LL... -
Page 8: Sound Levels
- distance 2 m. • Outdoor unit (GRF) - fitted on the floor, - free field, - distance 4 m. 7 - ACCESSORIES Accessory CSCF 208 LL CSCF 308 LL CSCF 408 LL • • • Wall support for indoor unit • •... -
Page 9: Description Of Remote Controls
8 - DESCRIPTION OF REMOTE CONTROLS 8.1 - RAB 30 MANUAL CONTROL - Code K 60 D 076 Z Operating switch with fan speed selection Temperature setting knob Heating / cooling selector switch 8.2 - AUTOMATIC CONTROL - Code K 60 D 025 Z S1 On/Off switch. - Page 10 Due to our policy of continuous development, our products are liable to modification without notice. Z.I. Route départementale 28 CS 40131 Reyrieux 01601 Trévoux Cedex France Phone 33 4 74 00 92 92 - Fax 33 4 74 00 42 00 R.C.S.
