Pressure Adjust Knob
Adjusts the amount of pressure
output from press
Control Panel
Adjusts the temperature and
time settings of heat press
Top Platen
Heats to desired temperature/
presses vinyl into garment
Caution HOT!
Open and Close Arm
Opens and closes top platen
3

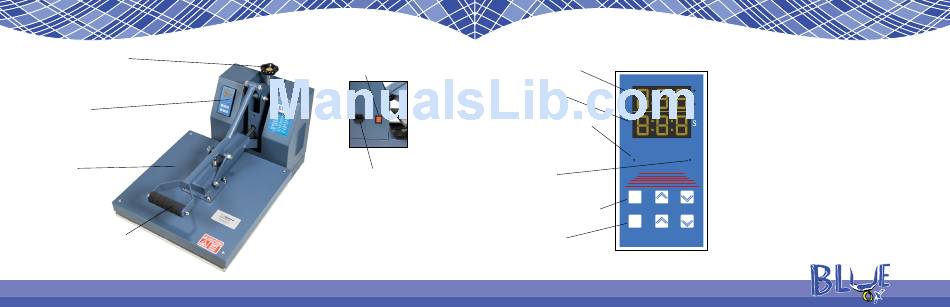

Heat Press Overview
Power Switch
Turns Press on and off
Power Cord Insert
Location where the female end
of your heat press power cord is
inserted to power machine from
wall outlet

Control Panel Overview

Temperature Screen
Displays current platen
temperature
PV
Time Screen
Displays current press time
SV
Temperature Light
Is lit when press is heating up.
Shuts off when press is at
proper temperature
OUT
Time Light
Is lit when press is shut and
Time screen is counting down.
TEMP

Temperature Control

Adjusts temperature setting
TIME
Time Control
THJ-XMTF-III
Adjusts press time setting
Basic Operating Instructions
1. Connect the power cord to the press and a 110 volt outlet. Turn
the power switch on. The Temperature Screen , Timer Screen, and
˚C
Temperature Light should be on.
2. Press the TEMP button. The Temperature Screen will start
˚F
blinking and you are able to set the desired temperature with the
up and down arrows. Press the TEMP button again to set the
desired pressing temperature.
3. Press the TIME button. The Time Screen will start blinking and
you are able to set the desired press time with the up and down
arrows. Press the TIME button again to set the desired pressing
TIME
time.
4. When your heat press reaches the input temperature, the OUT
light (Temperature Light) will turn off.
