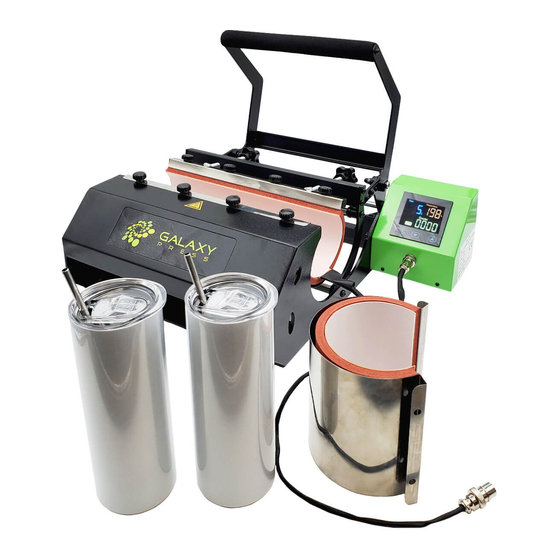

USCutter LOPO GALAXY LTMP GS-205B Operation Manual

USCutter LOPO GALAXY LTMP GS-205B Operation Manual

Heat press

Advertisement

Quick Links

1. Read all instructions.
2. Use the heat press only for its intended use.
3. To reduce the risk of electric shock, do not immerse the heat press in water or
other liquids.
4. Never pull power cord to disconnect from outlet, instead grasp plug
and pull to disconnect.
5. Do not allow power cord to touch hot surfaces, allow heat press to cool completely
before storing.
6. Do not operate heat press with a damaged cord or if the equipment has been
dropped or damaged. To reduce the risk of electric shock, do not disassemble or
attempt to repair the heat press. Take it to a qualified service person for
examination and repair. Incorrect assembly or repair could increase the risk of fire,
electric shock, or injury to persons when the equipment is used.
7. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
8. Close supervision is necessary for any heat press being used which can be sure
to keep children away from the equipment. Do not leave equipment unattended
while connected.
9. Burns can occur when touching hot metal parts.
10. To reduce the likelihood of circuit overload, do not operate other high voltage
equipment on the same circuit.
11. If an extension cord is necessary, then a 20-amperage rated cord should be used.
Cords rated for less amperage may overheat. Care should be taken to arrange the
cord so that it cannot be pulled or tripped over.
Operation Manual
(GS-205B)

Safety Instructions

When using your heat press,
basic precautions should be followed,
including the followings:
1

Advertisement

Table of Contents
loading

Summary of Contents for USCutter LOPO GALAXY LTMP GS-205B

  • Page 1: Safety Instructions

    Operation Manual (GS-205B) Safety Instructions When using your heat press, basic precautions should be followed, including the followings: 1. Read all instructions. 2. Use the heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids.
  • Page 2: Table Of Contents

    Table of Contents Safety Instructions ......... 1 Technical Parameters ......3 Machine View ......... 4 Control Panel Guide ....... 5 Operating Instructions ......6-9 ⚫ Connecting the System ............... 6 ⚫ Turning the System On ............... 6 ⚫ Adjusting the Temperature............7 ⚫...
  • Page 3: Technical Parameters

    Technical Parameters Model: GS-205B Remark Power (110 volt) 300W/2.8 Amps For heaters compatible with GS-205B, please check the list under “Exploded Temperature Range: Max.200℃/392℉ Views and Parts List” Time Range: 0~999S Machine Size (open size) : 14.4" × 12.5” × 8.75” 16.75”...
  • Page 4: Machine View

    Machine View...
  • Page 5: Control Panel Guide

    Control Panel Guide...
  • Page 6: Operating Instructions

    Operation Instructions Connecting the System 1.1 Connect the power cord into a properly 1.2 VOLTAGE 110 volt – The GS-205B requires a full grounded electrical outlet with a sufficient amperage rating. 10-amp grounded circuit for 110-volt operation. 1.4 CIRCUITS: Should a circuit have less 1.3 EXTENSION CORDS: If used, than 10 amps or has other high demand should be as short as possible and...
  • Page 7: Adjusting The Temperature

    3.Adjusting the Temperature 3.1 Press the “SET” button one time. The “Temperature” and “Setting” lights will illuminate, press the “up” and “down” button to set target start temperature (see figure 3.1) Adjusting the Time 4.1 Once you have adjusted the temperature, press the “SET”...
  • Page 8: Printing And Pressing

    6.Printing and Pressing Once the equipment has reached the designated temperature: ⚫ Position mug inside the press. ⚫ Closing the heat press will start the automatic timing process. ⚫ The timer will automatically count down to zero then circuit board will alarm when the printing cycle is complete.
  • Page 9: Temperature Calibration

    8.Temperature Calibration 8.1 Press the “SET” button for 4 8.2 Press the “SET” button to select “Pb” seconds to enter second level menu. mode (See figure 8.2) (see figure 8.1) 8.3 Press the “UP” or “DOWN” 8.4 Press the “SET” button 4 seconds to quit.
  • Page 10: Exploded Views And Parts List

    Exploded Views and Parts List Part Name Qty. Front cover Holding sheet Curved link Pressure screw Heater holding block Heater holding block Shoulder screw black M5-6*12 Meter bolt M5*6 Handle screw M5-18-10 Pressure screw holder Threaded sleeve Pressure screw knob...
  • Page 11 Rubber case Arm link Handle shaft Machine arm Nylon washer 16-8-28 Nut M6 Holding shaft 80-181 Floating shaft 8-128 Nylon washer 20-8-1.8 Handle holding shaft M3 magnet 12*3 Countersunk screw M3*8 Foot holding sheet Side body sheet B Ball headed bolt M5*6 Ball headed bolt M5*12 Rubber foot Ball headed bolt M4*6...
  • Page 12 Part Name Qty. Control box bottom cover Ball headed bolt M3*6 Terminal block TB1503L Control box 4 phase plug-female Shoulder screw black M5-6*12 Fuse Magnetic switch Magnetic switch nut Control board GSK-H08 Handle screw M4-15-8 Socket Countersunk screw M3*8 On/off switch Triac...
  • Page 13 Compatible Heaters for GS-205B (*Sold Separately) Part Name Mug Heater - 11oz - 15oz Mug Element Mug Heater - 16oz Cup Element Mug Heater - 20oz Tumbler Element Mug Heater - 20oz Bottle Element Mug Heater - 16oz - 30oz ThermoFlask (Thermos) Mug Heater - 30oz Travel Tumbler Element Mug Heater - 16oz Bottle Element (Mixer Bottle)
  • Page 14: Electrical Schematic

    Electrical Schematic...
