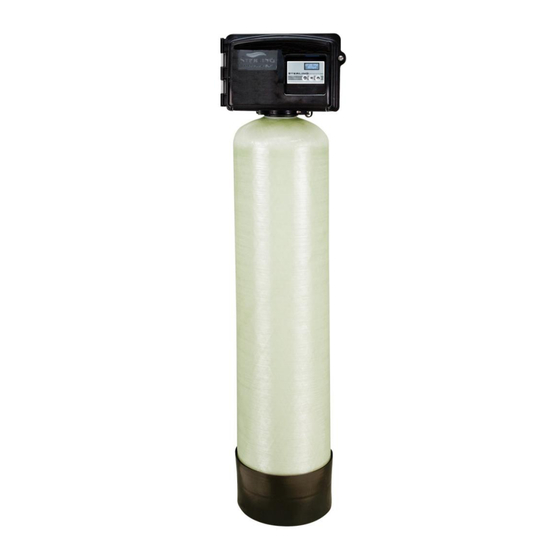

- Page 1 Installation Instructions and Owner’s Manual OXY2 & OXY2E Series Iron Reduction System First Sales, LLC 12630 US Highway 33 N Churubusco, IN 46723 Phone (260) 693-1972 Fax (260) 693-0602 OXY2-OXY2E Instruction Manual 180122.docx...
-
Page 2: Table Of Contents
Table of Contents Pre-installation Instructions Page 2 General Installation Page 4 Installation Instructions Page 5 OXY2 Timer Operation Page 8 OXY2E Display and Operation Page 10 OXY2E Setting Time of Day Page 11 OXY2E Programming Page 12 Specifications Page 13 Component Parts Breakdown &... -
Page 3: Pre-Installation Instructions
Pre-installation Instructions Description of the iron filtration system The OXY2 iron filtration system includes a single filtration tank with a pocket of air and a backwashing control valve. Incoming water flows into the control valve and is directed into the filtration tank. Exposure to the air in this tank will start oxidizing the iron which is then trapped by the media. - Page 4 Pre-installation Instructions (cont.) Water Supply Unlike other iron filters that do not use chemicals to oxidize the iron, the OXY2 iron filter does not require additional devices such as air compressors, venturis, solenoids, pressure switches or pressure tanks. This filter will function properly when the water supply is furnished by a jet pump (5 gpm minimum), submersible pump, variable speed (constant pressure) pump or community water supply.
-
Page 5: General Installation
General Installation GENERAL INSTALLATION & SERVICE WARNINGS The water conditioner is not designed to support the weight of plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere. A silicone lubricant may be used on black “O” Rings. This will allow ease of installation and decrease chance of rolling from the bypass and tank connections. -
Page 6: Installation Instructions
Installation Instructions STEP 1: If media is already loaded in filter tank proceed to Step 4. Otherwise, place red pipe cap (if provided) or a piece of tape over the end of the distributor tube to prevent media from entering the distributor tube during media filling. - Page 7 Installation Instructions (cont.) STEP 9: Plug the transformer into a non-switched electrical outlet. Be sure the control valve is in the “Service” position. For OXY2 models the service indicator should point to the time of day arrow (See figure 4a below). OXY2E units are in service when the time of day is displayed above the gallons remaining (see figure 6, page 10).
- Page 8 Installation Instructions (cont.) STEP 12: For the OXY2 set the Timer Control (Figure 4a) by rotating the Skipper Wheel (Figure 4a) so the red pointer is directly over day 1. Select the days when backwashing will occur by sliding the metal tabs in or out. IN indicates no backwashing will occur on that day, OUT indicates that backwashing will occur on that day.
-
Page 9: Oxy2 Timer Operation
OXY2 Timer Operation FIGURE 4: Front of Timer Assembly How to set Time of Day: Press and hold the red button to disengage the drive gear. 2. Turn the large 24 hour gear until the actual time of day is at the time of day pointer. 3. - Page 10 OXY2 Timer Operation (cont.) FIGURE 5: Back of Timer Assembly How to Change the Length of Backwash Cycles: All cycles have been factory set and should not need adjustment. If local conditions require different cycle lengths, however, the following procedures should be followed. The end of the program wheel has been used for backwash cycles to minimize the amount of time that pressure will be applied to the air draw check valve.
-
Page 11: Oxy2E Display And Operation
OXY2E Display and Operation Advance Button FIGURE 6: OXY2E Display Panel SET BUTTON 1. Press and hold “Set Button” for 5 seconds to enter Programming Mode. 2. When valve is in Programming Mode, press “Set Button” to confirm setting and advance to next menu option. -
Page 12: Oxy2E Setting Time Of Day
OXY2E Setting Time of Day Enter Programming Mode: Press and Hold the SET Button for 5 seconds. Use Up Button to set current hour Use Up Button to set current minute Use Up Button to set AM/PM Default setting is 20 GPG. This iron filter does not meter the water use. -
Page 13: Oxy2E Programming
OXY2E Programming Press and HOLD the UP button for 5 seconds to enter the programming mode. Use Up Button to set frequency of backwash cycle. The frequency should never be less than every 3 days, but may high iron levels or water use may require more frequent cycles. -
Page 14: Specifications
Specifications DESCRIPTION OXY2-10 OXY2-20 MEDIA VOLUME, cu. ft. GRAVEL UNDERBED, lbs. SERVICE FLOW RATES, gpm Continuous @ 5 gpm/ft , gpm Peak @ 16 gpm/ft , gpm PRESSURE LOSS , psi @ Continuous Flow Rate @ Peak Flow Rate REGEN. FLOW RATES, gpm... -
Page 15: Component Parts Breakdown & List
Complete Electronic Control Valve includes bypass OXY2E-20 Vlv Assy W/BP valve Distributor Tube, 1” x 54” D100S-54 Mineral Tank, 10” x 54”, OXY2-10 & OXY2E-10 MTP1054N Mineral Tank, 13” x 54”, OXY2-20 & OXY2E-20 MTP1354N IP05 ½ cubic foot pail Iron Pro Media Blend ½... -
Page 16: Oxy2 Control Valve Breakdown
OXY2 Control Valve Breakdown... -
Page 17: Oxy2 Control Valve Parts List
12408 Stem, 0.5 BLFC with Tube (OXY2-20) 5.0 gpm DLFC Housing Drain Fitting, Hose Barb, 90 Deg 60705-50 12338 (Old Style for OXY2-10) Shown Elbow, 1/2" x 1/2" (Old Style) Shown 7.0 gpm DLFC Housing 60705-70 19936 Base Seal (2510) (Old Style for OXY2-20) 5.0 gpm DLFC Elbow... -
Page 18: Oxy2E Control Valve Breakdown
OXY2E Control Valve Breakdown... -
Page 19: Oxy2E Control Valve Parts List
OXY2E Control Valve Parts List Part REF # Part Number Description REF # Description Number Stainless Steel Bypass, 60041SS 10914-2 Injector Throat, #2, Blue 1” FPT 60900-41 Coupling Kit 10227 Injector Screen 7.0 gpm DLFC Elbow 60705-50A 17776 Injector Body Plastic (OXY2E-10) 7.0 gpm DLFC Elbow 60705-70A... -
Page 20: Troubleshooting
Troubleshooting PROBLEM CAUSES SOLUTIONS 1) Check timer motor and replace if faulty 2) Ensure uninterrupted power supply 3) Check Backwash frequency setup 4) Verify sediment being removed is less A) Filter not dense than the filter media and install a backwashing “Spin-Down”... - Page 21 Troubleshooting (cont.) PROBLEM CAUSES SOLUTIONS Howling or A) Inadequate drain whistling noise line diameter or 1) Reconfigure or replace drain line during regeneration drain line restricted Control Valve Faulty switch 1) Replace faulty switch cycles continually B) Faulty timer motor 2) Replace faulty timer motor Loss of electrical power during...
-
Page 22: Control Valve Wiring Diagram
Control Valve Wiring... -
Page 23: Ten Year Limited Warranty
TEN YEAR LIMITED WARRANTY WARRANTY – First Sales, LLC. warrants this water conditioner against any defects that are due to faulty material or workmanship during the warranty period. This warranty does not include damage to the product resulting from accident, neglect, misuse, misapplication, alteration, installation or operation contrary to printed instructions, or damage caused by freezing, fire, flood, or Acts of God.
