Track mode
display. The display will now indicate forces applied in both directions as they
are applied to the load sensor in real-time. See Figure 3a
Track symbol
at top left.
Peak-Tension mode Press the MODE key until the
on the display. The display will now show the maximum tensile force that has
been applied to the sensor. See Figure 3b (Again, do not exceed the gross
maximum capacity of the DFS model that you are using.)
Peak Tension
symbol at
top left.
Peak-Compression mode Press the MODES key until
appears on the display. The display will now show the maximum compressive
force that has been applied to the sensor. See Figure 3c
Peak
Compression
symbol at
top left.
9
Press MODE key until the

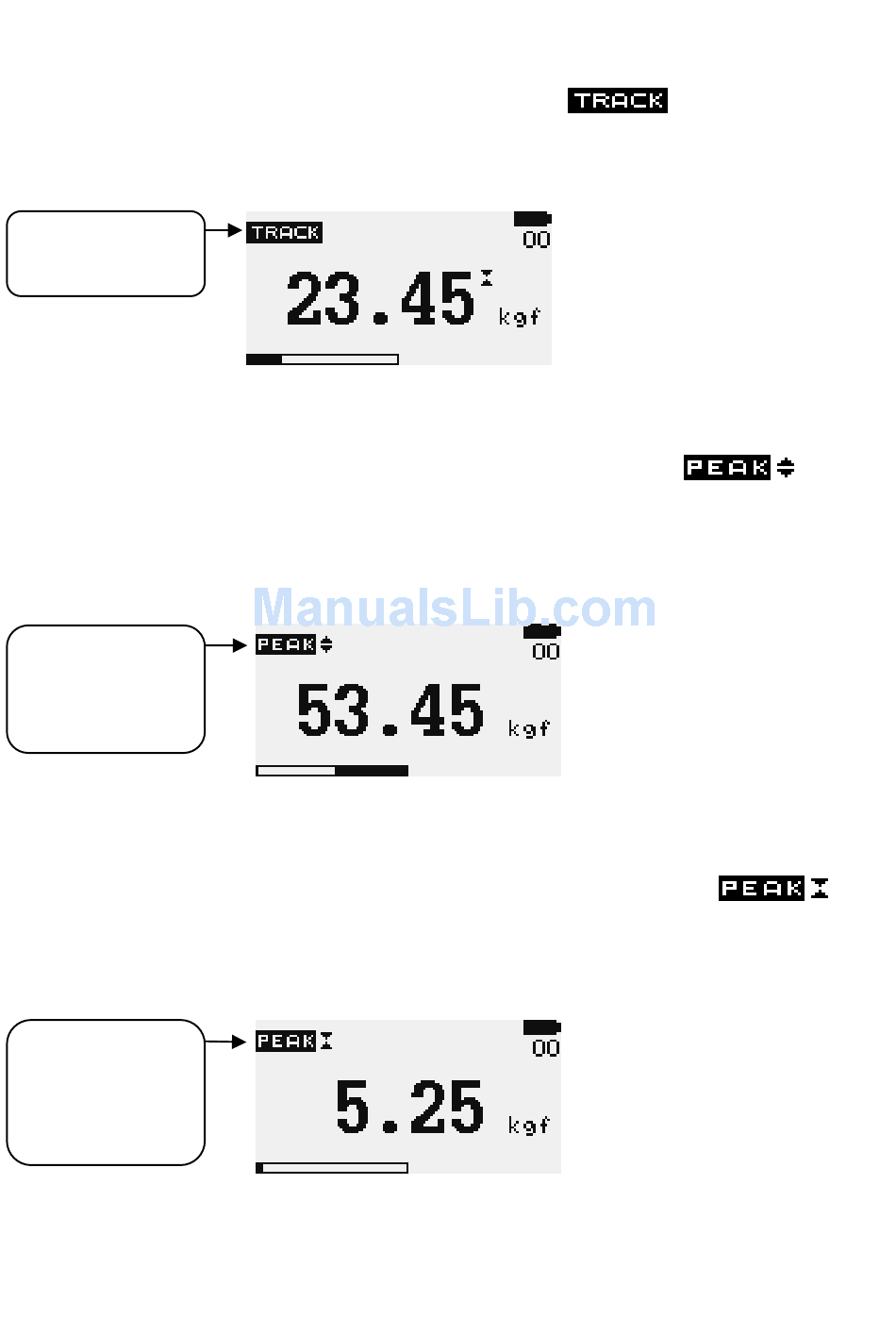

Figure 3a Track
Figure 3b Peak Tension
Figure 3c Peak Compression
