Remos GX eLITE Pilot Operating Handbook

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

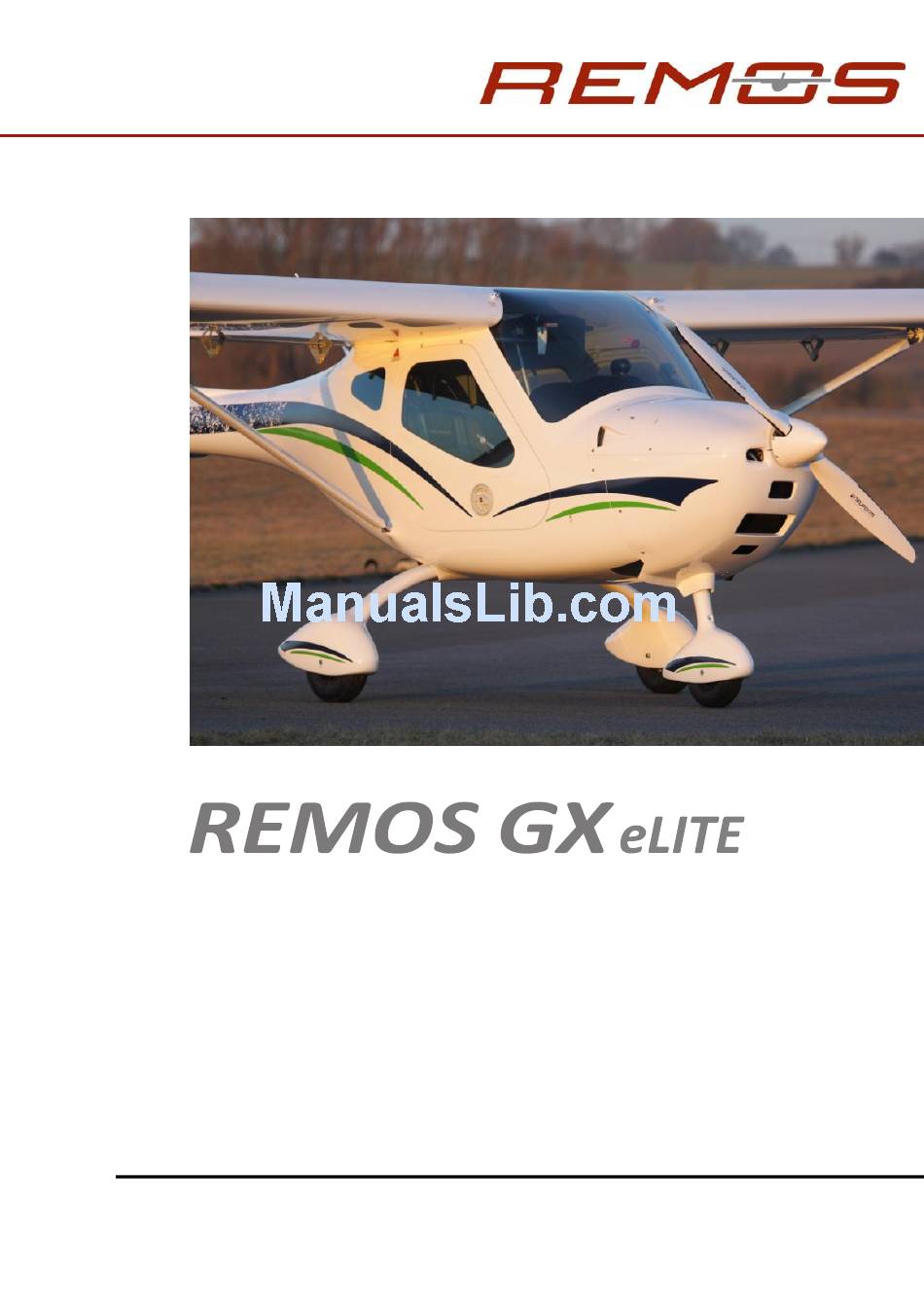

Pilot Operating Handbook
Airplane Registration Number
Airplane Serial Number
REMOS Order No.
______________________
______________________
104175, dated May 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX eLITE and is the answer not in the manual?

Questions and answers

Related Manuals for Remos GX eLITE

Summary of Contents for Remos GX eLITE

  • Page 1 Pilot Operating Handbook Airplane Registration Number ______________________ Airplane Serial Number ______________________ REMOS Order No. 104175, dated May 2015...
  • Page 2 G3-8 MA FM 3200 - R02 Introduction Light Sport Aircraft REMOS GX The REMOS GX was manufactured in accordance with the Light Sport Aircraft airworthiness standards and does not conform to standard category airworthiness requirements. The standards to be used for certification are given by FAA and can be obtained from vjg"...
  • Page 3 G3-8 MA FM 3200 - R02 Introduction List of Content and Revisions This POH consists of the following listed pages and sections. You will find a marking indicating the revision and date of issue at the top border of each page. Insert the latest changed pages. Pilot Operating Handbook Î...
  • Page 4 G3-8 MA FM 3200 - R02 Introduction Remarks and Alterations Please make a notation below if any changes have been made to this manual or to the plane. This manual is an important document for the pilot in command to ensure safe operation of the aircraft. Therefore it is recommended to keep this Operating Handbook updated with the newest information available.
  • Page 5 G3-8 MA FM 3200 - R02 Introduction Views Wingspan 30.6 ft Overall Length 21.3 ft Introduction...

  • Page 6: Table Of Contents

    G3-8 MA FM 1201 - R06 General Information Table of Contents sect. description page Introduction Certification Continued Airworthiness Quick Reference Technical Specifications Performance Engine Fuel 1.10 Propeller 1.11 ICAO Designator 1.12 Noise Certification General Information 1 - 1...

  • Page 7: Introduction

    Introduction This Operating Handbook is designed to help enable a safe and successful completion of each flight with the REMOS GX. It provides you with all necessary information for regular maintenance and operation of the aircraft. Therefore we recommend that the pilot keep this Operating Handbook updated with the newest information available.

  • Page 8: Quick Reference

    G3-8 MA FM 1201 - R06 General Information Quick Reference Type: Full composite carbon fiber aircraft with two seats. Design: High wing design with struts, front mounted engine propeller, traditional stabilizer concept, differential ailerons. Electrically operated flaps (0° to 40° ), electric elevator trim, three-wheel landing gear with steerable nose wheel.

  • Page 9: Performance

    G3-8 MA FM 1201 - R06 General Information Performance This section shall give a summary of the performance of the REMOS GX. Detailed performance data is given in section 5 of this Pilot Operating Handbook. 115 kTAS @° 5.500 rpm...

  • Page 10: Fuel

    22 US gallons total fuel quantity AVGAS, MOGAS or min. AKI 91, fuel qualities ideally free of ethanol Please refer to REMOS notification NOT-001 and ROTAX SI-912-016/SI-914-019 for further information on suitable engine fluids (fuel, oil, cooling liquid, additives, etc). NOTE Have a frequent look on www.flyrotax.com...

  • Page 11: Propeller

    1.11 ICAO Designator ICAO Designator: (as per ICAO Doc. 8643) 1.12 Noise Certification According to noise requirements for Ultralight aircraft (LS-UL) dated August 1996, the REMOS GX is certified to a noise level of 60 dB (A). General Information 1 - 6...
  • Page 12 G3-8 MA FM 3202 - R02 Operating Limitations Table of Contents sect. description page Reference Airspeeds Stalling Speeds at Maximum Takeoff Weight Flap Extended Speed Range Maximum Maneuvering Speed Never Exceed Speed Maximum Wind Velocity for Tie-Down Crosswind and Wind Limitations Maximum Parachute Deploy Airspeed Service Ceiling 2.10...

  • Page 13: Reference Airspeeds

    G3-8 MA FM 3202 - R02 Operating Limitations Reference Airspeeds speed description airspeed which shall never never exceed speed 134 kts be exceeded maximum speed airspeed which shall not be 107 kts in turbulence exceeded in gusty weather maximum airspeed for all maneuvering speed 88 kts permissible maneuvers...

  • Page 14: Stalling Speeds At Maximum Takeoff Weight

    G3-8 MA FM 3202 - R02 Operating Limitations Stalling Speeds at Maximum Takeoff Weight stall speed with flaps extended = 42 kts stall speed with flaps retracted = 44 kts Flap Extended Speed Range Flaps may be operated and the aircraft may be flown at airspeeds higher than V as long as flap deflection is limited.

  • Page 15: Never Exceed Speed

    A general wind limitation is not defined for the REMOS GX. Operating Limitations 2 - 4...

  • Page 16: Maximum Parachute Deploy Airspeed

    G3-8 MA FM 3202 - R02 Operating Limitations Maximum Parachute Deploy Airspeed maximum parachute deploy airspeed 120 kts Service Ceiling service ceiling 15,000 ft 2.10 Load Factors safe load factors +4.0 g / -2.0 g With flaps set to any deflection the safe load factor is limited to 2. 2.11 Maximum Structure Temperature max.

  • Page 17: Approved Flight Maneuvers

    135° C = 275° F 120° C = 248° F with SB-011 complied mixing ratio 1:1 (Glysantin : water) Please refer to REMOS notification NOT-001 and ROTAX SI-912-016/SI-914-019 for further information on suitable engine fluids (fuel, oil, cooling liquid, additives, etc).

  • Page 18: Fuel

    0,15 bar = 2.2 psi fuel pressure min. 0,50 bar = 7.3 psi max. Please refer to REMOS notification NOT-001 and ROTAX SI-912-016/SI-914-019 for further information on suitable engine fluids (fuel, oil, cooling liquid, additives, etc). NOTE Have a frequent look on www.flyrotax.com...

  • Page 19: Weight And Balance

    126 lb (57 kg) 2.18 Crew The REMOS GX is certified to be operated with a minimum of 1 occupant (the pilot in command) and a maximum of 2 occupants. If not otherwise defined by regulations or by the owner/operator, the pilot in command is normally seated on the left.

  • Page 20: Flight Conditions And Minimum Equipment List

    G3-8 MA FM 3202 - R02 Operating Limitations 2.19 Flight Conditions and Minimum Equipment List operation minimum equipment Day-VFR as per D-VFR Minimum Equipment List Night-VFR not approved IFR in IMC not approved IFR in VMC not approved Aerobatics not approved D-VFR minimum equipment list ‚...

  • Page 22: Placards And Markings

    G3-8 MA FM 3202 - R02 Operating Limitations 2.21 Placards and Markings From SN298 on, the required placards and markings are created with the following color codes. For previous aircraft, placards had a different color code, but are still in effect. Type Inside Outside...
  • Page 25 G3-8 MA FM 3202 - R02 Operating Limitations The following safety placard is located on the right side of the panel. This placard is mandatory. The list below does not define the layout but the content and intent of the placards. placard location right cockpit...
  • Page 26 G3-8 MA FM 3202 - R02 Operating Limitations The following information placards and markings are found inside the cabin. Attaching these placards is not mandatory; these placards provide additional information to the pilot. The list below does not define the layout but the content and intent of the placards. placards location left cockpit...
  • Page 27 G3-8 MA FM 3202 - R02 Operating Limitations placards location center console center console switchboard Operating Limitations 2 - 16...
  • Page 28 G3-8 MA FM 3202 - R02 Operating Limitations placards location switchboard switchboard switchboard switchboard optional: constant speed prop switchboard Operating Limitations 2 - 17...
  • Page 29 G3-8 MA FM 3202 - R02 Operating Limitations placards location optional: glider towing aircraft left cockpit left rocker panel Operating Limitations 2 - 18...
  • Page 30 G3-8 MA FM 3202 - R02 Operating Limitations The following information placards and markings are found outside the cabin. Attaching these placards is not mandatory; these placards provide additional information to the pilot. The list below does not define the layout but the content and intent of the placards. placards location fuel tank filler cap...
  • Page 31 G3-8 MA FM 3202 - R02 Operating Limitations The following safety placards and markings are found inside the cabin. Attaching these placards is not mandatory; these placards provide additional information to the pilot. The list below does not define the layout but the content and intent of the placards. placards location center stack...
  • Page 32 G3-8 MA FM 3202 - R02 Operating Limitations The following safety placards and markings are found outside the cabin. Attaching these placards is not mandatory; these placards provide additional information to the pilot. The list below does not define the layout but the content and intent of the placards. placards location center of elevator...
  • Page 33 G3-8 MA FM 3202 - R02 Operating Limitations The following warning placards and markings are found inside the cabin. Attaching these placards is not mandatory; these placards provide additional information to the pilot. The list below does not define the layout but the content and intent of the placards. placards location center console...
  • Page 34 G3-8 MA FM 1203 - R06 Emergency Procedures Table of Content sect. description page Definitions Jettison of Doors Spin Recovery Recovery System Emergency Descent Carburetor Icing Inadvertent Icing Encounter Overvoltage Alternator Failure 3.10 Voltage Drop 3.11 Loss of Altimeter 3.12 Loss of Airspeed Indicator 3.13 Loss of Elevator Control...

  • Page 35: Definitions

    G3-8 MA FM 1203 - R06 Emergency Procedures Definitions Procedures are instructions that must be performed in the given sequence, as far as possible without interruption. Checklists are lists for items to be checked in the applicable phase of flight (taxi, take-off, climb, etc.).

  • Page 36: Jettison Of Doors

    G3-8 MA FM 1203 - R06 Emergency Procedures Jettison of Doors Procedure 1. door lock OPEN 2. hinge pin PULL 3. door JETTISON Spin Recovery Procedure 1. control stick NEUTRAL 2. rudder OPPOSITE SPIN DIRECTION 3. after stopping of rotation RECOVER Recovery System Procedure...

  • Page 37: Carburetor Icing

    G3-8 MA FM 1203 - R06 Emergency Procedures Carburetor Icing Procedure 1. carburetor heat PULL 2. electric fuel pump 3. power setting FULL POWER Inadvertent Icing Encounter Procedure 1. engine FULL POWER 2. flaps 3. carburetor heat PULL 4. electric fuel pump 5.

  • Page 38: Alternator Failure

    G3-8 MA FM 1203 - R06 Emergency Procedures Alternator Failure Procedure 1. alternator failure IDENTIFY (red alarm light) 2. non essential systems 3. continue flight and land on appropriate airfield to determine the reason for the alternator failure During day VFR Operations, nonessential systems are all systems except for the radio and intercom.

  • Page 39: Loss Of Altimeter

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.11 Loss of Altimeter Procedure for aircraft with more than one altimeter installed 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. altimeter USE ALTERNATE ALTIMETER 3. in case of failure of all altimeters installed continue with procedure below aircraft with just one altimeter and within airspace requiring clearance 1.

  • Page 40: Loss Of Airspeed Indicator

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.12 Loss of Airspeed Indicator Procedure for aircraft with more than one airspeed indicator installed 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. airspeed indicator USE ALTERNATE ASI 3. in case of failure of all airspeed indicators installed continue with procedure below for aircraft with one airspeed indicator installed or total failure of ASI 60422È4.600 rpm...

  • Page 41: Loss Of Elevator Control

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.13 Loss of Elevator Control Procedure aircraft equipped with recovery system 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. declare emergency MAYDAY MAYDAY MAYDAY 3. recovery system DEPLOY aircraft without recovery system 1. AVIATE Î NAVIGATE Î COMMUNICATE 2.

  • Page 42: Loss Of Aileron Control

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.14 Loss of Aileron Control Procedure aircraft equipped with recovery system 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. declare emergency MAYDAY MAYDAY MAYDAY 3. recovery system DEPLOY aircraft without recovery system 1. AVIATE Î NAVIGATE Î COMMUNICATE 2.

  • Page 43: Loss Of Rudder Control

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.15 Loss of Rudder Control Procedure aircraft equipped with recovery system 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. declare emergency MAYDAY MAYDAY MAYDAY 3. recovery system DEPLOY aircraft without recovery system 1. AVIATE Î NAVIGATE Î COMMUNICATE 2.

  • Page 44: Loss Of Trim System

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.16 Loss of Trim System Procedure pitch down trim runaway or stuck trim with lot of trim down 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. expect nose down attitude 3. keep nose up with manual stick input 4.

  • Page 45: Loss Of Flap Control System

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.17 Loss of Flaps Control System Procedure flaps stuck in deflected position or flaps down runaway 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. max. flap speed = 78 kIAS = 90 mph IAS 3.

  • Page 46: Loss Of Oil Pressure

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.18 Loss of Oil Pressure Procedure oil temperature not stable (constantly and rapidly rising) smell of oil, oil fumes, oil on windscreen 5. AVIATE Î NAVIGATE Î COMMUNICATE 6. PERFORM PRECAUTIONARY LANDING oil temperature stable (constant oil temperature) no obvious oil leakage, engine running smooth 1.

  • Page 47: High Oil Pressure

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.19 High Oil Pressure Procedure oil temperature not stable (constantly and rapidly rising) smell of oil, oil fumes, oil on windscreen 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. PERFORM PRECAUTIONARY LANDING oil temperature stable (constant oil temperature) no obvious oil leakage, engine running smooth 1.

  • Page 48: High Cylinder Head Temperature

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.20 High Cylinder Head Temperature Procedure 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. power setting REDUCE TO MIN. POSSIBLE 3. continue flight and land on appropriate airfield to determine the reason of the high cylinder head temperature 4.

  • Page 49: Engine Stoppage During Take-Off

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.21 Engine Stoppage during Take-Off Procedure during take-off run (aborted take-off) 1. engine speed IDLE 2. brakes AS REQUIRED 3. engine during climb out (altitude below 500ft) 1. AVIATE Î NAVIGATE Î COMMUNICATE 2.

  • Page 50: Engine Stoppage In Flight

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.22 Engine Stoppage in Flight Procedure case 1: altitude not enough for engine re-start 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. landing site IDENTIFY 3. engine 4. fuel valve CLOSE 5. declare emergency MAYDAY MAYDAY MAYDAY 6.

  • Page 51: Engine On Fire During Take-Off

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.24 Engine on Fire During Take-Off Procedure during take-off run (aborted take-off) 1. engine speed IDLE 2. brakes FULL and SET 3. fuel valve CLOSE 4. carburetor heat PULL 5. electric fuel pump 6.

  • Page 52: Engine On Fire In Flight

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.25 Engine on Fire in Flight Procedure 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. landing site IDENTIFY 3. fuel valve CLOSE 4. carburetor heat PULL 5. electric fuel pump 6. power setting FULL until ENGINE STOPS 7.

  • Page 53: Precautionary Landing

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.26 Precautionary Landing Procedure 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. landing site IDENTIFY 3. direction of wind IDENTIFY 4. landing direction INTO THE WIND or UPHILL 5. landing site inspection PERFORM LOW APPROACH 6.

  • Page 54: Emergency Landing On Land

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.27 Emergency Landing on Land Procedure 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. landing site IDENTIFY 3. direction of wind IDENTIFY 4. approach airspeed = 60 kIAS = 69 mph IAS 5. max. flap speed = 78 kIAS = 90 mph IAS 6.

  • Page 55: Emergency Landing On Water

    G3-8 MA FM 1203 - R06 Emergency Procedures 3.28 Emergency Landing on Water Procedure 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. direction of wind IDENTIFY 3. approach airspeed = 60 kIAS = 69 mph IAS 4. max. flap speed = 78 kIAS = 90 mph IAS 5.
  • Page 56 G3-8 MA FM 1204 - R06 Normal Procedures Table of Content sect. description page Definitions Fuel Draining Preflight Check Before Start-Up Engine Start After Start-Up Engine Run Up Taxi Departure 4.10 Take-Off 4-10 4.11 Best Angle of Climb Speed (V 4-13 4.12 Best Rate of Climb Speed (V...

  • Page 57: Definitions

    G3-8 MA FM 1204 - R06 Normal Procedures Definitions Procedures are instructions that must be performed in the given sequence, as far as possible without interruption. Checklists are lists for items to be checked in the apropriate phase of flight (taxi, take-off, climb, etc.).

  • Page 58: Fuel Draining

    When draining the aircraft take care that no fuel contaminates the environment. Dispose of drained or dumped fuel in an environmental correct manner. For further information about fuel containing ethanol please refer to the REMOS Notification NOT-001-ethanol-fuel. Normal Procedures 4 - 3...

  • Page 59: Preflight Check

    G3-8 MA FM 1204 - R06 Normal Procedures Preflight Check Checklist Checks outside the aircraft fuel system drained before moving the aircraft at all engine oil level (between min. and max. markings) level of engine coolant (between min. and max. markings) cowling is closed and properly secured propeller has no damage or wear nose gear and wheel/tire have no damage or wear, air pressure is...
  • Page 60 G3-8 MA FM 1204 - R06 Normal Procedures 26. fuselage has no damage right main gear and wheel/tire have no damage or wear, air pressure correct and suspension is free 28. lower wing strut attachment is secured 29. flap, linkage and hinges have no damage, rubber stops (flutter damper) on outer hinges are in place 30.
  • Page 61 G3-8 MA FM 1204 - R06 Normal Procedures Checks inside the aircraft aileron quick-fasteners are securely locked enough fuel on board for the flight both seats are properly secured in intended position both doors can be locked check proper functioning of the flap drive and gauge Insecurely connected, improper operation of control surfaces or insecurely locked fasteners will lead to loss of control of the aircraft!! Normal Procedures 4 - 6...

  • Page 62: Before Start-Up

    G3-8 MA FM 1204 - R06 Normal Procedures Before Start-Up Checkliste 1. doors LOCKED 2. safety belts FASTENED 3. parking brake 4. recovery system ARMED 5. fuel valve OPEN Engine Start Procedure cold engine 1. master switch 2. anti-collision-light (ACL) 3.

  • Page 63: After Start-Up

    G3-8 MA FM 1204 - R06 Normal Procedures After Start-Up Procedure 1. engine has started STARTER DISENGAGE 2. choke 3. oil pressure 4. position-lights 5. avionics switch 6. intercom 7. radios ON and FREQUENCY SET 8. transponder AS REQUIRED 9. electric fuel pump 10.

  • Page 64: Taxi

    G3-8 MA FM 1204 - R06 Normal Procedures Taxi Procedure 1. landing light RECOMMENDED 2. parking brake RELEASE 3. engine speed AS REQUIRED 4. control on ground VIA PEDALS 5. min. turn radius ca. 20 ft = 7 m 6. braking AS REQUIRED 7.

  • Page 65: Take-Off

    G3-8 MA FM 1204 - R06 Normal Procedures 4.10 Take-Off Procedure standard take-off 1. oil cooler flap AS REQUIRED 2. carburetor heat 3. electric fuel pump 4. flaps 15 deg 5. elevator trim 2/3 UP 6. rudder and aileron NEUTRAL 7.
  • Page 66 G3-8 MA FM 1204 - R06 Normal Procedures short field take-off 1. oil cooler flap AS REQUIRED 2. carburetor heat 3. electric fuel pump 4. brakes 5. flaps 15 deg 6. elevator trim 2/3 UP 7. rudder and aileron NEUTRAL 8.
  • Page 67 G3-8 MA FM 1204 - R06 Normal Procedures soft field take-off 15. oil cooler flap AS REQUIRED 16. carburetor heat 17. electric fuel pump 18. brakes 19. flaps 15 deg 20. elevator trim 2/3 UP 21. rudder and aileron NEUTRAL 22.

  • Page 68: Best Angle Of Climb Speed

    G3-8 MA FM 1204 - R06 Normal Procedures 4.11 Best Angle of Climb Speed (V Checklist 1. flaps 15deg or CLEAN 2. electric fuel pump 3. steepest climb = 39 kIAS = 45 mph IAS X Flaps 15 = 51 kIAS = 59 mph IAS X clean 4.

  • Page 69: Cruise

    G3-8 MA FM 1204 - R06 Normal Procedures 4.13 Cruise Checklist 1. flaps CLEAN 2. landing light 3. engine speed AS REQUIRED 4. maneuvering speed = 88 kIAS = 101 mph IAS 5. normal operating speed = 107 kIAS = 123 mph IAS 6.

  • Page 70: Flying In Rain

    G3-8 MA FM 1204 - R06 Normal Procedures 4.14 Flying in Rain Checklist 1. electric fuel pump 2. carburetor heat 3. engine speed AS REQUIRED 4. oil cooler flap AS REQUIRED 5. CHT max. 275° F = 135°C with SB-011 applied max.

  • Page 71: Flying Without Doors

    G3-8 MA FM 1204 - R06 Normal Procedures 4.15 Flying Without Doors Procedure 1. door lock OPEN 2. gas spring on door DETACH 3. hinge pin PULL 4. door TAKE OUT CAREFULLY is reduced to 100 kIAS = 115 mph IAS when flying NOTE without doors.

  • Page 72: Recovery From Stall

    G3-8 MA FM 1204 - R06 Normal Procedures 4.16 Recovery from Stall Procedure 1. stick back pressure RELEASE 2. rudder OPPOSITE to BANK 3. aileron NEUTRAL 4. engine power AS REQUIRED 4.17 Descent Checklist 1. flaps CLEAN 2. engine speed AS REQUIRED 3.

  • Page 73: Approach

    G3-8 MA FM 1204 - R06 Normal Procedures 4.18 Approach Briefing 1. wind, weather, visibility 2. ATIS CHECKED 3. runway CORRECT DIRECTION 4. traffic pattern ALTITUDE and ROUTING 5. radios ON and FREQUENCY SET 6. transponder AS REQUIRED 7. full flaps airspeed = 78 kIAS = 90 mph IAS 8.

  • Page 74: Landing

    G3-8 MA FM 1204 - R06 Normal Procedures 4.19 Landing Procedure normal landing full flaps airspeed = 78 kIAS = 90 mph IAS approach airspeed = 60 kIAS = 69 mph IAS flaps DOWN target airspeed AS RECOMMENDED landing light RECOMMENDED engine power AS REQUIRED...
  • Page 75 G3-8 MA FM 1204 - R06 Normal Procedures short field landing full flaps airspeed = 78 kIAS = 90 mph IAS approach airspeed = 60 kIAS = 69 mph IAS flaps DOWN target airspeed AS RECOMMENDED landing light RECOMMENDED engine power AS REQUIRED elevator trim AS REQUIRED...
  • Page 76 G3-8 MA FM 1204 - R06 Normal Procedures soft field landing full flaps airspeed = 78 kIAS = 90 mph IAS approach airspeed = 60 kIAS = 69 mph IAS flaps DOWN target airspeed AS RECOMMENDED landing light RECOMMENDED engine power AS REQUIRED elevator trim AS REQUIRED...

  • Page 77: Balked Landing

    G3-8 MA FM 1204 - R06 Normal Procedures 4.20 Balked Landing Procedure 1. engine power FULL POWER 2. carburetor heat 3. flaps RETRACT 4. steepest climb = 39 kIAS = 45 mph IAS X Flaps 15 = 51 kIAS = 59 mph IAS X clean 5.

  • Page 78: Shutdown

    G3-8 MA FM 1204 - R06 Normal Procedures 4.22 Shutdown Procedure 1. avionics switch 2. landing light 3. position lights 4. engine 5. ACL 6. cockpit lights 7. master switch 8. recovery system SECURED 9. parking brake It is permissible to switch avionics (GPS, radio, transponder, intercom) together with the avionics switch NOTE rather than separately.
  • Page 79 G3-8 MA FM 1205 - R06 Performance Table of Contents sect. description page General Take-Off and Landing Distances Rate of Climb Cruise Speed, RPM, Fuel Consumption, Range Low Airspeed and Stall Performance 5 - 1...

  • Page 80: General

    G3-8 MA FM 1205 - R06 Performance General All flight performance data are given for ISA standard atmosphere at sea level and standard temperature. To determine temperature in relation to ISA conditions please refer to the following chart: ISA std. Temperature 15000 14000 13000...

  • Page 81: Take-Off And Landing Distances

    G3-8 MA FM 1205 - R06 Performance Take-Off and Landing Distances Take-Off Woodcomp or Sensenich or Tonini Neuform Take-off roll distance 770 ft (Flaps 0° ) 234 m Take-off air distance 421 ft (Flaps 0° ) 128 m Take-off distance 1.191 ft (Flaps 0°...
  • Page 82 (density altitude) + 5% per 1,000 ft The REMOS GX may be operated with doors off and without wheel fairings on the nose and/or main landing gear. Although the performance during take-off is not affected significantly, the following...

  • Page 83: Rate Of Climb

    G3-8 MA FM 1205 - R06 Performance Rate of Climb Propeller Woodcomp Sensenich Neuform or Tonini best angle of climb kIAS mph IAS airspeed V best rate of climb kIAS mph IAS airspeed V best rate of climb at MSL Climb is flown with flaps retracted, see section 4 NOTE Expect a performance loss of about 5% when flying...
  • Page 84 G3-8 MA FM 1205 - R06 Performance Rotax 912 UL-S, 100 hp engine, Sensenich Propeller engine speed fuel flow true airspeed endurance range [ rpm ] [ gph ] [ kTAS ] [ mph true ] [ h ] [ nm ] 5.400 5.200 5.000...

  • Page 85: Low Airspeed And Stall

    G3-8 MA FM 1205 - R06 Performance Low Airspeed and Stall If the center of gravity is within the permissible range, the aircraft will be fully controllable until reaching the stall speed. As the aircraft approaches the stall speed, this will be indicated by slight aerodynamic buffeting.
  • Page 86 G3-8 MA FM 1206 - R05 Weight-and-Balance-Information Table of Contents sect. description page Center of Gravity Range and Determination CG-Calculation Calculation Example Aircraft Specific Weights Weight and Balance Information 6 - 1...

  • Page 87: Center Of Gravity Range And Determination

    G3-8 MA FM 1206 - R05 Weight-and-Balance-Information Center of Gravity Range and Determination Vq"fgvgtokpg"ÐEIÑ."rwv"vjg"cktetchv"qp"5"ygkijkpi"uecngu."rqukvkqpgf" on a level surface. Before weighing, a level wing main chord has to be established (use pads between main wheels and scale beneath). A check-mark reference point (R.P.) on the leading edge of the left wing, adjacent to the wing root, is provided to ease examination.

  • Page 88: Cg-Calculation

    G3-8 MA FM 1206 - R05 Weight-and-Balance-Information CG-Calculation The following procedure must be used to correctly calculate the egpvgt"qh"itcxkv{"ÐEIÑ0 Moment (lb-inch) = Weight (lb) x Arm (inch) Moment Total Center of (lb-inch) Gravity Weight Total (inch) (lb) Weight Moment Inch lb-Inch Empty Weight ____...

  • Page 89: Calculation Example

    G3-8 MA FM 1206 - R05 Weight-and-Balance-Information Calculation Example The following example is given to show how to calculate the center qh" itcxkv{" ÐEIÐ0" Fq" pqv" wug" vjg" ygkijvu" cpf" vjg" gorv{" E0I0" kp" vjku" example for your own flight preparation. Weight Moment Inch...

  • Page 90: Aircraft Specific Weights

    G3-8 MA FM 1206 - R05 Weight-and-Balance-Information Aircraft Specific Weights Below are noted the aircraft specific data. Pilots must use this information to ensure a correct weight and balance calculation prior to every flight. This is essential for safe flight. For detailed information of the weight and balance data and the equipment installed on the aircraft refer to the individual aircraft weight and balance report, which includes the equipment list.
  • Page 91 G3-8 MA FM 3207 - R02 Airplane and Systems Description Table of Contents sect. description pages General Airframe Control System Cockpit Overview 7-12 Left Panel Î Primary Instruments 7-13 Motor Operation 7-18 Center Stack 7-19 Right Panel- Backup and Engine Instruments 7-21 Circuit Breakers 7-22...

  • Page 92: General

    G3-8 MA FM 3207 - R02 Airplane and Systems Description General This section of the POH shall give a brief introduction into the sys- tems installed in the REMOS GX. For further information, mainte- nance and repair instructions see maintenance manual, latest revi- sion. Airframe Type: Full composite carbon fiber aircraft with two seats.
  • Page 93 G3-8 MA FM 3207 - R02 Airplane and Systems Description assembly of the wing The wing consists of four main pars: wingbox, flap, aileron and wing- tip. The wingtip is bolted to the wingbox, aileron and flap are hinged to allow control movements. The wing is completes by the cover glass of the landing light and the main wingbolt which attaches the wing to the fuselage.
  • Page 94 G3-8 MA FM 3207 - R02 Airplane and Systems Description structure of the wing The wingbox is built up by the upper and lower wing skin consisting of CFRP sandwich (foam). Loads are transferred into the main and rear wing spar. The structure is completed by the landing light bay and ribs reinforcing hinge areas, closing the wing to the wingtip and the fuselage.
  • Page 95 G3-8 MA FM 3207 - R02 Airplane and Systems Description structure of the fuselage The skins of the fuselage are build of a monolithic layup of glass, carbon and Kevlar, reinforced by carbon tapes. Sandwich material (foam) is found in the fixed surface of the vertical tail only, which is an integral part of the fuselage.
  • Page 96 The wing strut is attached towards the wing and fuselage by a high tensile bolt, which is a genuine REMOS part. The wing strut can pivot about its axis some degree in order to allow the wing to be folded.
  • Page 97 G3-8 MA FM 3207 - R02 Airplane and Systems Description installation of horizontal tail The horizontal tail is made from GFRP. It is built up similar as the wing structure, consisting of ribs and spars. The elevator included a trim tab, which is operated electrically. The trim tab does not have a dedicated hinge, but uses the elastic flap technology;...

  • Page 98: Control System

    G3-8 MA FM 3207 - R02 Airplane and Systems Description Control System The control system is made of aluminium pushrods and crank bells for the elevator and aileron controls. The rudder is operated by steel cables. The trim system is an electrically driven trim tab on the eleva- tor;...
  • Page 99 G3-8 MA FM 3207 - R02 Airplane and Systems Description elevator control system The control sticks are installed to a pivoting connection element (stick bridge). Thereby a push/pull input stick is transferred from the control stick through a bell crank and a push-pull tube towards the elevator.
  • Page 100 G3-8 MA FM 3207 - R02 Airplane and Systems Description aileron control system Both control sticks are linked together by a control rod system to ensure synchronous movement. The linkage is located beneath two fiberglass-panels on the floor of the cabin right in front of the seats. A translator connects the control stick linkage to the aileron linkage, which uses several bell cranks to establish the connection to the control surfaces.
  • Page 101 G3-8 MA FM 3207 - R02 Airplane and Systems Description flying with only one control stick installed Under certain conditions it might be favorable to have only one con- trol stick installed. It is permissible to take out the control stick on the passenger side.

  • Page 102: Cockpit Overview

    G3-8 MA FM 3207 - R02 Airplane and Systems Description Cockpit Overview Cockpit example oil cowl flap circuit breakers dual throttle Radio backup Instruments Intercom switchboard Transponder Systeme 7 - 12...

  • Page 103: Left Panel Î Primary Instruments

    G3-8 MA FM 3207 - R02 Airplane and Systems Description Left Panel Î Primary Instruments Dynon Flight DEK D-180 Instrumentation consists of a DYNON Flight DEK D-180, a BECKER radio AR6201, an optional intercom ps-engineering PM3000 and a BECKER transponder BXP6401. Primary flight and engine instrumentation is displayed on a DYNON Flight DEK D-180.
  • Page 104 G3-8 MA FM 3207 - R02 Airplane and Systems Description With a D-180, a GPS device can the REMOS GX be equipped with a very high quality avionics. Note that IFR NOTE flights are permitted with an ultralight aircraft yet.
  • Page 105 G3-8 MA FM 3207 - R02 Airplane and Systems Description Becker BXP6401 basic-equipped consists an Transponder. This Transponder is the airborne component of the Air Traffic Control (ATC). It functions in accordance with the secondary radar principle and allows air traffic control to locate, identify and track air craft.
  • Page 106 G3-8 MA FM 3207 - R02 Airplane and Systems Description Becker AR 6201 The VHF transceiver is designed as a single block unit for usage in cockpit environment of general aviation aircrafts. The VHF transceiver has an input for both standard and dynamic microphones.
  • Page 107 G3-8 MA FM 3207 - R02 Airplane and Systems Description PS-Engineering PM 3000 The PM 3000 intercom allows voice-activated communication to the occupants. An audio input at the central control panel (3.5mm jack) allows connection of additional audio. The PM3000 is a panel-mounted intercom with multiple volume and VOX (voice activated squelch) circuits using unified volume and squelch controls for the pilot, and copilot.
  • Page 108 G3-8 MA FM 3207 - R02 Airplane and Systems Description Engine Operation Left Panel The oil temperature control is installed in the upper position. Push to increase temperature, pull to decrease temperature. The dual throttle control is located in the lower position.

  • Page 109: Center Stack

    G3-8 MA FM 3207 - R02 Airplane and Systems Description Center Stack The avionics include variations depending on the equipment (except in the base configuration) a GPS. As a Garmin GPS are here aera a Garmin 696 or 500, mounted in a frame AirGizmo, or install the Flymap-L with a touch screen (with optional GSM modem for online access to the DWD weather data).
  • Page 110 G3-8 MA FM 3207 - R02 Airplane and Systems Description At the central control panel all controls of the REMOS GX are located. All switches are clearly labeled. The switch panel incorporates the following: ‚ Switch for ACL ‚ Navigation lights ‚...
  • Page 111 G3-8 MA FM 3207 - R02 Airplane and Systems Description Right Panel Î Backup Instruments The right cockpit panel varies on equipment installed. The figure below shows a possible variation; it is the version with full equipment including airspeed indicator, altimeter, ELT switch and the ventilation and heating switch, circuit breakers and 12V receptacle.

  • Page 112: Circuit Breakers

    G3-8 MA FM 3207 - R02 Airplane and Systems Description Circuit Breakers The electrical systems of the REMOS GX are secured with circuit breakers (CB). The fuse for the charge control check light is located behind the switch panel. In the engine room to find the fuses for the controller, as well as the loading control.
  • Page 113 G3-8 MA FM 3207 - R02 Airplane and Systems Description If a CB has been tripped, the lip points out of the front side. To reset the CB, push in the lip. To release a CB manually, it must be pulled out of its socket.

  • Page 114: Electrical System

    Airplane and Systems Description 7.10 Electrical System The electrical system of the REMOS GX is powered by an alternator, which is capable of 250W at engine speeds of at least 4,000 RPM. At lower engine speeds the output of the alternator is lower. Below a certain engine speed the alternator is not able to support the power demand for all electrical equipment.
  • Page 115 Low temperatures reduce the capacity to increase the on-board battery and its internal resistance. This may cause some trouble in the cold season. If the aircraft is not operated in winter time REMOS recommends storing the battery in a warm and dry place.

  • Page 116: Center Console

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.11 Center Console The following controls are located on the center console: ‚ Engine fuel shut off valve ‚ Brake lever including fluid reservoir ‚ Parking brake valve All controls are labeled. On the center console you will find all im- portant placards, which post the operational limits for a safe opera- tion of the aircraft.

  • Page 117: Recovery System

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.12 Recovery System The recovery system must be installed according to the approved rtqegfwtgu0"Vjg"dgnvu"qh"vjg"u{uvgo"ctg"cvvcejgf"vq"vjg"ykpiÓu"ockp" spar attachment fittings. They are protected against environmental conditions and are maintenance free. A check is neither required nor rquukdng."cu"vjg"dgnvu"ctg"jkffgp"ykvjkp"vjg"cktrncpgÓu"uvtwevwtg0"...

  • Page 118: Engine

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.13 Engine The engine used on the REMOS GX is the ROTAX 912 ULS-2, which complies with ASTM F2239. The engine is a 4 stroke, 4 cylinder horizontally opposed, duel carbu- reted, twin spark ignition engine with one central camshaft, pushrods and overhead valves.

  • Page 119: Propeller

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.14 Propeller The aircraft is equipped with the NEUFORM CR3-65 propeller. This is a three blade carbon fiber, ground adjustable propeller, equipped with a plastic spinner. Systeme 7 - 29...

  • Page 120: Fuel System

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.15 Fuel System The fuel system of the REMOS GX consists of the following compo- nents: ‚ filler neck (lockable and non-lockable versions available) ‚ fuel tank (see section 2 and 7 and NOT-001 for fuel grades) ‚...
  • Page 121 G3-8 MA FM 3207 - R02 Airplane and Systems Description fuel shut-off valve engine sided fuel system Systeme 7 - 31...
  • Page 122 G3-8 MA FM 3207 - R02 Airplane and Systems Description Fuel is fed from the fuel tank to the electric fuel pump. This pump is a boost pump that sets the fuel system under pressure and reliably prevents and tendency for vapor lock. Through the fuel shut-off valve and the firewall the fuel is routed to- wards the fuel divider.

  • Page 123: Braking System

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.16 Braking System The braking system of the REMOS GX consists of the following components: ‚ reservoir ‚ master cylinder ‚ parking brake valve ‚ brake lines ‚ brake cylinder, brake disc and brake pads...

  • Page 124: Special Equipment And Customizing

    G3-8 MA FM 3207 - R02 Airplane and Systems Description 7.17 Special Equipment and Customizing The aircraft may be equipped with special or additional equipment on ewuvqogtÓu"fgocpf0"Vjg"kpuvcnncvkqp"qh"vjku"gswkrogpv"owuv"dg"egtvi- fied and listed in the equipment list. Avionics other than those mentioned in this manual may be installed qp"...
  • Page 125 G3-8 MA FM 1208 - R06 Aircraft Ground Handling and Servicing Table of Content sect. description page Introduction Checking and Servicing Coolant Checking and Servicing Oil Fuelling the aircraft Towing Tie-Down Rigging a Folded Aircraft Folding a Rigged Aircraft Transportation of the Aircraft Cleaning and Care Aircraft Ground Handling and Servicing 8 - 1...

  • Page 126: Checking And Servicing Coolant

    Checklist, available directly at REMOS or on the website www.remos.com Checking and Servicing Coolant The REMOS GX is designed to be easily serviceable. A flap in the upper cowling allows checking the coolant level in the overflow bottle without removing the cowling.

  • Page 127: Checking And Servicing Oil

    Aircraft Ground Handling and Servicing Checking and Servicing Oil The REMOS GX is designed to be easily serviceable. Access to all components which have to be lubricated or checked regularly is possible without detaching any panels. A flap in the upper cowling allows access to the oil bottle in order to check and add oil without removing the cowling.

  • Page 128: Fuelling The Aircraft

    22 US gallons total fuel quantity AVGAS, MOGAS or min. AKI 91, fuel qualities ideally free of ethanol Please refer to REMOS notification NOT-001 and ROTAX SI-912-016/SI-914-019 for further information on suitable engine fluids (fuel, oil, cooling liquid, additives, etc). NOTE Have a frequent look on www.flyrotax.com...

  • Page 129: Towing

    Aircraft Ground Handling and Servicing Towing Due to the low weight of the REMOS GX, it is very easy to move the cktetchv" d{" jcpf" qp" vjg" itqwpf0" VjcvÓu" yj{" vjgtg" ku" pq" urgekcn" equipment for towing provided. Do not attempt under any...

  • Page 130: Rigging A Folded Aircraft

    G3-8 MA FM 1208 - R06 Aircraft Ground Handling and Servicing Rigging a Folded Aircraft The REMOS GX is manufactured to the highest quality standards. All components very precise provide maximum aerodynamic quality. It is therefore strongly recommended that you be very careful when assembling or disassembling components such as the wings, stabilizer and other parts.
  • Page 131 Insecure connection, improper operation of control surfaces or insecurely locked fasteners will lead to loss of control of the aircraft!! When in doubt contact your local REMOS dealer or service center. Proceed in the same order with the second wing.

  • Page 132: Folding A Rigged Aircraft

    Insecure connection, improper operation of control surfaces or insecurely locked fasteners will lead to loss of control of the aircraft!! When in doubt contact your local REMOS dealer or service center. 6. Attach the tail cover and secure it with the screws provided.

  • Page 133: Transportation Of The Aircraft

    When the aircraft has to be moved by trailer, please ask your authorized REMOS dealer for advice. When placed on a trailer in a wrong way, serious damage could result.
  • Page 134 G3-8 MA FM 1208 - R06 Imprint Pilot Operating Handbook REMOS GX ASTM Edition Copyright REMOS AG © REMOS 2007-2015, all rights reserved...
  • Page 135 POH Supplement Î Flight Training...
  • Page 136 G3-8 MA FM 1209 Î R06 Supplement Flight Training Table of Content sect. description page Introduction Take-Off Climb Cruise Stall Slip Glide Descent Approach 9-10 Touch Down 9-12 Supplement Flight Training 9 - 1...

  • Page 137: Introduction

    G3-8 MA FM 1209 Î R06 Introduction This chapter should enable you to familiarize yourself with the flight performance and flight characteristics of the REMOS GX. To complete these instructions, please refer to the appropriate sections in the POH. The following pages describe flight characteristics experienced...

  • Page 138: Take-Off

    G3-8 MA FM 1209 Î R06 Take-Off Take-off under normal conditions 1. After the pre-flight check has been completed, extend flaps to 15° . Take-off may be performed without flaps, too, but this leads to higher take-off distances. 2. Ensure that the elevator trim is in the correct position. 3.

  • Page 139: Climb

    G3-8 MA FM 1209 Î R06 Climb Climb with Best Angle of Climb With engine set to full power, establish V , which is V = 39 kIAS X Flaps 15 (45 mph IAS) for flaps 15 deg and V = 51 kIAS (59 mph IAS) with X clean flaps up.

  • Page 140: Cruise

    When flying in gusty weather conditions, the normal operating airspeed V = 107 kIAS = 123 mph IAS should not be exceeded for safety reasons. The REMOS GX offers very stable flight characteristics even in heavy weather conditions. Cruise in rain or with dirty aircraft Raindrops and bugs affect the performance of the aircraft.

  • Page 141: Stall

    G3-8 MA FM 1209 Î R06 Stall The REMOS GX is fully controllable when flying at a wide range of airspeeds. At airspeeds below the lower speed limit, the aircraft will display very stable stall characteristics. If the airspeed is reduced by...

  • Page 142: Slip

    G3-8 MA FM 1209 Î R06 Slip The slip is a very stable flight condition and is also very easy to perform. This maneuver is used to increase aerodynamic drag to enable a high rate of descent. Before establishing a slip, you have to ensure that the airspeed is within the required limits.
  • Page 143 G3-8 MA FM 1209 Î R06 Gliding The aircraft can glide well with the engine off. Best glide ratios are achieved within an indicated airspeed of 60 kIAS (69 mph IAS). These speeds will establish a glide ratio of about 1:10 with the flaps retracted (0°...

  • Page 144: Descent

    G3-8 MA FM 1209 Î R06 Descent When descending from level flight it is important to monitor engine temperatures. During descent, the temperatures will decrease, which could cause engine failure or carburetor icing to develop. Therefore we strongly recommend that you not exceed the lower limits of these temperatures.

  • Page 145: Approach

    MTOW is 55 kIAS (63 mph IAS). Approach under tailwind conditions When on final approach with a tailwind component, the REMOS GX does not require different approach or flare procedures than those used in calm or headwind conditions. However, you do have to keep in mind that the landing distance will increase significantly.
  • Page 146 Raindrops on the wing surfaces influence the aerodynamic characteristics of the airfoil; drag will increase while lift decreases. The airfoil used on the REMOS GX features stable flight characteristics in rainy conditions. Therefore, there are no special advisories for flights within rain. we recommend that you operate the aircraft as you would in turbulent weather conditions (see "Approach...

  • Page 147: Touchdown

    The aircraft has very good low speed characteristics and so is very controllable all the way through the landing phase. After a good approach has been conducted, the REMOS GX does not require much action to land with a perfect touch down. It is important to establish a safe and stable airspeed during the approach.
  • Page 148 G3-8 MA FM 1209 Î R06 Imprint Pilot Operating Handbook REMOS GX Supplement Flight Training ASTM Edition Copyright REMOS AG © REMOS 2007-2015, all rights reserved...
  • Page 149 POH Supplement Î Glider Towing...
  • Page 150 G3-8 MA FM 1210 - R06 Supplement Glider Towing Table of Content sect. description page General Information 10-2 Operating Limitations 10-3 Emergency Procedures 10-5 Normal Procedures 10-7 Performance 10-10 Weight and Balance 10-16 Systems 10-17 Aircraft Ground Handling and Service 10-18 Supplement Glider Towing 10 - 1...

  • Page 151: General Information

    Quick Reference For use as a glider towing aircraft, the REMOS GX is equipped with the TOST E85 tow release clutch, which is connected to the fuselage tail by a specially developed mounting frame. To release the tow rope a release lever is located on the left hand side of the pilot seat (colored yellow).

  • Page 152: Operating Limitations

    300 dN Maximum Glider Take-Off Weight The maximum permissible take-off weight of the glider to be towed varies with the propeller mounted to the REMOS GX. The following operating limitations may not be exceeded: Propeller Glider Tonini GT-2...

  • Page 153: Required Placards And Markings

    ‚ as per D-VFR minimum equipment list, plus ‚ TOST tow release clutch type E85 ‚ REMOS mounting frame for tow release clutch ‚ yellow colored release handle ‚ rear view mirror placed on main spar carrythrough Flying Without Doors...

  • Page 154: Emergency Procedures

    G3-8 MA FM 1210 - R06 Emergency Procedures Engine Failure Procedure Case 1: altitude not enough for engine re-start 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. landing site IDENTIFY 3. glider pilot NOTIFIED 4. glider pilot RELEASE ROPE 5. engine 6.
  • Page 155 If the glider pilot cannot recover from the abnormal flight attitude and does not or cannot release the tow rope, the NOTE REMOS GX pilot must release the tow rope to recover from the abnormal flight attitude. If the abnormal flight attitude cannot be recovered from...

  • Page 156: Normal Procedures

    G3-8 MA FM 1210 - R06 Normal Procedures Preflight Check Checklist 1. Perform standard preflight check 2. Check tow release clutch and test-release a tow rope Take-Off Procedure 1. oil cooler flap OPEN 2. carburetor heat 3. electric fuel pump 4.
  • Page 157 G3-8 MA FM 1210 - R06 Normal Procedures Climb Briefing Flight tests have been conducted with various glider airplanes. These tests revealed that modern composite gliders, especially when loaded with water ballast, must be towed faster than older wooden sailplanes. The modern gliders are usually towed with...
  • Page 158 G3-8 MA FM 1210 - R06 Normal Procedures Approach Briefing 1. wind, weather, visibility 2. ATIS CHECKED 3. runway CORRECT DIRECTION 4. traffic circuit ALTITUDE and ROUTING 5. radios ON and FREQUENCY SET 6. transponder AS REQUIRED 7. full flaps BELOW 81 mph = 70kts 8.
  • Page 159 G3-8 MA FM 1210 - R06 Performance Take-Off Roll Distance If the REMOS GX is equipped with a Sensenich R70EN or a Neuform CR3-65 propeller, the following take-off roll distances apply (under the conditions of a hard surface runway, ISA conditions, no wind and lift-off at V = 50 kIAS = 58 mph IAS).
  • Page 160 G3-8 MA FM 1210 - R06 Performance Take-Off Air Distance If the REMOS GX is equipped with a Sensenich R70EN or a Neuform CR3-65 propeller, the following take-off air distances apply (under the conditions of a hard surface runway, ISA conditions, no wind and lift-off at V = 50 kIAS = 58 mph IAS).

  • Page 161: Performance

    G3-8 MA FM 1210 - R06 Performance Take-Off Distance over 50ft The following diagram presents the total take-off distance over 50ft (under the conditions of a hard surface runway, ISA conditions, no wind and lift-off at V = 50 kIAS = 58 mph IAS). Take-Off Distance over 50ft ISA, hard surface, no wind 2500...
  • Page 162 G3-8 MA FM 1210 - R06 Performance Effects on Take-Off Distance Take-off distances given apply for ISA conditions and a dry, hard runway surface. Various circumstances have an effect on take-off and landing performance. According to ICAO-circular 601AN/55/2, it is recommended to use following add-ons for roll and air distances: add-ons on take-off roll distance for dry grass + 20%...
  • Page 163 G3-8 MA FM 1210 - R06 Performance ISA std. Temperature 15000 14000 13000 12000 11000 10000 9000 8000 7000 6000 5000 4000 3000 2000 1000 temperature [ ° C ] Supplement Glider Towing 10 - 14...
  • Page 164 G3-8 MA FM 1210 - R06 Performance Tested Glider Configuration The following gliders have been towed during flight tests: LS-1, LS-4, Baby-III, Astir and Twin Astir, Hornbach, Junior, Jantar, Pirat, Puchacz, Discus and DuoDiscus, Blanik, DG-100/300/500, DG-1000, ASK-21 and ASW-24, Nimbus and Cirrus, Cobra, PIK-20. Remarks Based on the rules of the Light Sport Aircraft airworthiness standards, the maximum dimension is defined by the weight of the...

  • Page 165: Weight And Balance

    ‚ TOST tow release clutch, type E 85 ‚ REMOS mounting frame for tow release clutch ‚ release handle (colour yellow) ‚ REMOS oil temperature regulation flap ‚...

  • Page 166: Systems

    G3-8 MA FM 1210 - R06 Systems The tow release handle is installed inside the cabin of the REMOS GX. The handle is located on the left hand side of the pilot seat, colored yellow. Pulling the handle releases the tow rope. The handle should provide a free play of 1/2 to 1 Inch.

  • Page 167: Aircraft Ground Handling And Service

    G3-8 MA FM 1210 - R06 Aircraft Ground Handling and Service During regular servicing intervals, the tow release clutch must be cleaned, lubricated and checked to assure proper operation. A general overhaul of the release clutch must be conducted every 4 years or 4,000 towing operations, whatever comes first.
  • Page 168 G3-8 MA FM 1210 - R06 Imprint Pilot Operating Handbook REMOS GX Supplement Glider Towing ASTM Edition Copyright REMOS AG © REMOS 2007-2015, all rights reserved...
  • Page 169 POH Supplement Î Banner Towing...
  • Page 170 G3-8 MA FM 1211 - R03 Supplement Banner Towing Table of Content sect. description page General Information 11-2 Operating Limitations 11-3 Emergency Procedures 11-5 Normal Procedures 11-7 Performance 11-9 Weight and Balance 11-12 Systems 11-13 Aircraft Ground Handling and Service 11-14 Supplement Glider Towing 11 - 1...

  • Page 171: General Information

    Quick Reference For use as a banner towing aircraft, the REMOS GX is equipped with the TOST E85 tow release clutch, which is connected to the fuselage tail by a specially developed mounting frame. To release the tow rope a release lever is located on the left hand side of the pilot seat (colored yellow).

  • Page 172: Operating Limitations

    Low drag banners up to 216m have been tested. max. drag 700 N at 73 kCAS weak weight 20 kg Approved banners should be used. Crew During banner towing operations the REMOS GX must be operated only pilot passenger allowed, except training/instruction). Minimum Equipment List ‚...
  • Page 173 G3-8 MA FM 1211 - 02 Operating Limitations Flying Without Doors not permitted during towing operations Required Placards and Markings Adjacent to the airspeed indicator: Adjacent to the tow release handle: At the release clutch bracket: Supplement Glider Towing 11 - 4...

  • Page 174: Emergency Procedures

    G3-8 MA FM 1211 - 02 Emergency Procedures Engine Failure Procedure Case 1: altitude not enough for engine re-start 1. AVIATE Î NAVIGATE Î COMMUNICATE 2. landing site IDENTIFY 3. engine 4. fuel valve CLOSE 5. declare emergency MAYDAY MAYDAY MAYDAY 6.
  • Page 175 G3-8 MA FM 1211 - 02 Emergency Procedures Failure of the Release Clutch Procedure 1. approach airspeed = 60 kIAS = 69 mph IAS 2. full flaps airspeed = 78 kIAS = 90 mph IAS 3. max. airspeed with banner = 65 kIAS = 75 mph IAS NE banner 4.

  • Page 176: Normal Procedures

    G3-8 MA FM 1211 - 02 Normal Procedures Preflight Check Checklist 1. Perform standard preflight check 2. Check tow release clutch and test-release a tow rope Take-Off Procedure 1. oil cooler flap OPEN 2. carburetor heat 3. electric fuel pump 4.
  • Page 177 G3-8 MA FM 1211 - 02 Normal Procedures Approach Briefing 1. wind, weather, visibility 2. ATIS CHECKED 3. runway CORRECT DIRECTION 4. traffic circuit ALTITUDE and ROUTING 5. radios ON and FREQUENCY SET 6. transponder AS REQUIRED 7. electric fuel pump 8.

  • Page 178: Performance

    G3-8 MA FM 1211 - 02 Performance Take-Off Distance take-off distance over 50ft hard surface, no wind, ISA 1200 1000 Tonini Propeller Neuform Propeller Sensenich Propeller Rospeller Propeller banner area [ qm ] Supplement Glider Towing 11 - 9...
  • Page 179 G3-8 MA FM 1211 - 02 Performance Effects on Take-Off Distance Take-off distances given apply for ISA conditions and a dry, hard runway surface. Various circumstances have an effect on take-off and landing performance. According to ICAO-circular 601AN/55/2, it is recommended to use following add-ons for roll and air distances: add-ons on take-off roll distance for dry grass + 20%...
  • Page 180 G3-8 MA FM 1211 - 02 Performance ISA std. Temperature 15000 14000 13000 12000 11000 10000 9000 8000 7000 6000 5000 4000 3000 2000 1000 temperature [ ° C ] Supplement Glider Towing 11 - 11...

  • Page 181: Weight And Balance

    ‚ TOST tow release clutch, type E 85 ‚ REMOS mounting frame for tow release clutch ‚ release handle (colour yellow) ‚ REMOS oil temperature regulation flap ‚...

  • Page 182: Systems

    G3-8 MA FM 1211 - 02 Systems The tow release handle is installed inside the cabin of the REMOS GX. The handle is located on the left hand side of the pilot seat, colored yellow. Pulling the handle releases the tow rope. The handle should provide a free play of 1/2 to 1 Inch.

  • Page 183: Aircraft Ground Handling And Service

    G3-8 MA FM 1211 - 02 Aircraft Ground Handling and Service During regular servicing intervals, the tow release clutch must be cleaned, lubricated and checked to assure proper operation. A general overhaul of the release clutch must be conducted every 4 years or 4,000 towing operations, whatever comes first.
  • Page 184 G3-8 MA FM 1211 - 02 Imprint Pilot Operating Handbook REMOS GX Supplement Banner Towing ASTM Edition Copyright REMOS AG © REMOS 2007-2015, all rights reserved...
  • Page 185 POH Supplement Î Continued Airworthiness...
  • Page 186 G3-8 MA FM 1212 - R02 Supplement Glider Towing Table of Content sect. description page Purpose 11-2 Continued Airworthiness System 11-3 Owner/Operator Responsibilities 10-5 Release of Notices to the Public 10-7 Documentation Update 10-8 Maintenance and Annual Condition Inspection 10-9 Modifications or Change of Equipment 10-10 Repairs...

  • Page 187: Purpose

    G3-8 MA FM 1212 - R02 Purpose Continued Airworthiness is everything that is required to keep an aircraft in a safe condition to fly. This does not only include the technical part like maintenance and annual condition inspection. It also includes update of documentation, e.g. Pilot Operating Handbook, issuing repair instructions and repair approvals, change on equipment and feedback of the customer to the manufacturer.

  • Page 188: Continued Airworthiness System

    If a customer does not inform the manufacturer by means of this form, REMOS AG also accepts any way of information as long as it contains at least following information: ‚...
  • Page 189 ‚ decision of corrective action The continued airworthiness system of REMOS AG does not only cover events that have occurred during operation of the aircraft. Proposals for improvements or corrections, service difficulties, findings during maintenance events or annual condition inspections are also covered by the continued airworthiness system.

  • Page 190: Owner/Operator Responsibilities

    G3-8 MA FM 1212 - R02 Owner/Operator Responsibilities During handover of the aircraft the owner/operator is introduced into the continued airworthiness system of REMOS AG. The customer is informed about the following: ‚ The maintenance handbook provides all information that the customer needs to comply with the regulations, especially with continued airworthiness and maintenance.
  • Page 191 This information is provided by means of the customer commitment form, which is part of the maintenance manual. The owner/operator shall sign this form and send it to REMOS AG. On this form the owner/operator shall also provide the manufacturer with current contact data.
  • Page 192 ‚ NOTIFICATION will be issued in case service information is required, but owner/operators will not be informed by postal mail. The public is notified via the website www.remos.com only. Supplement Continued Airworthiness 12 - 7...

  • Page 193: Documentation Update

    Documentation Update Any documentation update will be released on the website www.remos.com Owner/operators will not be informed by postal mail, unless such a documentation update is mandatory for safety of flight and is released by a safety alert or a service bulletin. Examples for documentation updates are new revisions of: ‚...
  • Page 194 G3-8 MA FM 1212 - R02 Maintenance and Annual Cond. Inspection Maintenance intervals of all REMOS aircraft are 25h for the first maintenance event, followed by 100h inspections. In case that AVGAS 100LL is used for more than 30% of the time, oil change interval is reduced to 50h.

  • Page 195: Modifications Or Change Of Equipment

    A&P Mechanic or a Part 145 Repair Station with appropriate ratings after the work is accomplished. Then this LOA will be signed by the Head of Design of REMOS AG and handed out to the customer. This procedure will be performed by e-mail.
  • Page 196 G3-8 MA FM 1212 - R02 Modifications or Change of Equipment Without having updated the equipment list and weight and balance or not having changes approved by the manufacturer that are not part of the maintenance manual, the aircraft is considered not airworthy and unsafe to fly.

  • Page 197: Repairs

    A&P Mechanic or a Part 145 Repair Station with appropriate ratings after the work is accomplished. Then this Repair Approval will be signed by the Head of Design of REMOS AG and handed out to the customer. This procedure will be performed by e-mail.
  • Page 198 G3-8 MA FM 1212 - R02 Repairs The extent of work cannot generally be defined; it is always an individual project. Working hours of the engineering department will be charged by the hour according to actual pricelists. This procedure is not intended and built up for the manufacturer to make money of it.

  • Page 199: Contact Data

    G3-8 MA FM 1212 - R02 Contact Data The manufacturer of the REMOS aircraft and the only responsible entity for continued airworthiness is REMOS AG Franzfelde 31 D-17309 Pasewalk G E R M A N Y Tel: +49-3973-225519-0 Fax: +49-3973-225519-99 Email: service@remos.com...
  • Page 200 G3-8 MA FM 1212 - R02 Imprint Pilot Operating Handbook REMOS GX Supplement Glider Towing ASTM Edition Copyright REMOS AG © REMOS 2007-2015, all rights reserved...

Table of Contents
